Primo BMX "Pro" BMX Crank

175.95 EUR

[incl. 19% VAT excl. shipping]
Color
lenght
Qty.
  • Weight (in kg): 0.95
  • Weight (in lbs): 2.09
  • Packaging Unit: 1 Set
  • Product ID (PID): 12986

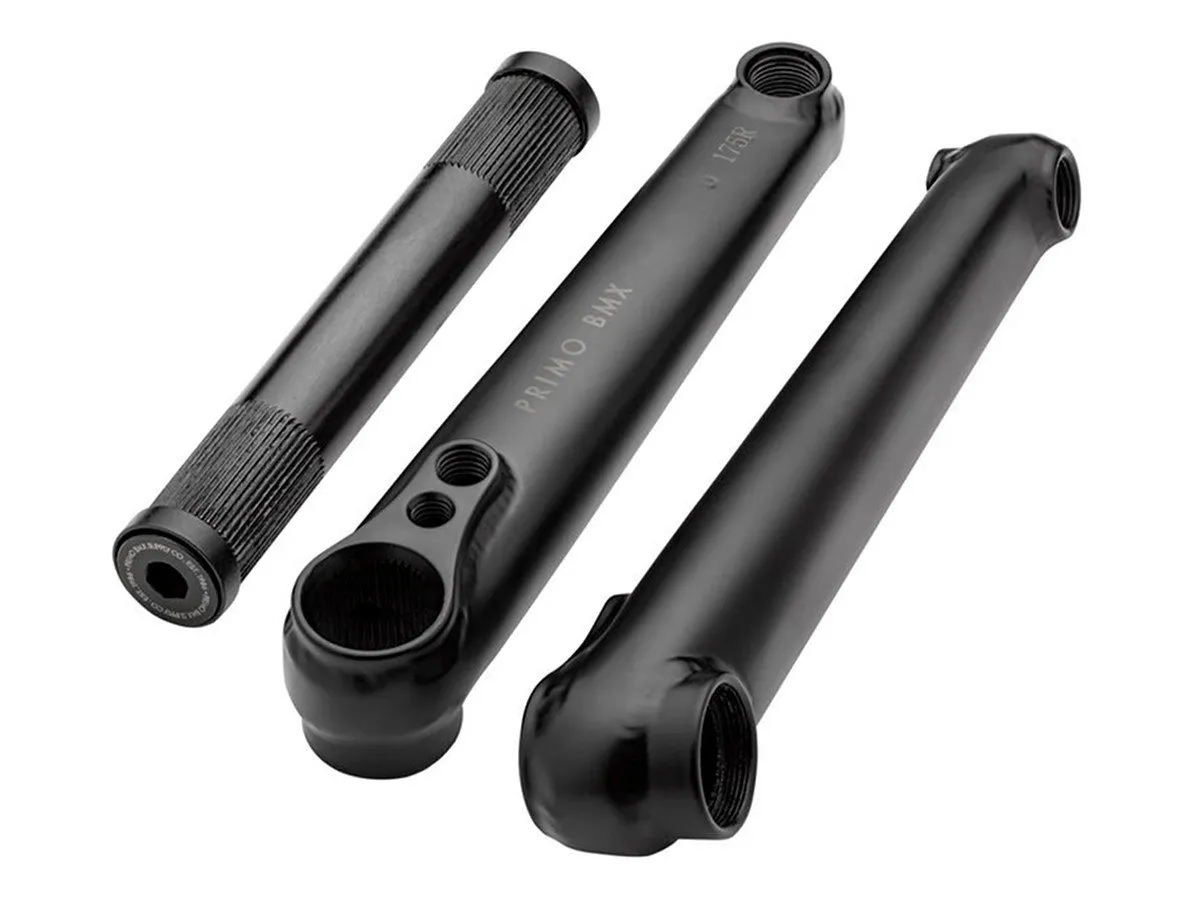

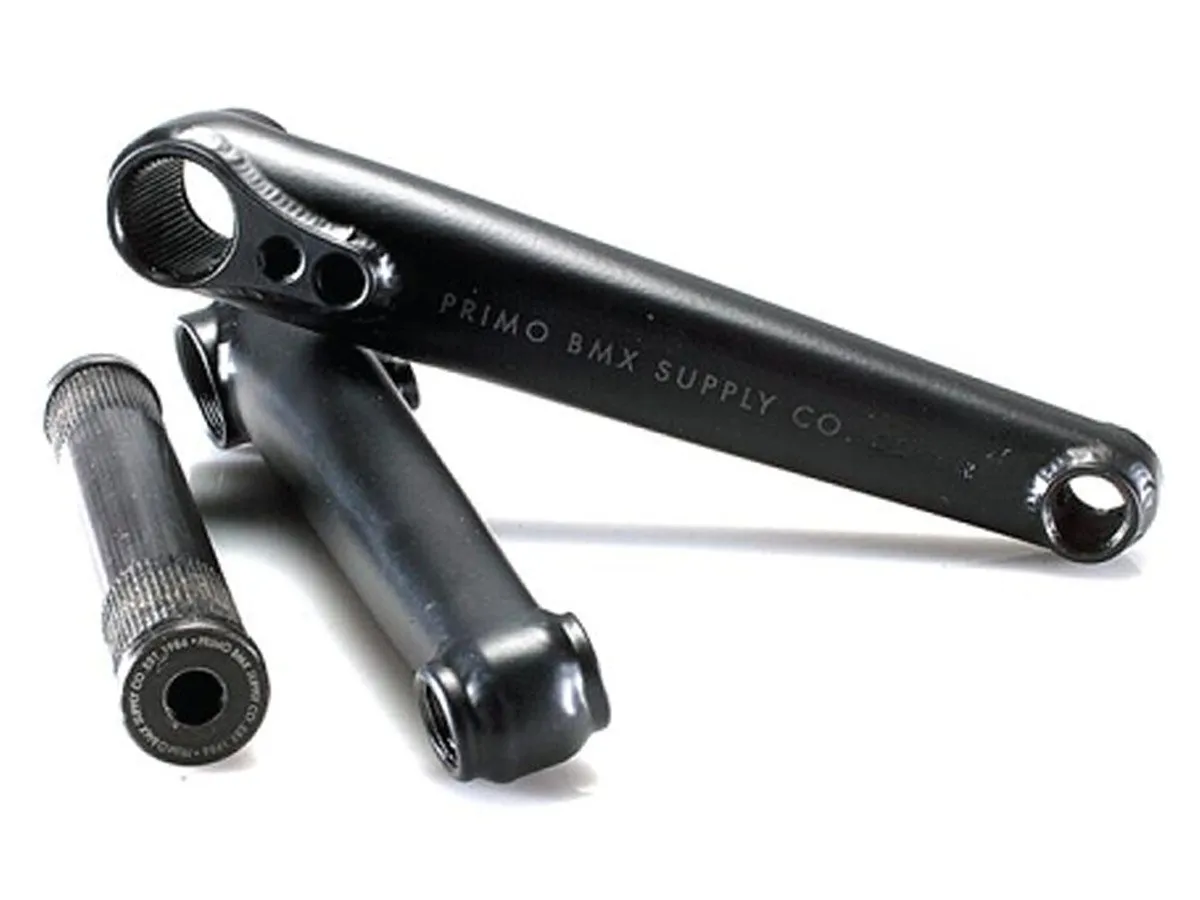

The Primo BMX "Pro" BMX Crank is a solid 3-piece design, comes with a stable 22mm hollow 48 spline heat treated spindle and will work with nearly every BMX sprocket. The Primo BMX "Pro" BMX Crank is RHD and LHD compatible.

Facts: Primo BMX "Pro" BMX Crank

  • Material Crank Arms: 4130 CrMo, heat treated
  • Material Crank Spindle: 4130 CrMo, heat treated, hollow
  • Crank-Type: 3-piece
  • Crank Arm Length: 175mm
  • Spindle Diameter: 22mm
  • Spindle-Type: 48-Spline
  • possible Sprocket Mount by:
    Micro-Bolt-Drive (smaller then 25T): right (RHD) and left (LHD)
    Bolt-Drive (25T or larger): right (RHD) and left (LHD)
    Spline-Drive: right (RHD) and left (LHD)
  • Pedal Threat: for 9/16" pedals
  • Spindle Bolt: 1x bolts (15x1mm, 22mm Axle) with 8mm allen key
  • Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
  • Extras: completely surround welded axle and pedal jacks, rectangular flattened arms
  • Recommended for: Street, Park or Trails
