Radio Bikes "Solar Pro XXL" BMX Race Frame
- Weight : 1.22kg / 2.69lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23268
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/radio-bikes-solar-pro-xxl-bmx-race-frame-p-23268
Printed: 11/22/2026
Printed: 11/22/2026

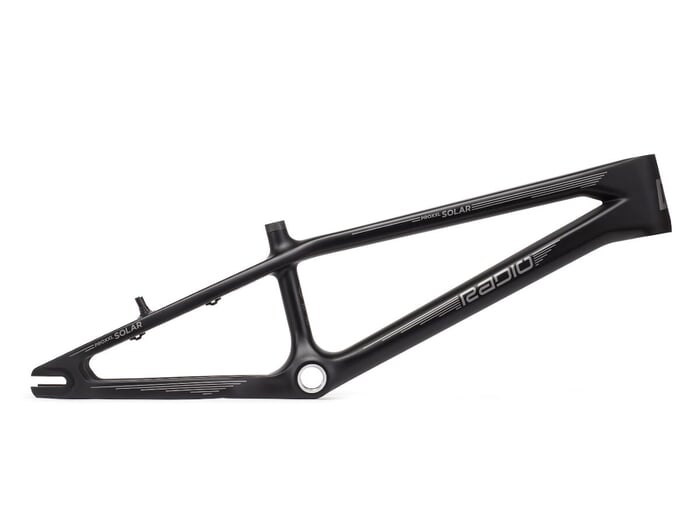

The Radio Bikes "Solar Pro XXL" BMX Race Frame is a carbon frame for 20 x 1.75" tyres with an integrated tapered head tube (1-1/8" to 1.5"). The geometry with a 74.5° head angle, 71° seat angle and 14.5" chainstay is built for tall riders. The bottom bracket is a threaded Euro BSA 68 mm, and the dropouts take 15 mm axles with a 110 mm hub width. Chain tensioners and V-brake bosses are integrated, the seatpost diameter is 27.2 mm.
Facts: Radio Bikes "Solar Pro XXL" BMX Race Frame
- Wheel size: 20" x 1.75"
- Material: carbon, integrated tapered (1 1/8" to 1.5") Headset
- Geometry:
- Toptube (TT): 21.75"
- Chainstay (CS): 14.5"
- Headtube Angle (HA): 74.5°
- Sattelrohr Winkel: 71°
- Bottom Bracket heigth: 11.6"
- Dropouts: 15mm - Seat clamp: without
- Seat post diameter: 27.2mm
- Bottom Bracket: Euro, threaded, BSA 68mm
- Chain tensioners: integriert
- Brake style: V-Brake
- Brake hardware: mounted
- Year: 2021
- Note: The installation width of the hub should be 110mm
- Model Year: 2021
