Radio Bikes "Helium Mini" 2020 BMX Race Frame
- Weight : 1.22kg / 2.69lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 23307
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/radio-bikes-helium-mini-2020-bmx-race-frame-p-23307
Printed: 11/11/2026
Printed: 11/11/2026

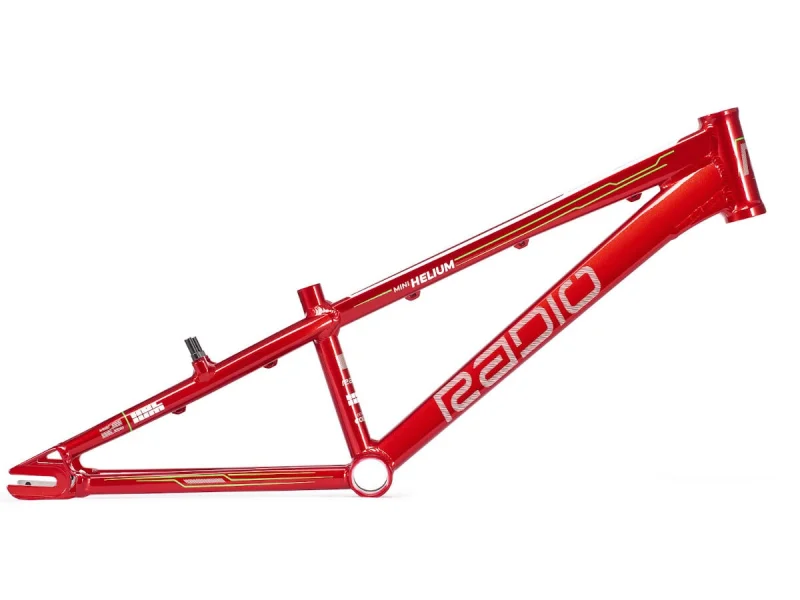

The Radio Bikes "Helium Mini" 2020 BMX Race Frame is a 6061 aluminium frame for the smallest riders on the track, built for 20 x 1-1/8" tyres. To match its size it has an integrated 1" head tube, a short 12.4" chainstay, a 73° head angle and a 70° seat angle. The dropouts take 10 mm axles, the bottom bracket is Pressfit PF30, and the seatpost diameter is 22.2 mm. Chain tensioners and V-brake bosses are integrated.
Facts: Radio Bikes "Helium Mini" 2020 BMX Race Frame
- Wheel size: 20" x 1-1/8"
- Material: aluminium 6061, integrated 1" Headset
- Geometry:
- Toptube (TT): 17.6"
- Chainstay (CS): 12.4"
- Headtube Angle (HA): 73°
- Sattelrohr Winkel: 70°
- Bottom Bracket heigth: 10.6"
- Dropouts: 10mm - Seat clamp: not included
- Seat post diameter: 22.2mm
- Bottom Bracket: Pressfit (PF30)
- Chain tensioners: integriert
- Brake style: V-Brake
- Brake hardware: mounted
- Year: 2020
- Model Year: 2020
