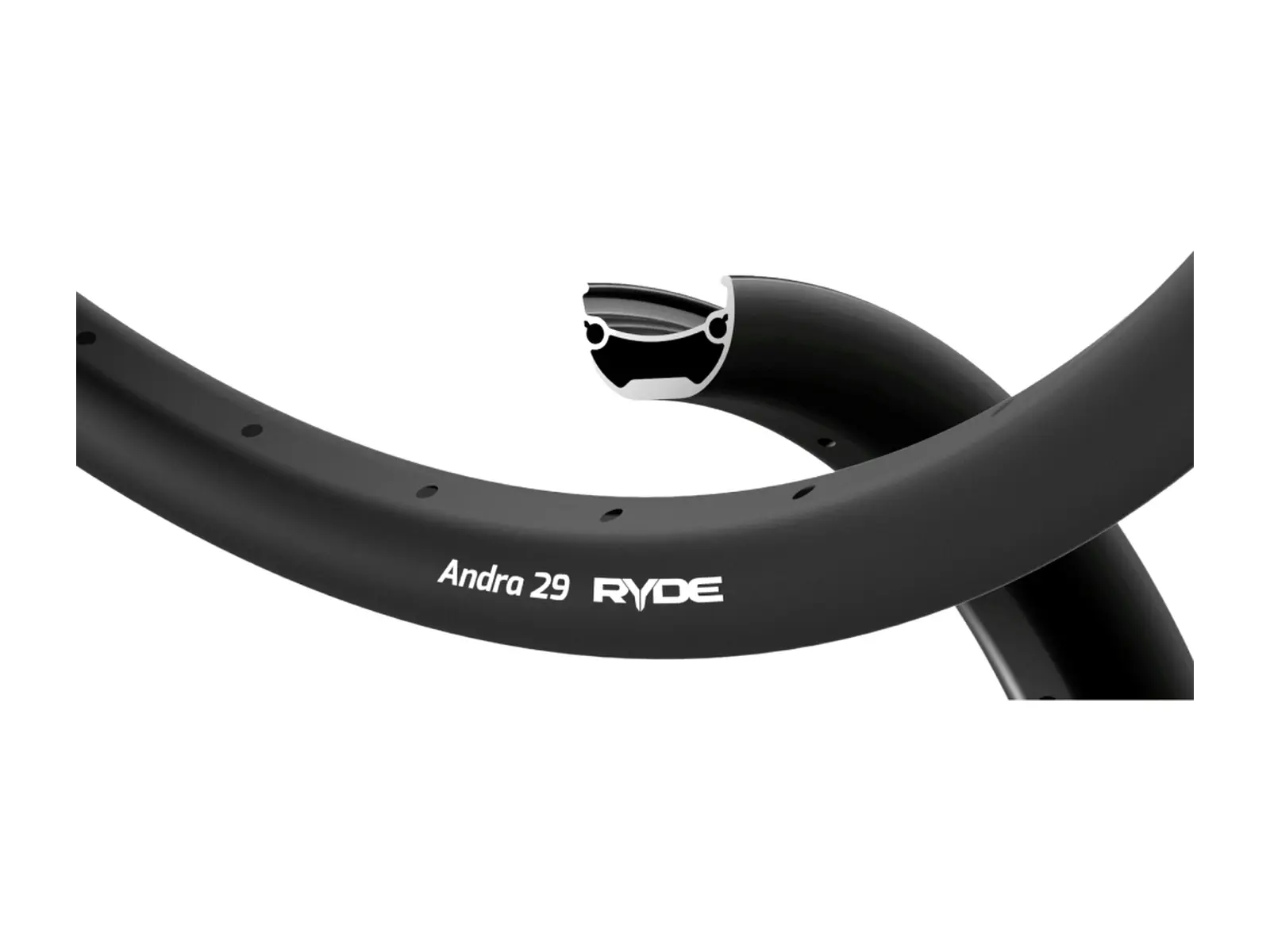

Ryde "Andra 29" BMX Race Rim - 20 Inch Disc
-
Weight : 0.61kg / 1.34lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36970
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The Ryde "Andra 29" BMX Race Rim - 20 Inch Disc is Ryde's wide load carrying rim for disc brakes in 20 inch (406): a pinned double wall rim made of 6106-T6 aluminium, powder coated, 29mm internal width for tyres from 47 to 71mm, built for a 150kg axle load and 1400N spoke tension. The nipple bed is thick and internally reinforced, the spoke holes are drilled 8 degrees radially and 2 degrees axially towards the hub, the valve hole takes Schrader valves. It is not tubeless ready and runs with a tube. With 36 holes for 20 inch disc brake wheels with a wide tyre, on a kids or dirt MTB as on a BMX race bike.
Facts: Ryde "Andra 29" BMX Race Rim - 20 Inch Disc
- Wheel Size: 20"
- Material: 6106-T6 aluminium, double wall, powder coated
- Seam: Pinned
- Holes: 36H

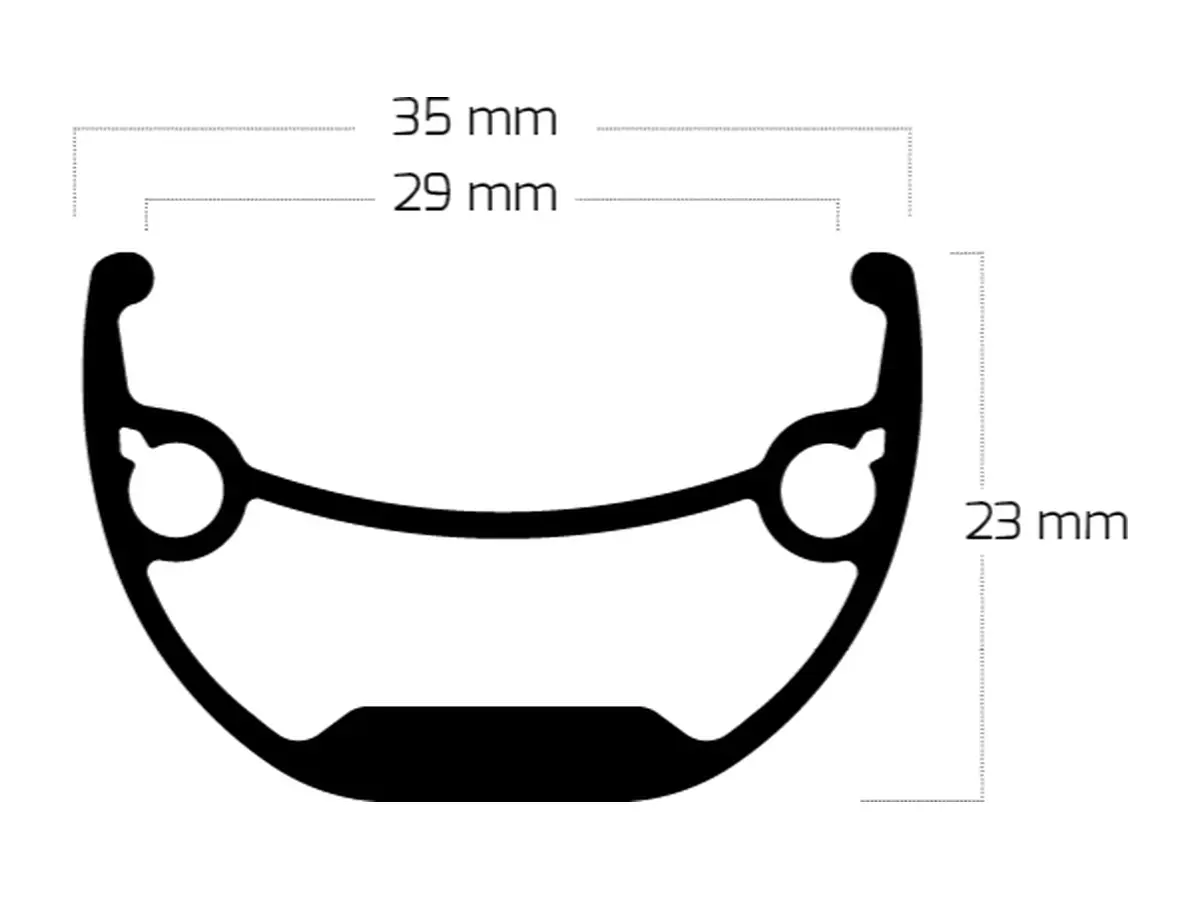

- Width: 29mm internal, 35mm external
- Height (Rim Wall): 23mm
- ETRTO ⌀: 406mm
- Rim Wall: no brake track, disc brake only
- Valve Hole Diameter: 8.5mm for Schrader valve
- Spoke Arrangement: Regular, cross laced
- Contains: 1 rim
- Extras:
- not tubeless ready, for tube tyres
- hooked rim (crotchet)
- no eyelets, internally reinforced nipple bed
- French drilling pattern (staggered holes)
- spoke holes drilled 8° radial and 2° axial
- max. spoke tension 1400N
- recommended tyre width 47mm to 71mm
- axle load up to 150kg
- developed by Ryde for cargo bikes and high loads
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
