Shimano "XTR BL-M9200 + BR-M9200" BMX Race Disc Brake - Post Mount
- Weight : 0.34kg / 0.75lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45939
- Product safety
Weight
Source: BMX Glossary
Printed: 10/29/2026

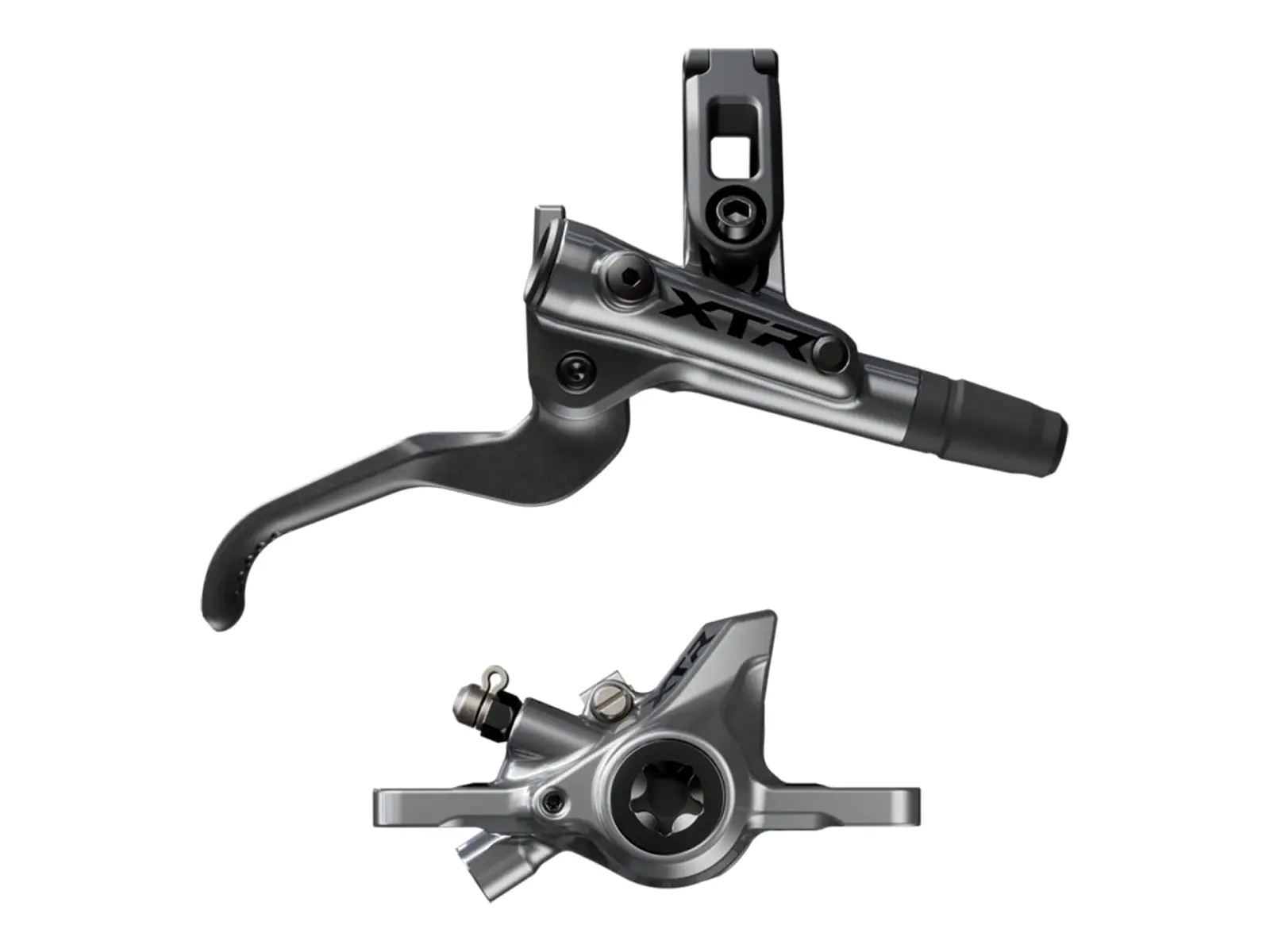

The Shimano "XTR BL-M9200 + BR-M9200" BMX Race Disc Brake - Post Mount combines the slim XTR race lever BL-M9200 with the BR-M9200 two piston caliper, Shimano's lightest post mount two piston caliper. According to Shimano it is the lightest XC brake in the range: the master cylinder is magnesium, the lever body carbon, the caliper has a magnesium body and heat resistant resin pistons. The low viscosity mineral oil keeps the bite point consistent at any temperature, and the redesigned pad interface keeps the brake quiet.
The brake comes with the right hand lever and the SM-BH90-SS hose (1700 mm). It works exclusively with Shimano low viscosity mineral oil (SM-LVOIL), which is not included. Rotor and adapter are not included either.
Facts: Shimano "XTR BL-M9200 + BR-M9200" BMX Race Disc Brake - Post Mount
- Material: magnesium master cylinder, carbon lever body, magnesium caliper
- Style: hydraulic disc brake
- Brake Lever:
- Model: Shimano XTR BL-M9200
- magnesium master cylinder
- carbon lever body - Caliper:

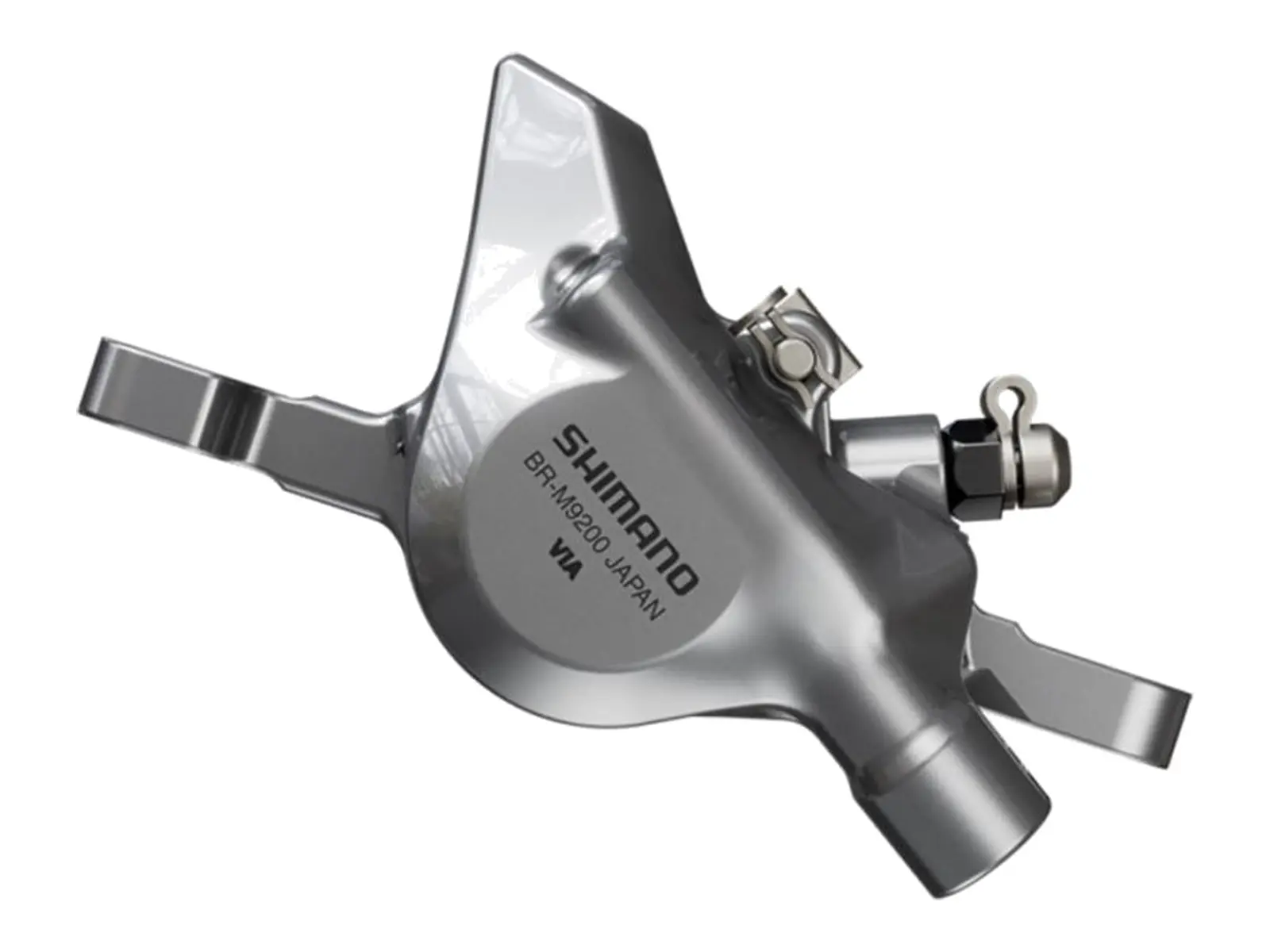

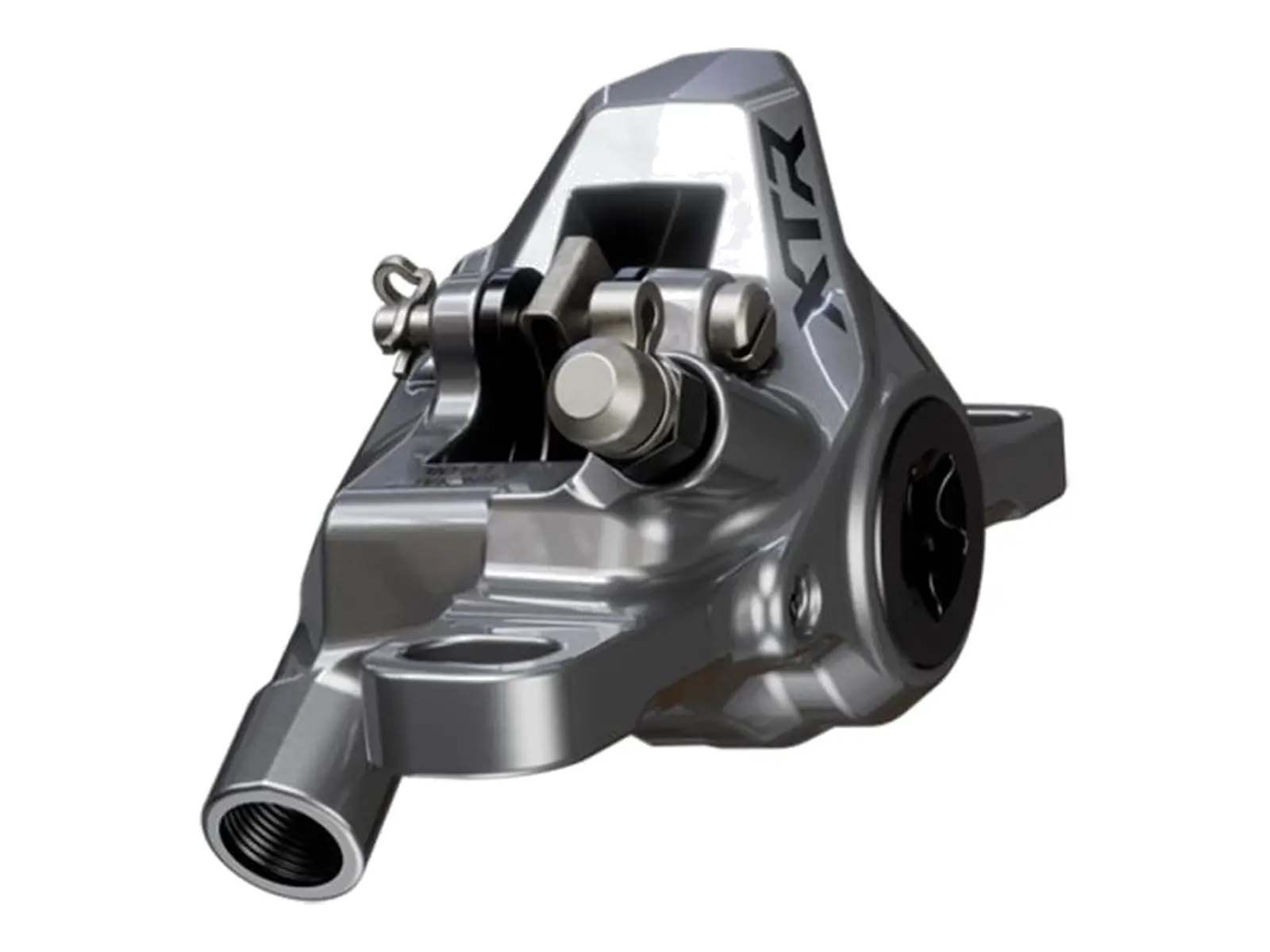

- Model: Shimano XTR BR-M9200, post mount
- Pistons: 2 heat resistant resin pistons - Assembly Side: right
- Hose: SM-BH90-SS, 1700 mm
- Oil Type: low viscosity mineral oil (SM-LVOIL), not included
- Pad Type: K03S and K03Ti resin, K04S and K04Ti metal fit
- Rotor: not included, adapter not included either
- Content: 1 brake lever, 1 caliper with pads, brake hose
