Shimano "XTR BL-M9220 + BR-M9200" BMX Race Disc Brake - Post Mount
- Weight : 0.34kg / 0.75lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45908
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/shimano-xtr-bl-m9220-br-m9200-bmx-race-disc-brake-post-mount-p-45908
Printed: 10/29/2026
Printed: 10/29/2026

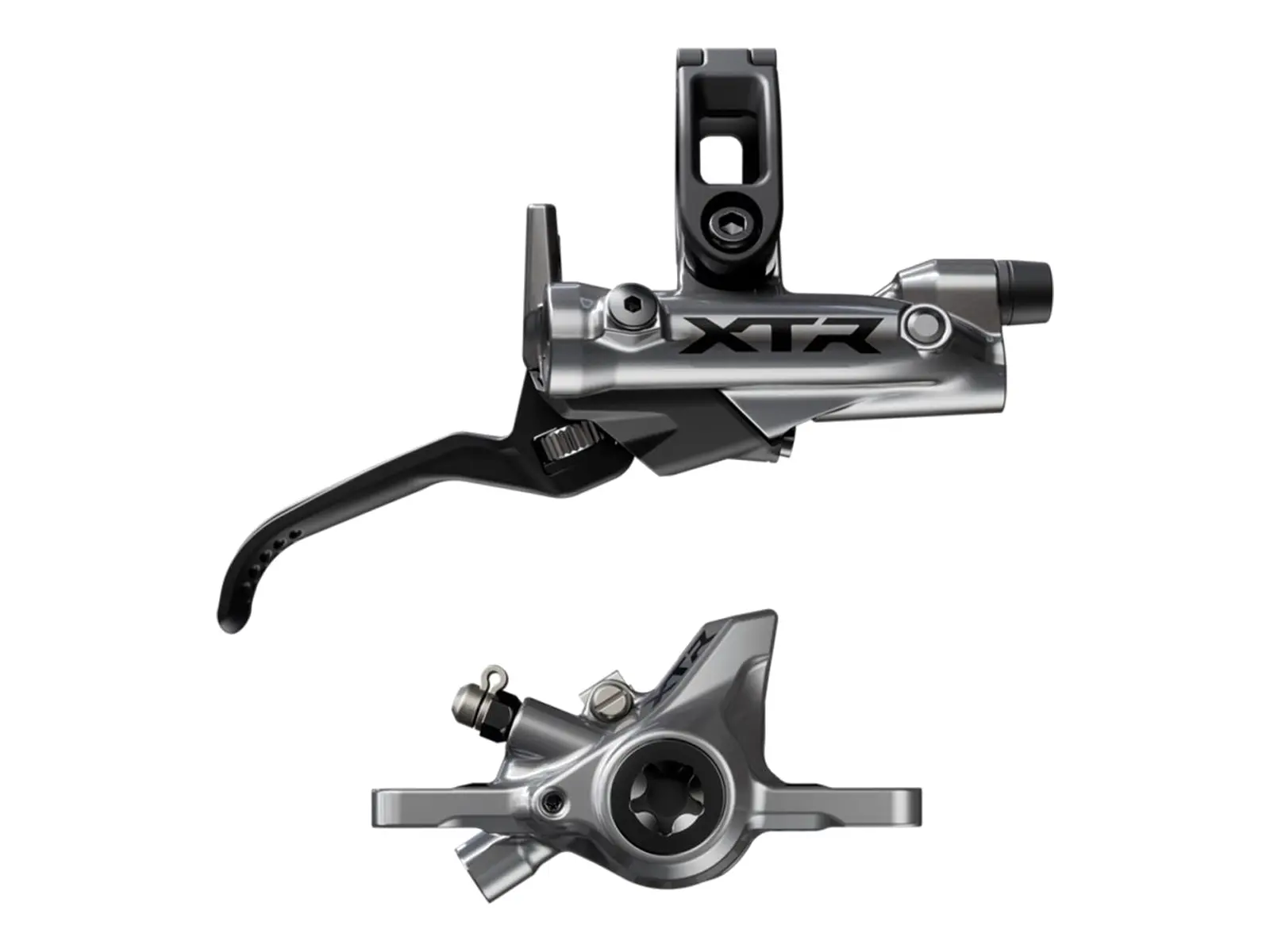

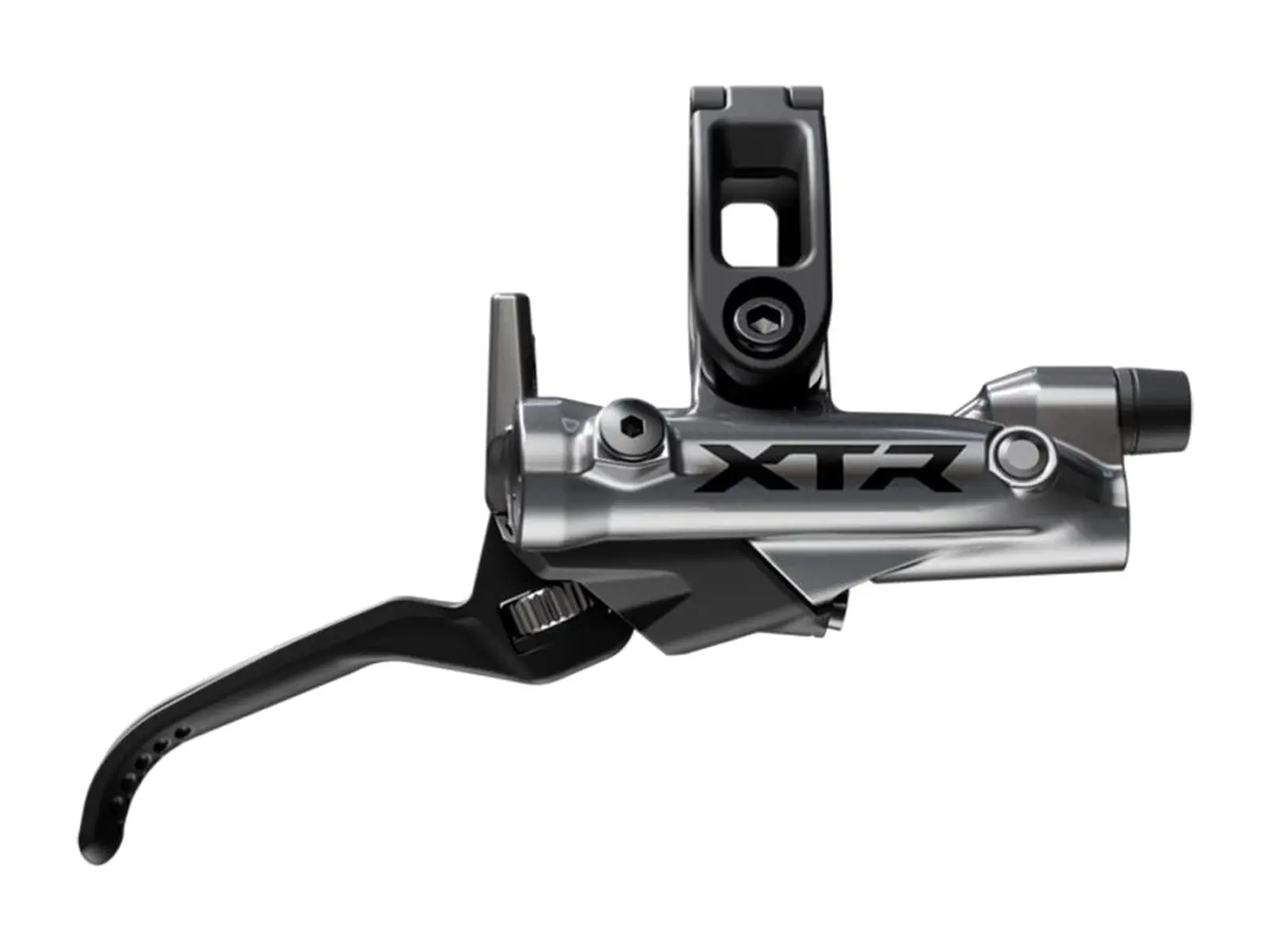

The Shimano "XTR BL-M9220 + BR-M9200" BMX Race Disc Brake - Post Mount combines the XTR BL-M9220 lever with the light two piston BR-M9200 caliper, Shimano's lightest post mount two piston caliper. The lever has a closer pivot, a 5 degree upswept forged aluminum blade and a tool free reach adjust, the redesigned Servo Wave and the low viscosity mineral oil keep the bite point consistent.

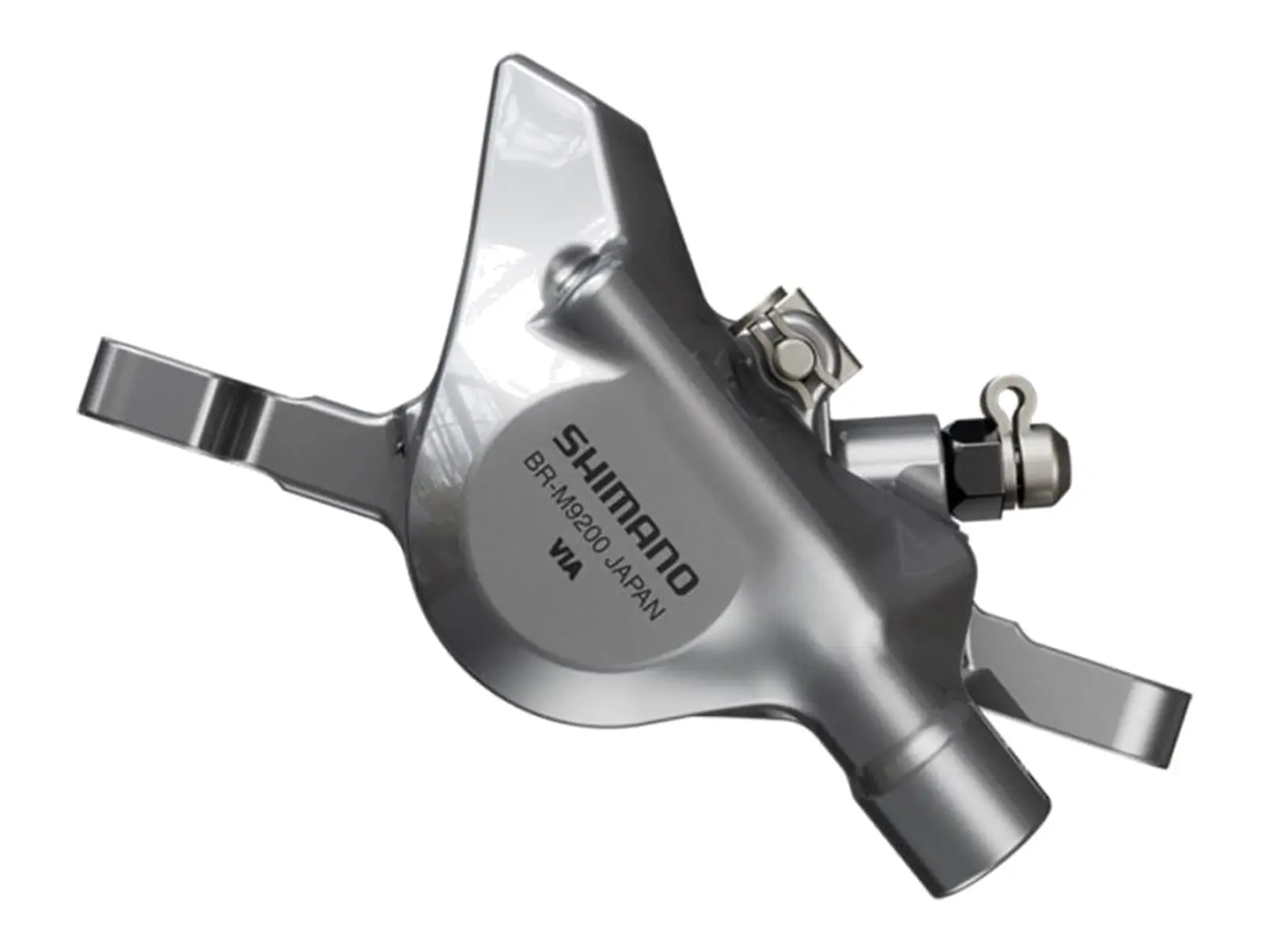

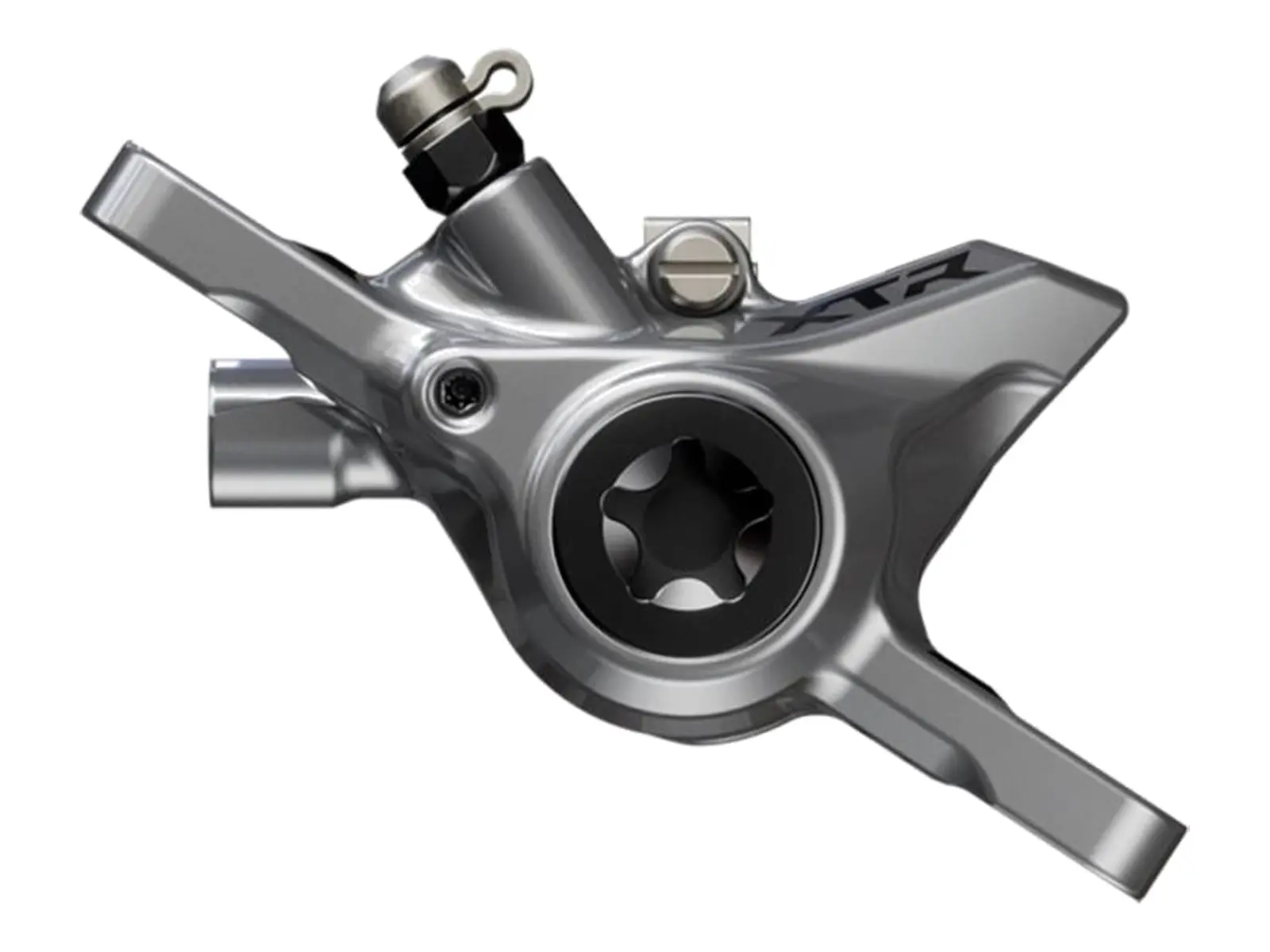

The caliper has a magnesium body and heat resistant resin pistons and takes resin and metal pads. The brake comes with the right hand lever, the matching hose is SM-BH90-SBM. It works exclusively with Shimano low viscosity mineral oil (SM-LVOIL). Rotor and adapter are not included.
Facts: Shimano "XTR BL-M9220 + BR-M9200" BMX Race Disc Brake - Post Mount
- Material: magnesium caliper, forged aluminum lever blade
- Style: hydraulic disc brake
- Brake Lever:
- Model: Shimano XTR BL-M9220
- tool free reach adjust
- 5 degree upswept blade - Caliper:
- Model: Shimano XTR BR-M9200, post mount
- Pistons: 2 heat resistant resin pistons - Assembly Side: right
- Hose: SM-BH90-SBM
- Oil Type: low viscosity mineral oil (SM-LVOIL)
- Pad Type: resin or metal, fits D02S, D03S, N03A, N04C, P03A-RF, P04C-MF
- Rotor: not included, adapter not included either
- Content: 1 brake lever, 1 caliper with pads, brake hose
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
