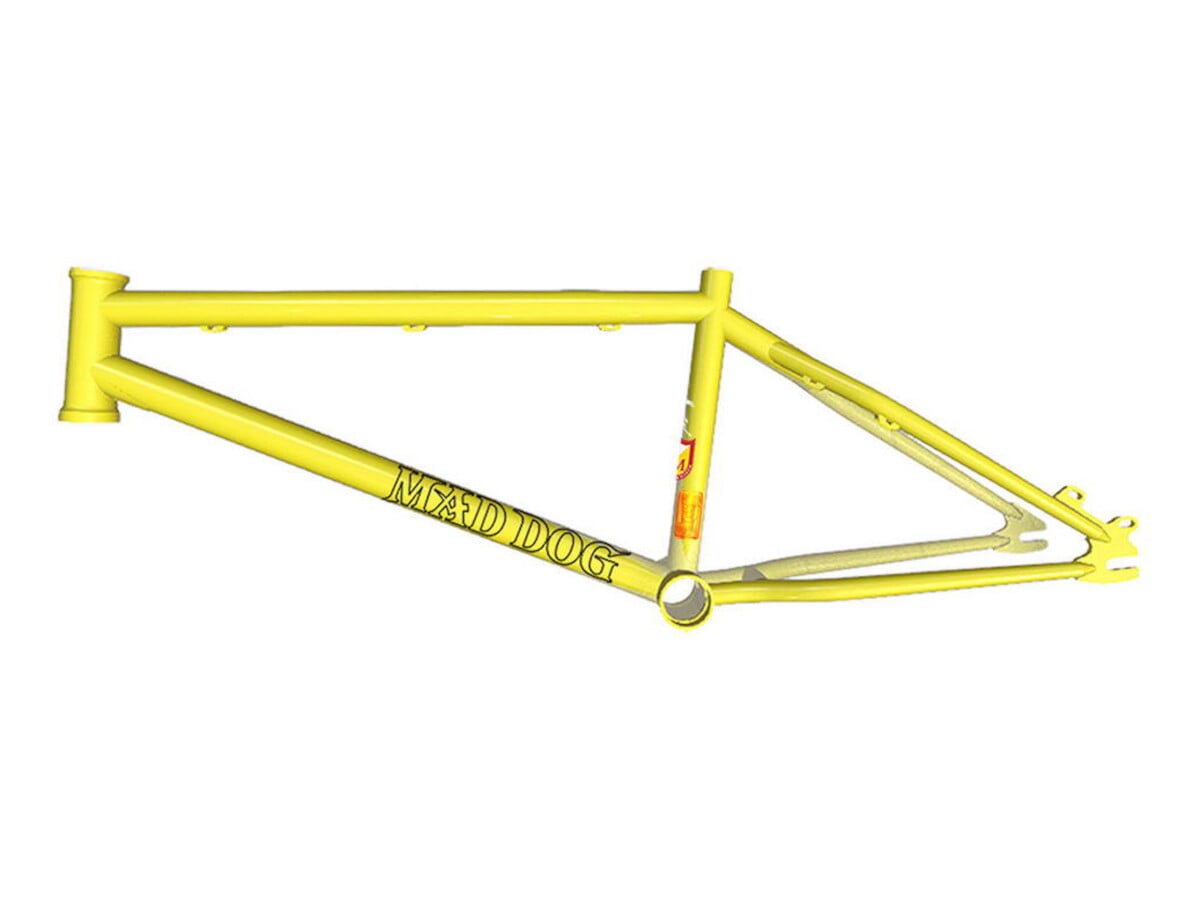

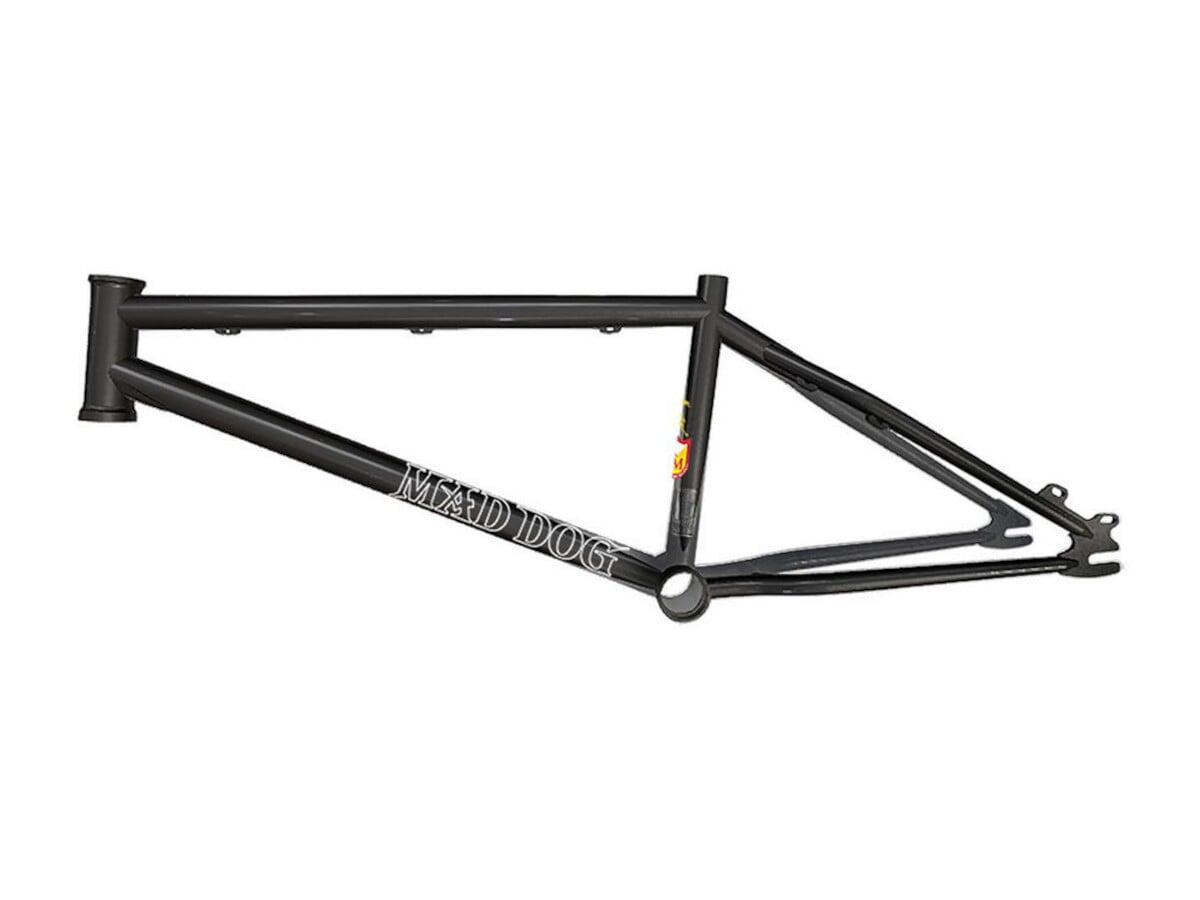

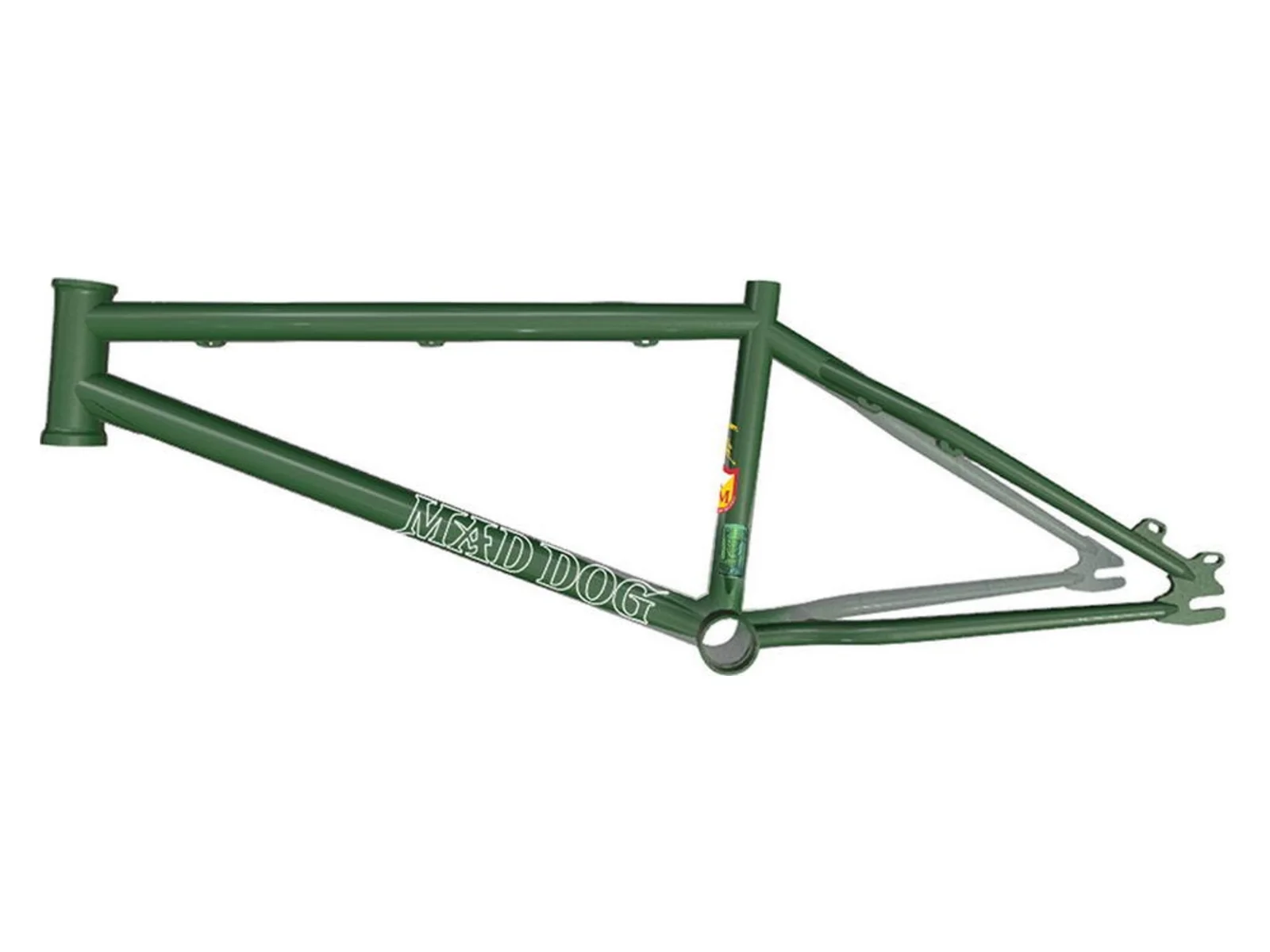

S&M Bikes "Mad Dog" BMX Frame
-
Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 27425
The S&M Bikes "Mad Dog" BMX Frame offers you excellent control and stability, perfect for technically demanding trails and fast riding on the track. The S&M Bikes "Mad Dog" BMX Frame is compatible with 120mm discs using a 0mm IS to Post Mount adapter. 140mm discs require a 20mm IS to Post Mount adapter. The maximum chainring size for a clean chain line is 39 teeth.
Facts: S&M Bikes "Mad Dog" BMX Frame
- Wheel Size: 20"
- Material: 100% 4130 CrMo, down tube gusset, butted tubes, tapered chainstays, integrated headset
- Geometry:
Top Tube (TT): 21.0" or 21.5"
Chain Stay (CS): 13.9"
Head Tube Angle (HA): 74.25°
Seat Tube Angle (SA): 71°
BB Height: 11.61"
Standover Height (SO): 9" - Seat Clamp: not integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Chain Tensioners: without
- Brakemounts: Disc brake mount: 120mm discs with a 0mm IS to Post Mount adapter. 140mm discs require a 20mm IS to Post Mount adapter.
