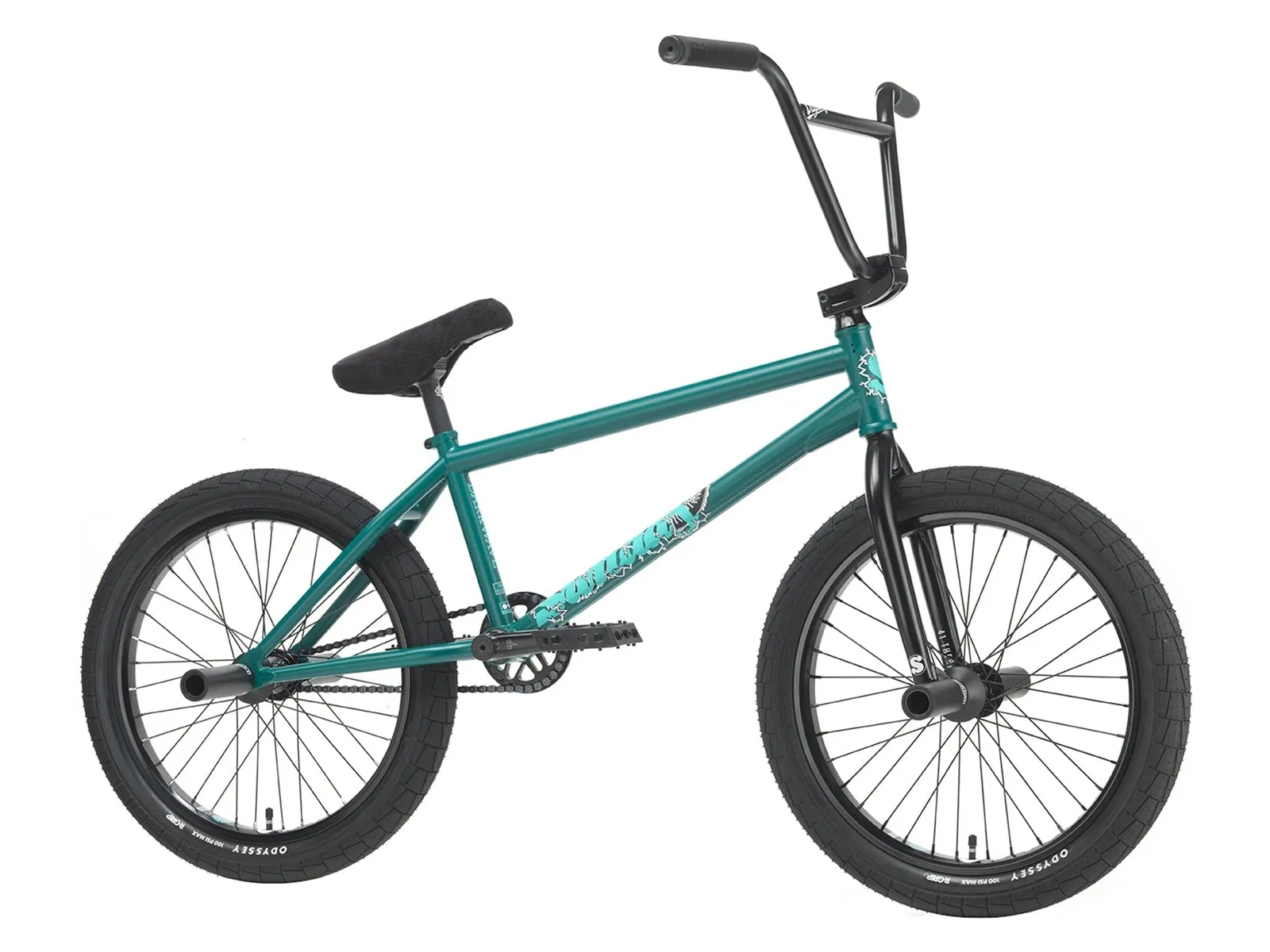

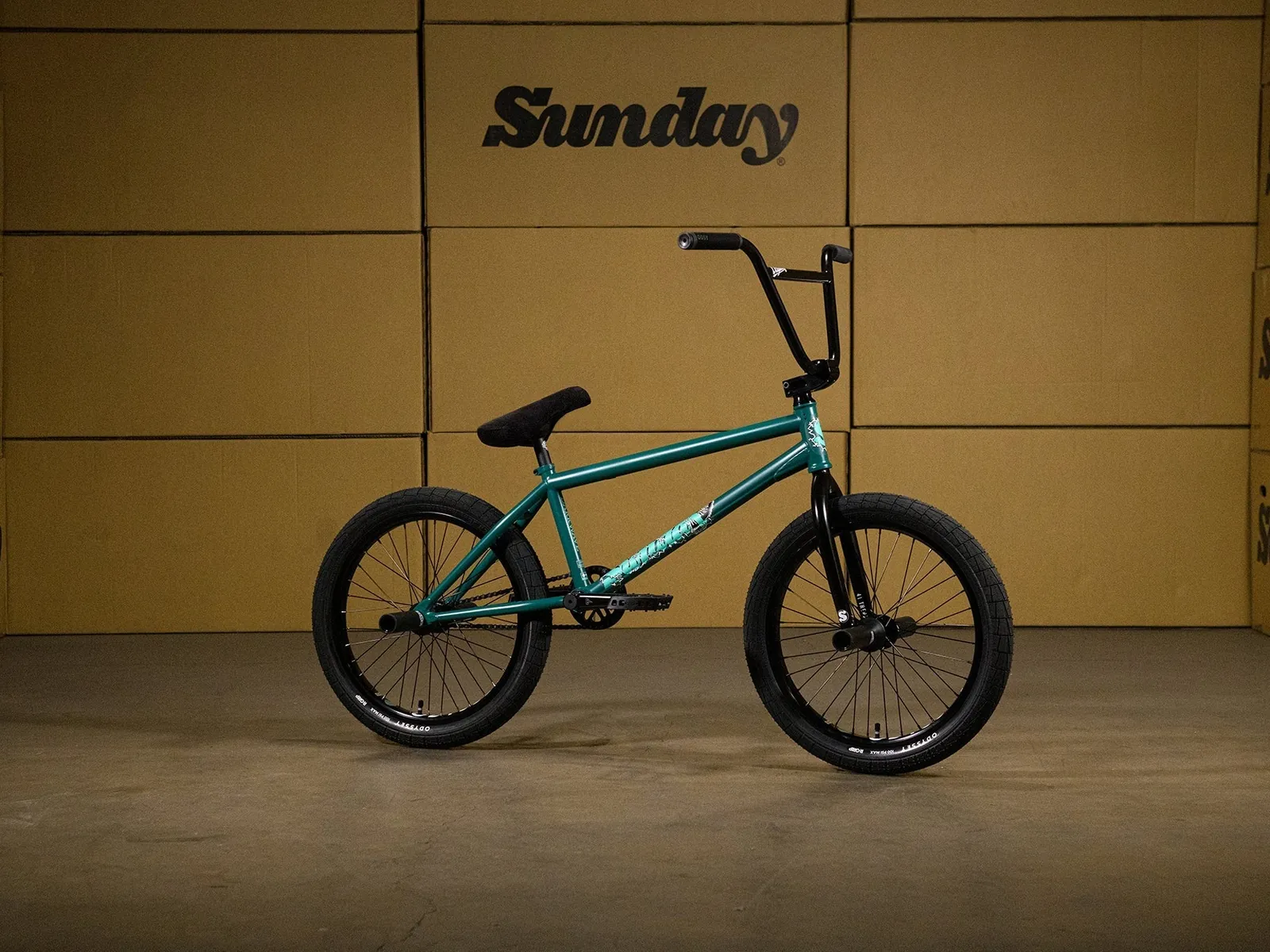

Sunday Bikes "Darkwave Authentic Raiford" 2027 BMX Bike - Matte Pine Green - Freecoaster - LHD
-
Weight : 11.33kg / 24.98lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 34588
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Sunday Bikes "Darkwave Authentic Raiford" 2027 BMX Bike - Matte Pine Green - Freecoaster - LHD
is Broc Raiford's signature BMX bike and is built from 100% aftermarket parts, exactly what Broc rides, all the way down to the left hand drive setup and top tube size. The decal artwork was made by Broc himself.
It comes with the Odyssey "Thunderbolt" cranks, "Clutch Pro" freecoaster, "Vandero Pro" front hub, "Big Boyd" rims and "Broc" tires with R-Grip. Bars, forks and cranks carry the 41-Thermal lifetime replacement warranty.
Note: Odyssey brake lever, U-brake and brake cable are included but not pictured. The chain, sprocket and driver are on the left hand side (LHD).
Note: Odyssey brake lever, U-brake and brake cable are included but not pictured. The chain, sprocket and driver are on the left hand side (LHD).
Facts: Sunday Bikes "Darkwave Authentic Raiford" 2027 BMX Bike - Matte Pine Green - Freecoaster - LHD
- Wheel Size: 20"

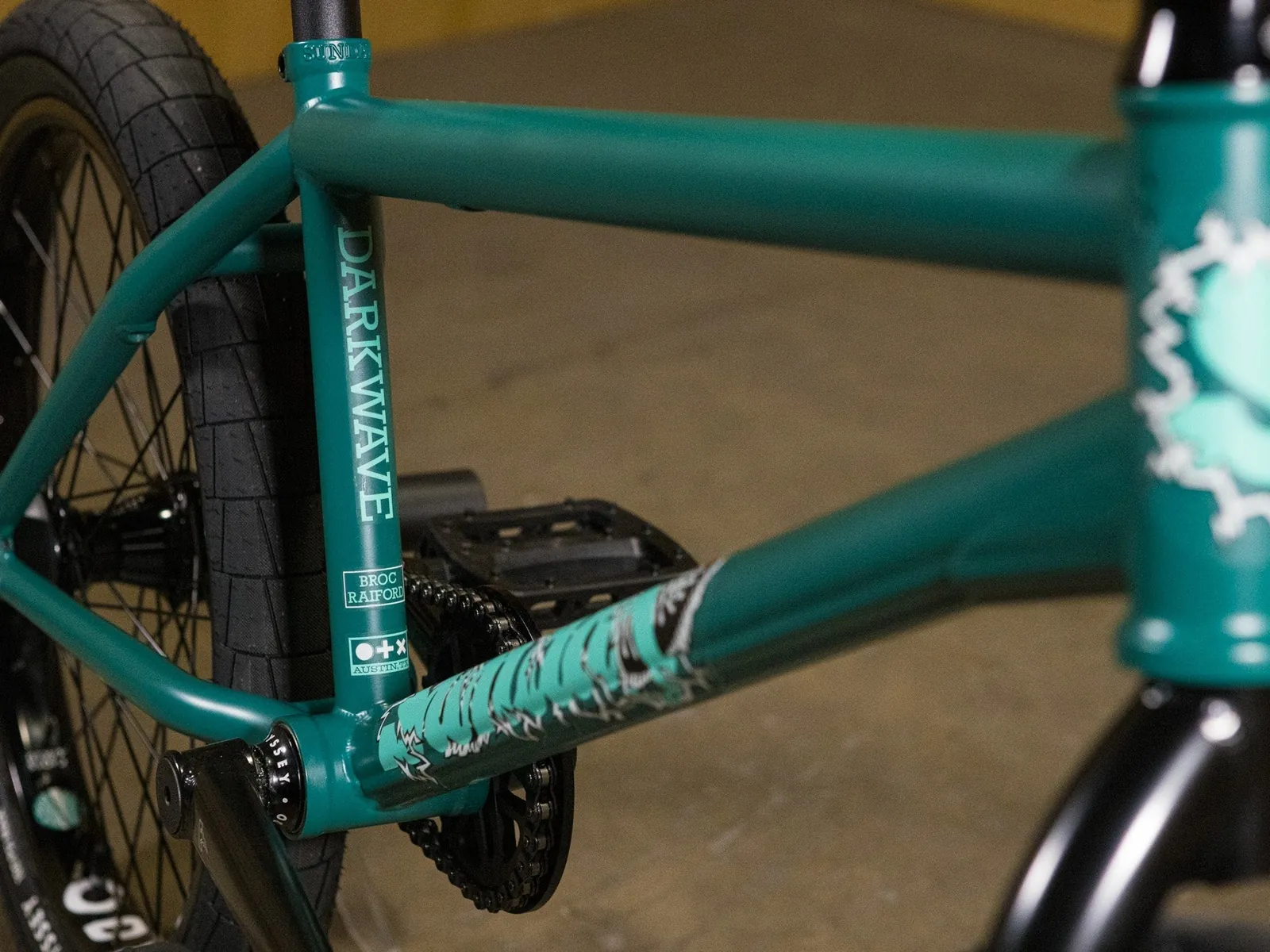

- BMX Frame: Sunday "Darkwave", 100% chromoly aftermarket frame, wave downtube, removable brake hardware
- Frame-Geometry:
- Top Tube (TT): 21.25"
- Chain Stay (CS): 13.25" - 13.5"
- Head Tube (HA): 75.25°
- Seat Tube (SA): 71°
- BB-Height (BB): 11.75"
- Standover (SO): 9.25" - BMX Fork: Sunday "Darkwave", 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
- BMX Bar:

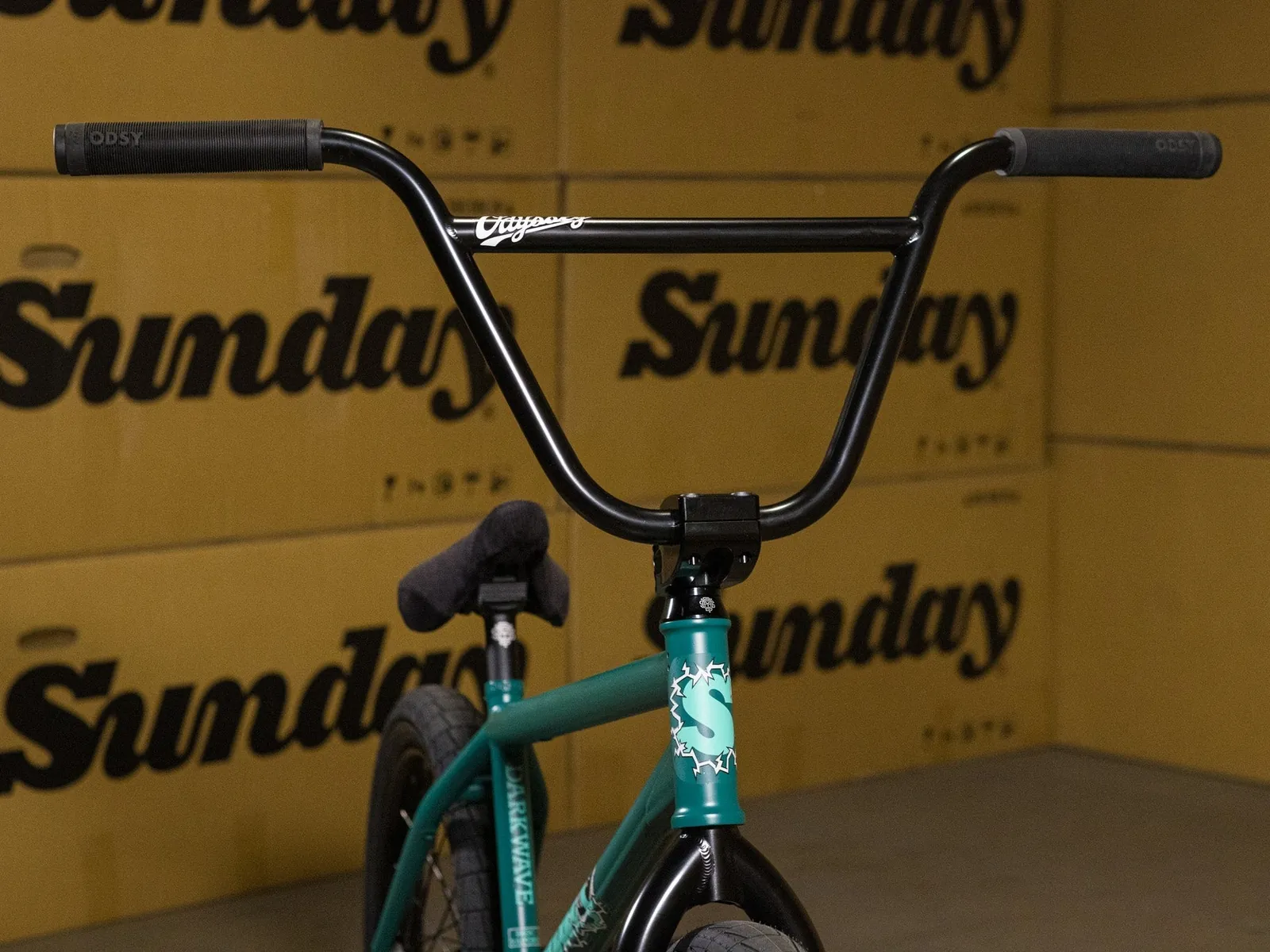

- Odyssey "Broc" bar, 41-Thermal, aftermarket bar
- Height: 9.8"
- Width: 29"
- Backsweep: 10°
- Upsweep: 2°

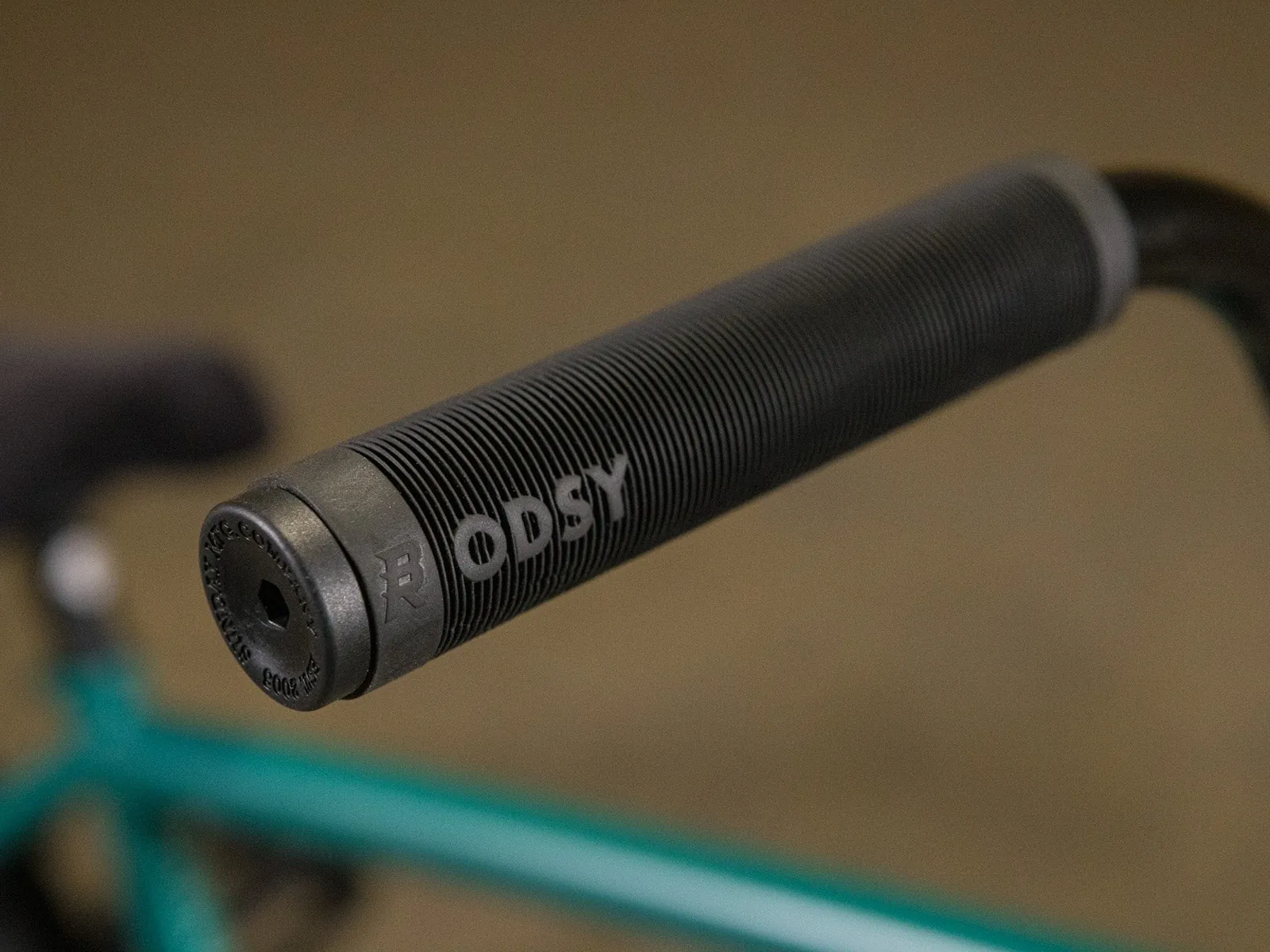

- Clamping Diameter: 22.2mm - Grips: Odyssey "Broc Raiford"
- Stem: Odyssey "Broc v2", 50mm reach
- Headset: Odyssey "Pro" conical, 1-1/8"
- Gyro: -
- Gyro compatible: Yes
- Brake Lever: Odyssey "Springfield"
- Brakecable: Odyssey "Linear Quik Slic"
- Brake: Odyssey "Springfield" U-brake

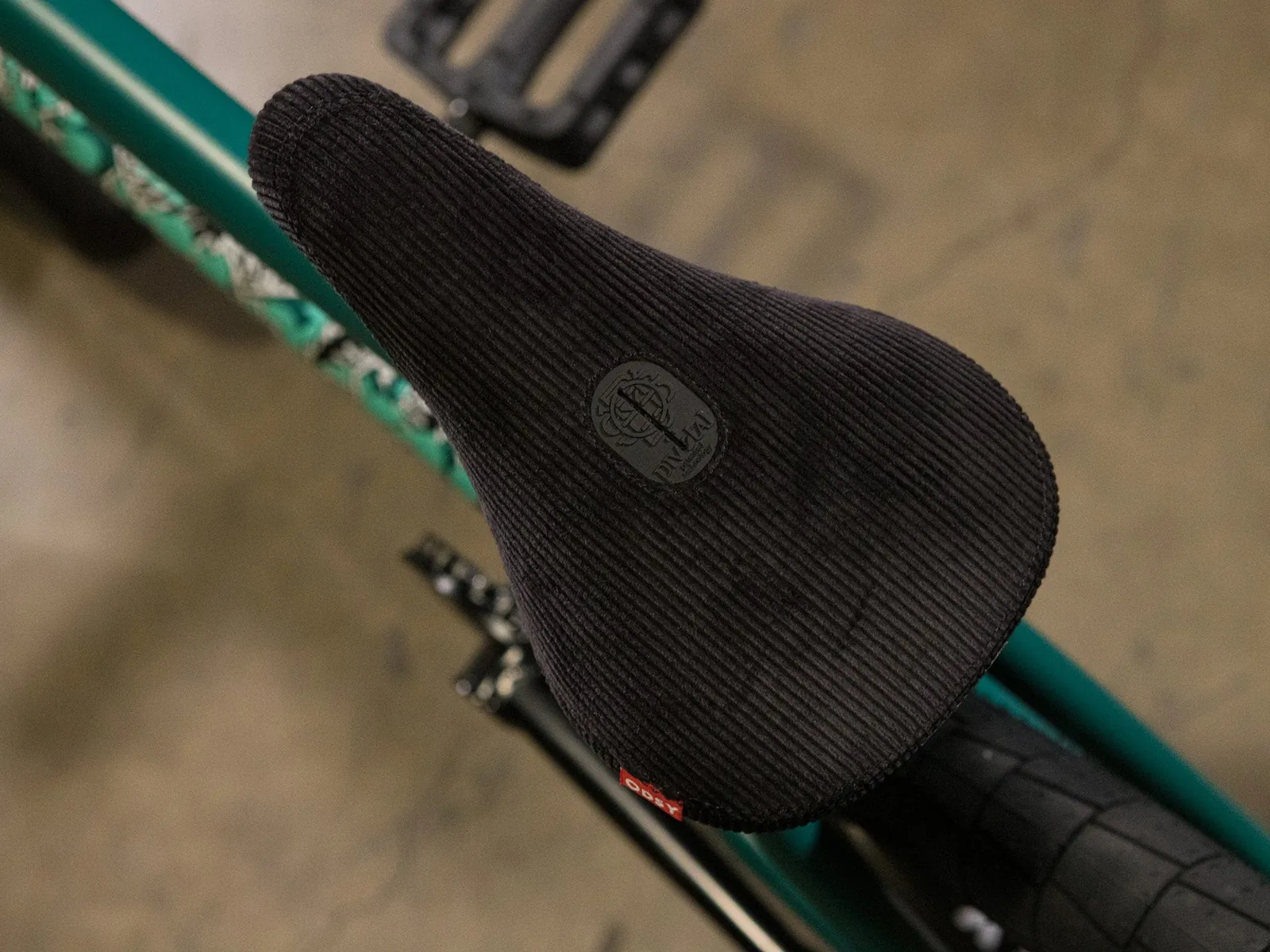

- Seat: Odyssey "Broc Raiford", Pivotal
- Seat Post: Odyssey, Pivotal
- Seat Clamp: Integrated
- Pedals: Odyssey "Twisted PC Pro", plastic
- Chain: Odyssey "Bluebird", Half-Link

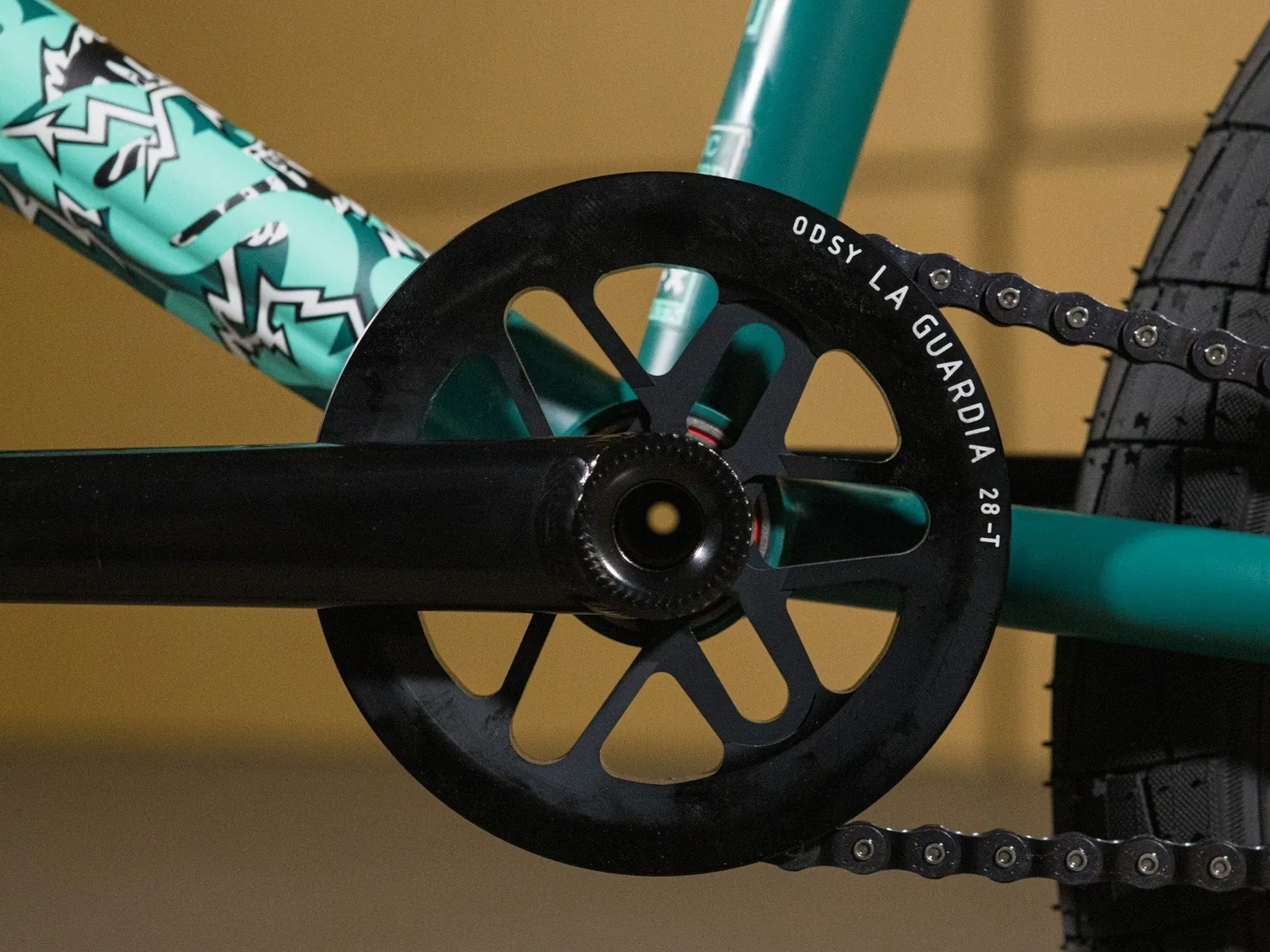

- Sprocket: Odyssey "La Guardia" sprocket, 28T
- Crank: Odyssey "Thunderbolt", 170mm, 100% chromoly, 41-Thermal
- Bottom Bracket: Odyssey, Mid BB, 22mm, sealed bearing

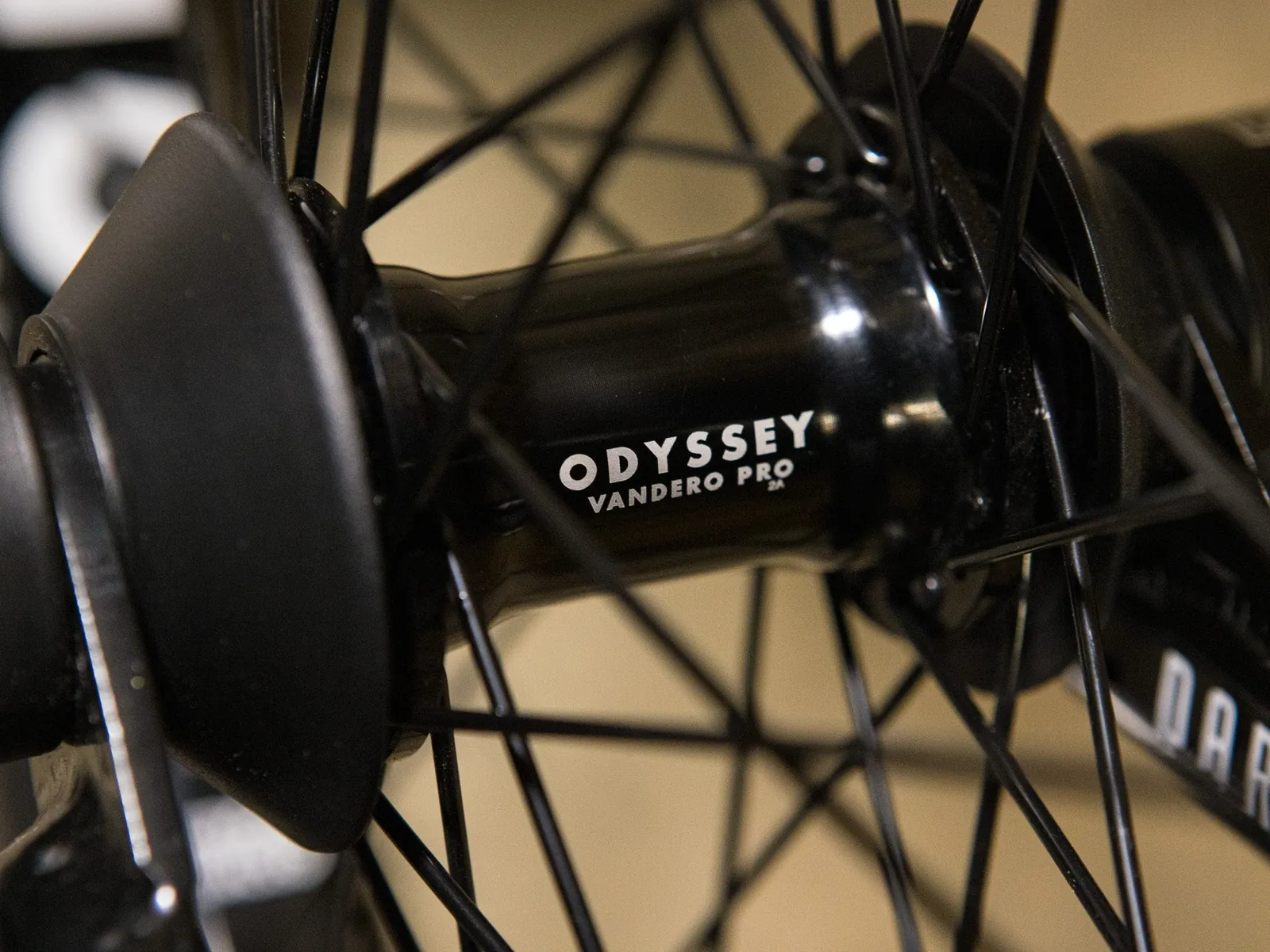

- Hub (front): Odyssey "Vandero Pro", sealed bearing, 36H, 3/8" inbound axle bolts, incl. plastic guards

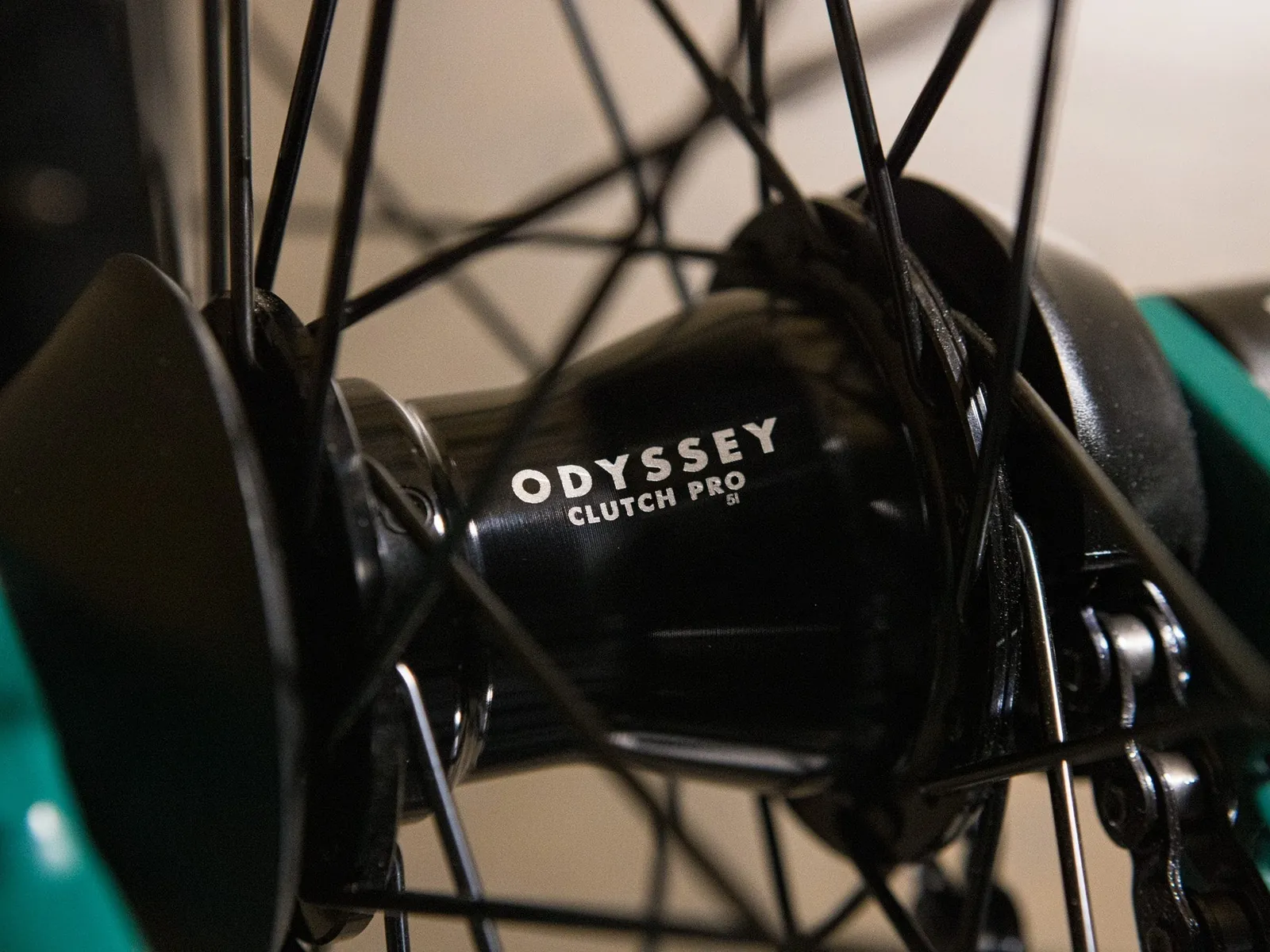

- Hub (rear): Odyssey "Clutch Pro" freecoaster, sealed bearing, 36H, 14mm inbound axle bolts, 9T driver, LHD, incl. plastic guards

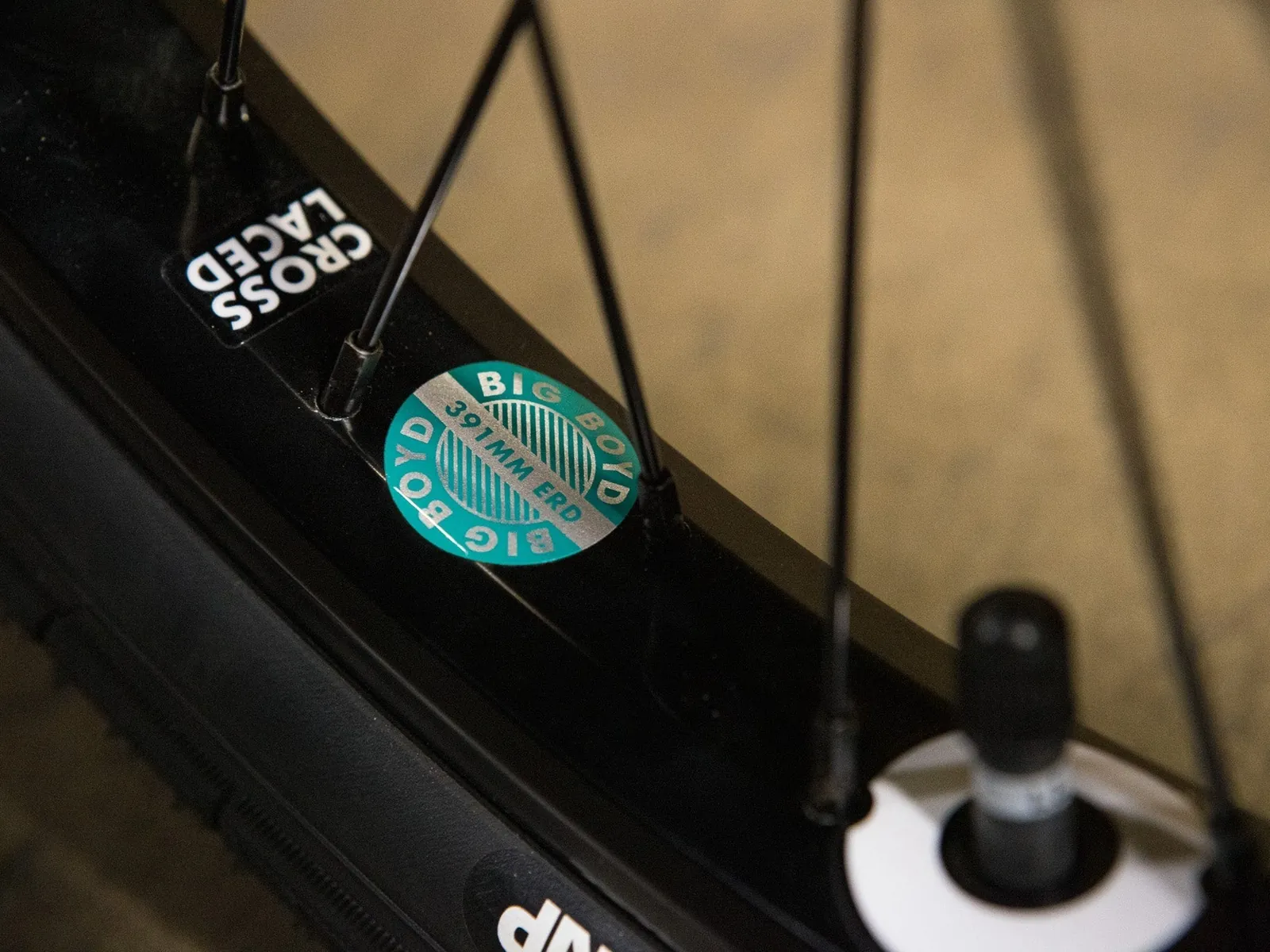

- Rim (front): Odyssey "Big Boyd", 20", aluminum, 36H
- Rim (rear): Odyssey "Big Boyd", 20", aluminum, 36H

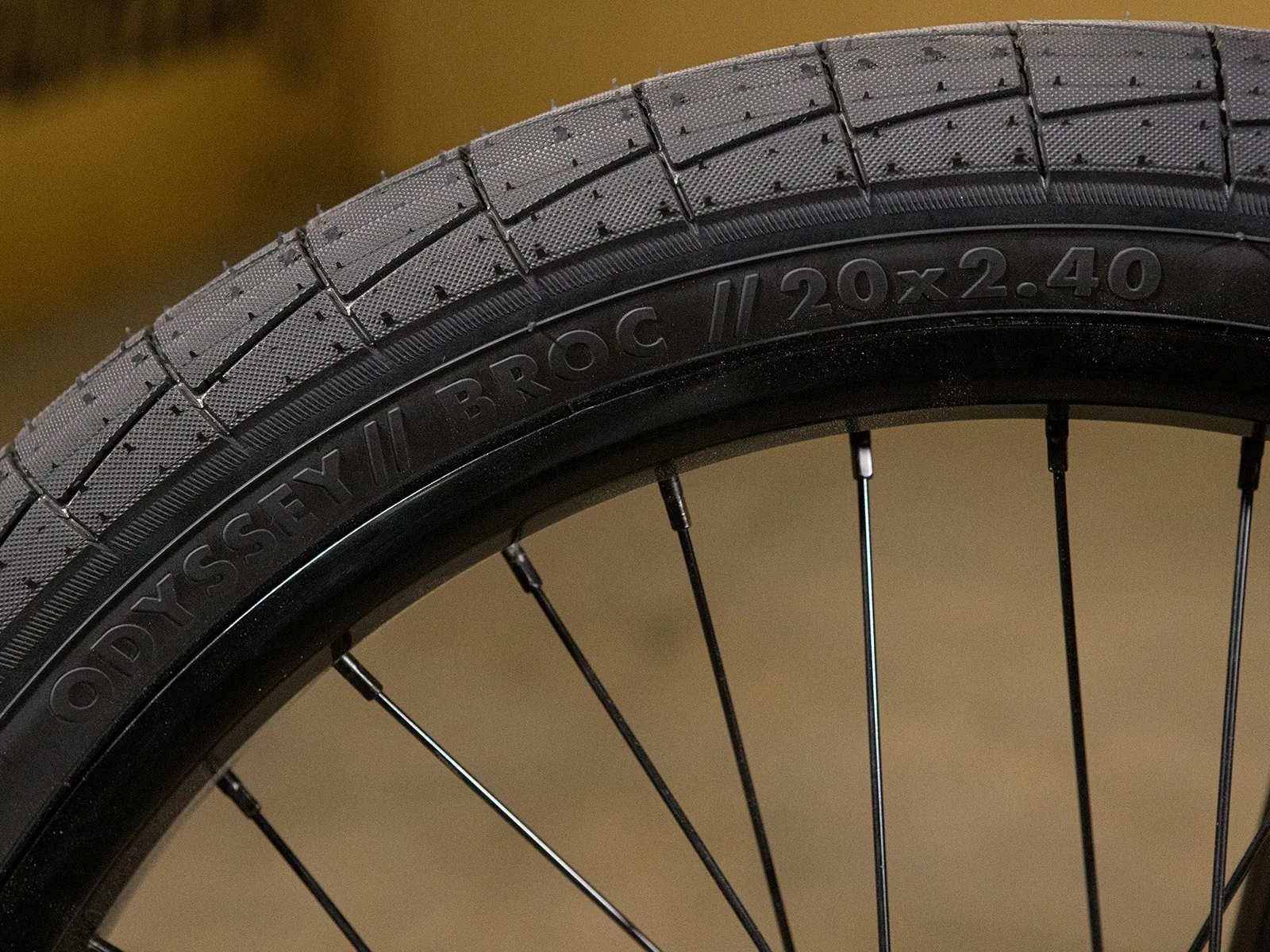

- Tire (front): Odyssey "Broc" tire, 20" x 2.4"
- Tire (rear): Odyssey "Broc" tire, 20" x 2.4"

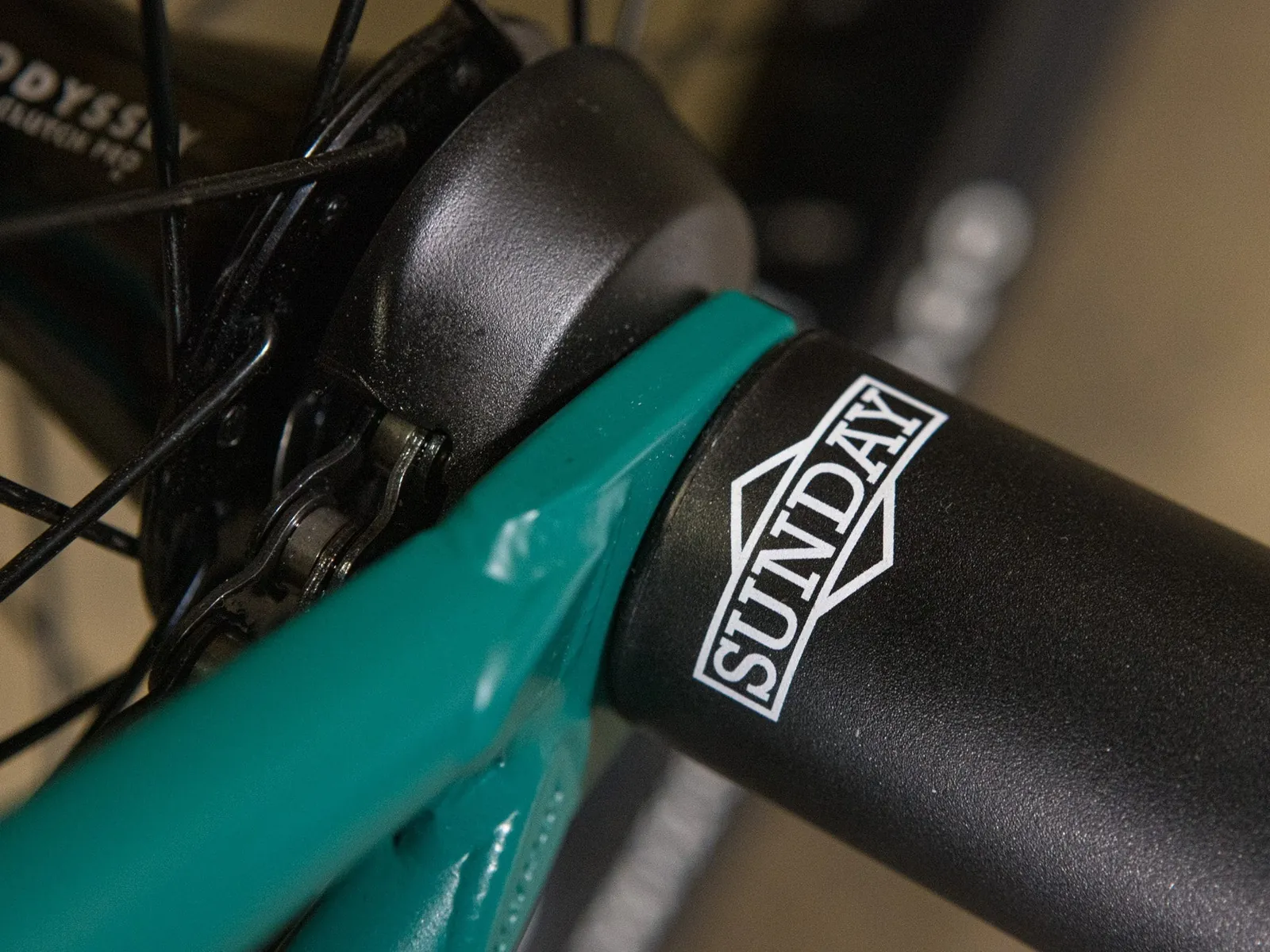

- Pegs: 4x Sunday Seeley Peg 4.75"
- Delivery: The BMX bike comes pre-assembled in a box. For final assembly, only the handlebar, front wheel, pedals, and saddle need to be installed. Tools are not included.
- Usage: BMX Freestyle, designed for tricks, jumps, and fun in the skatepark or on the pump track.
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
