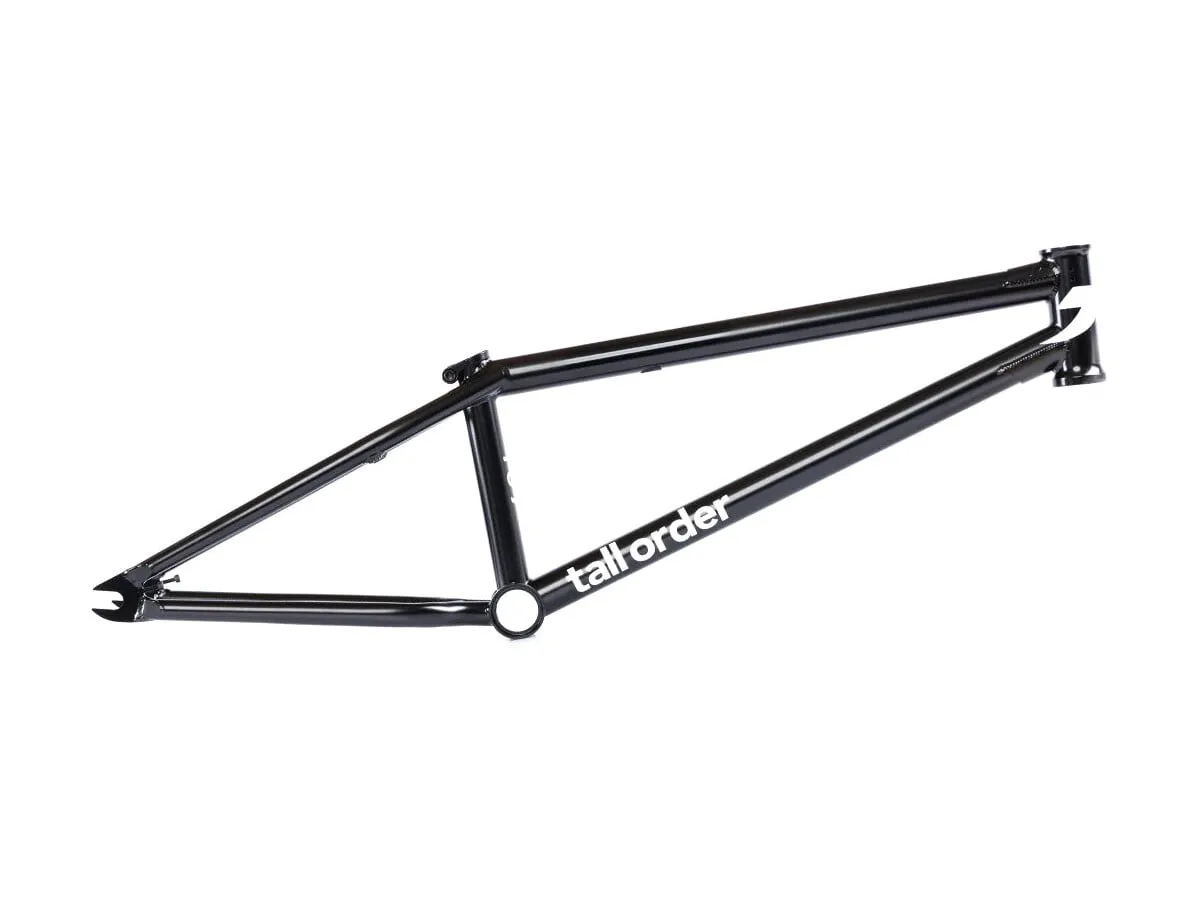

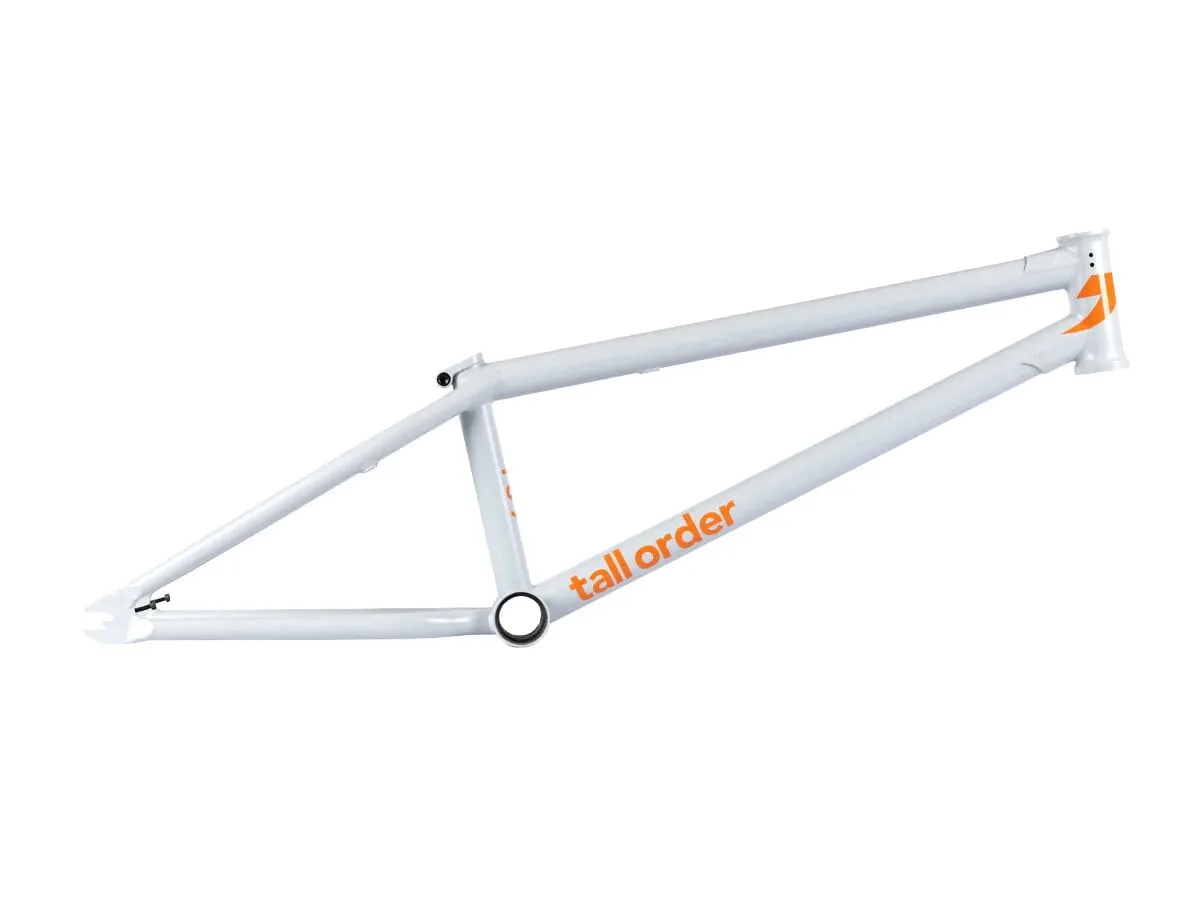

Tall Order "187 V3" 2023 BMX Frame
-
Weight : 2.27kg / 5.00lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 25756

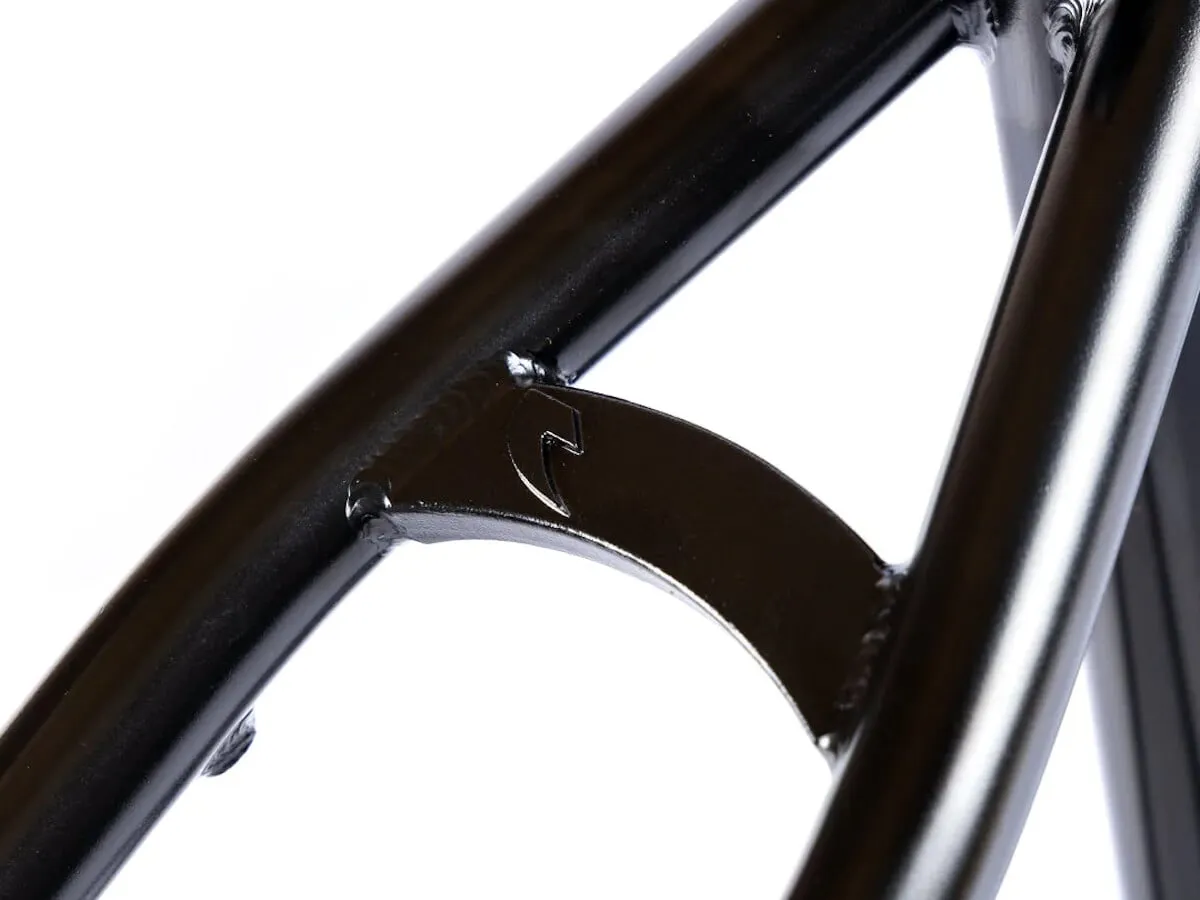

The Tall Order "187 V3" 2023 BMX Frame now features ovalized tapered chain stays to allow for 28 tooth sprockets. The Tall Order "187 V3" 2023 BMX Frame has an 7.5" standover height with a unique investment cast seat clamp that's angled to follow the lines of the seat stays and is equipped with external gusset on the top tube for increased strength and integrated chain tensioners.
Facts: Tall Order "187 V3" 2023 BMX Frame
- Wheel Size: 20"

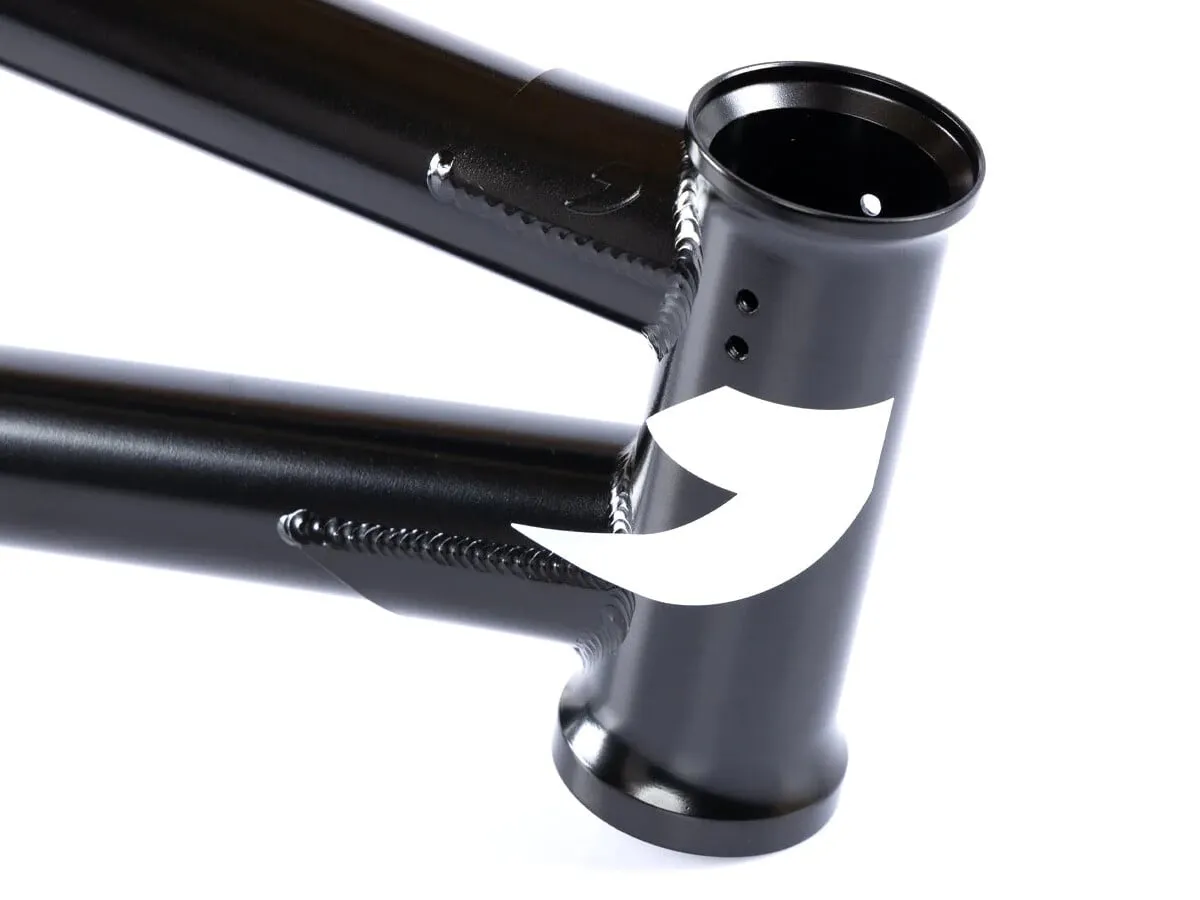

- Material: 100% 4130 CrMo, top and down tube gusset, integrated headset, ovalized tapered chain stays
- Geometry:
Top Tube Length (TT): 20.8"
Chainstay Length (CS): 12.8" (32.51cm) - 13.2" (33.53cm)
Head Tube Angle (HA): 75°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.6" (29.46cm)
Standover Height (SO): 7.5" (19.05cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

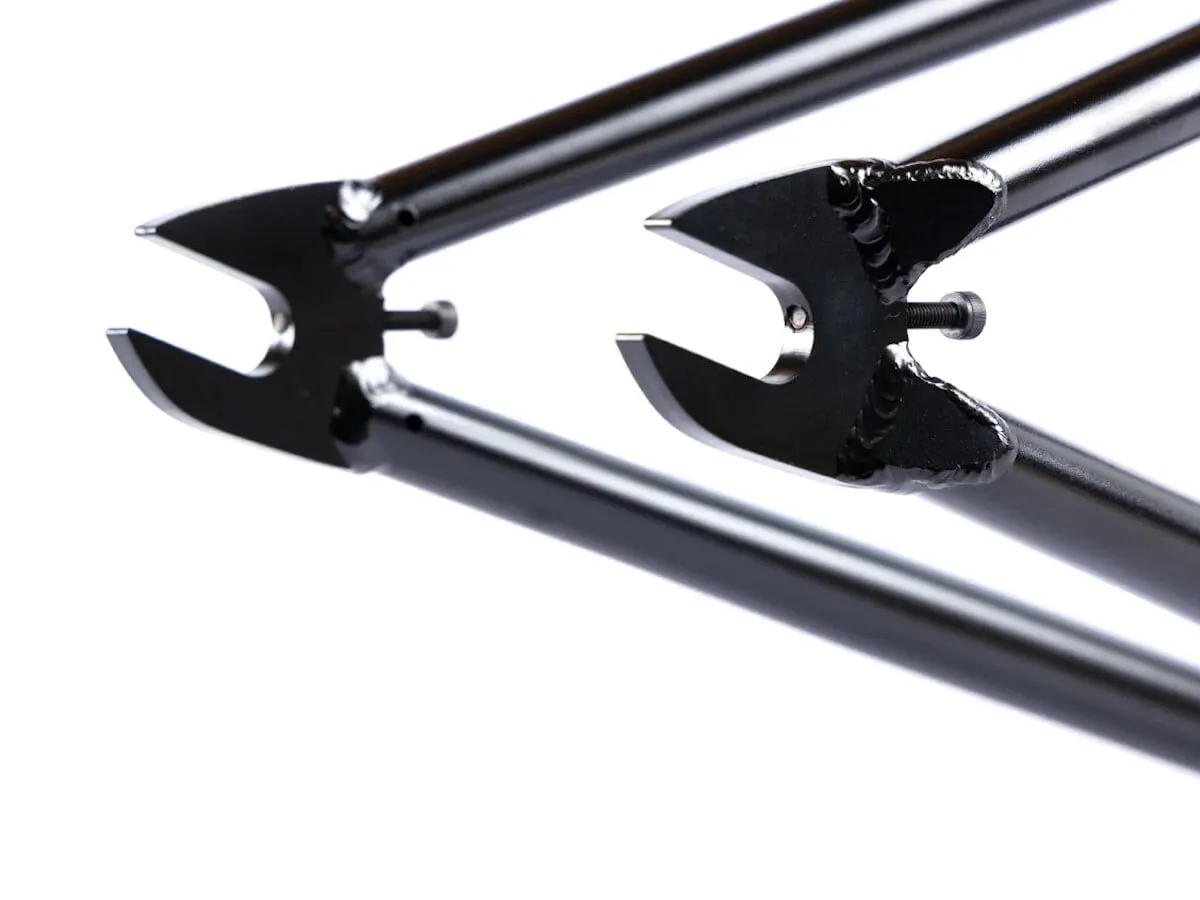

- Dropouts: Investment cast, 6mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: Yes
- Gyro compatible: Yes
- Model Year: 2023
