Transition "TR11 Alloy" MTB Frame - 29/27.5 Inch
- Weight : 5.38kg / 11.86lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 37683
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

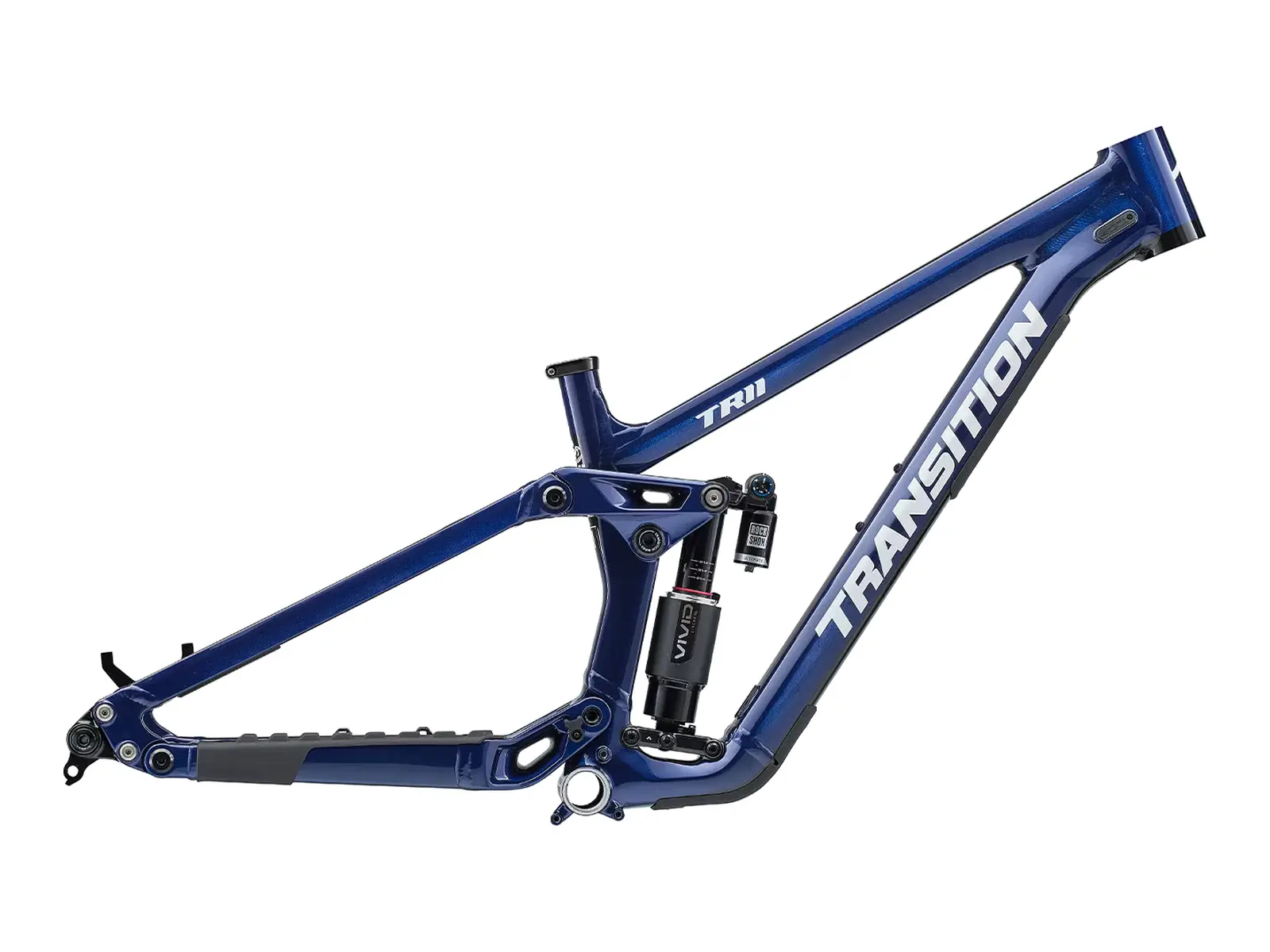

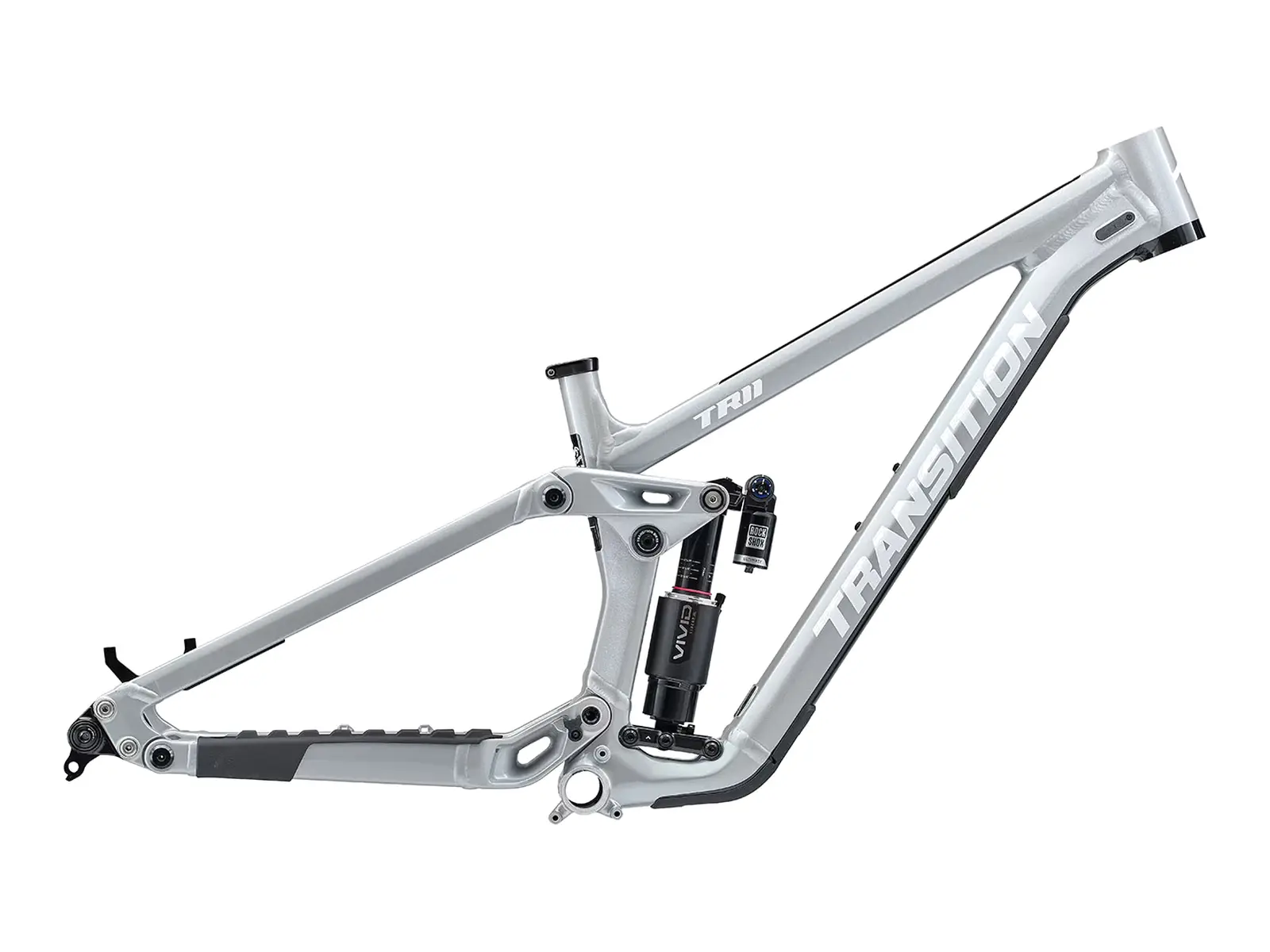

The Transition "TR11 Alloy" MTB Frame - 29/27.5 Inch is Transition's downhill frame for race tracks, bike parks and shuttle laps: 211 mm of rear travel from the GiddyUp four-bar linkage, designed around a 200 mm dual crown fork, a mullet setup with 29" front and 27.5" rear and an alloy frame with a gravity cast BB area plus a forged rocker and chainstay yoke. The RockShox Vivid Ultimate DH and the reach adjust headset come in the kit. Two leverage curves, more linear or more progressive, suit air and coil shocks, C.H.I.P.S. adjusts head angle and BB height, the S.A.L.S.A. dropouts set the chainstay length in four steps, and the bolt-on downtube protection keeps rock strikes away. Size S is listed here as a 545 mm effective top tube with a 420 mm reach in the high position. Transition backs it with a lifetime warranty for the original owner.
Facts: Transition "TR11 Alloy" MTB Frame - 29/27.5 Inch
- Recommended Rider Height: approx. 155 to 170 cm (S), 165 to 180 cm (M), 175 to 190 cm (L), 185 to 200 cm (XL), per Transition sizing chart with overlap, Transition recommends choosing by reach
- Wheel Size: mullet, 29" front and 27.5" rear (no 29" rear wheel possible)
- Material: alloy, gravity cast BB area, forged rocker and chainstay yoke, GiddyUp four-bar linkage with 211 mm of travel
- Wheel Size (front): 29"
- Geometry:
- Toptube (TT): 21.46" (S)
- Chainstay (CS): 445 mm (S, M with 0 mm dropout), 450 mm (L, XL with +5 mm dropout) in high
- Headtube Angle (HA): 63° (high), 62.6° (low)
- Seattube angle: 72° (actual, high), effective 78.7°
- Dropouts: S.A.L.S.A. dropouts 0, +5, +10, +15 mm, 12 x 148 mm Boost, SRAM UDH - Wheel Size (rear): 27.5"
- Geometry (high C.H.I.P.S. position, 200 mm dual crown fork):
- Reach: 420 mm (S), 450 mm (M), 480 mm (L), 510 mm (XL)
- Chainstay: 445 mm (S, M), 450 mm (L, XL)
- Headtube length: 100 mm (S), 110 mm (M), 120 mm (L, XL)
- Headtube angle: 63°
- Seattube angle (SA): 78.7°
- BB height: 350 mm (BB drop 25 mm front, 5 mm rear)
- Wheelbase: 1229 mm (S), 1263 mm (M), 1303 mm (L), 1333 mm (XL)
- Stack: 635 mm (S), 643 mm (M), 652 mm (L, XL) - Geometry (low C.H.I.P.S. position, 200 mm dual crown fork):
- Reach: 415 mm (S), 445 mm (M), 476 mm (L), 506 mm (XL)
- Chainstay: 447 mm (S, M), 452 mm (L, XL)
- Headtube length: 100 mm (S), 110 mm (M), 120 mm (L, XL)
- Headtube angle: 62.6°
- Seattube angle: 78.4°
- BB height: 344 mm (BB drop 31 mm front, 11 mm rear)
- Wheelbase: 1229 mm (S), 1263 mm (M), 1303 mm (L), 1333 mm (XL)
- Stack: 638 mm (S), 647 mm (M), 656 mm (L, XL) - Seattube length: 390 mm (all sizes)
- Seat clamp: 37 mm, bolt type
- Bottom Bracket: BSA 83 mm threaded
- Seatpost:
- Diameter: 31.6 mm
- Seatpost insertion depth: 240 mm - Dropouts: 12 x 148 mm thru axle (Boost), SRAM UDH derailleur hanger, S.A.L.S.A. dropouts 0 mm (S, M) or +5 mm (L, XL) installed, +10 mm and +15 mm sold separately
- Brake Type: disc brake
- UDH equipped: yes, SRAM Universal Derailleur Hanger
- Brake Mounts: 200 mm post mount rear, max. 223 mm rear rotor
- Headset: TR11 Reach Adjust headset, ZS56 top and bottom, reach plus or minus 5 mm via the headset cups, for a 1 1/8" steerer, included
- Shock (included):
- RockShox Vivid Ultimate DH, 225 x 75 mm (trunnion)
- Shock hardware: trunnion top, 30 x 8 mm bottom
- Rear travel: 211 mm
- Fork: 200 mm dual crown fork, 48 mm offset, 608 mm axle to crown, no single crown forks - Chain guide: ISCG 05, single chainring max. 38T, chainline 56.5 mm
- Features: C.H.I.P.S. flip chip for 0.4° of head angle and 6 mm of BB height, two leverage curve options (more linear or more progressive) for air and coil shocks, S.A.L.S.A. chainstay length in four steps, reach adjust headset, bolt-on rubber downtube protection, gravity cast BB area, forged rocker and chainstay yoke, lifetime warranty for the original owner
- Contains: 1 frame with RockShox Vivid Ultimate DH shock (225 x 75 mm), 1 TR11 Reach Adjust headset
- Model Year: 2026
