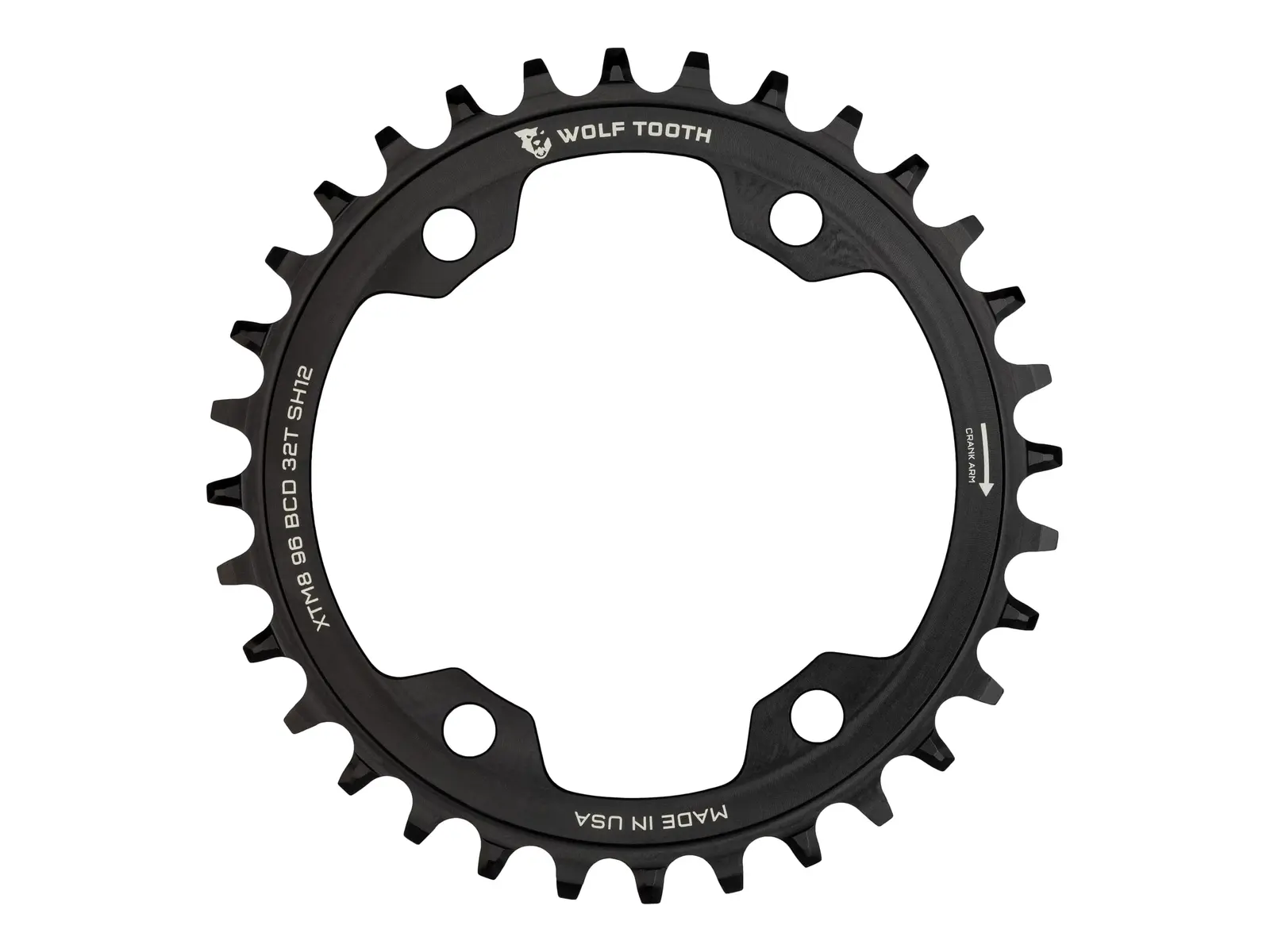

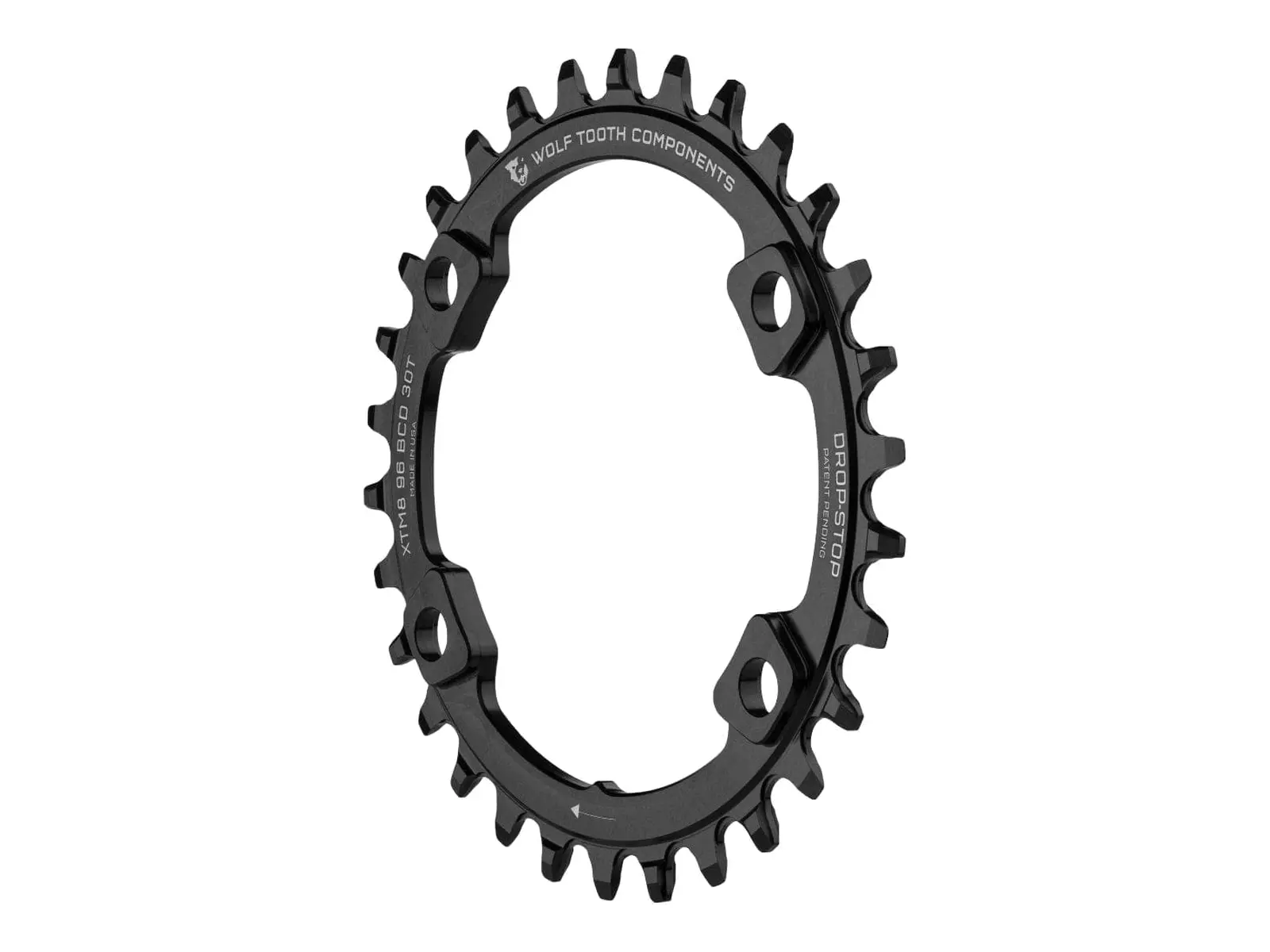

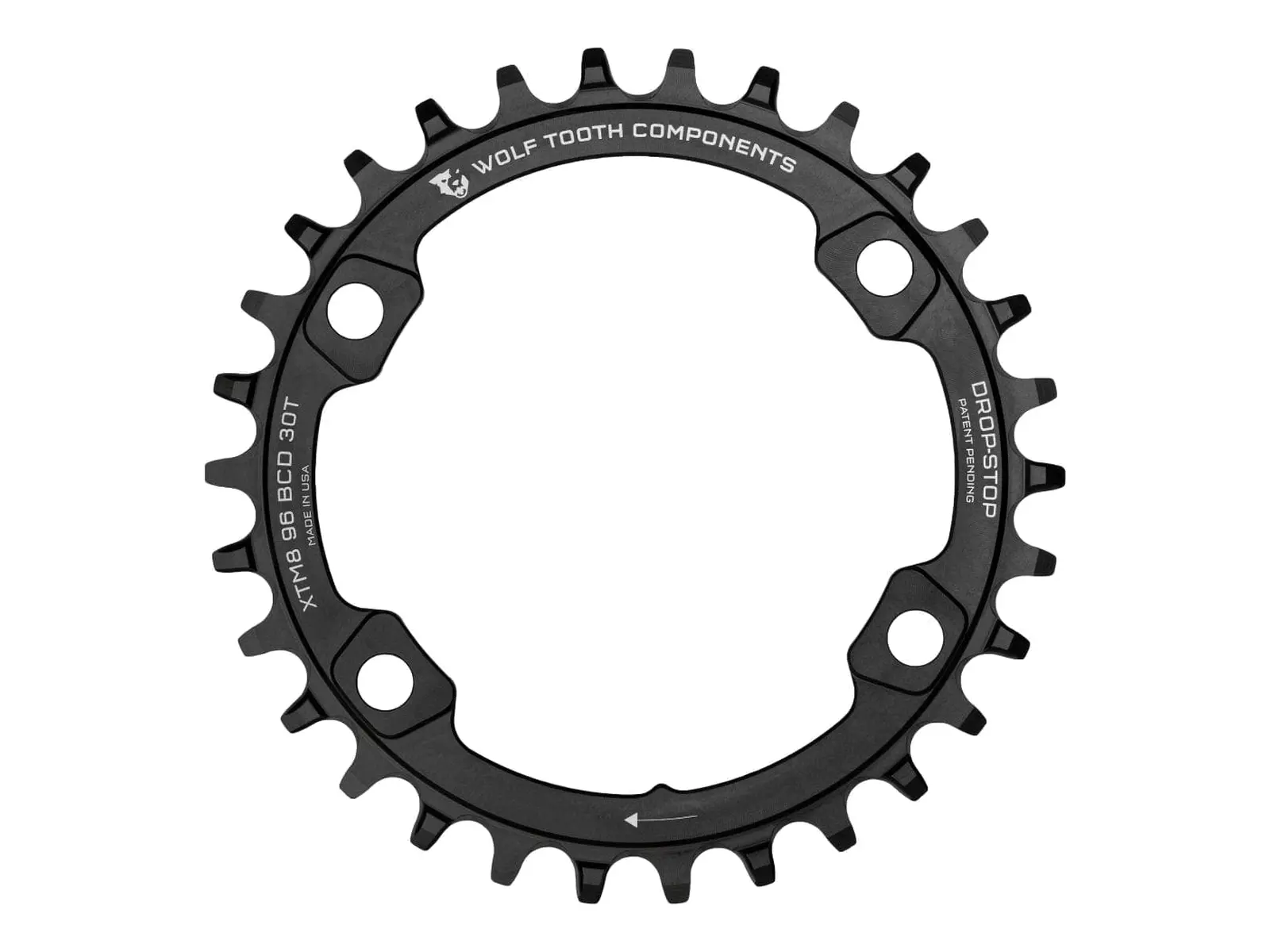

Wolf Tooth "Drop-Stop" MTB Chainring - 96 BCD Shimano XT M8000
-
Weight : 0.05kg / 0.11lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36492
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
Wolf Tooth "Drop-Stop" MTB Chainring - 96 BCD Shimano XT M8000 is a 1x chainring with Wolf Tooth's patented Drop-Stop tooth profile: wide and narrow teeth alternate, the wide teeth guide the wide chain links and keep the chain on the ring without a chain guide, the narrow ones let mud and dirt pass. The ring is machined in Minnesota from 7075-T6 aluminium. The 96 BCD version for Shimano XT M8000 and SLX M7000 turns the 2x crank into a 1x drivetrain with a matching chainline. Drop-Stop A for 9 to 11 speed and SRAM Eagle, Drop-Stop ST for Shimano 12 speed Hyperglide+.
Facts: Wolf Tooth "Drop-Stop" MTB Chainring - 96 BCD Shimano XT M8000
- Style: 1x chainring, Drop-Stop A or Drop-Stop ST
- Material: 7075-T6 aluminium, CNC machined
- Teeth: 34T, 30T or 32T
- Chainring Mount: 4-Bolt (96mm BCD)
- Chain Compatibility: see style. Drop-Stop A: all 9, 10 and 11 speed chains, 12 speed SRAM Eagle, Connex, Wippermann. Drop-Stop B: additionally SRAM T-Type Transmission and Flattop, 12/13 speed SRAM Road, 12 speed Campagnolo. Drop-Stop ST: 12 speed Shimano Hyperglide+ and 12 speed KMC only (A and B are NOT for Shimano HG+ and KMC 12 speed)
- Contains: 1 chainring
- Extras:
- asymmetric 96mm bolt circle for Shimano XT M8000, SLX M7000, Deore M6000 and FC-M5100 (1x and 2x cranks), NOT for Deore triples
- Drop-Stop A moves the chainline inwards compared to Shimano (2mm for 30T to 34T), Drop-Stop ST keeps the Shimano chainline
- mounts with 10mm long bolts
- the manufacturer recommends a clutch rear derailleur
- weight according to the manufacturer: 30T 41g, 32T 50g, 34T 59g
- made in USA
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
