Wolf Tooth "T47e" MTB Bottom Bracket

160.95 EUR

Color | Bottom Bracket | Axle Diameter

Please Select
- - purple | T47 | 24mm
  - purple | T47 | 29mm
  - orange | T47 | 30mm

Straight to the checkout with PayPal: delivery address and payment come from there. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 0.1kg / 0.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Set
Product ID (PID): 40251
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

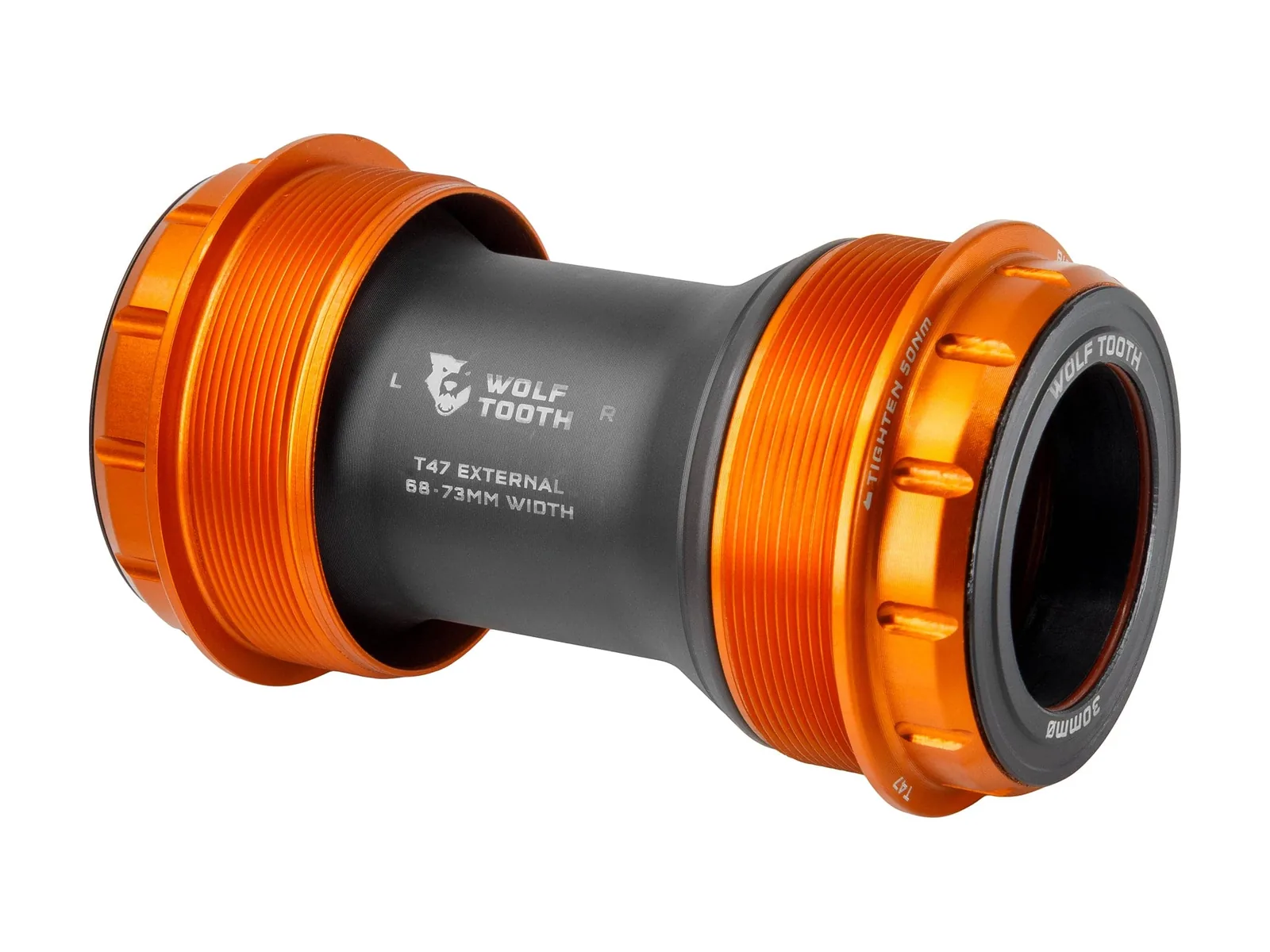

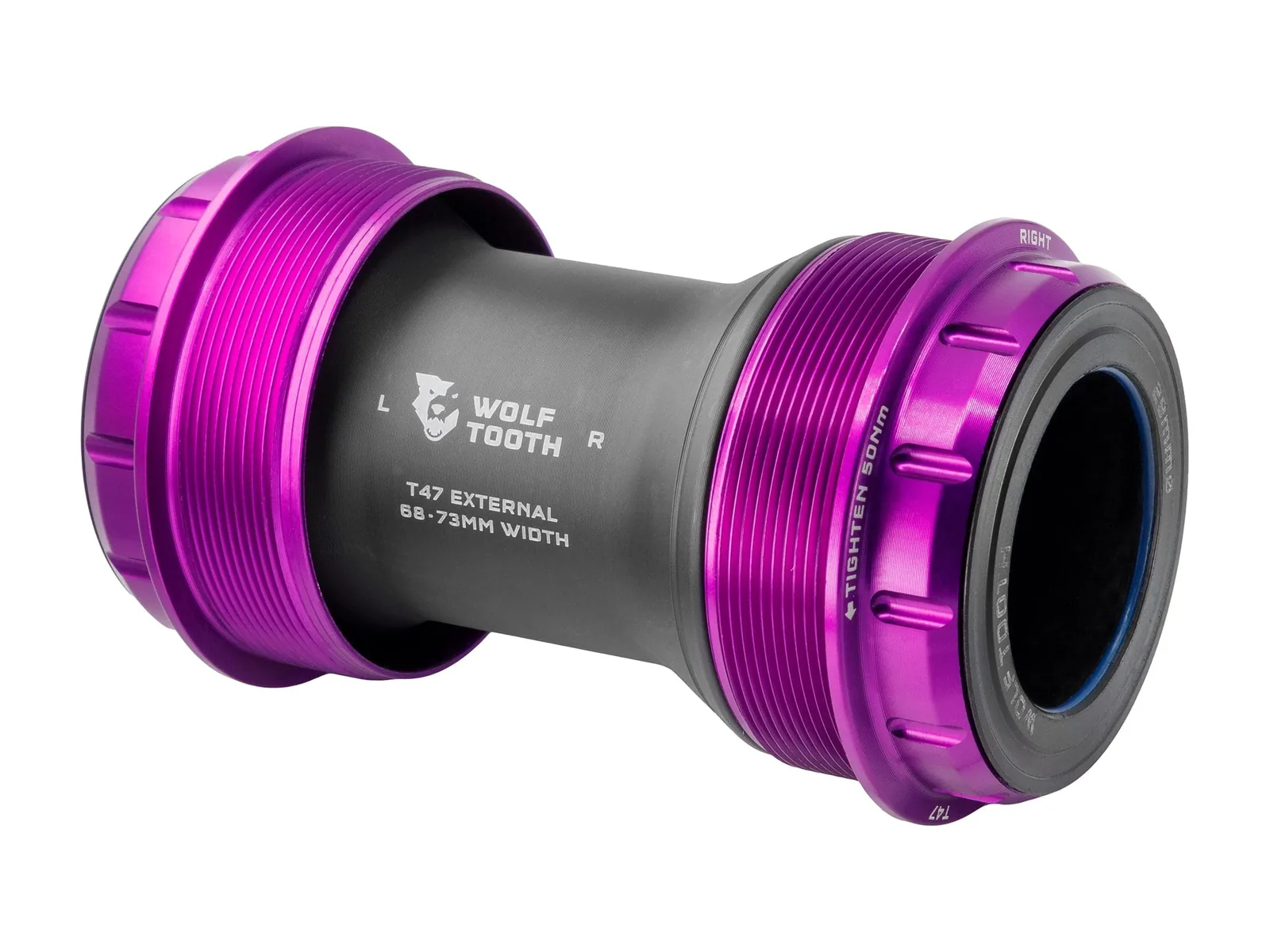

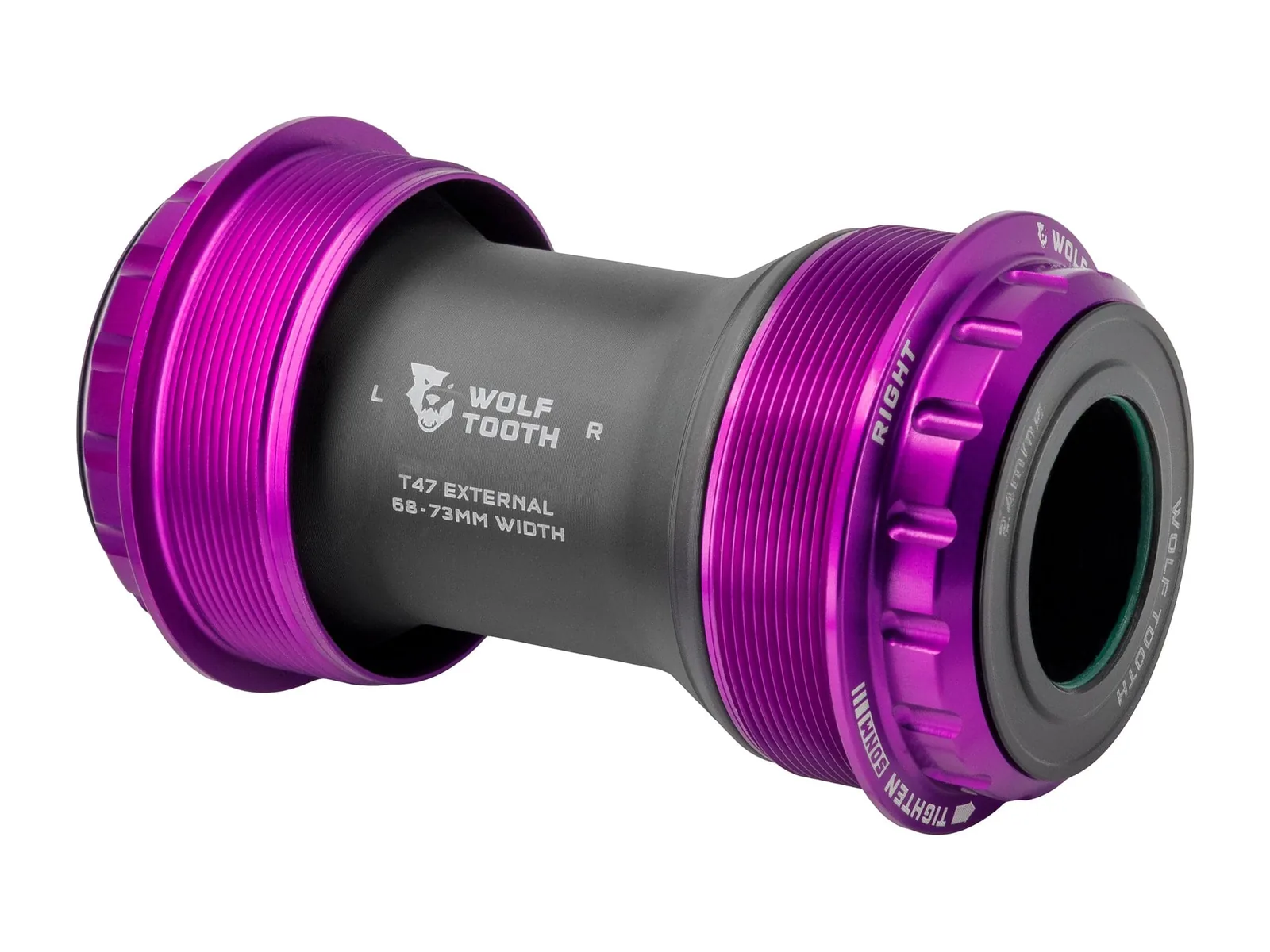

The Wolf Tooth "T47e" MTB Bottom Bracket is the T47 bottom bracket with external bearings for 68 to 73 mm shells. Wolf Tooth makes cups, seals, bushings and bearings in Minnesota: balls and races of hardened chrome steel with ACOSUR ZNA coating, multi-stage sealing and polymer spindle bushings against creaking. Available for 24 mm Shimano, 29 mm SRAM DUB and 30 mm spindles; lifetime bearing warranty, replacement parts from the manufacturer.

Facts: Wolf Tooth "T47e" MTB Bottom Bracket

Material: cups 6061-T6 aluminium, sleeve glass-filled nylon, seals NBR/EPDM/urethane, balls and races AISI 52100 hardened chrome steel with ACOSUR ZNA coating
Style: T47 External (T47e), bearings outside the shell
Axle Diameter: 24mm, 29mm or 30mm
Shell Width: 68-73 mm (adjustable inner sleeve)
Bearings: Wolf Tooth cartridge bearings, hardened chrome steel, lifetime warranty
Distance Tube: adjustable inner sleeve 68-73 mm
Scope of Delivery: 1 bottom bracket, 2 shell spacers 2.5 mm, spindle spacers (24 mm: 2x 0.5, 2x 1, 2, 3, 5 mm; 29 mm: 2x 0.5, 2x 1, 3, 5, 7.5 mm; 30 mm: 2x 0.5, 2x 1, 2, 3, 5 mm)
Extras:
- polymer spindle bushings against creaking
- install with 44-16 (24 mm) or 46-12 (29 mm DUB, 30 mm) bottom bracket tool
- weight 96 g (24 mm), 97 g (29 mm), 91 g (30 mm) without spacers, manufacturer
- replacement parts and service guide from the manufacturer (Right to Repair)
- made in USA
