BSD "Focus" BMX Frame
This product is currently sold out. The date of new availability is unknown. Show similar products
-
Weight : 2.4kg / 5.29lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 28471
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

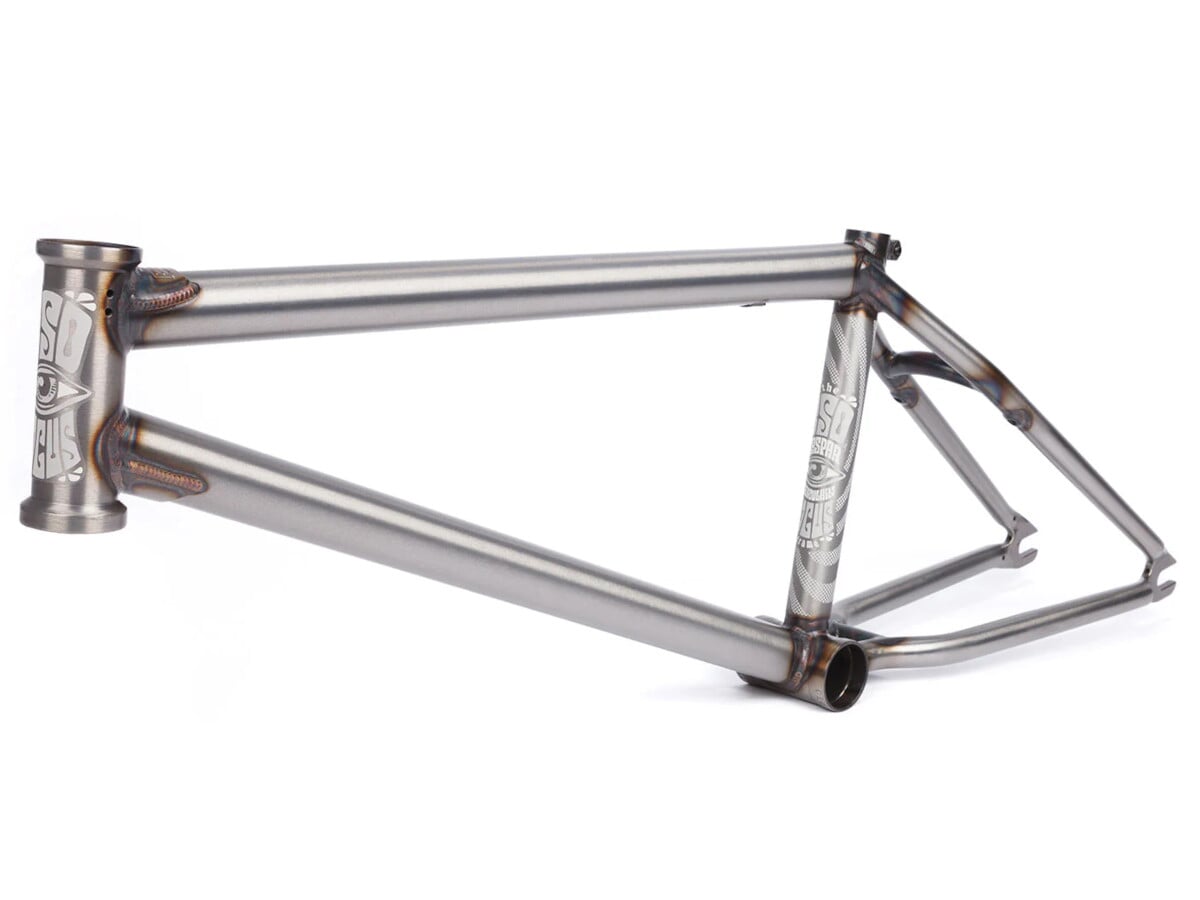

BSD "Focus" BMX Frame
is Gaspar Guendulain's signature frame and was designed and manufactured according to his personal wishes, his riding style, for modern and technical pro level street riding.
The
BSD "Focus" BMX Frame
marks a significant departure from the typical trend of short street frames. With a 13.5 - 14” rear end, 10” standover, an angled forward 72 degree seattube angle to aid with pinching the seat on barspins and is available in toptube sizes up to 21.5” which is the length Gaspar rides...
Facts: BSD "Focus" BMX Frame
- Wheel Size: 20"
- Material: 100% Sanko Japanese seamless 4130 CrMo, top tube and down tube gussets, integrated headset
- Geometry:
- Top Tube Length (TT): 21.0"
- Chainstay Length (CS): 13.5" (34.29cm) - 14" (35.56cm)
- Head Tube Angle (HA): 75.2°
- Seat Tube Angle (SA): 72°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 10" (25.4cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 7mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M6)
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Gaspar Guendulain's Signature frame, wide rear end for fat 2.4" tires, Superscoop chainstay tubing
