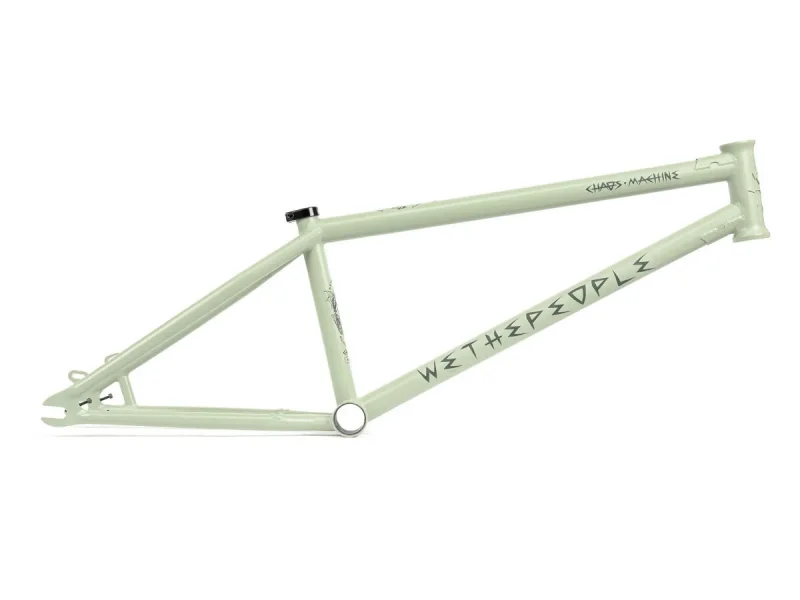

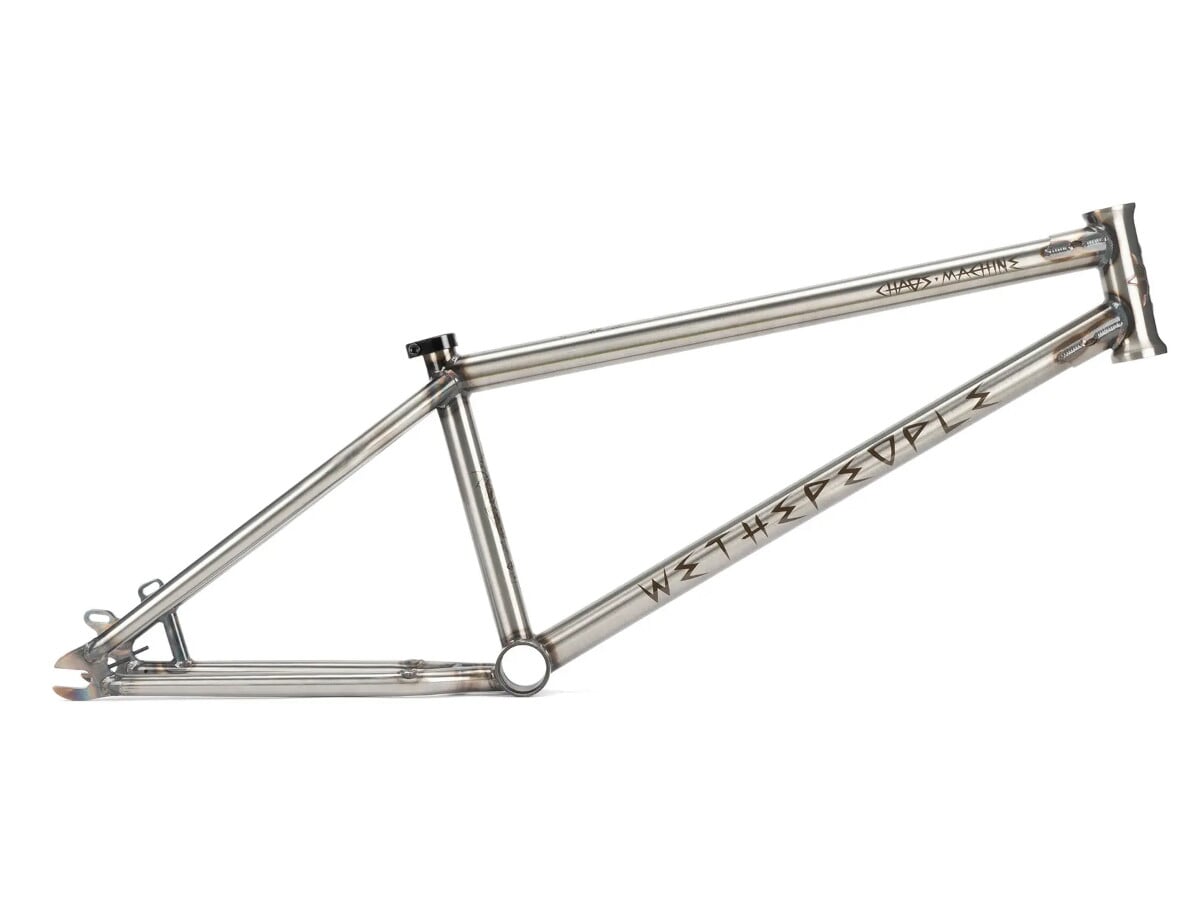

wethepeople "Chaos Machine 22" BMX Frame - 22 Inch
-
Weight : 2.36kg / 5.20lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 27543
The wethepeople "Chaos Machine 22" BMX Frame - 22 Inch is the signature BMX frame from the Australian BMX Trails legend Tyson Jones-Peni and comes in a 22" inch version for 22" inch wheels. Although the wethepeople "Chaos Machine 22" BMX Frame - 22 Inch frame was designed for 22” wheels, you can run 20” wheels on this frame for a longer, lower BB and taller rider area 20” frame. The wethepeople "Chaos Machine 22" BMX Frame - 22 Inch features a long and stable geometry and mounts for a disc brake (and regular U-brake).
Facts: wethepeople "Chaos Machine 22" BMX Frame - 22 Inch
- Wheel Size: 20" or 22"
- Material: 100% 4130 Japanese CrMo, top tube and down tube gussets, butted tubes, integrated headset, integrated seatclamp, offset thickness dent resistant chainstays and mid bb for grind resistance
- Geometry:
Top Tube Length (TT): 22.25"
Chainstay Length (CS): 14" (35.56cm) - 14.75" (37.47cm)
Head Tube Angle (HA): 74.25°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 12.25"
Standover Height (SO): 9.75" (24.77cm) - Seat Clamp: integrated
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB
- Dropouts: Investment cast, 6mm thick, 14mm slots, CNC machined, 4130 CrMo
- Chain Tensioners: integrated
- Brake Type: U-Brake & Disc Brake
- Brakemounts: without
- Brakemounts included with delivery: No
- Gyro compatible: No
- Features: Tyson Jones-Peni Signature, long trail geometry, disc mount for 120mm - 160mm rotors, 127mm high head tube, strut tube with larger radius, stiffer & stronger back end, larger weld on the head tube, wider dropout for wide 2.4" tires
- Model Year: 2024
