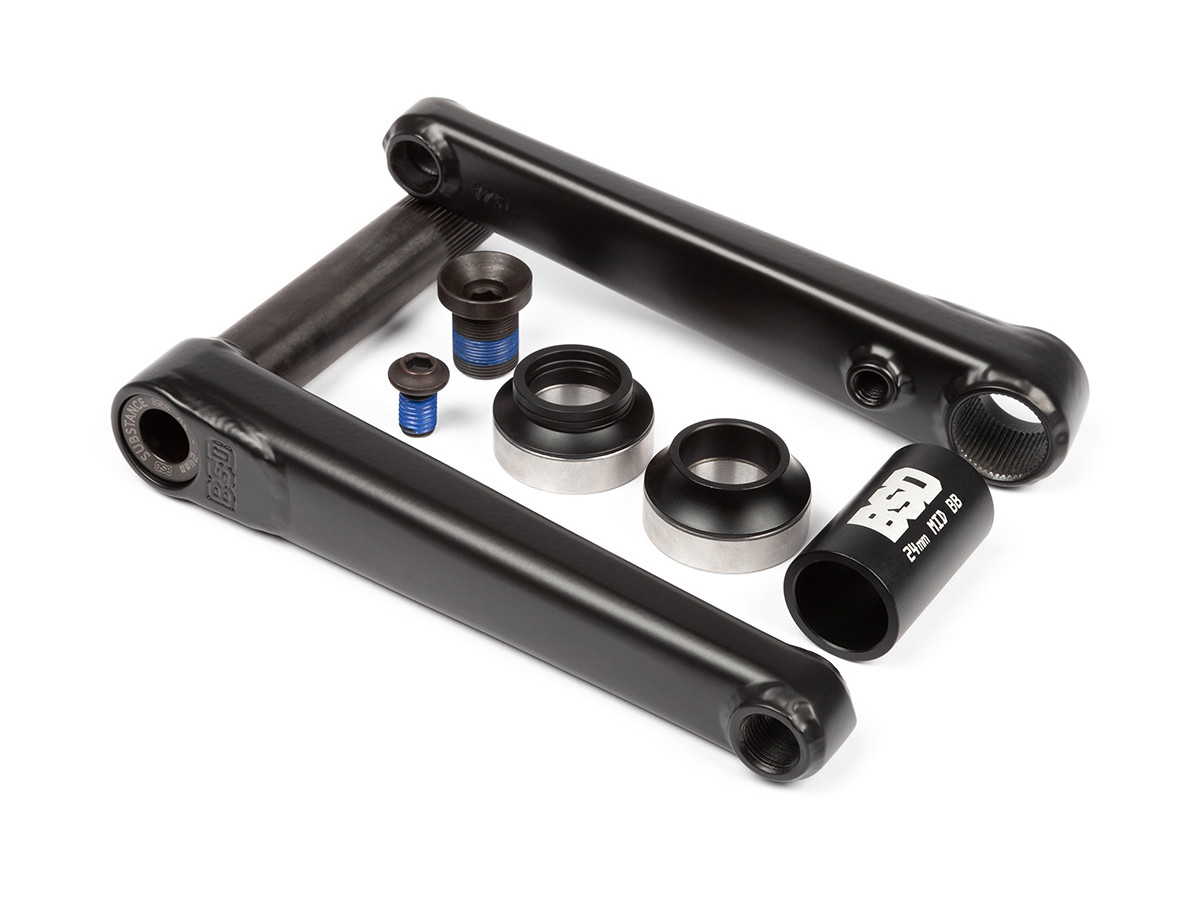

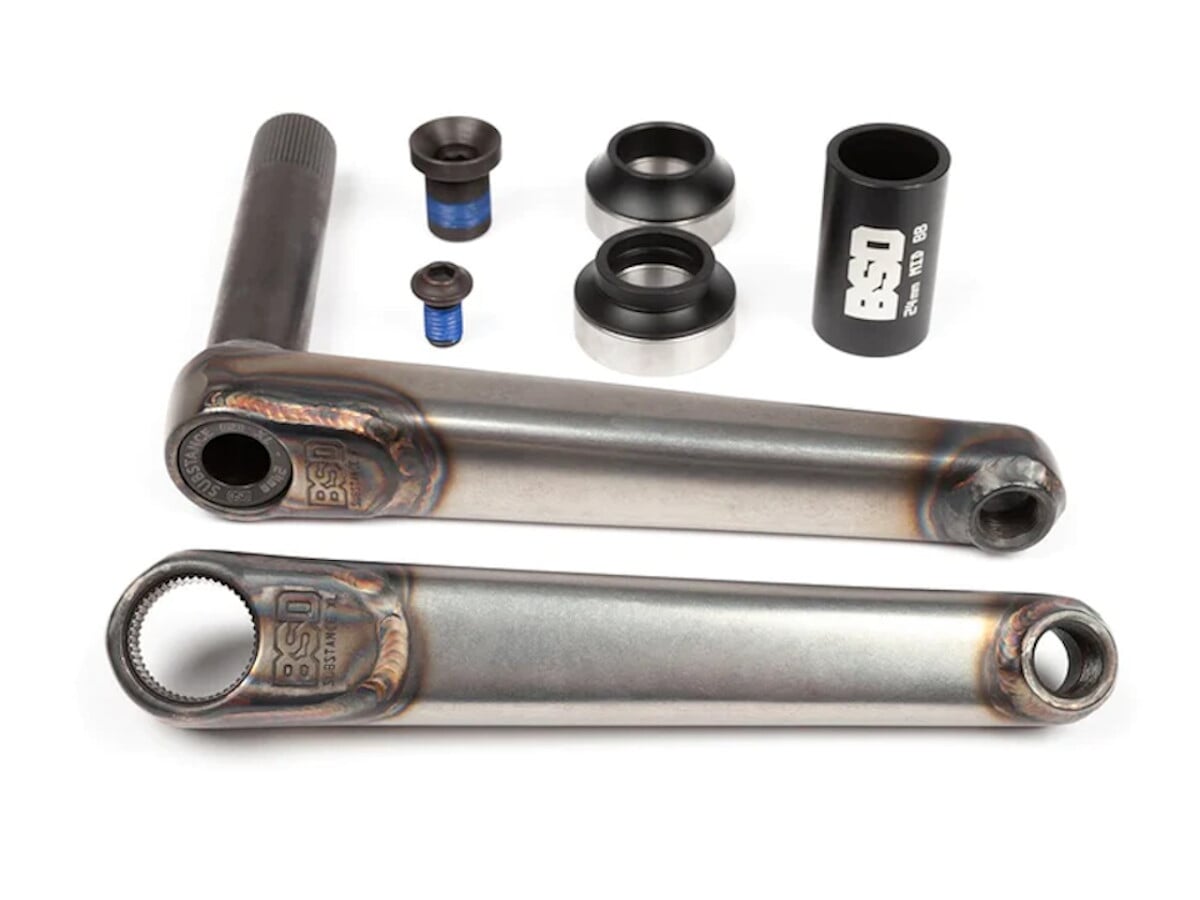

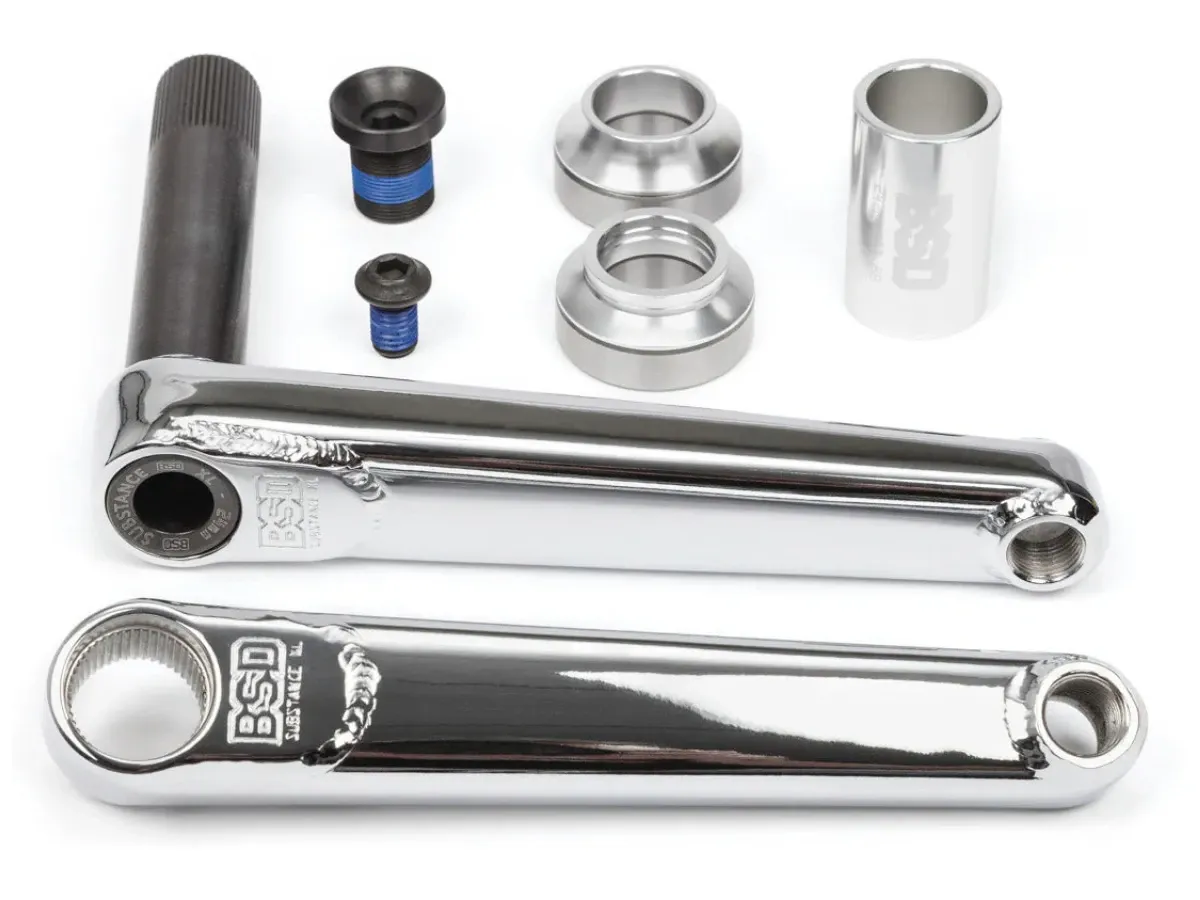

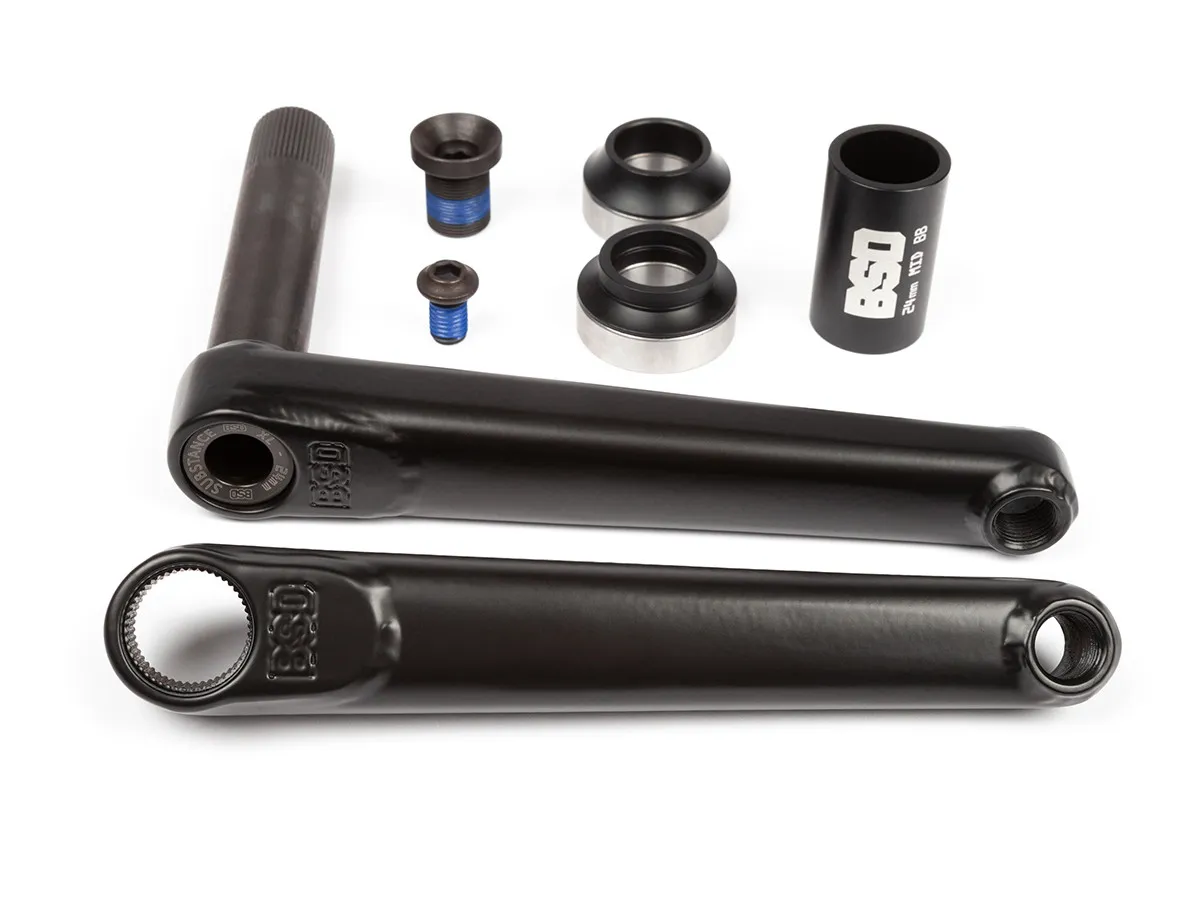

BSD "Substance XL V2" BMX Crank + Mid BB
-
Weight : 1.2kg / 2.65lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 19297
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The 2.5 piece
BSD "Substance XL V2" BMX Crank + Mid BB
includes a Mid BB and comes with a new design.
The
BSD "Substance XL V2" BMX Crank + Mid BB
is available with a 24mm axle, was heat treated and comes with rectangular cross section for increased stiffness.
Facts: BSD "Substance XL V2" BMX Crank + Mid BB
- Material Crank Arms: 4130 CrMo, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 2.5-piece
- Crank Arm Length: 165mm, 170mm or 175mm
- Spindle Diameter: 24mm
- Spindle-Type: 48-Spline
- possible Sprocket Mount by:
- Bolt-Drive (25T or larger): right (RHD) and left (LHD)
- Spline-Drive: left (LHD) - Pedal Threat: for 9/16" pedals
- Pedal Thread: for 9/16" pedals
- Spindle Bolt: 1x bolts (18x1mm, 24mm Axle)
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: completely surround welded axle and pedal jacks, rectangular flattened arms, including removal tool
- Recommended for: Street, Park, Trails or Flatland
