Burgtec MTB Thru Axle - Rear 174mm Yeti
-
Weight : 0.06kg / 0.13lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 40903
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

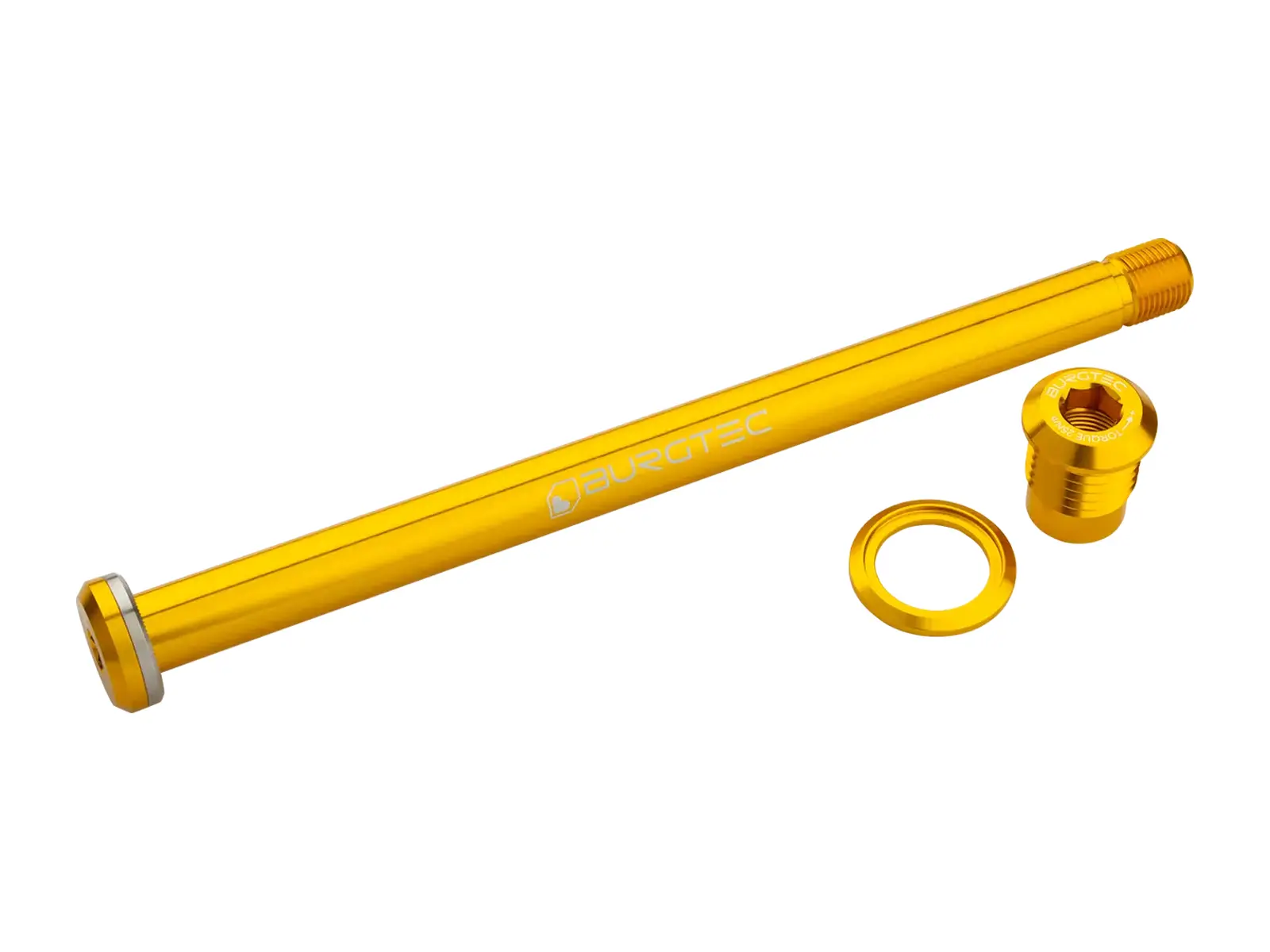

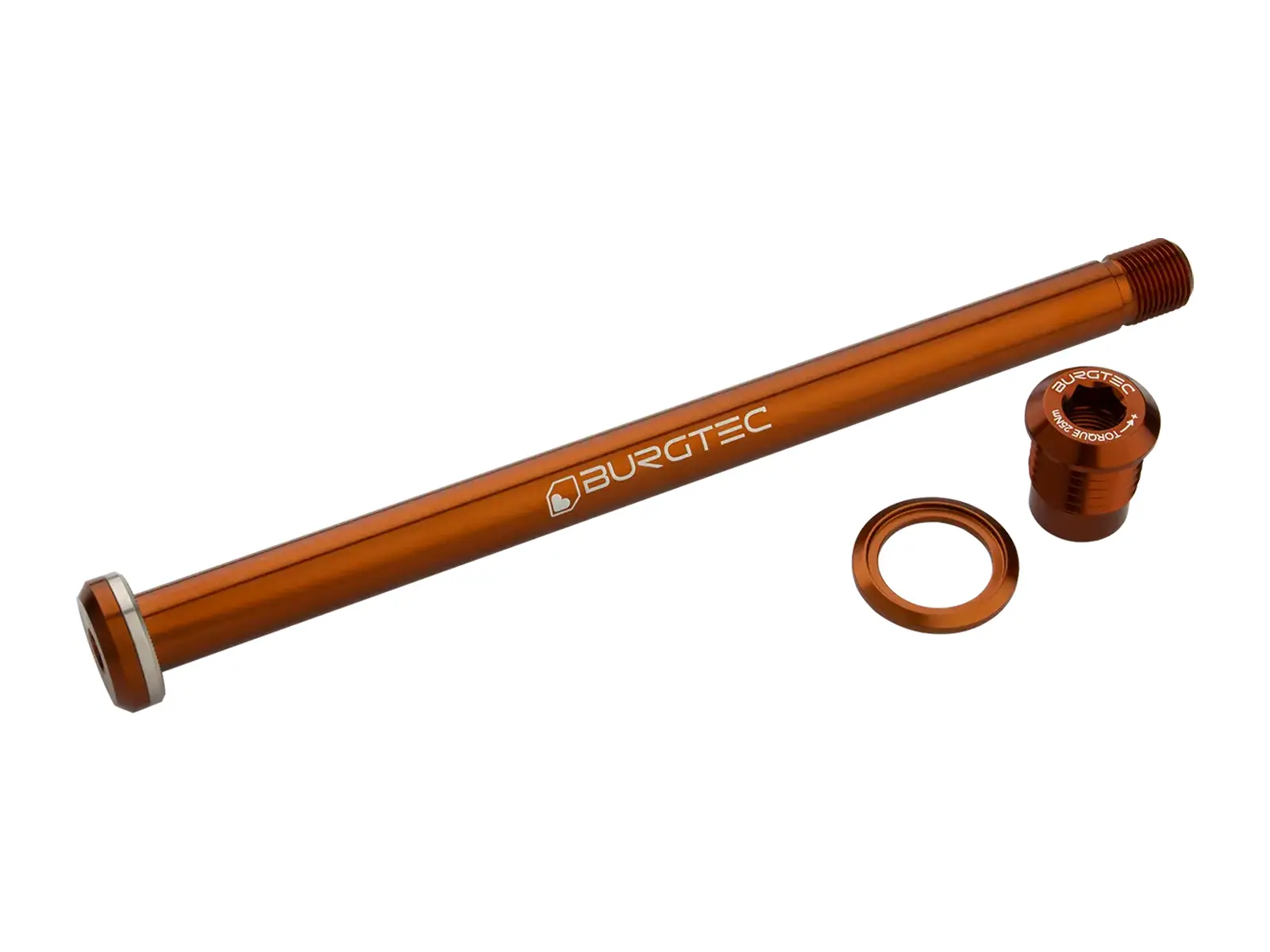

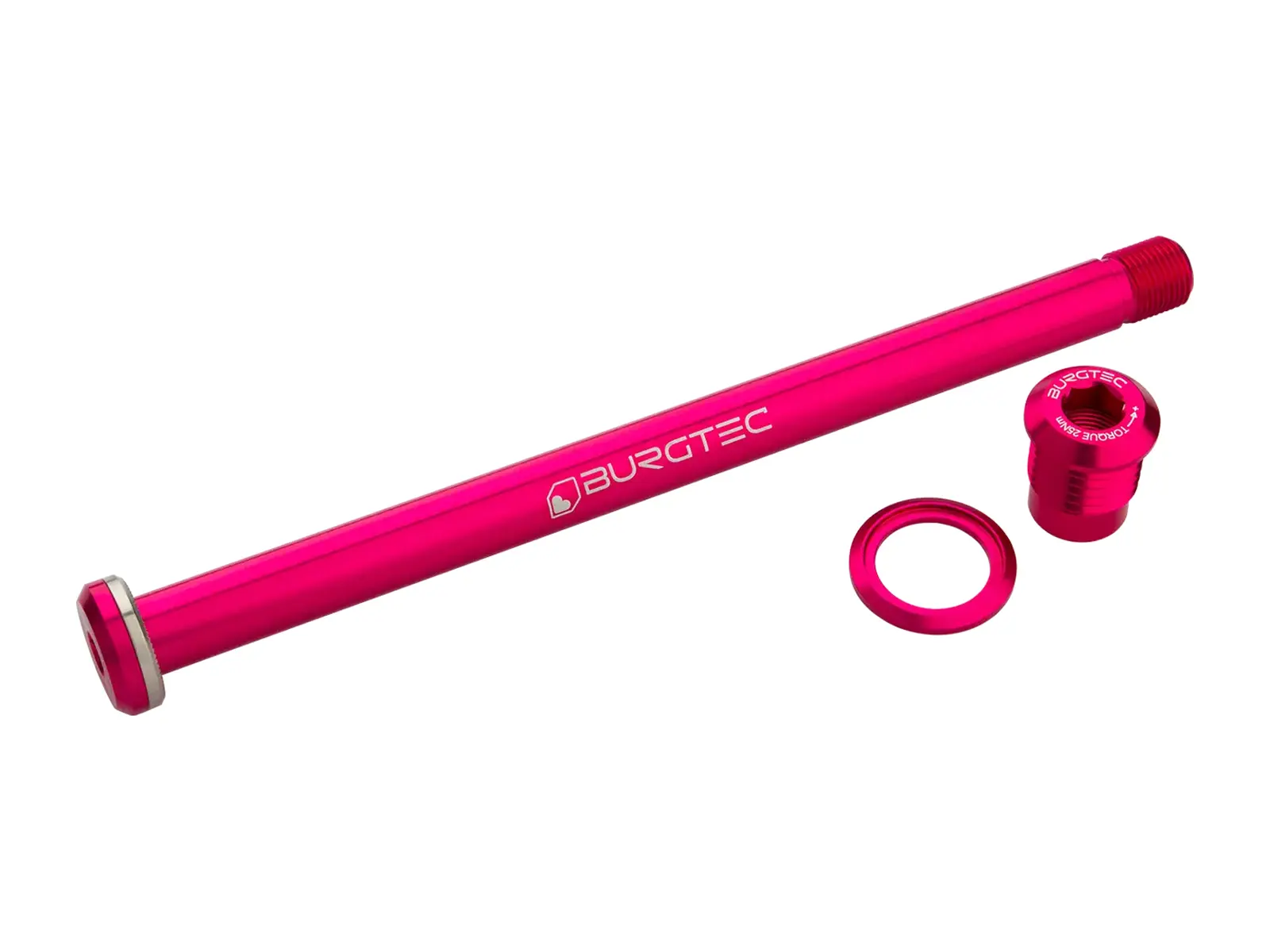

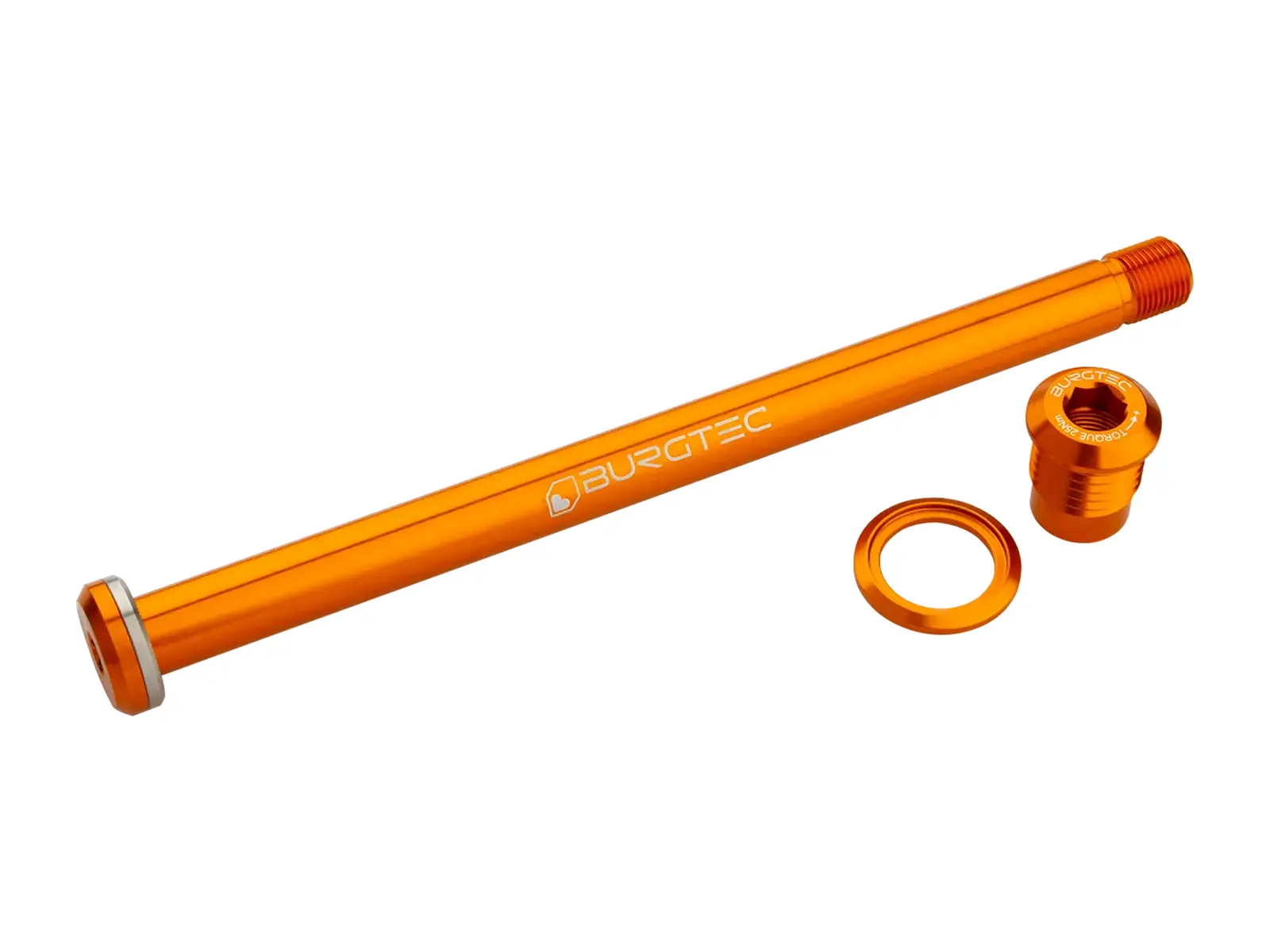

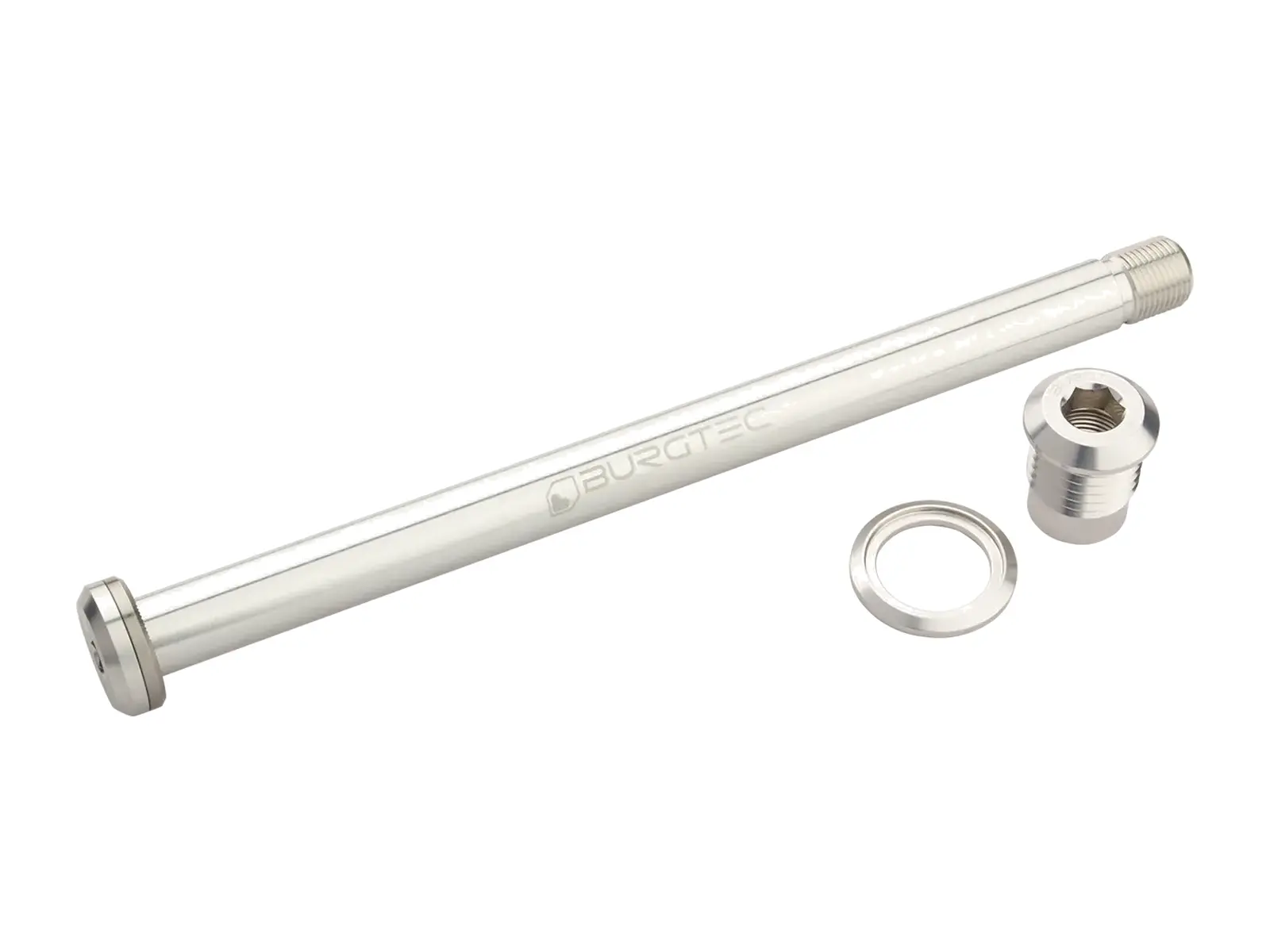

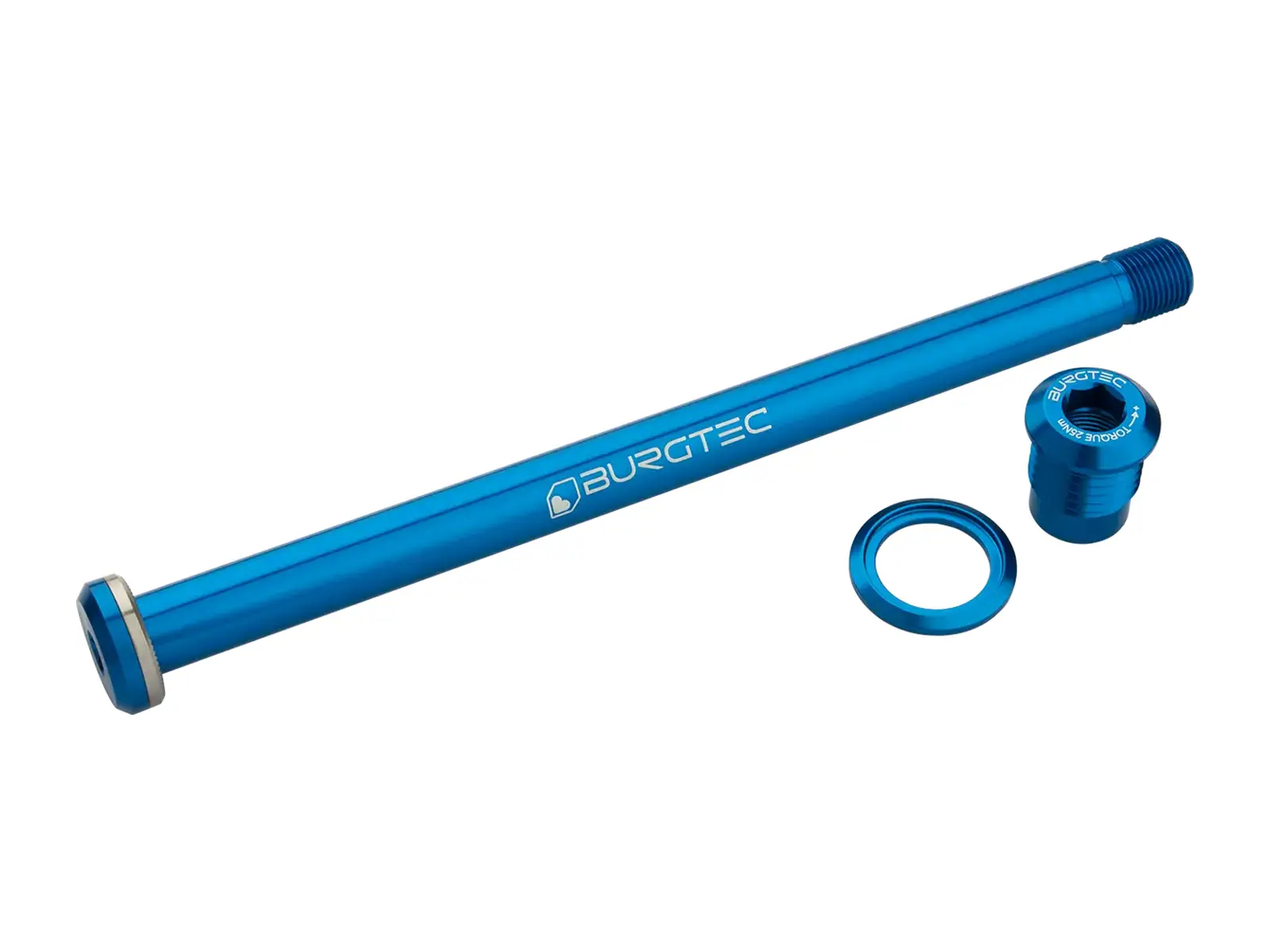

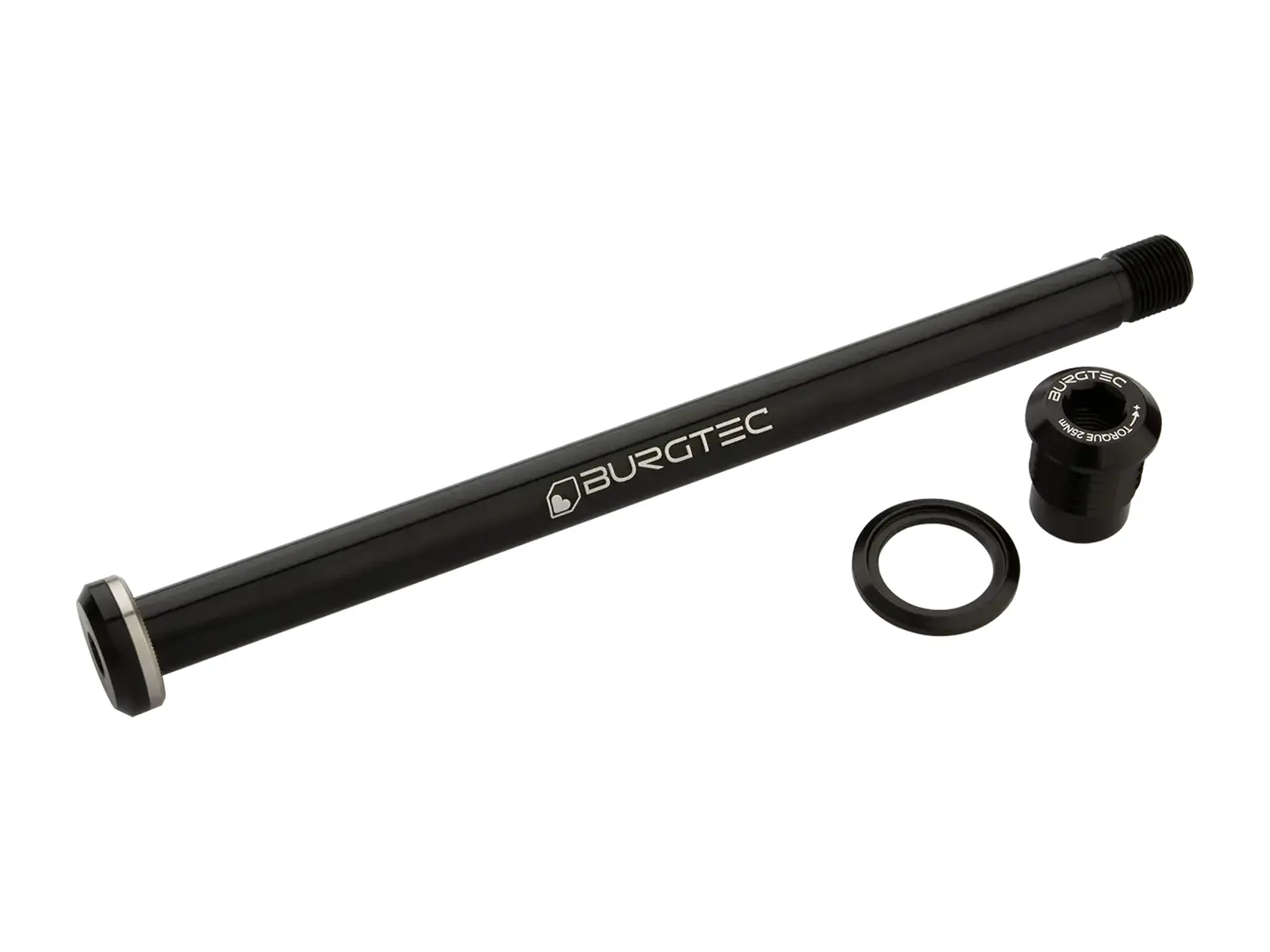

The Burgtec MTB Thru Axle - Rear 174mm Yeti is a leverless thru axle machined from 7075 aluminium to the dimensions of the original axle. It tightens with a 6 mm Allen key, so it works with a torque wrench and there is no lever to take up space or snag on obstacles. A second 6 mm Allen fitting on the drive side lets you get the axle out if the one on the other side gets rounded. Available in 9 Burgtec colours to match Burgtec stems, caps and hangers.
Facts: Burgtec MTB Thru Axle - Rear 174mm Yeti
- Contains: 1 x axle, 1 x hanger bolt, 1 x hanger bolt washer, 2 x stickers
- Material: aluminium (7075)
- Diameter: 12mm
- Hub Spacing: 12 x 148 mm
- Length: 174mm
- Tool Interface: 6 mm Allen key, second 6 mm fitting on the drive side
- Fits to: Yeti LT and MT (2026), LTe and MTe (2025-2026), SB165 (2023-2026), SB160 (2023-2025), 160E (2022-2024), SB140 29 (2023-2025), SB135 (2023-2026), SB120 (2023-2026), ASR (2024-2026), Arc (2020-2026), also Ibis bikes with 12 x 148 mm and UDH
- Extras:
- made to the dimensions of the original axle
- replaces original part Yeti 100425009, 100425018, 100425035
- Burgtec says the 174 mm axle fits even if the original axle is marked 172 mm.
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
