Chase "ACT 1.2 Pro XL" BMX Race Frame
- Weight : 1.34kg / 2.95lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45769
- Product safety
Weight
Source: BMX Glossary
Printed: 10/30/2026
The Chase "ACT 1.2 Pro XL" BMX Race Frame is the carbon race frame from Chase. ACT stands for Advanced Carbon Technology: the monocoque frame is built from uni-directional (UD) carbon fiber. Compared to the ACT 1.0 Chase mainly added clearance for bigger chainrings and for more calipers on the optional Elevn disc adapter; Connor Fields and Joris Daudet rode it for over ten months before it went on sale.
The tapered head tube (1-1/8" to 1.5") and the Press Fit BB86 bottom bracket have reinforced alloy cups. At the rear there are extra long enclosed dropouts reinforced with stainless steel and built-in chain tensioners; the 20mm plates are installed, 10mm plates are included. The brake cable runs inside, the V-brake bosses are recessed. An Elevn monocoque carbon aero seat post with integrated quick release comes with the frame.
In size Pro XL it has a 21" top tube and weighs 1.34 kg according to Chase, without seat post, clamp and tensioners.
Facts: Chase "ACT 1.2 Pro XL" BMX Race Frame
- Wheel Size: 20"
- Race Size: Pro XL
- Material: carbon, monocoque from uni-directional (UD) carbon fiber
- Geometry:
- Top Tube Length (TT): 21.0"
- Chainstay Length (CS): 14.25" (min.)
- Head Tube Length: 4.7" (120mm)
- Head Tube Angle (HA): 74°
- Seat Tube Angle (SA): 72.5°
- Bottom Bracket Height: 11.5" - Headsets Size: tapered 1-1/8" - 1.5" (integrated, reinforced alloy cup)
- Seat Clamp: aero quick release, integrated into the seat post
- Seat Post Diameter: aero 27.2mm
- Bottom Bracket: Press Fit BB86, reinforced alloy cup
- Dropouts:
- enclosed, extra long, reinforced with stainless steel plates

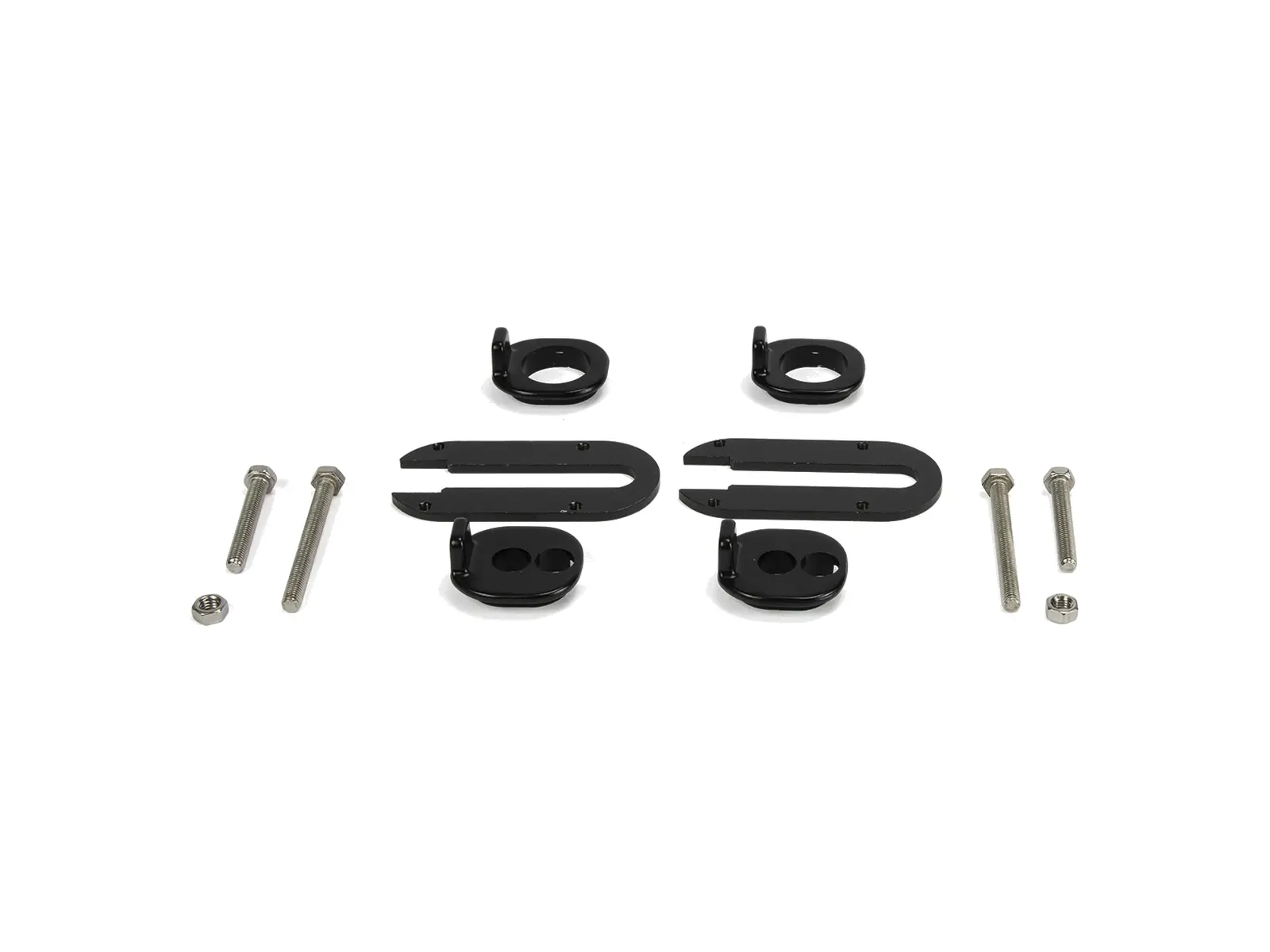

- 20mm dropout plates installed, 10mm (3/8") plates included - Chain Tensioners: built-in alloy tensioners, blocks for 20mm and 10mm axles included, internal and external tensioner system
- Brake Type: Disc Brake (120mm) or V-Brake
- Brakemounts: recessed V-brake bosses, disc brake via the Elevn ACT adapter sold separately
- Brakemounts included with delivery: Yes (V-brake), disc brake adapter sold separately
- Features: internal brake routing, aero seat tube, matte finish with gloss graphics, more clearance for chainrings and calipers than the ACT 1.0
- Includes: 1 frame, Elevn monocoque carbon aero seat post 27.2mm (110mm) with quick release, chain tensioner blocks 20mm and 10mm, 10mm dropout plates, bolts for both tensioner systems
