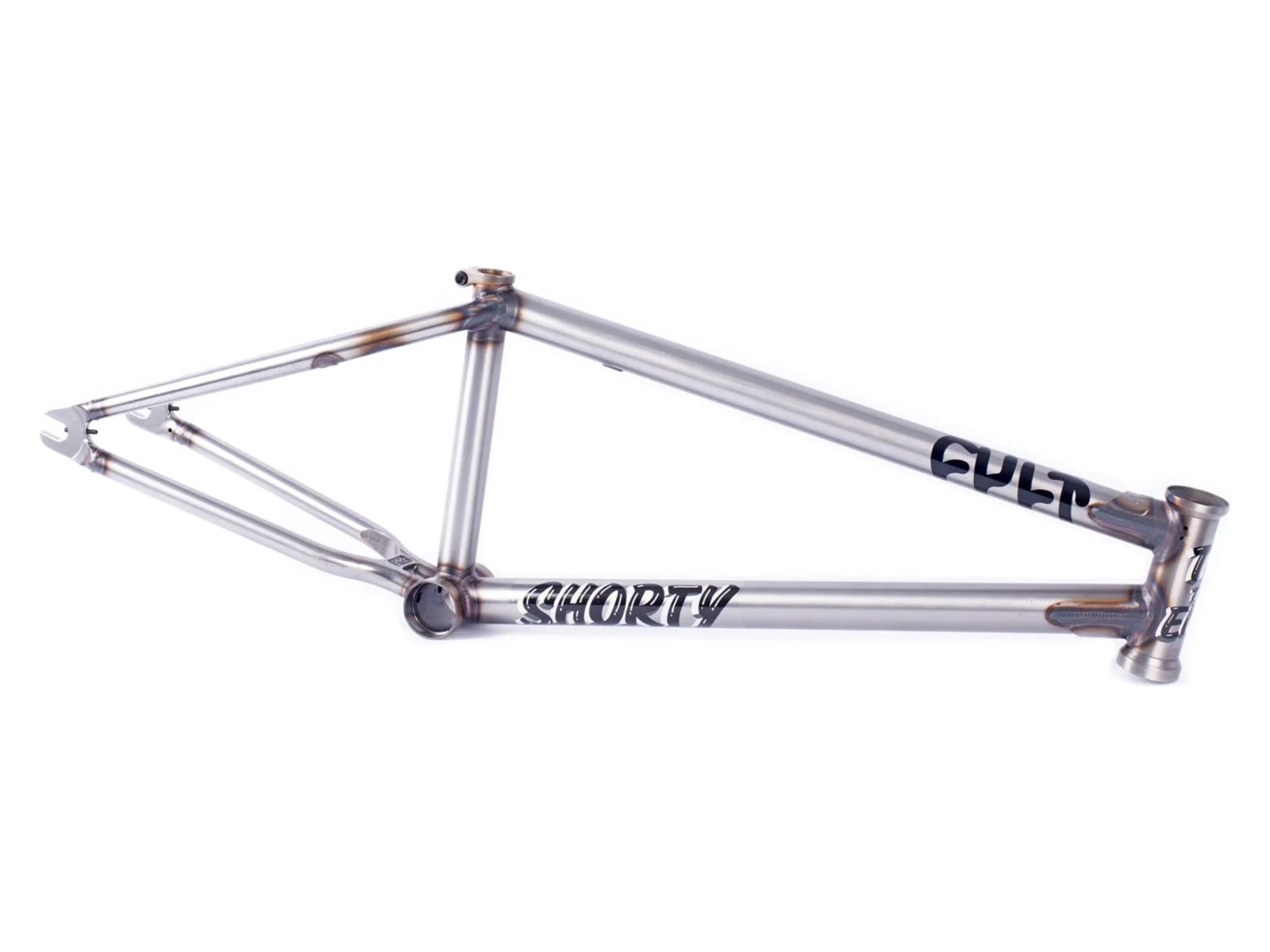

Cult "Shorty" BMX Frame - Matte Clear Raw

336.09 EUR

Taxfree excl. shipping

Color | Top Tube Length

Qty.:

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 2.3kg / 5.07lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Piece
Product ID (PID): 32064
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

The Cult "Shorty" BMX Frame - Matte Clear Raw comes in Eddie Cuellar's signature colorway which was designed and manufactured for modern and technical Pro-level street riding. Of course this Cult "Shorty" BMX Frame - Matte Clear Raw is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.5° head tube paired with a medium short 13" rear end and a 11.7" high bottom bracket make this high quality street all-round frame very maneuverable. This frame features removable brake hardware mounts (brake hardware not included) and of course offers room for fat 2.4" tires.

Facts: Cult "Shorty" BMX Frame - Matte Clear Raw

Wheel Size: 20"
Material:
- 100% 4130 CrMo

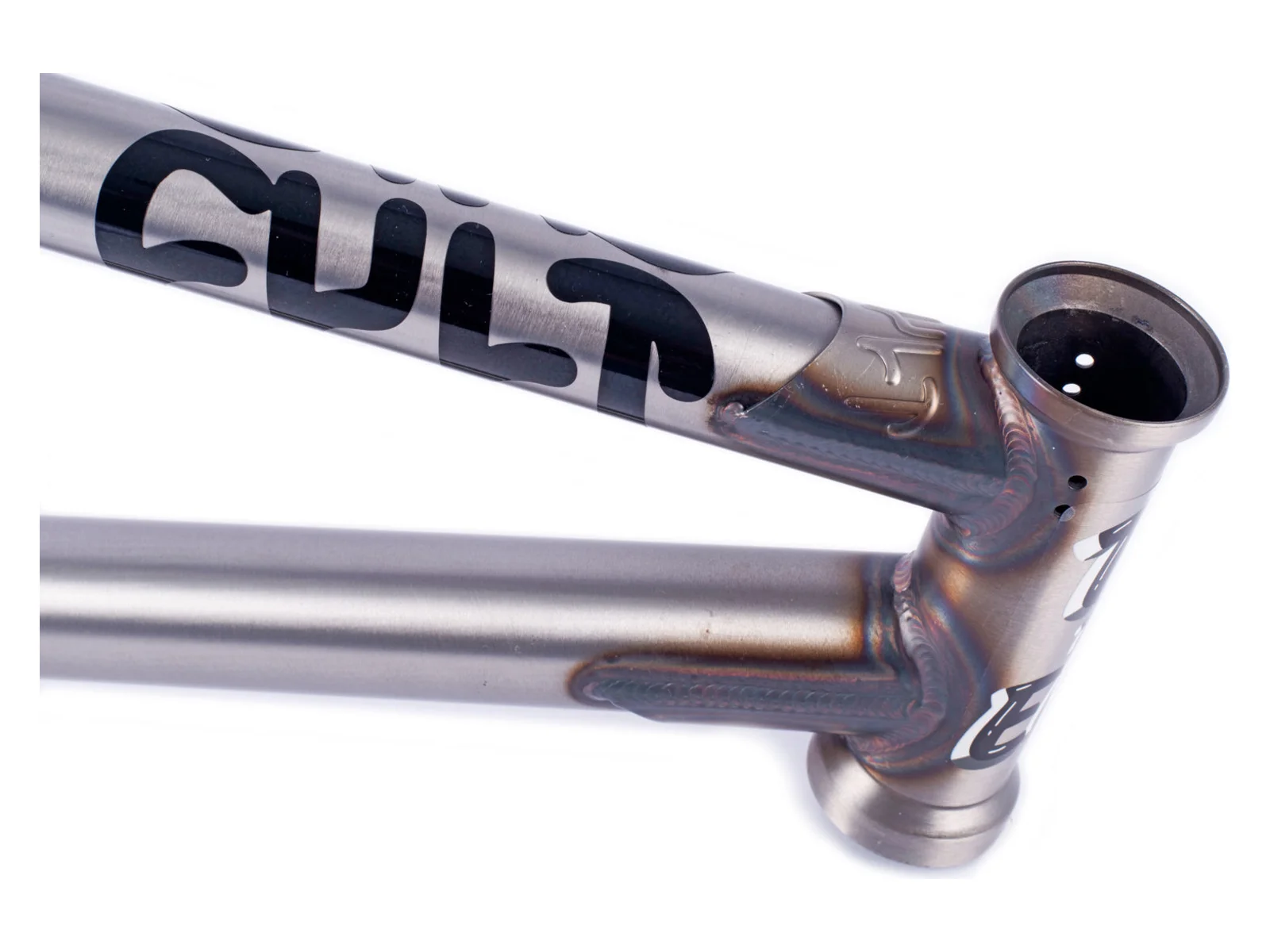

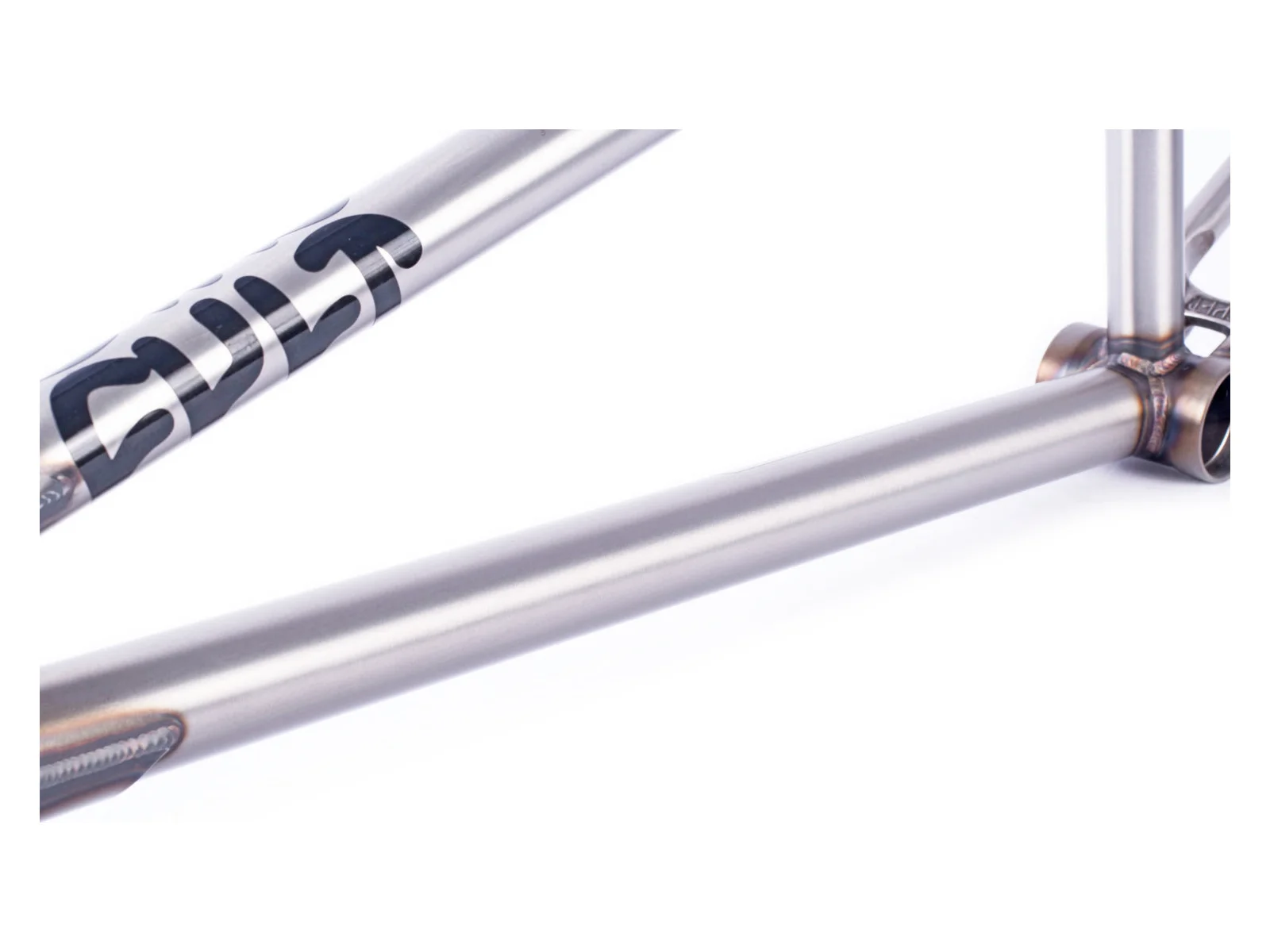

- Top and downtube gusset

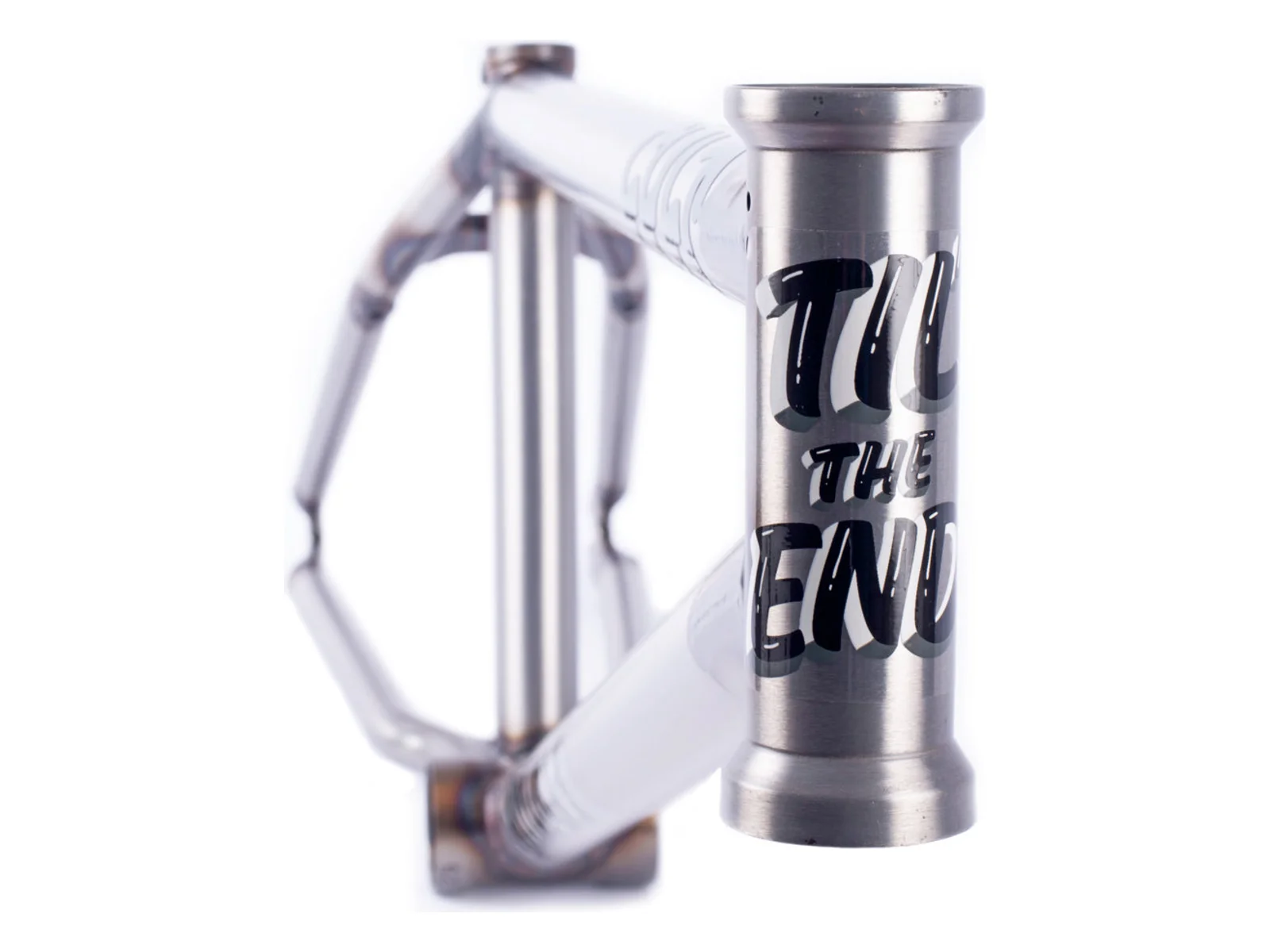

- Headtube for integrated headsets

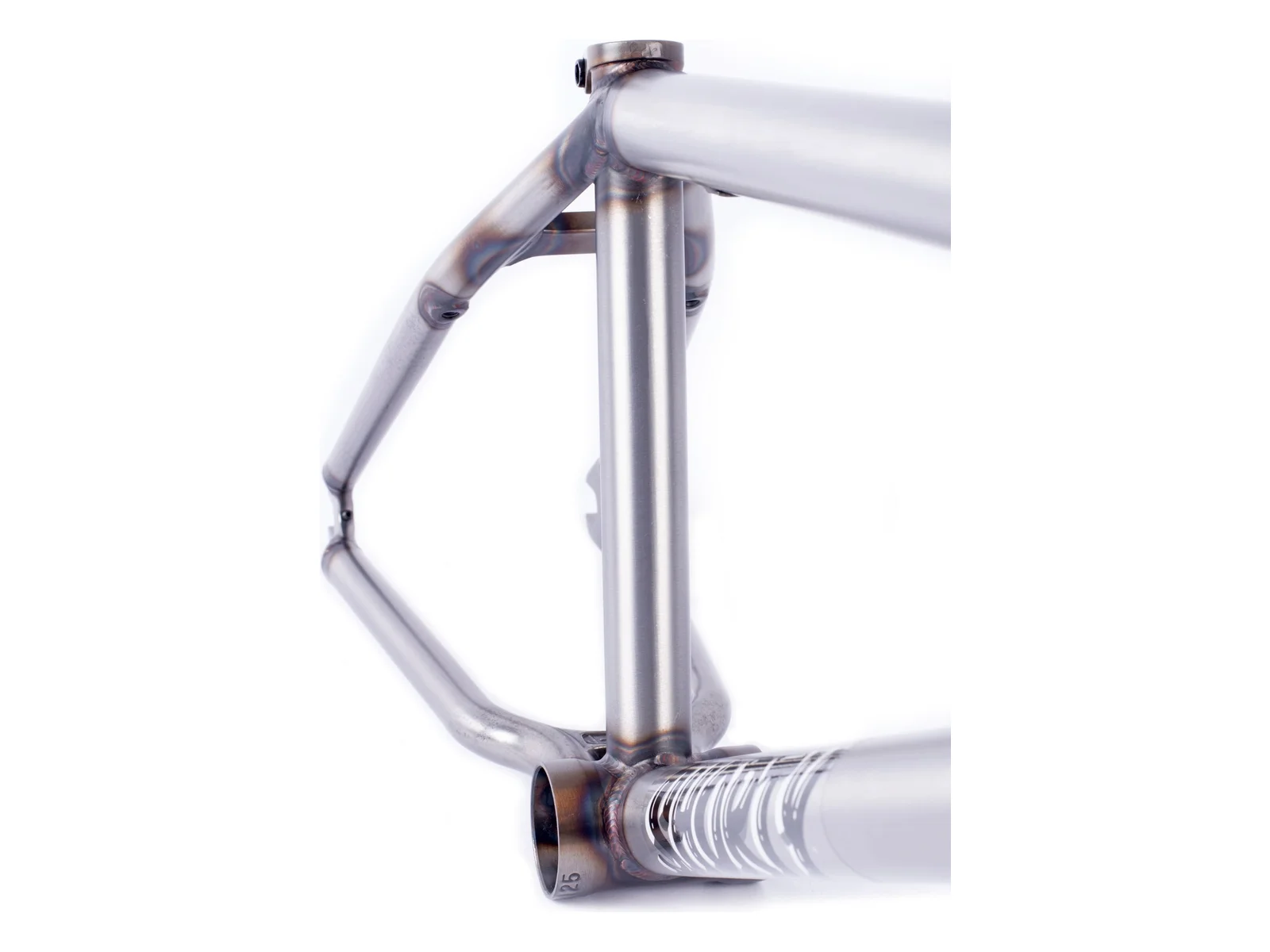

- Integrated investment cast seat clamp

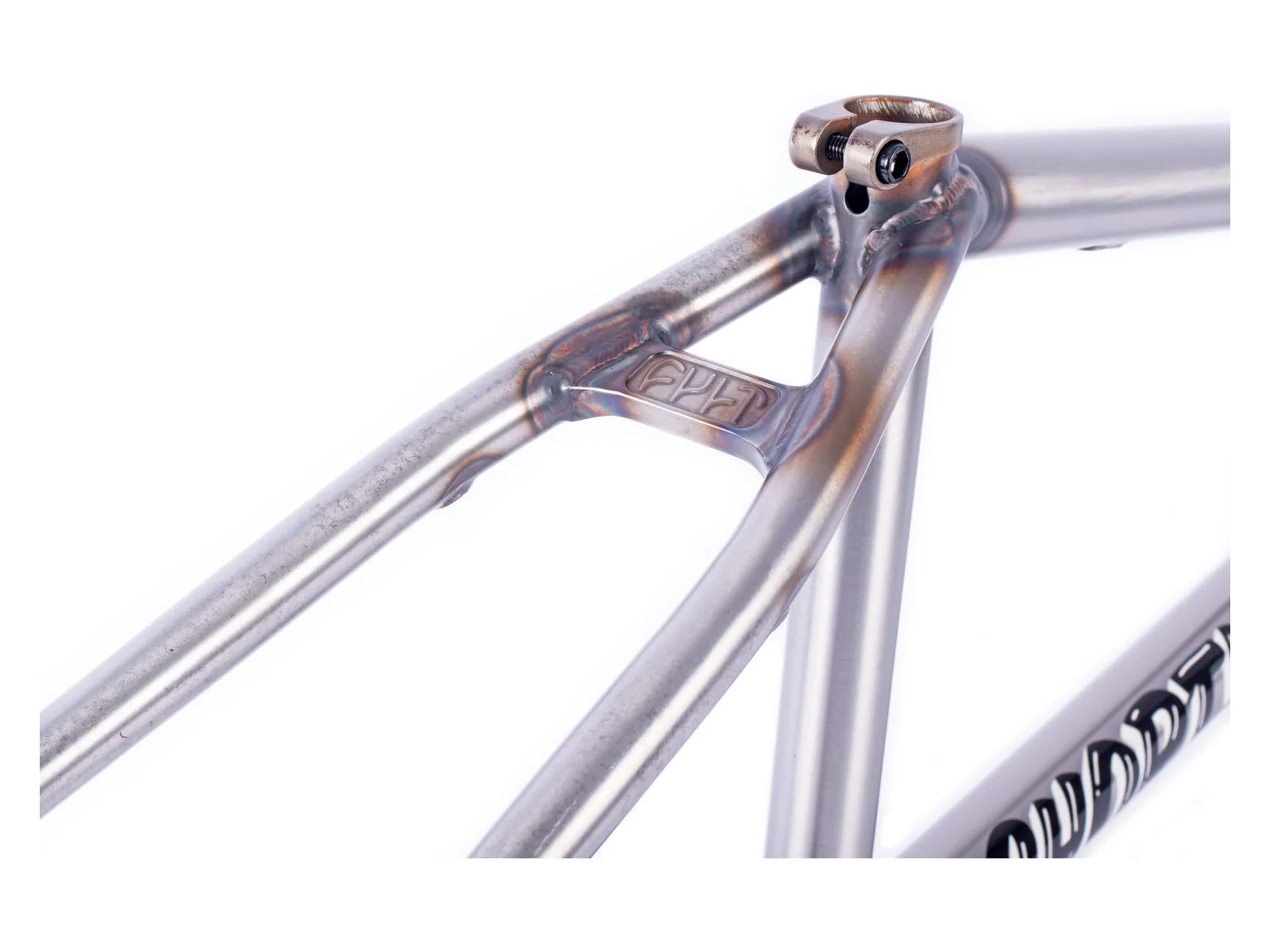

- Investment cast seat stay bridge
- Tapered seat stays
- Removable brake hardware mounts
- Wide rear end for wide 2.4" tires
Geometry:
- Top Tube Length (TT): 20.0", 20.5", 20.75", 21.0" or 21.25"
- Chainstay Length (CS): 13" (33cm) - 13.3" (33.78cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 70°
- Bottom Bracket Height: 11.8" (29.97cm)
- Standover Height (SO): 8.65" (21.97cm)
Seat Clamp: integrated investment cast
Seat Post Diameter: 25.4mm

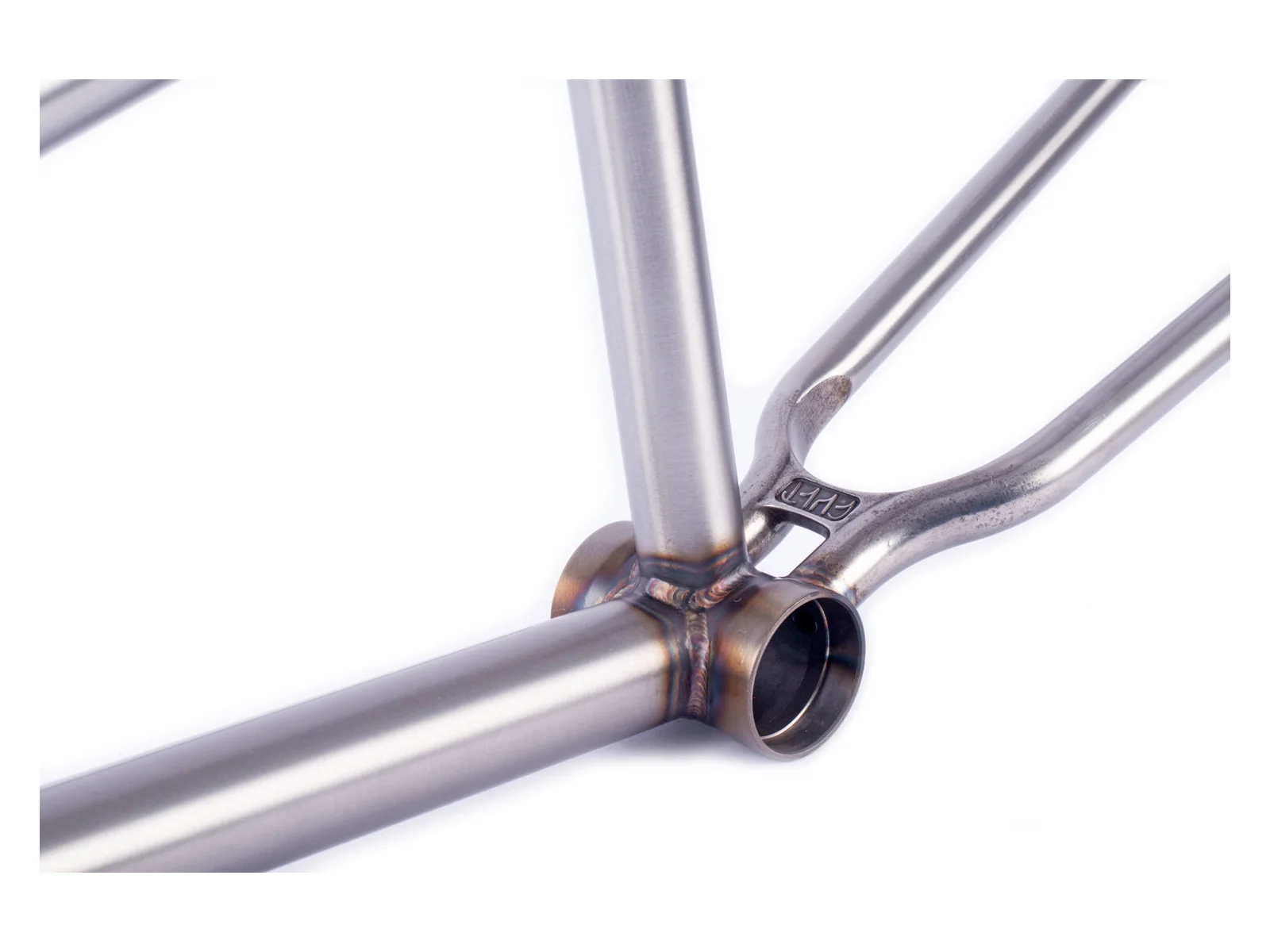

Bottom Bracket: Mid BB

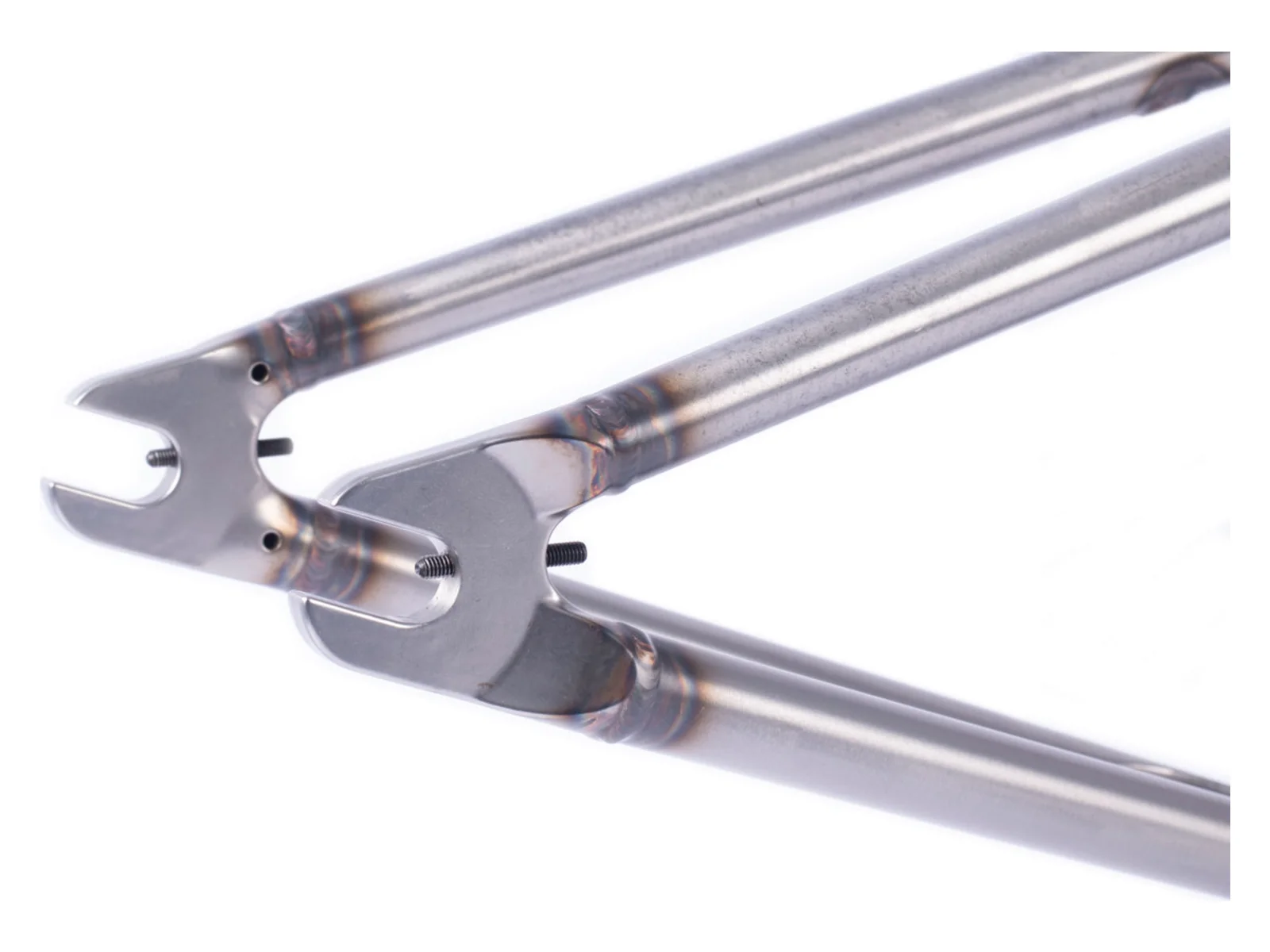

Dropouts:
- Investment cast
- Thickness: 5mm
- Axle slot: 14mm
Chain Tensioners: integrated
Brake Type: U-Brake
Brakemounts: with (screwable, M6)
Brakemounts included with delivery: No
Gyro compatible: Yes
Features:
- Modern BMX street and all-round frame
- Wide rear end for 2.4" tires

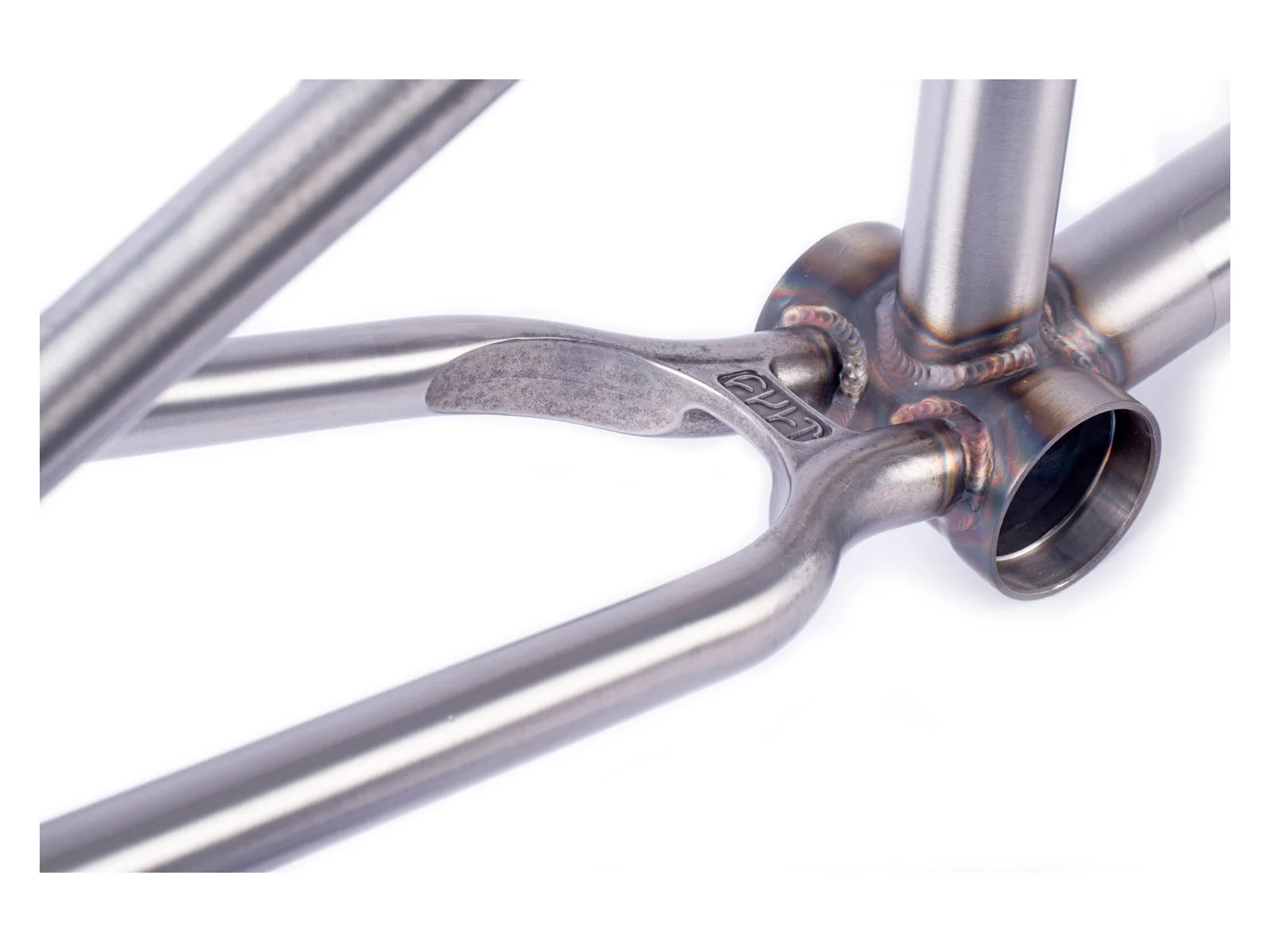

- S-bend chainstays
