Elevn Technologies "Post Mount 120" BMX Race Disc Brake Adapter Kit - Chase ACT
- Weight : 0.1kg / 0.22lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45403
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/elevn-technologies-post-mount-120-bmx-race-disc-brake-adapter-kit-chase-act-p-45403
Printed: 10/29/2026
Printed: 10/29/2026
The Elevn Technologies "Post Mount 120" BMX Race Disc Brake Adapter Kit - Chase ACT converts a Chase ACT 1.0 or 1.2 frame to a post mount rear disc brake, mechanical or hydraulic. The adapter is CNC machined from 6061-T6 aluminum and is designed for a 120mm rotor, with a 20mm post mount riser a 140mm rotor fits too. The kit has everything for the conversion except the brake itself: adapter, 120mm rotor with ISO 6 bolt mount, chain tensioner with anti rotation, bolts, spacers and covers for the V-brake bosses. Choose the axle (10mm or 20mm) as an option.
The hub needs an ISO 6 bolt mount, with a Center Lock / ISO adapter a Center Lock hub works too.
Facts: Elevn Technologies "Post Mount 120" BMX Race Disc Brake Adapter Kit - Chase ACT
- Mount: post mount, for 120mm rotors (140mm with a 20mm post mount riser)
- Axle Diameter: 10mm or 20mm
- Material: adapter 6061-T6 aluminum, CNC machined

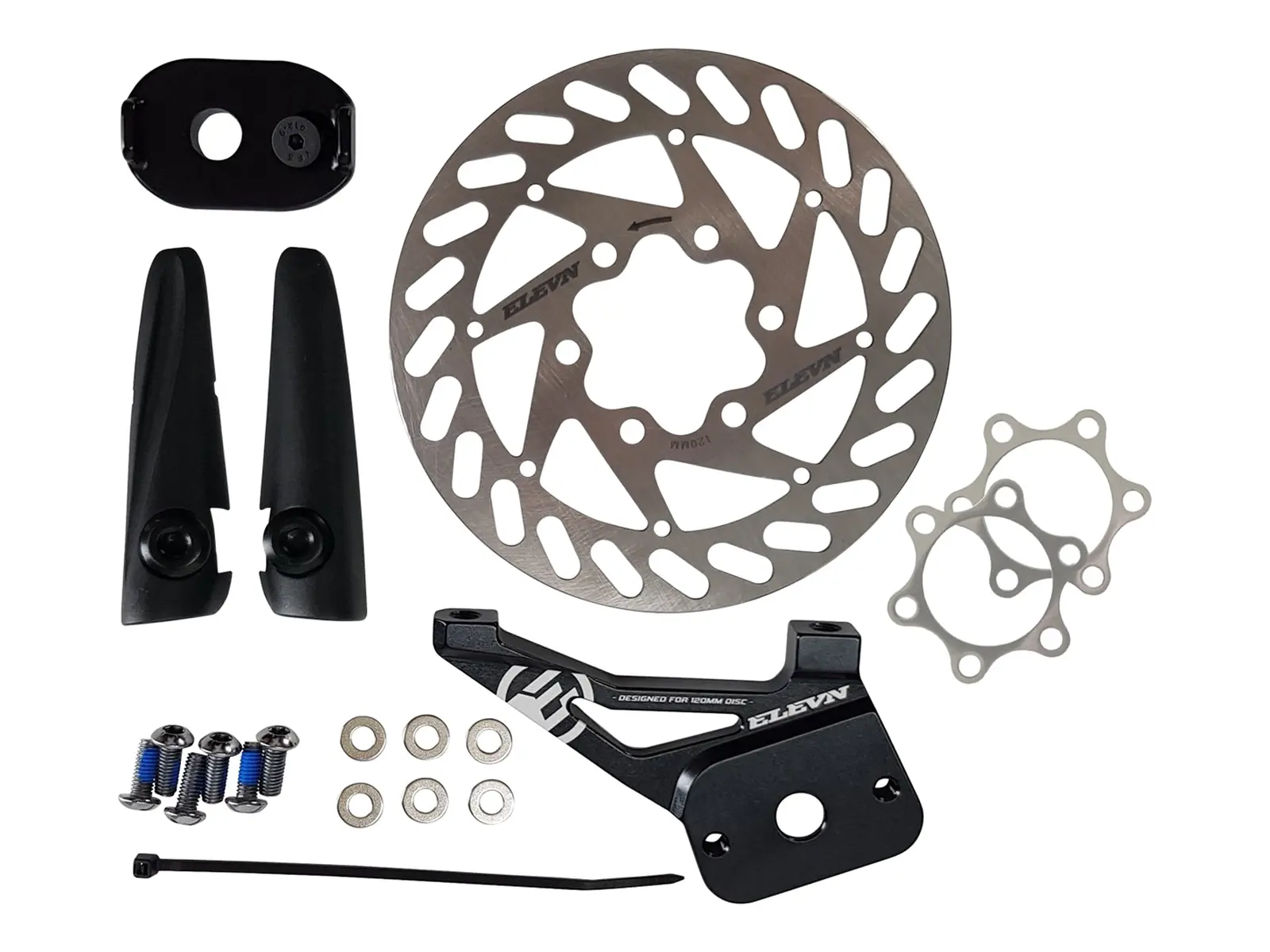

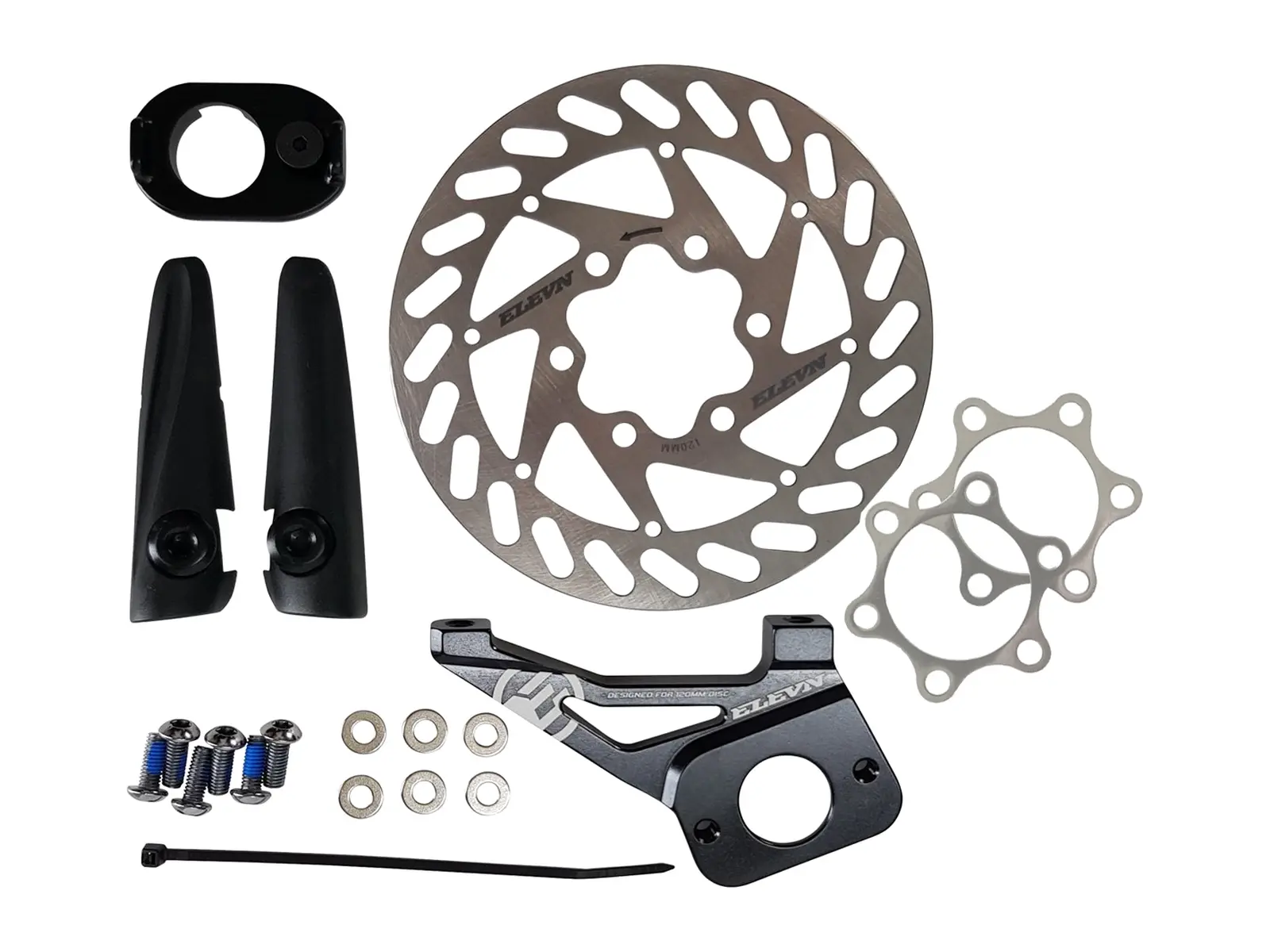

- Content:
- 1 post mount adapter for 10mm or 20mm axle
- 1 rotor 120mm, ISO 6 bolt
- 1 chain tensioner with anti rotation
- 2 adapter bolts
- 6 rotor bolts
- 2 spacers 0.5mm (depending on the hub)
- 2 covers for the V-brake bosses - Extras: for Chase ACT 1.0 and 1.2 frames only, hub with ISO 6 bolt mount required (Center Lock with adapter), brake not included
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
