Elevn Technologies "Post Mount 120/10mm" BMX Race Disc Brake Adapter Kit - with V-Brake Cover Bolts
- Weight : 0.1kg / 0.22lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45391
- Product safety
Weight
Source: BMX Glossary
Printed: 10/29/2026
With the Elevn Technologies "Post Mount 120/10mm" BMX Race Disc Brake Adapter Kit - with V-Brake Cover Bolts you fit a mechanical or hydraulic post mount disc brake to the rear of your Chase RSP 5.0 or 4.0 frame, the Chase Element (2020 to 2023) or the Chase Edge (2022 and 2023). The adapter is CNC machined from 6061-T6 aluminium and made for a 10mm rear axle.

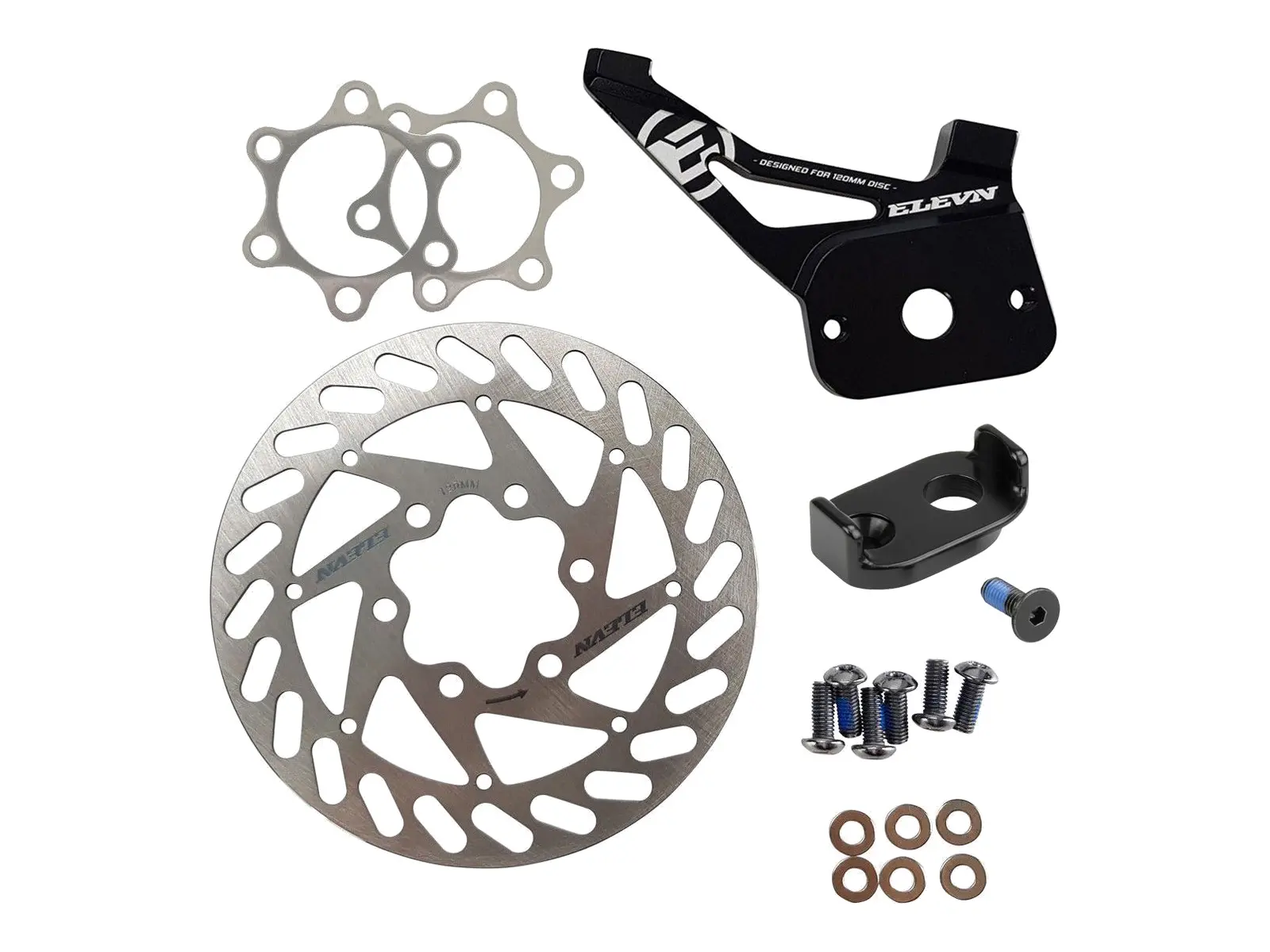

The kit contains the adapter, a 120mm brake disc with ISO 6-bolt mount, a chain tensioner with anti rotation, the bolts and two 0.5mm spacers that you may need depending on your hub, plus two pairs of cover bolts (black and polished) that replace the V-brake pivots for a clean look. The brake itself is not included. The kit is designed for 120mm discs, with the Elevn post mount 20mm riser a 140mm disc fits too. You need a rear hub with ISO 6-bolt mount, on a Center Lock hub it works with the Center Lock/ISO adapter.
Facts: Elevn Technologies "Post Mount 120/10mm" BMX Race Disc Brake Adapter Kit - with V-Brake Cover Bolts
- Mount: Post mount
- Axle Diameter: 10mm
- Material: 6061-T6 aluminum, CNC machined (adapter)
- Content:
- 1 post mount adapter for 10mm axle
- 1 brake disc 120mm, ISO 6-bolt
- 1 chain tensioner with anti rotation
- 2 adapter bolts, 6 disc bolts with washers
- 2 disc spacers 0.5mm
- 2 pairs of V-brake pivot cover bolts (black and polished) - Extras: for Chase RSP 5.0 and 4.0 frames, Chase Element 2020 to 2023 and Chase Edge 2022/2023, designed for 120mm discs (140mm with post mount 20mm riser), requires a hub with ISO 6-bolt mount (Center Lock with adapter), brake not included
