Elevn Technologies "Pro" BMX Race Stem - 1 1/8 Inch - Ø22.2mm
- Weight : 0.24kg / 0.53lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45389
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/elevn-technologies-pro-bmx-race-stem-1-18-inch-222mm-p-45389
Printed: 10/29/2026
Printed: 10/29/2026

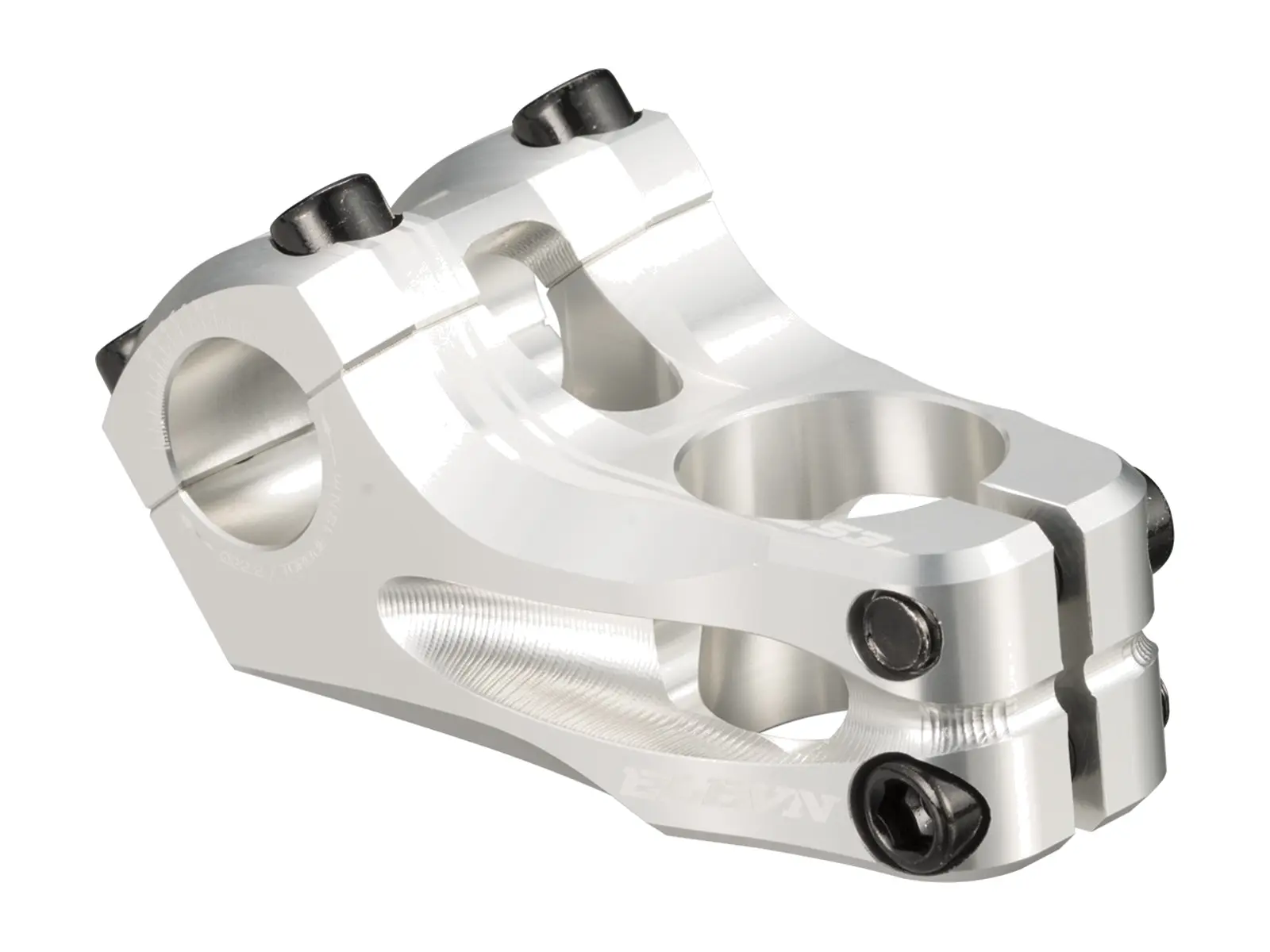

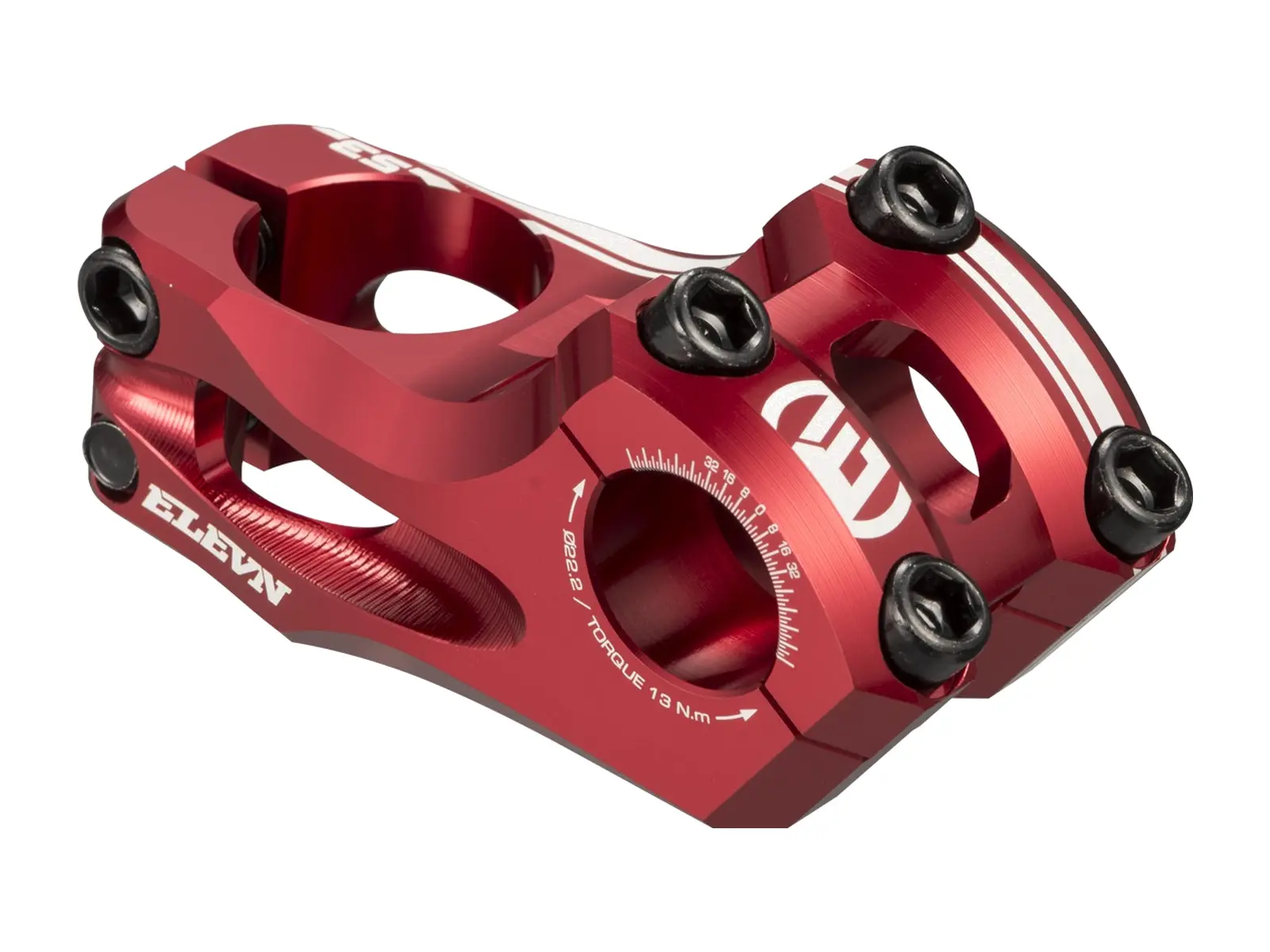

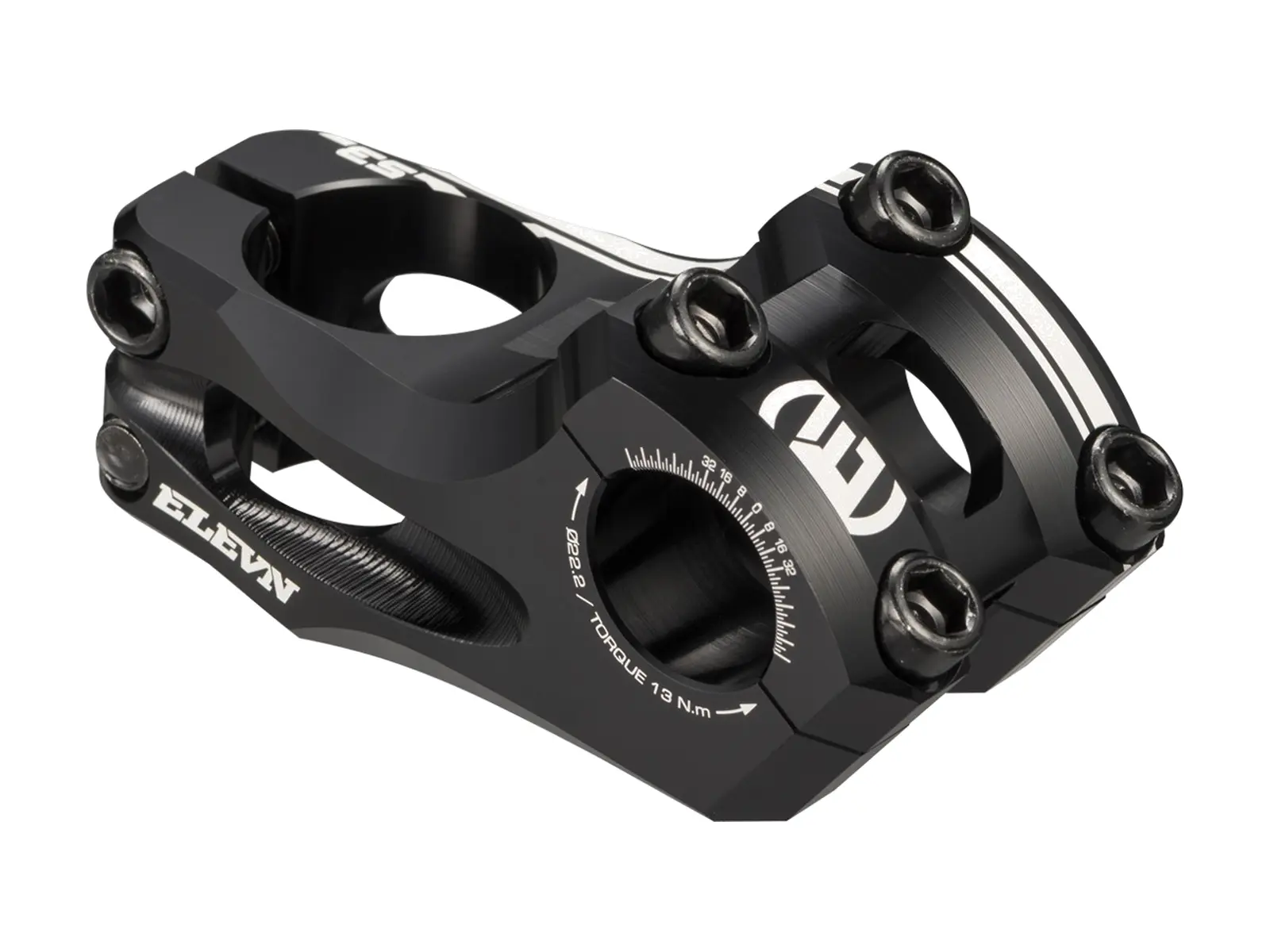

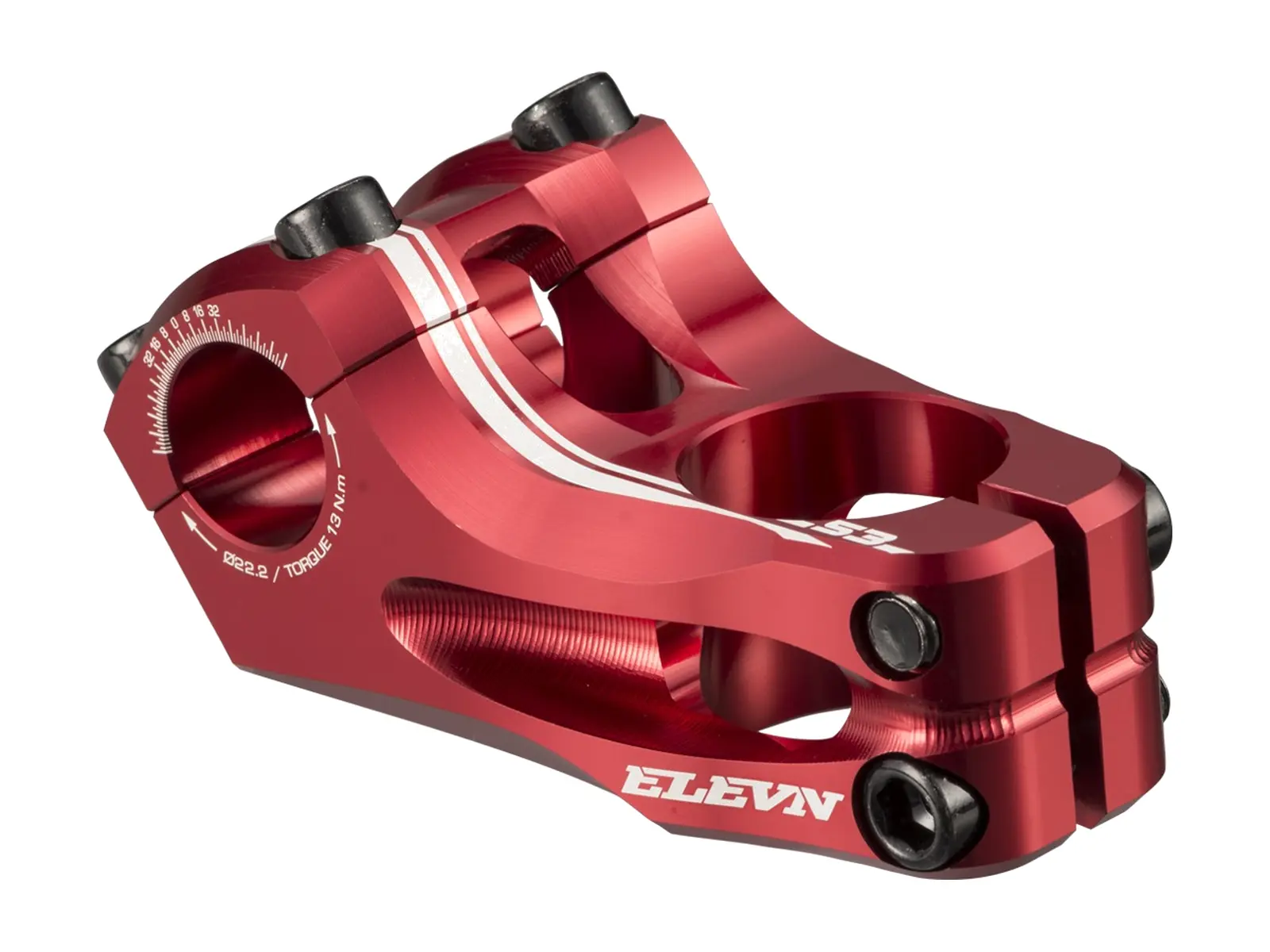

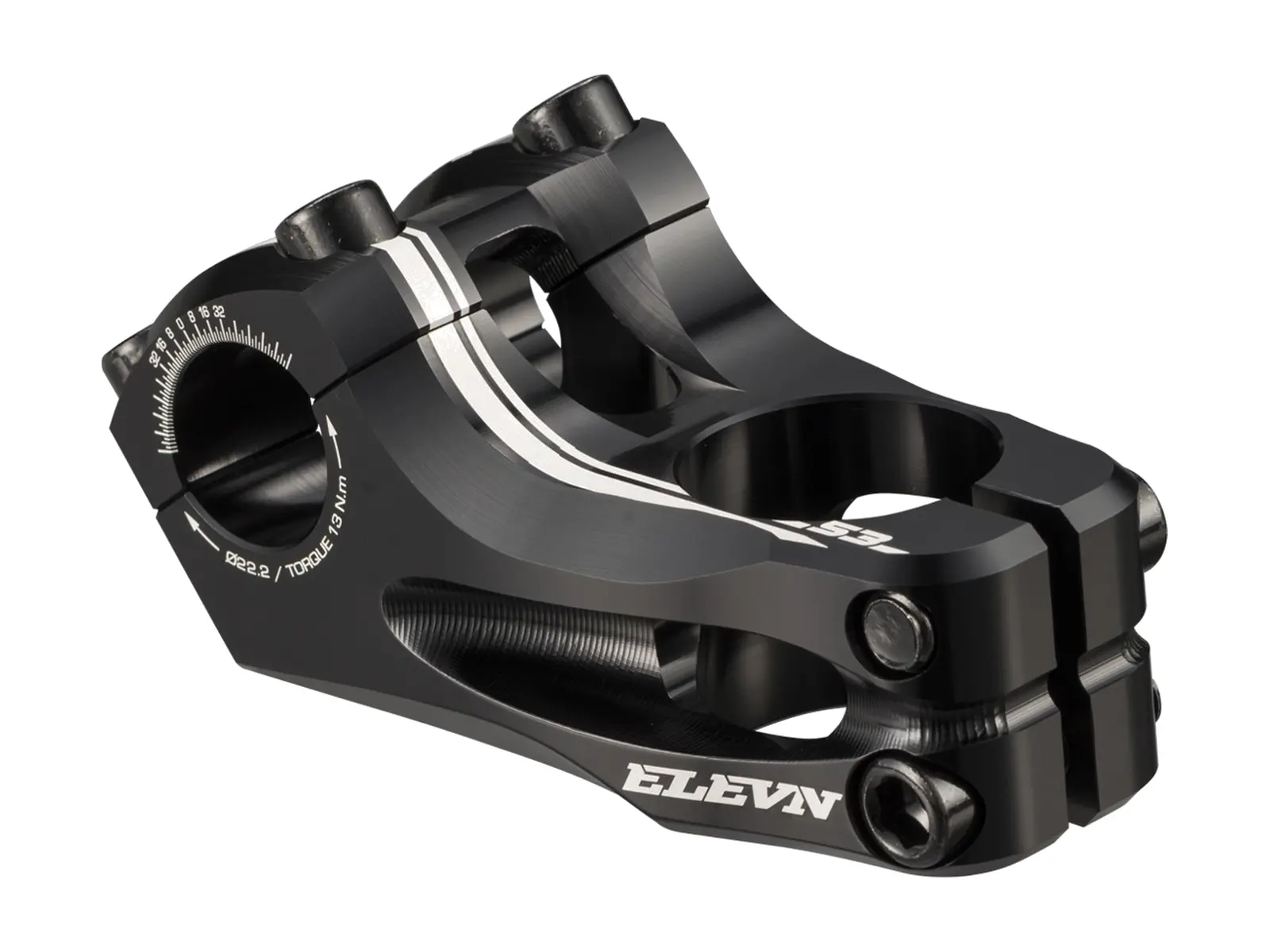

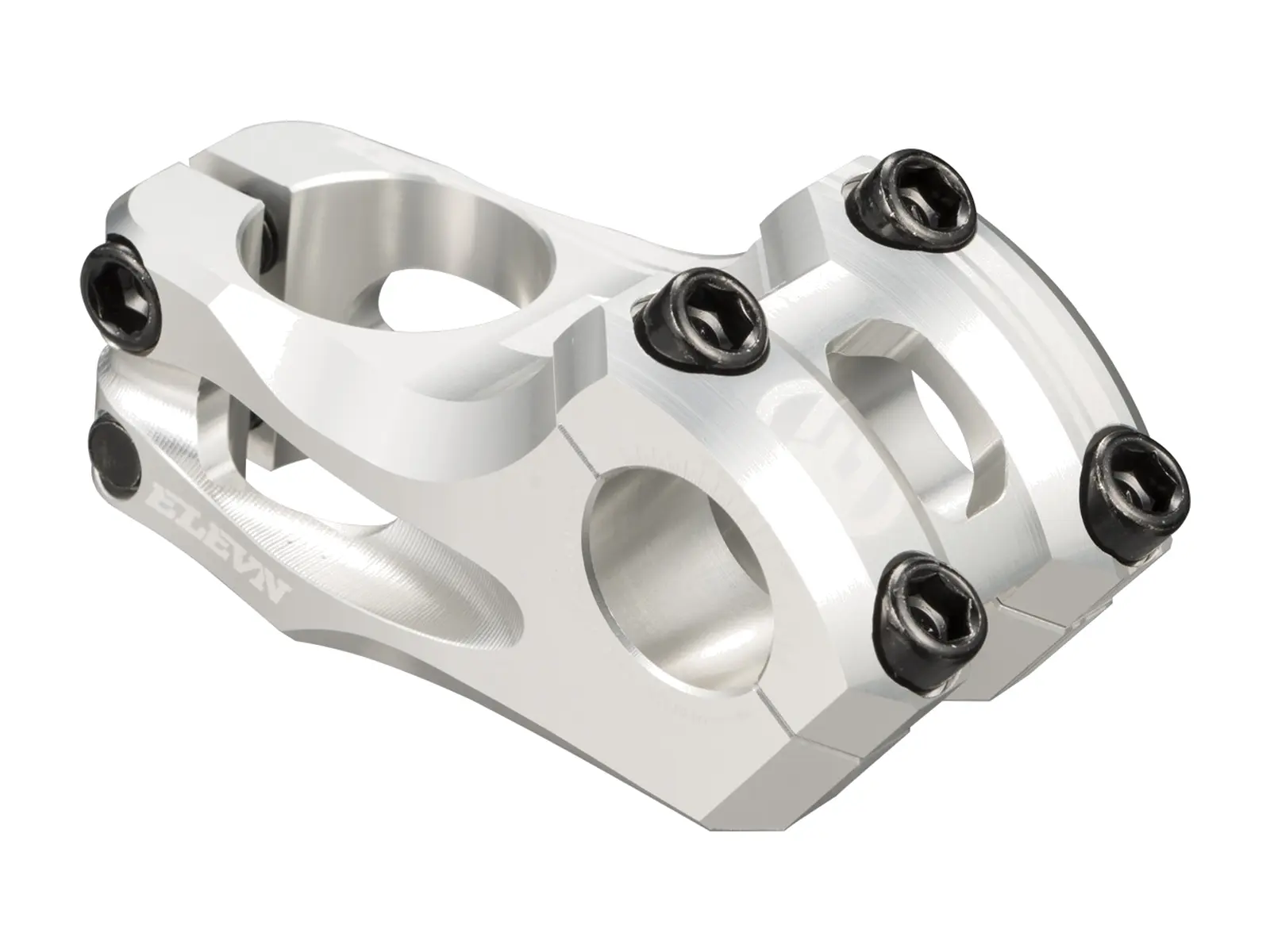

The Elevn Technologies "Pro" BMX Race Stem - 1 1/8 Inch - Ø22.2mm is the second generation of the Elevn Pro stem and was designed specifically for BMX racing. It is CNC machined from 6061-T6 aluminium, as light as possible and still strong enough to clamp the bar securely. The riders of the Chase team have tested it.
The bar is held from the top by a one piece top load clamp with four bolts, and positioning marks help with the alignment. The stem fits 1-1/8" steerer tubes and 22.2mm bars and comes with 45, 50, 53, 57 and 60mm reach.
Facts: Elevn Technologies "Pro" BMX Race Stem - 1 1/8 Inch - Ø22.2mm
- Stem-Type: Ahead Stem
- Stem-Style: Topload Stem
- Stem-Material: 6061 Aluminum
- Manufacturing-Method: 100% CNC machined
- Reach: 45mm, 50mm, 53mm, 57mm or 60mm
- Rise: 29.9mm
- Bar-Clamp: 22.2mm
- Fork-Clamp Diameter: 1-1/8" (28.6mm)
- Recommended for: Race
- Stack Height: 31mm
- Bolts: M8 x 1.25 x 25mm, 4 clamp bolts on the bar clamp
- Extras: second generation, one piece top load clamp, positioning marks, tested by the Chase team
- Content: 1 stem
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
