Elevn Technologies "Mini" BMX Race Stem - 1 Inch - Ø22.2mm
- Weight : 0.12kg / 0.26lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45412
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/elevn-technologies-mini-bmx-race-stem-1-inch-222mm-p-45412
Printed: 10/29/2026
Printed: 10/29/2026

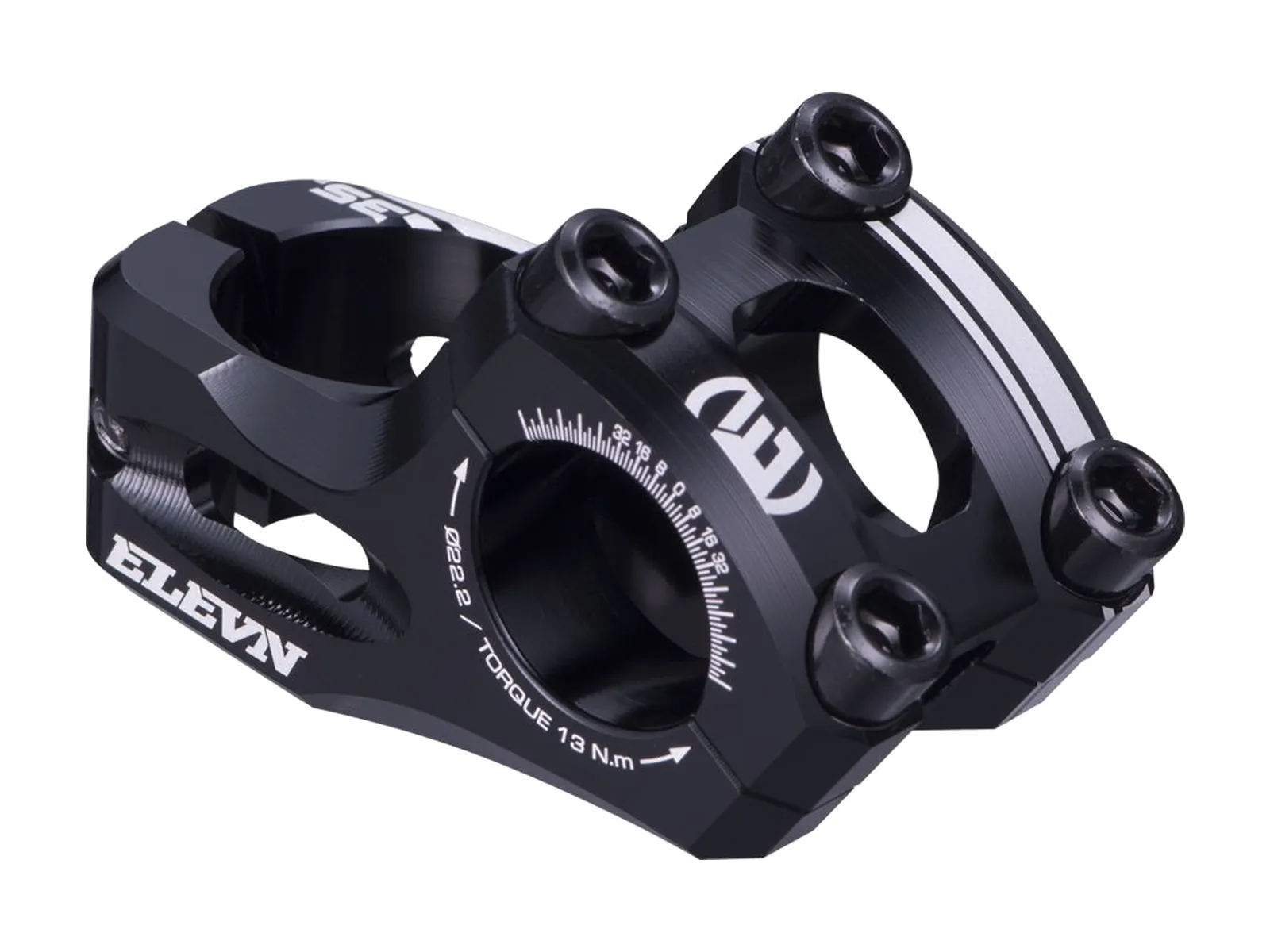

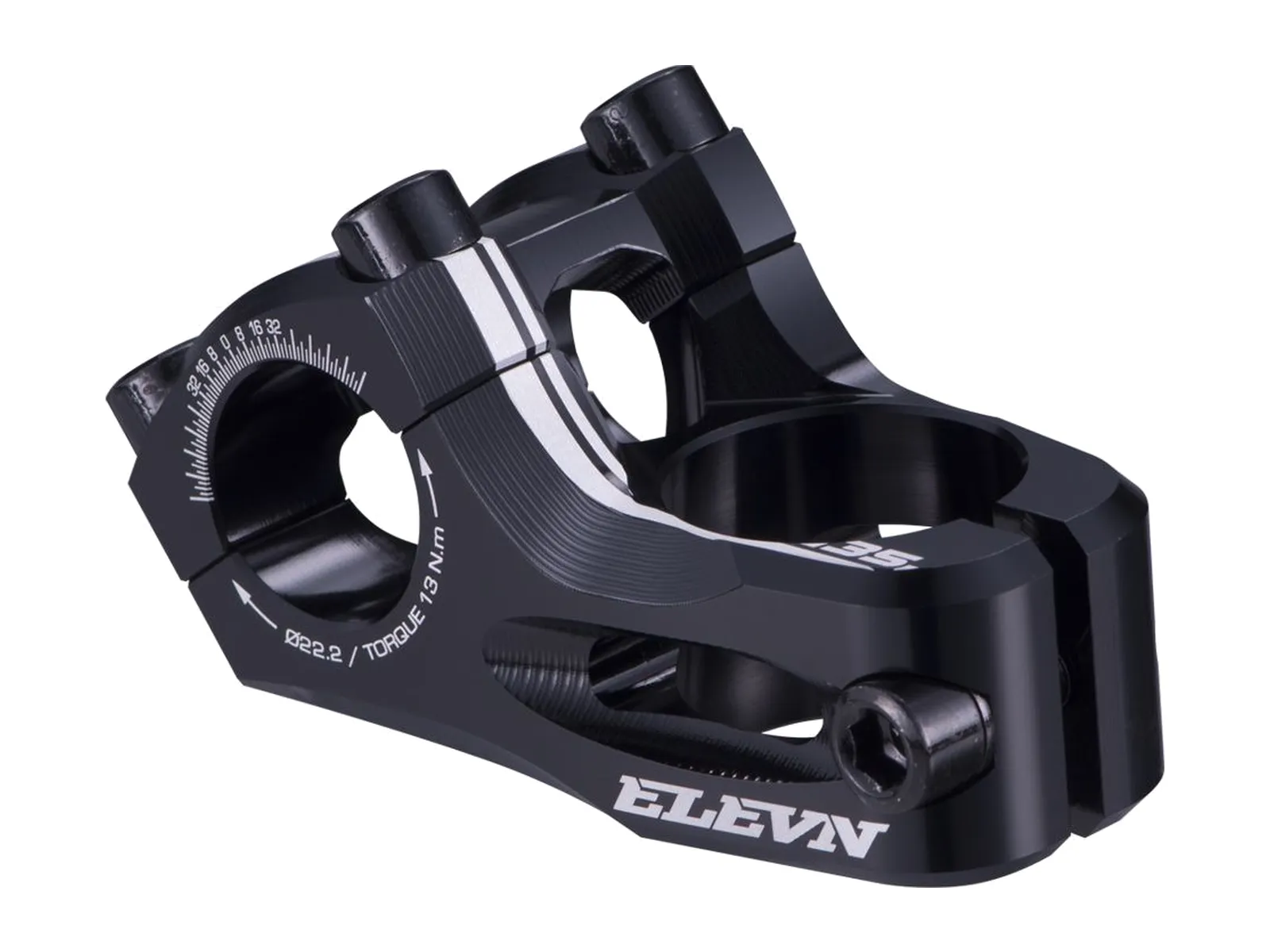

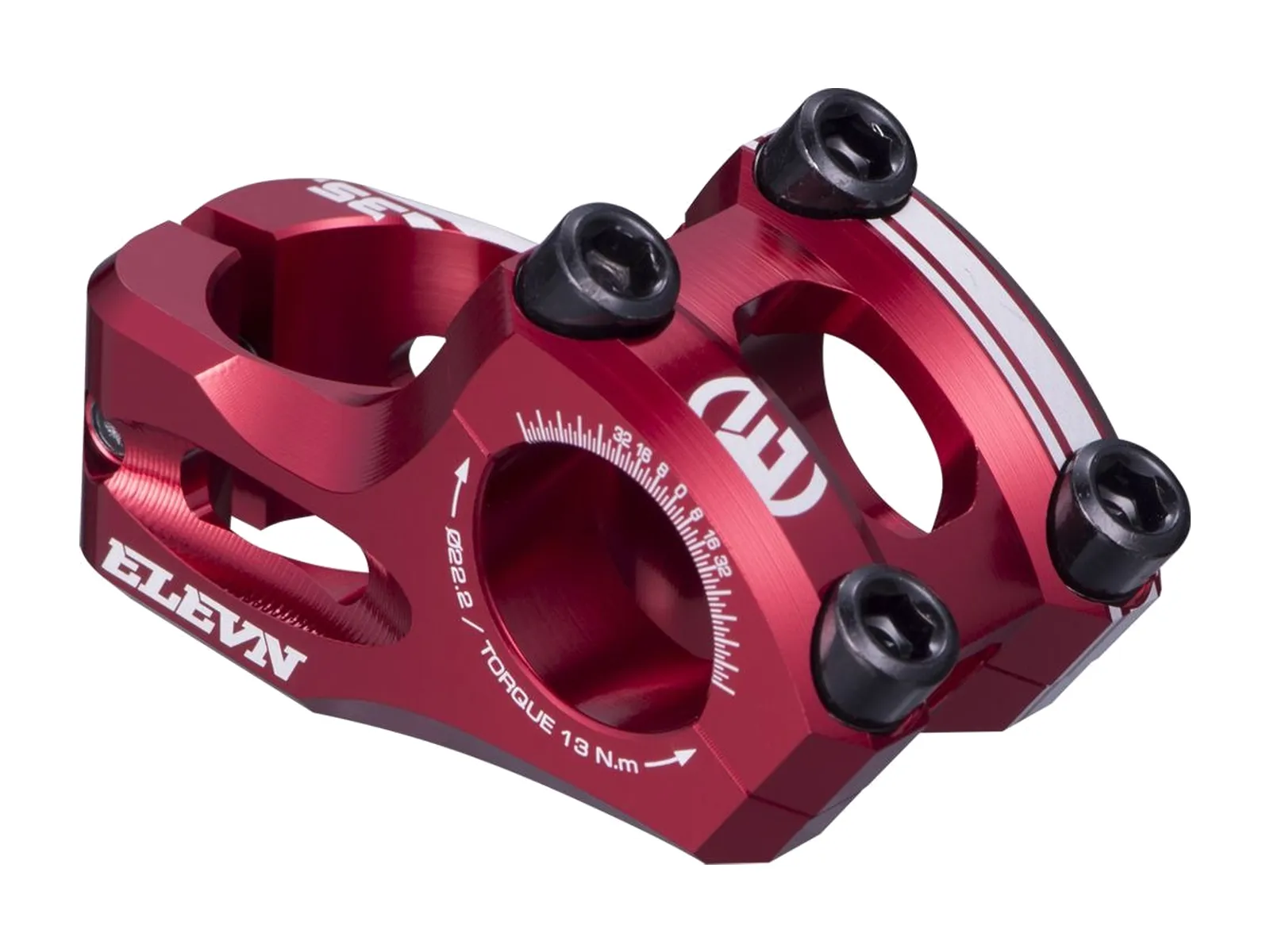

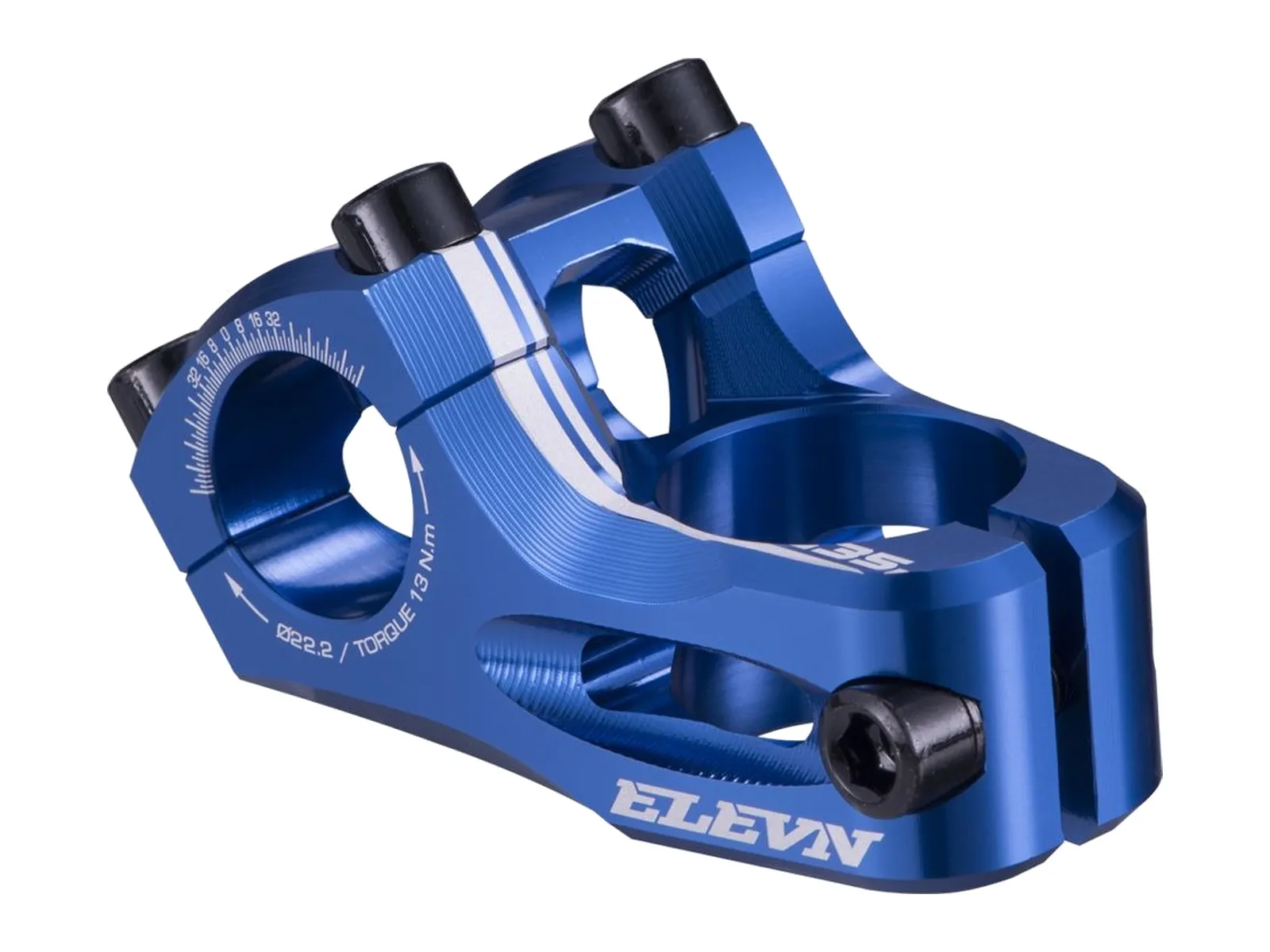

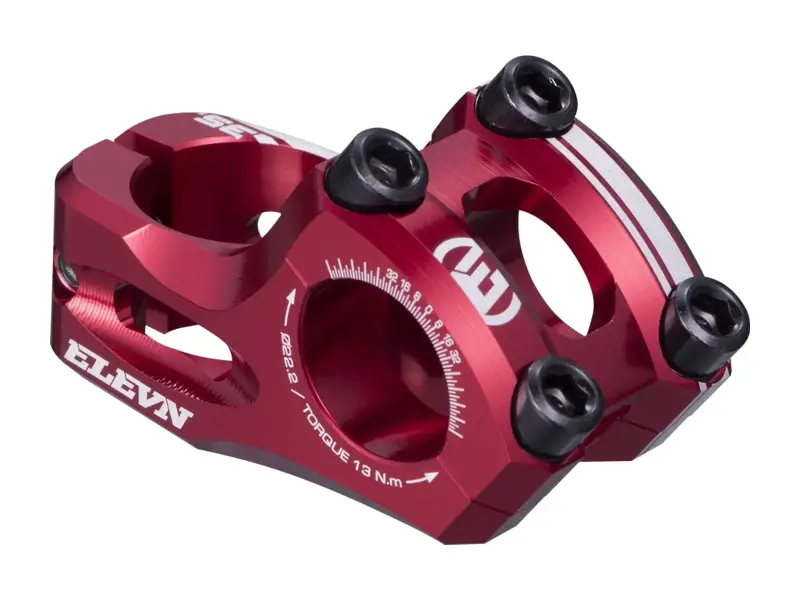

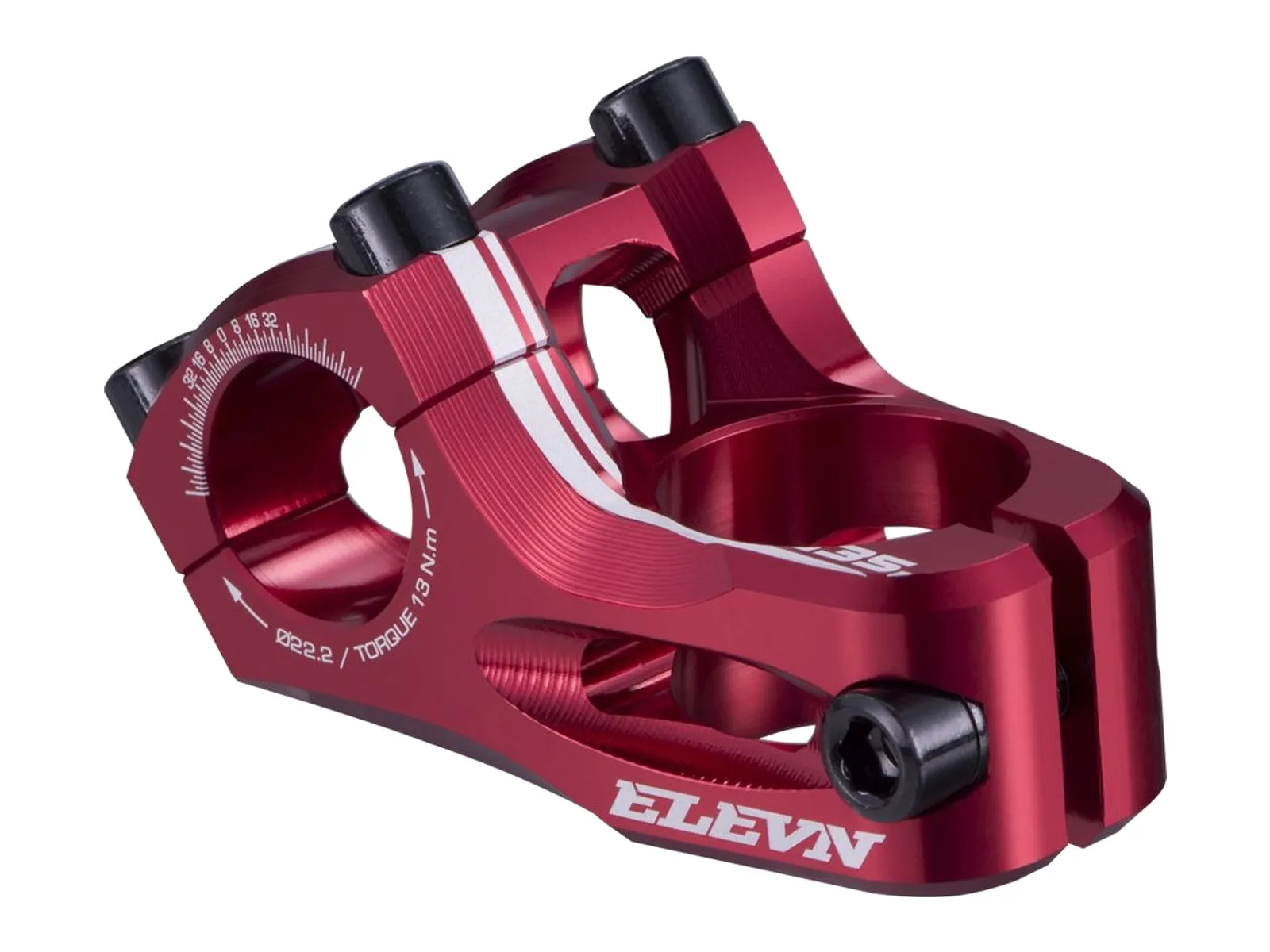

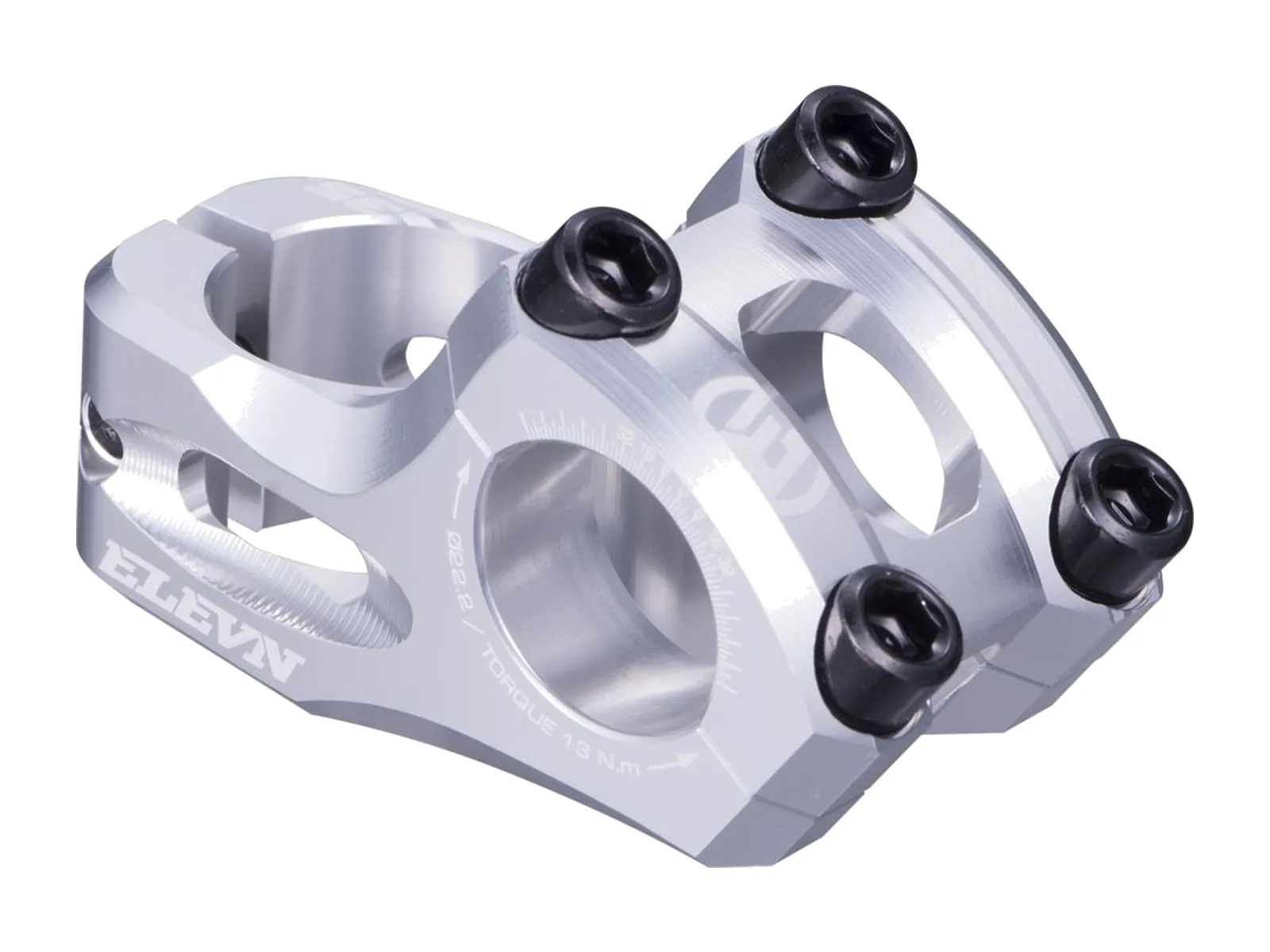

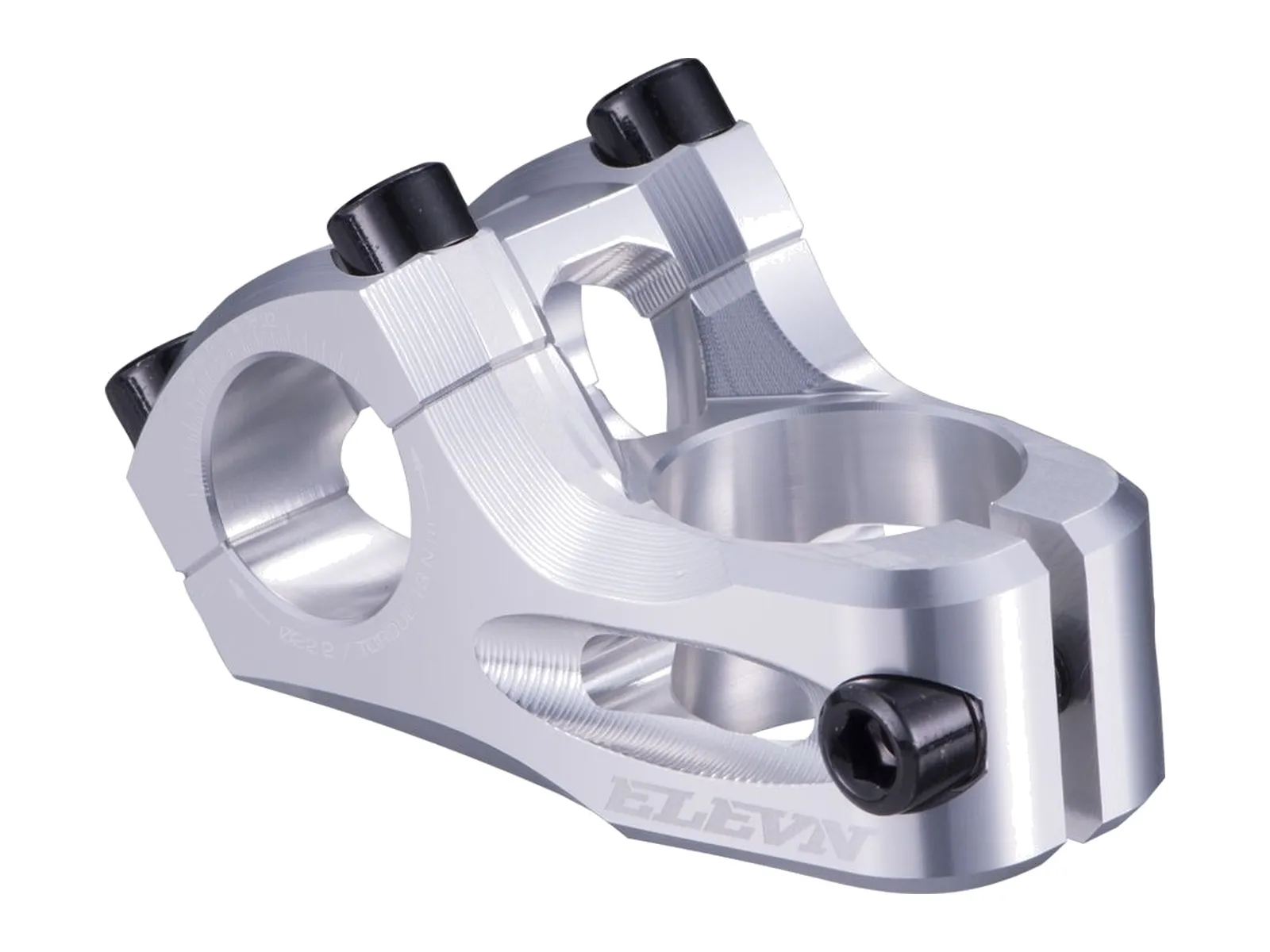

The Elevn Technologies "Mini" BMX Race Stem - 1 Inch - Ø22.2mm is the second generation of the Elevn Mini stem, made for 1" steerers and 22.2mm bars, tested by the riders of the Chase team. It is CNC machined from 6061-T6 aluminum with rounded edges and beveled sides and kept as small and light as possible without losing clamping power. It clamps the steerer with a single bolt, the bar is held from above by a one piece clamp with four bolts, an alignment scale helps with positioning. Choose length and colour as an option.
Facts: Elevn Technologies "Mini" BMX Race Stem - 1 Inch - Ø22.2mm
- Stem-Type: Ahead Stem
- Stem-Style: Topload Stem
- Stem-Material: 6061-T6 aluminum
- Manufacturing-Method: CNC machined
- Reach: 35mm, 40mm or 45mm
- Rise: 22.6mm
- Bar-Clamp: 22.2mm
- Fork-Clamp Diameter: 1" (25.4mm), 1 clamp bolt
- Recommended for: Race
- Stack Height: 24mm
- Bolts: M6 x 1.0 x 20mm, grade 10.9, 4 clamp bolts on the bar clamp, 5mm hex
- Extras: one piece top load clamp, alignment scale, weight: 110g (35mm), 120g (40mm), 130g (45mm)
- Content: 1 stem
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
