Enduro Bearings "6803" Bearing - 17 x 26 x 5 mm
-
Weight : 0.01kg / 0.02lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36367
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

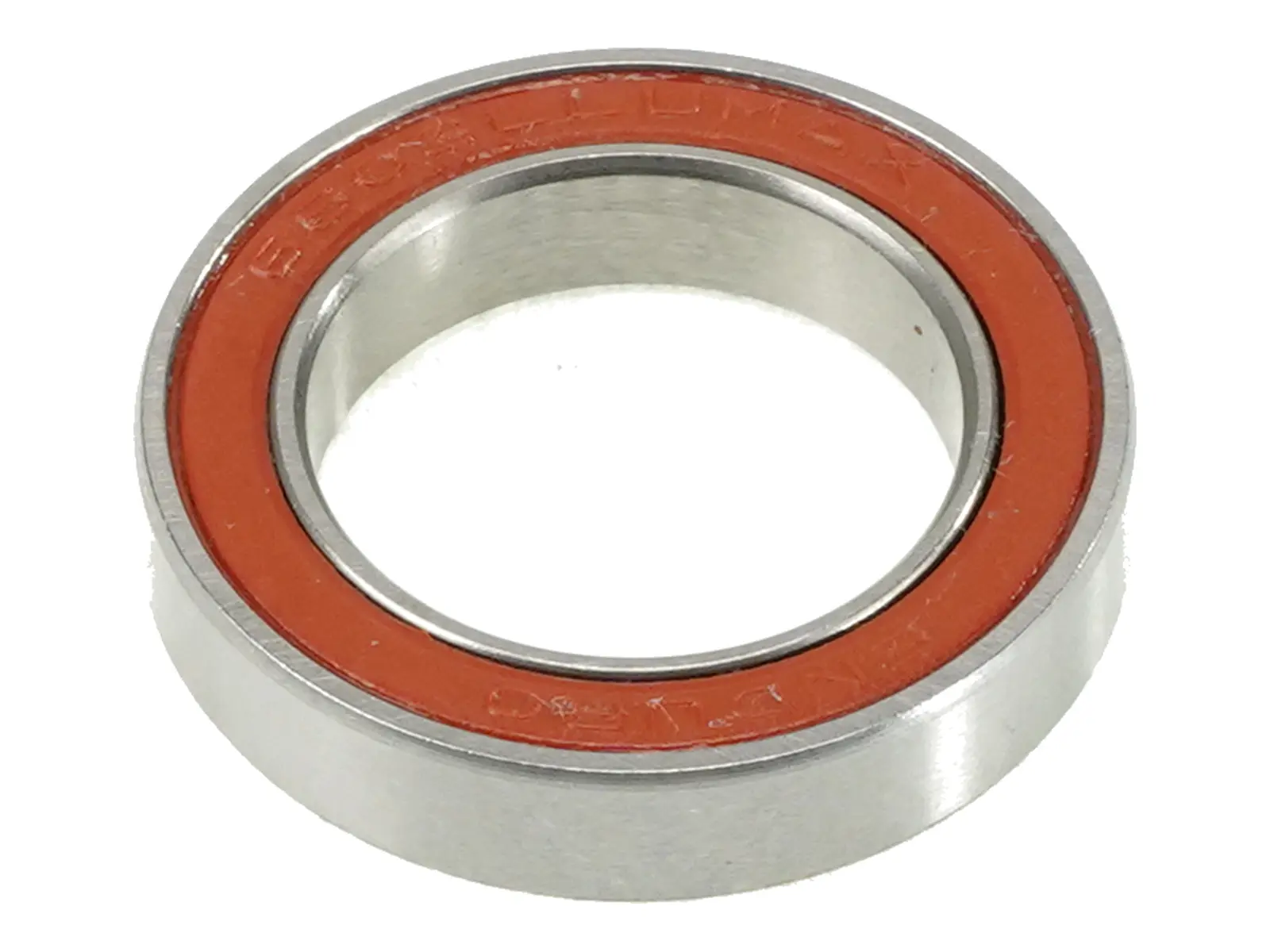

The Enduro Bearings "6803" Bearing - 17 x 26 x 5 mm is a sealed deep groove ball bearing, size 17 x 26 x 5 mm (inner diameter x outer diameter x width). Enduro Bearings builds its bearings with the deepest possible race grooves and the largest balls that fit, plus dual lip seals that run in a groove of the inner race and form a labyrinth against water and dirt. The manufacturer names the following applications: hubs, suspension pivots, e.g. Niner, Orbea. The versions differ in seal, material and precision grade, see the technical details. The MAX version has no ball retainer and takes the maximum number of balls, which gives 35 to 40 % more load capacity and makes it the right choice for suspension pivots that only rotate a few degrees.
Facts: Enduro Bearings "6803" Bearing - 17 x 26 x 5 mm
- Bearing Size: 6803 (17 x 26 x 5 mm)
- Version: LLU MAX ABEC 3, LLU MAX Black Oxide ABEC 3, LLU MAX Black Oxide Solid-Lube ABEC 3, Stainless LLU MAX ABEC 3, XD-15 LLB or Zero Ceramic LLB
- Seal:
- LLU MAX ABEC 3: LLU (medium contact dual lip seal)
- LLU MAX Black Oxide ABEC 3: LLU (medium contact dual lip seal)
- LLU MAX Black Oxide Solid-Lube ABEC 3: LLU (medium contact dual lip seal)
- Stainless LLU MAX ABEC 3: LLU (medium contact dual lip seal)
- Zero Ceramic LLB: LLB (light contact dual lip labyrinth seal)
- XD-15 LLB: LLB (light contact dual lip labyrinth seal) - Material:
- LLU MAX ABEC 3: 52100 chromium steel (races and balls)

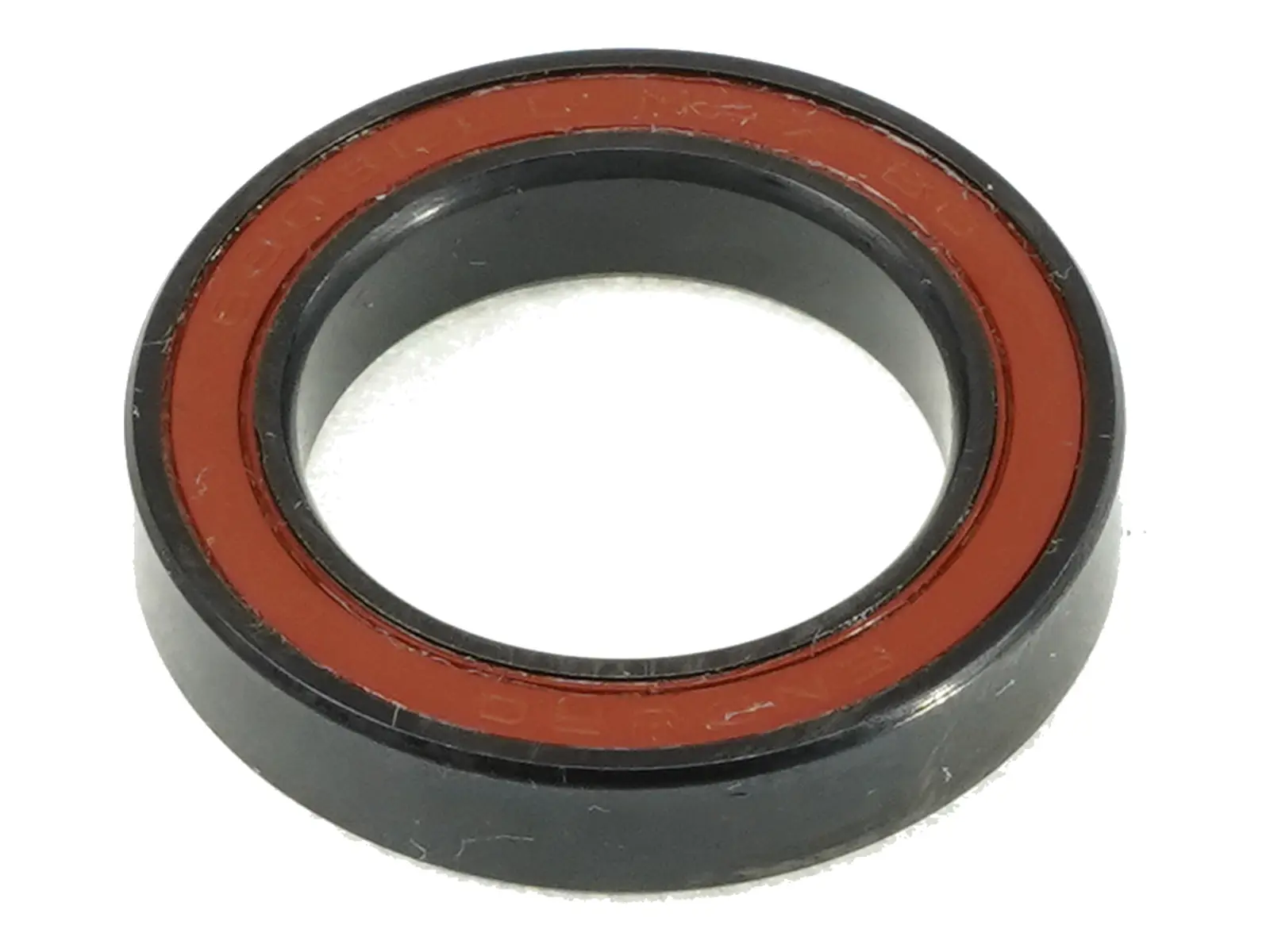

- LLU MAX Black Oxide ABEC 3: 52100 chromium steel (races and balls), black oxide treated races
- LLU MAX Black Oxide Solid-Lube ABEC 3: 52100 chromium steel (races and balls), black oxide treated races, Solid-Lube polymer fill instead of grease

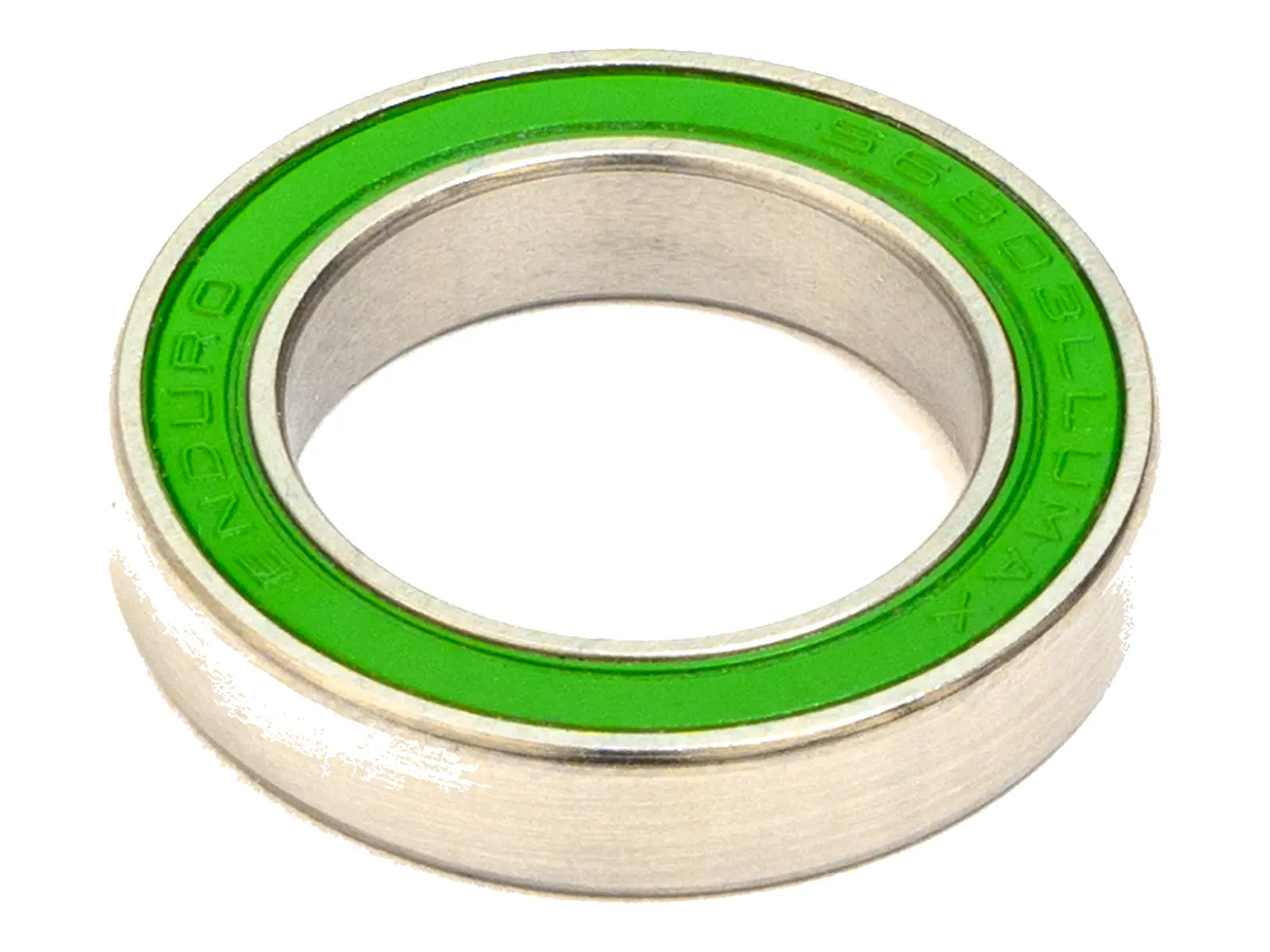

- Stainless LLU MAX ABEC 3: 440C stainless steel (races and balls)

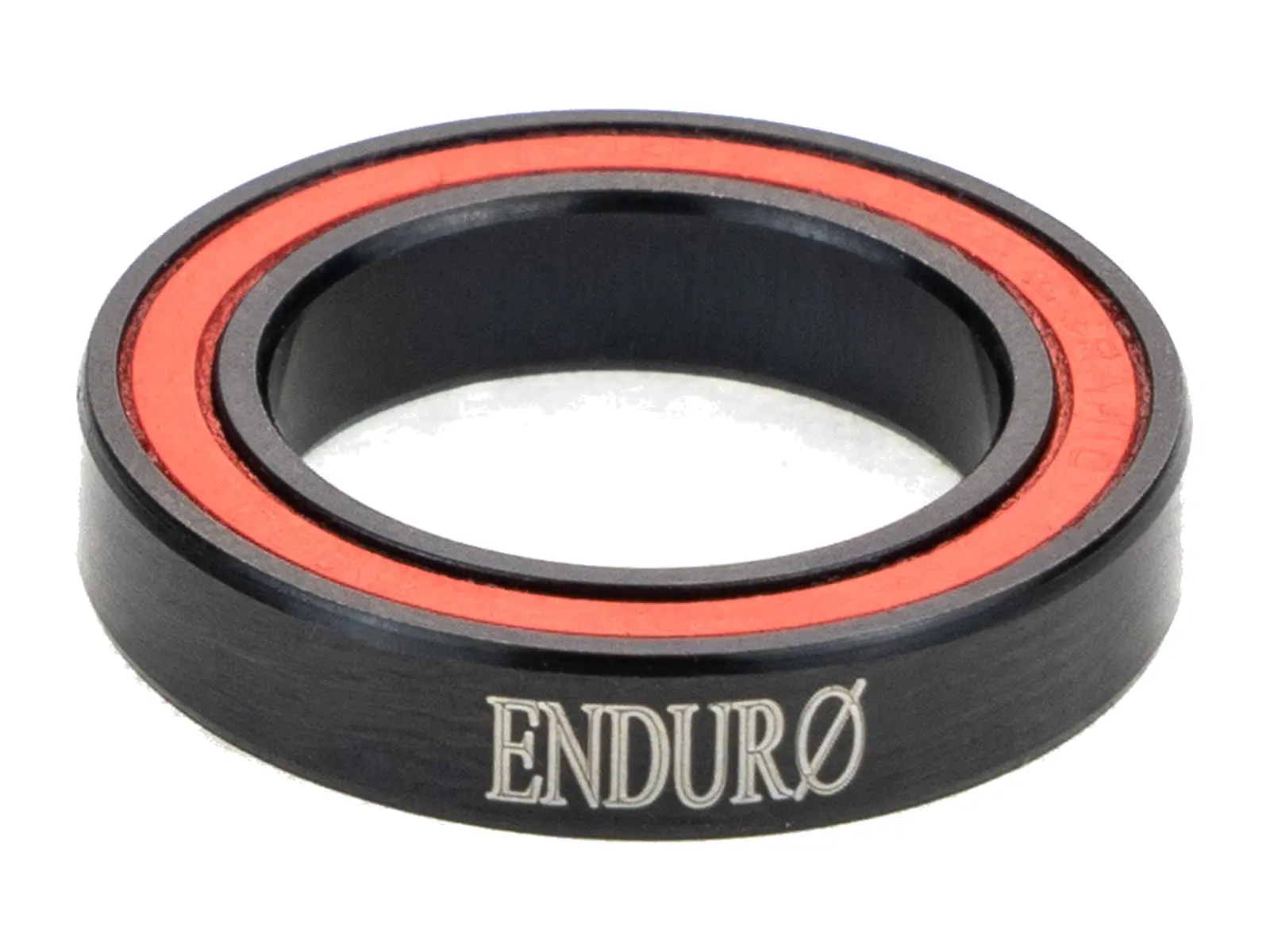

- Zero Ceramic LLB: Zero Ceramic (black oxide treated 52100 chromium steel races, grade 5 Si3N4 ceramic balls)

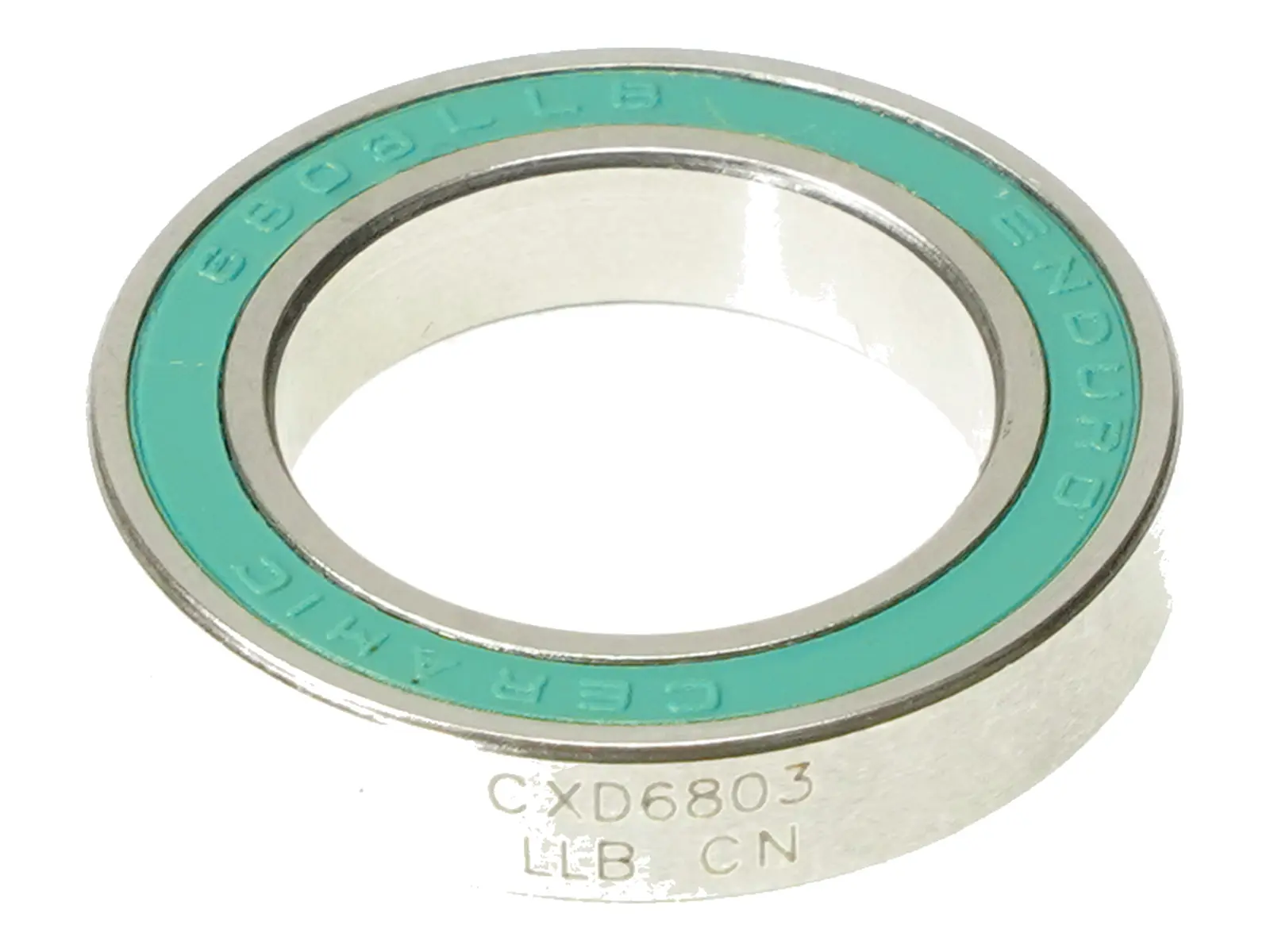

- XD-15 LLB: XD-15 nitrogen stainless steel races, grade 5 Si3N4 ceramic balls - Fits: hubs, suspension pivots, e.g. Niner, Orbea
- Contains: 1 piece
- Extras: deep groove races with the largest possible balls, 90 % grease fill, MAX version: full complement without retainer, 35 to 40 % more load capacity, static load rating per manufacturer 2.55 kN
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
