Enduro Bearings "6901" Bearing - 12 x 24 x 6 mm
-
Weight : 0.02kg / 0.04lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36382
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

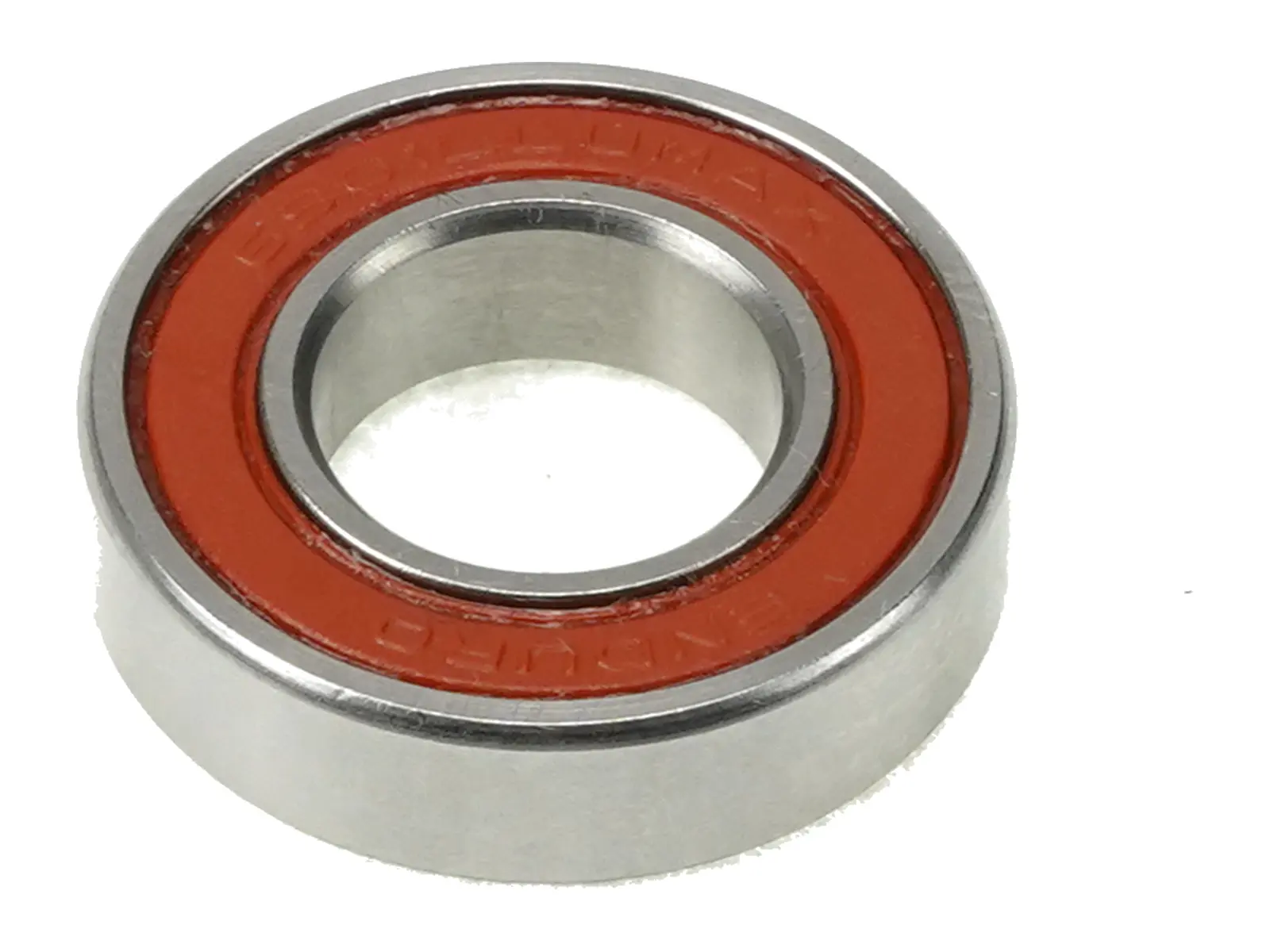

The Enduro Bearings "6901" Bearing - 12 x 24 x 6 mm is a sealed deep groove ball bearing, size 12 x 24 x 6 mm (inner diameter x outer diameter x width). Enduro Bearings builds its bearings with the deepest possible race grooves and the largest balls that fit, plus dual lip seals that run in a groove of the inner race and form a labyrinth against water and dirt. The manufacturer names the following applications: quick release hubs, hubs, suspension pivots, pedals, e.g. Guerrilla Gravity, Santa Cruz. The versions differ in seal, material and precision grade, see the technical details. The MAX version has no ball retainer and takes the maximum number of balls, which gives 35 to 40 % more load capacity and makes it the right choice for suspension pivots that only rotate a few degrees.
Facts: Enduro Bearings "6901" Bearing - 12 x 24 x 6 mm
- Bearing Size: 6901 (12 x 24 x 6 mm)
- Version: Ceramic Hybrid LLB ABEC 5, LLB ABEC 3, LLB ABEC 5, LLU MAX ABEC 3, LLU/LLB ABEC 5 (C3), LLU/LLB ABEC 5 (CN), SM MAX SM ABEC 3 (10 mm inner race), Stainless LLB, XD-15 LLB or Zero Ceramic VV
- Seal:

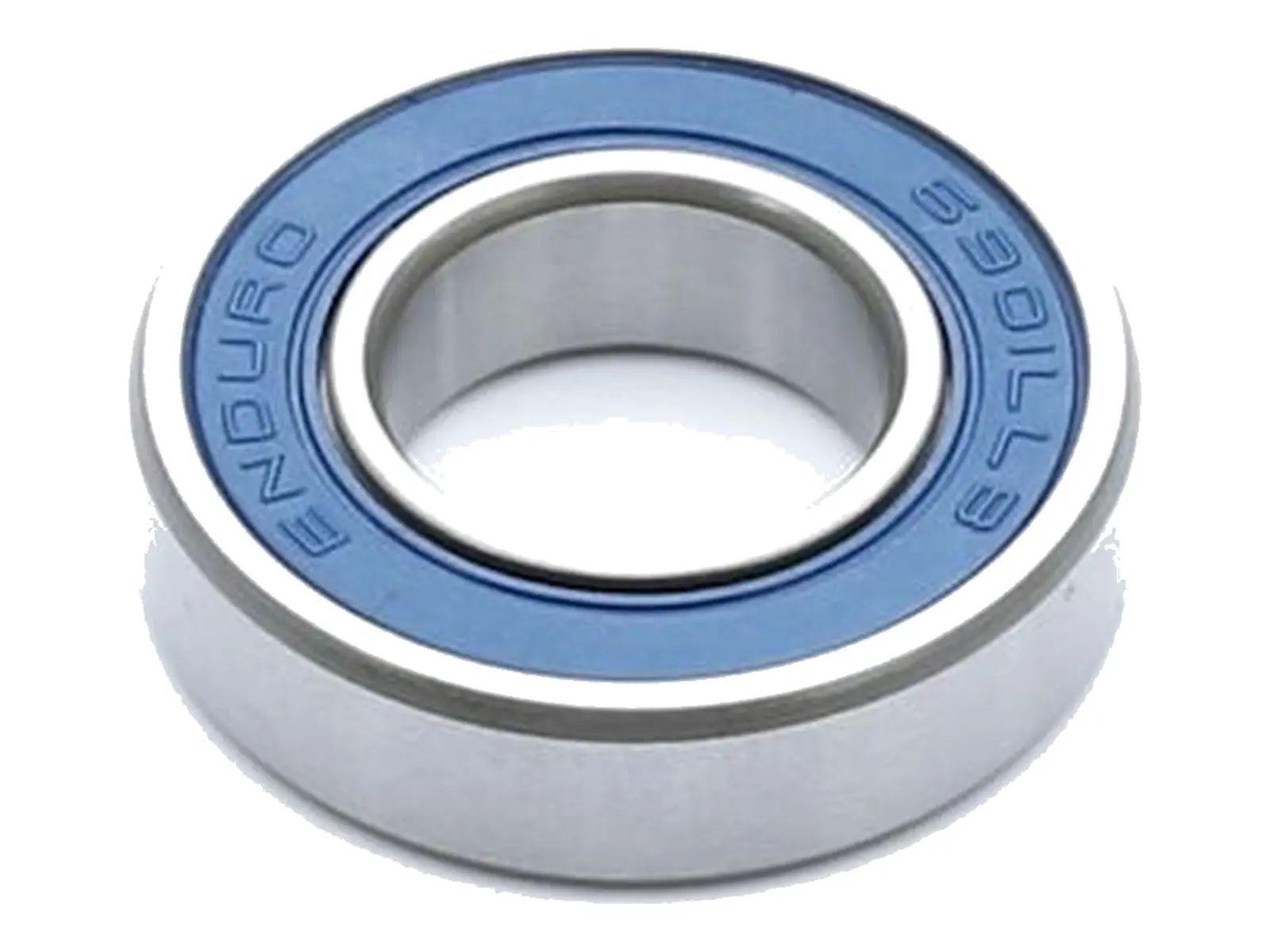

- LLB ABEC 3: LLB (light contact dual lip labyrinth seal)
- LLB ABEC 5: LLB (light contact dual lip labyrinth seal)

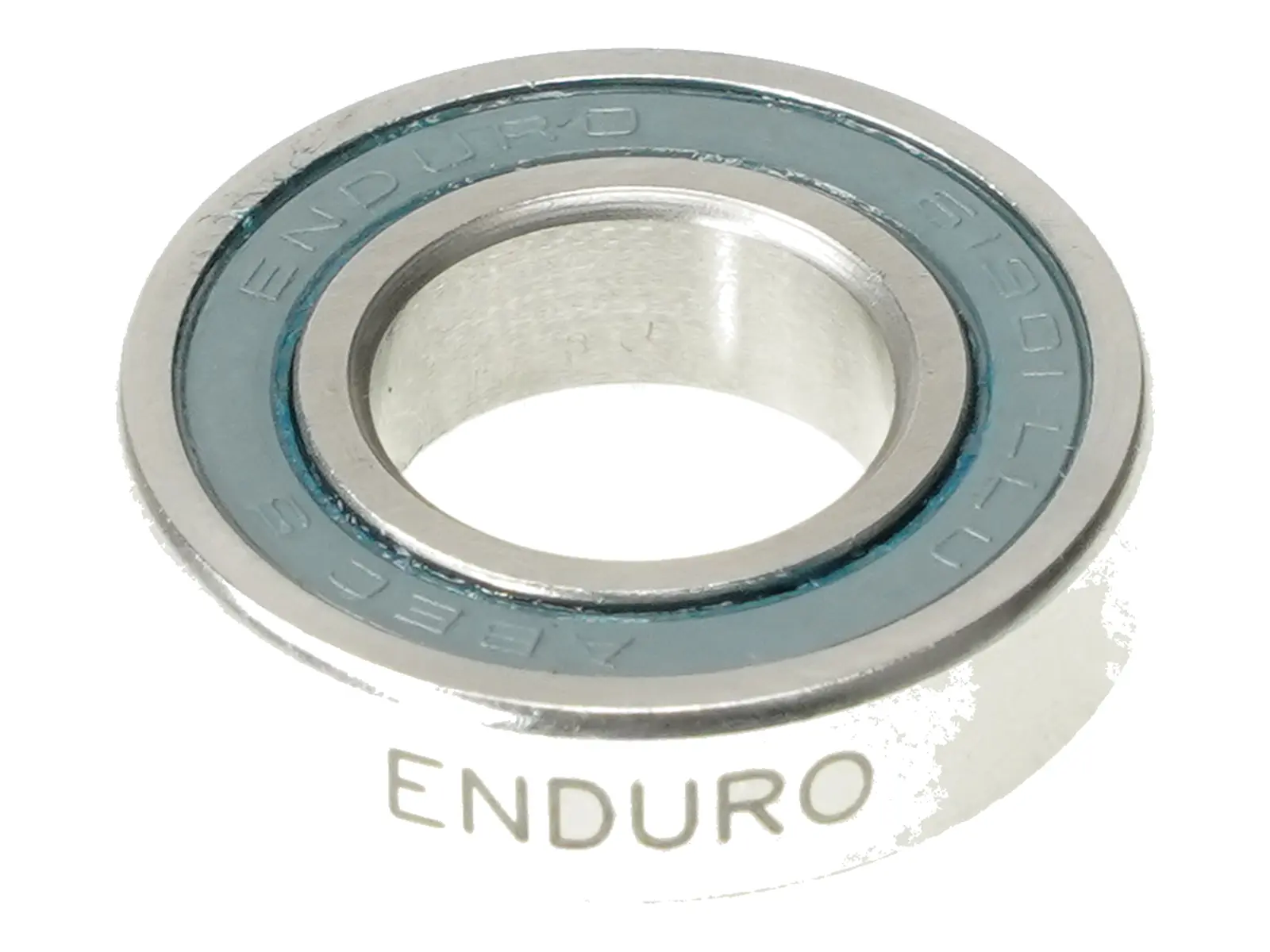

- LLU MAX ABEC 3: LLU (medium contact dual lip seal)

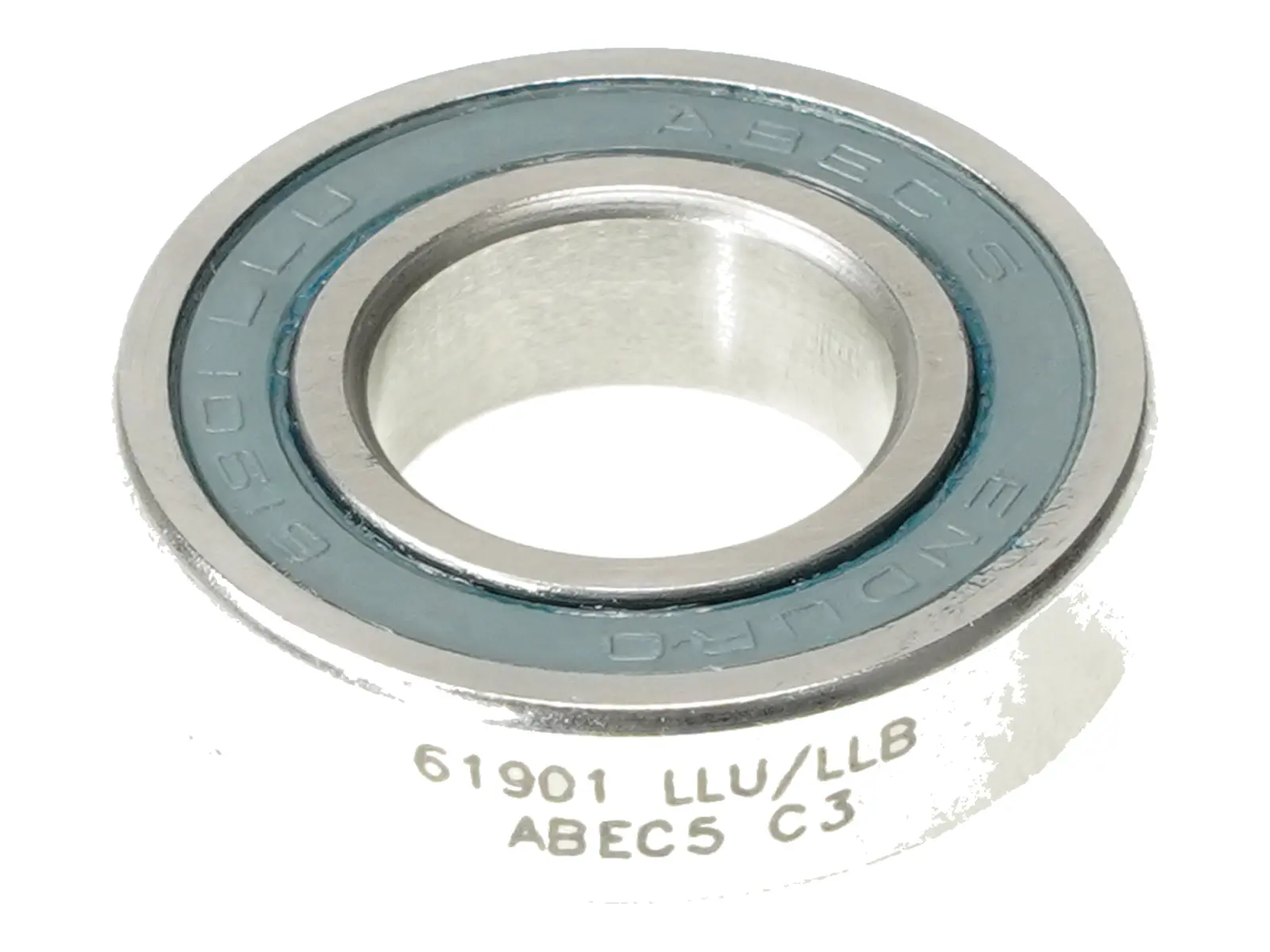

- LLU/LLB ABEC 5 (C3): LLU/LLB (LLU outboard, LLB inboard)
- LLU/LLB ABEC 5 (CN): LLU/LLB (LLU outboard, LLB inboard)

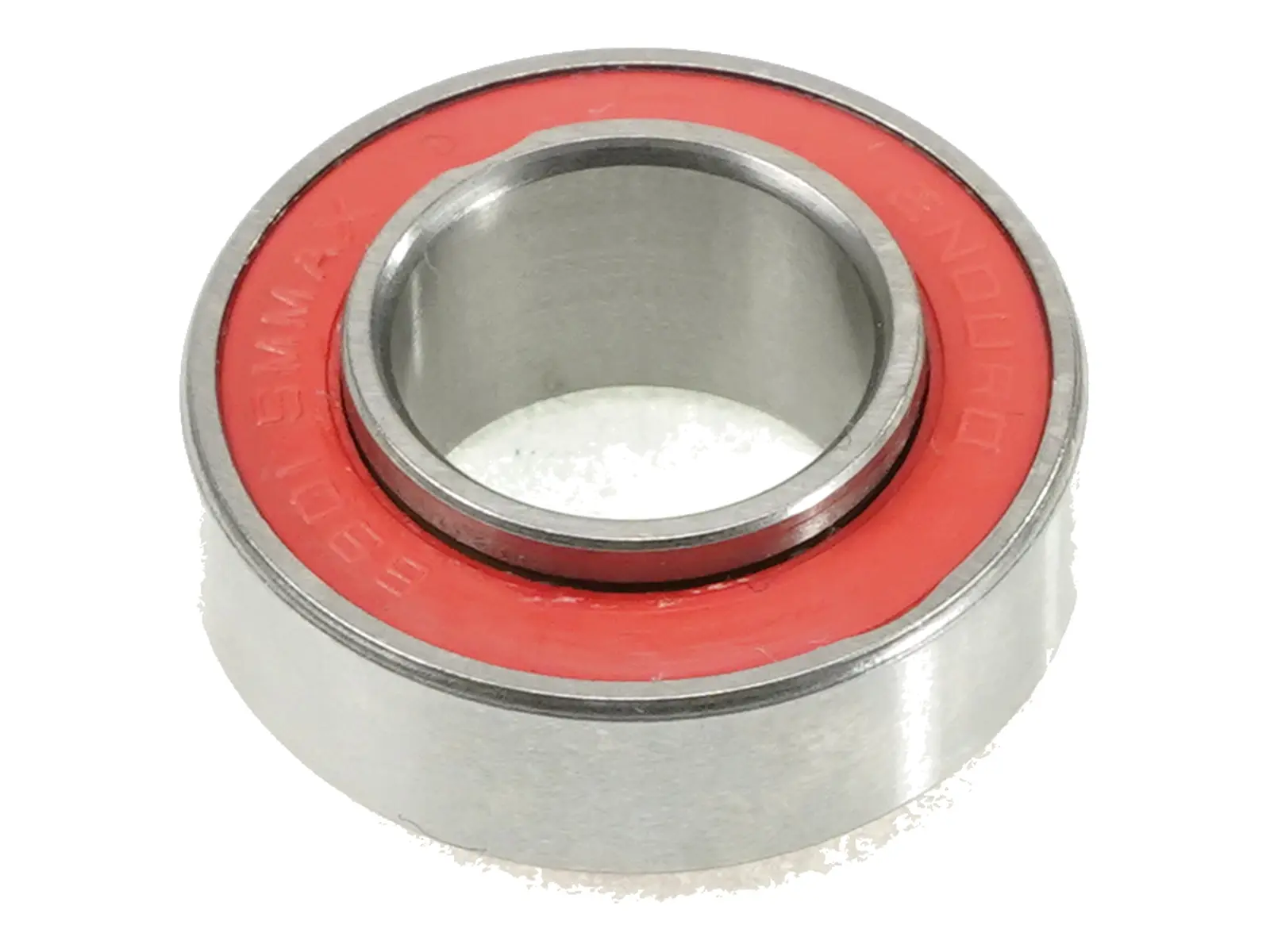

- SM MAX SM ABEC 3 (10 mm inner race): LLU
- Stainless LLB: LLB (light contact dual lip labyrinth seal)
- Ceramic Hybrid LLB ABEC 5: LLB (light contact dual lip labyrinth seal)
- Zero Ceramic VV: VV (non contact, lowest drag)
- XD-15 LLB: LLB (light contact dual lip labyrinth seal) - Material:
- LLB ABEC 3: 52100 chromium steel (races and balls)
- LLB ABEC 5: 52100 chromium steel (races and balls)
- LLU MAX ABEC 3: 52100 chromium steel (races and balls)
- LLU/LLB ABEC 5 (C3): 52100 chromium steel (races and balls)
- LLU/LLB ABEC 5 (CN): 52100 chromium steel (races and balls)
- SM MAX SM ABEC 3 (10 mm inner race): 52100 chromium steel (races and balls)
- Stainless LLB: 440C stainless steel (races and balls)

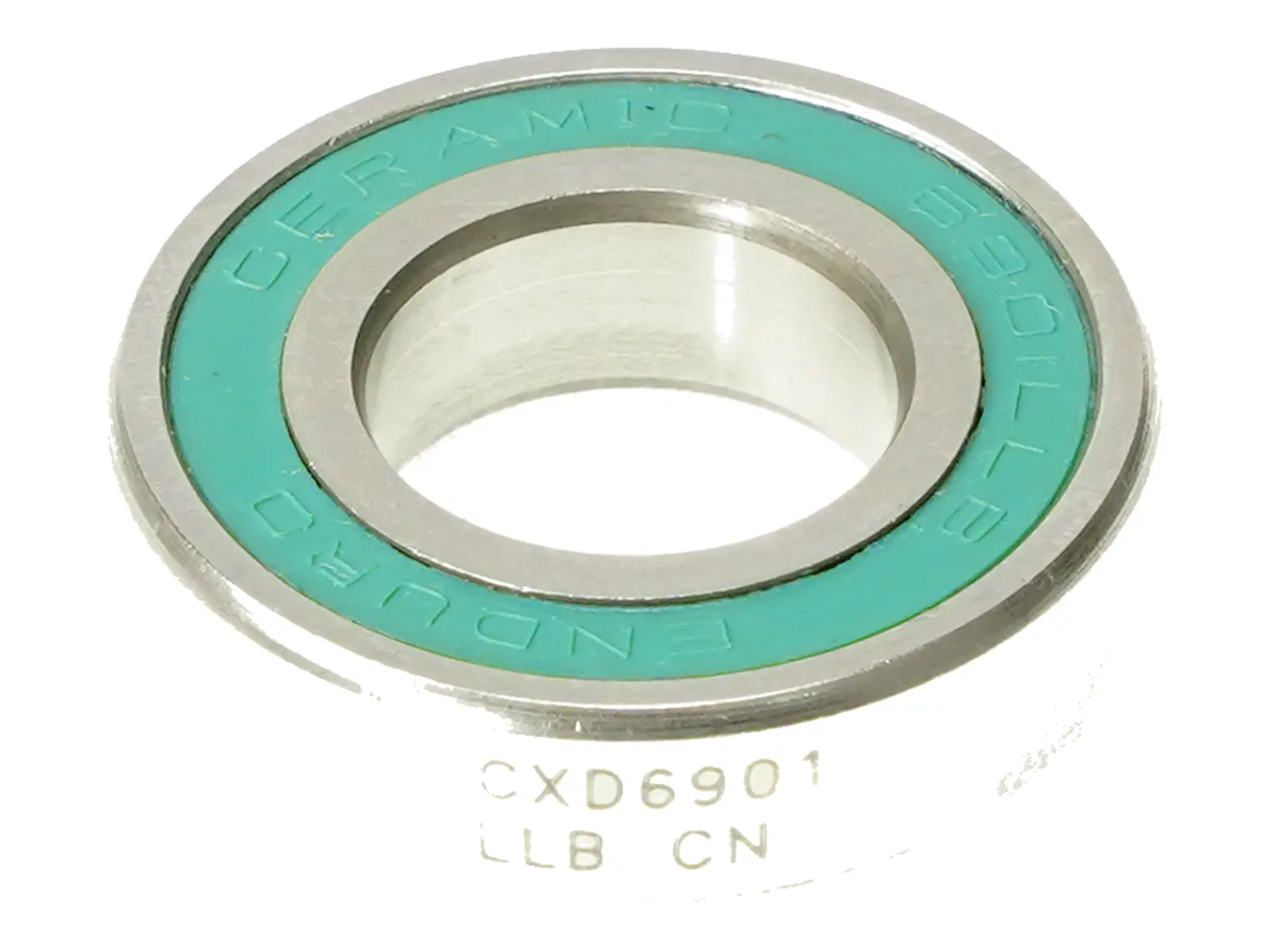

- Ceramic Hybrid LLB ABEC 5: ceramic hybrid (chromium steel races, Si3N4 ceramic balls)

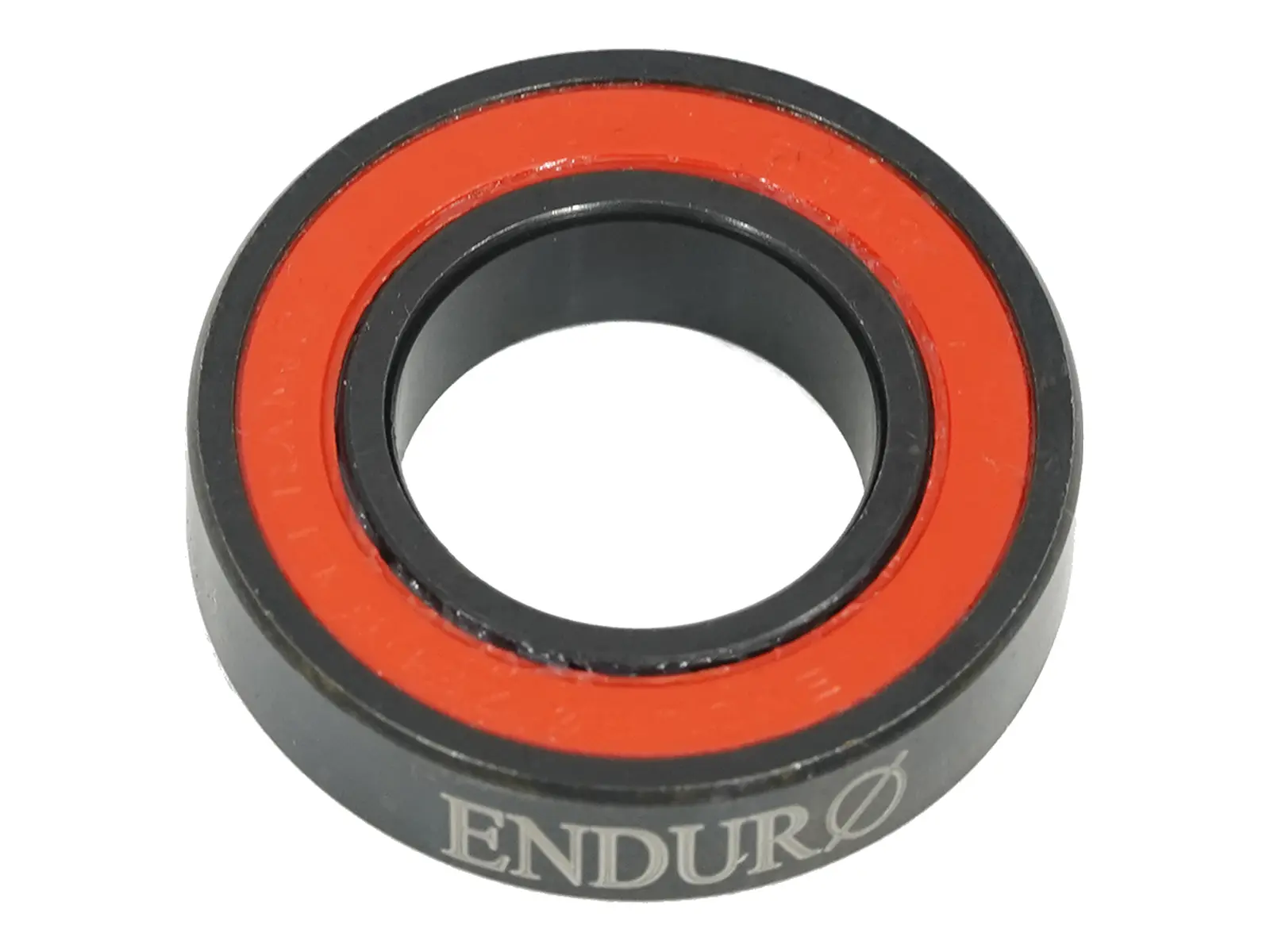

- Zero Ceramic VV: Zero Ceramic (black oxide treated 52100 chromium steel races, grade 5 Si3N4 ceramic balls)

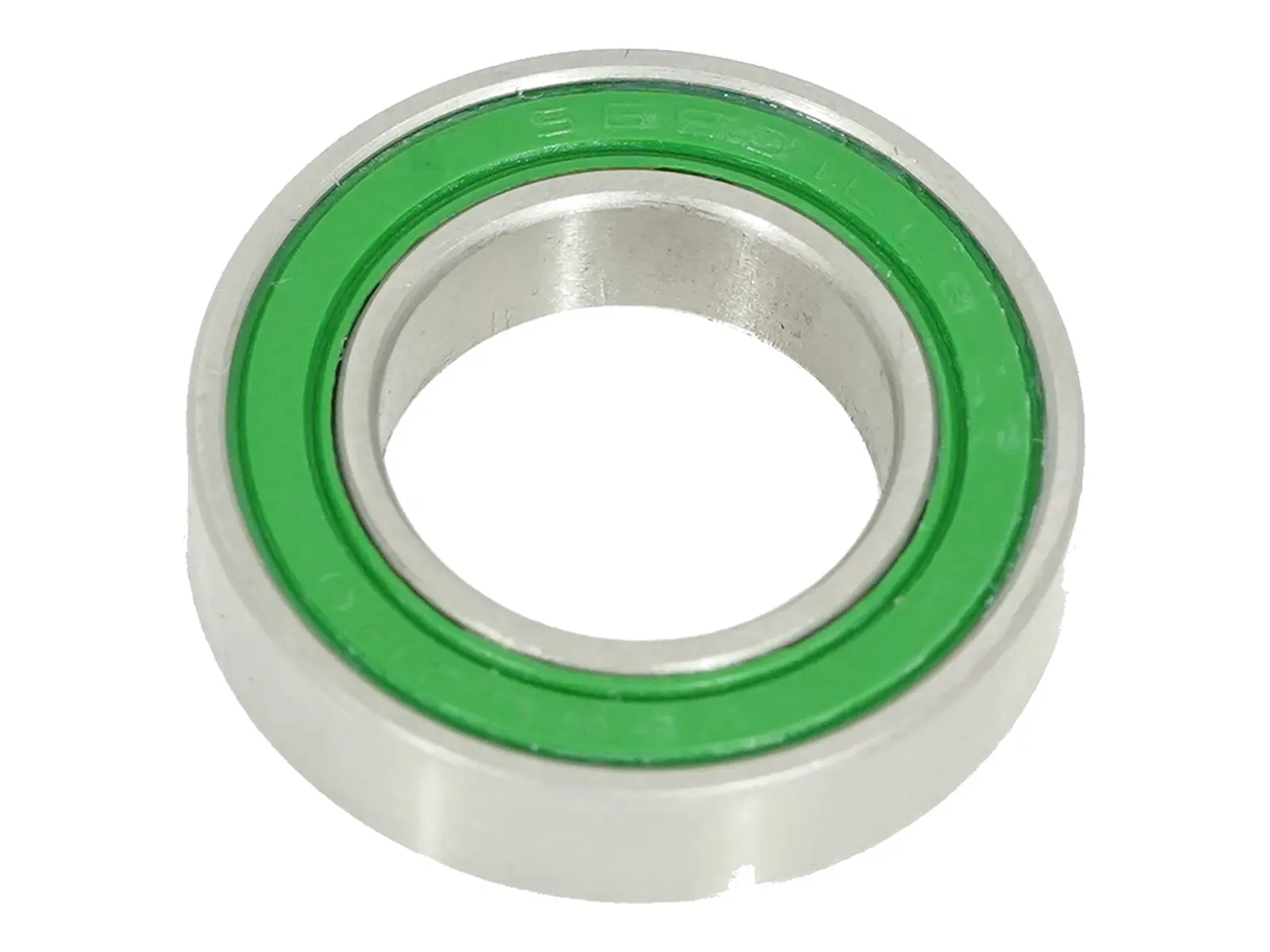

- XD-15 LLB: XD-15 nitrogen stainless steel races, grade 5 Si3N4 ceramic balls - Fits: quick release hubs, hubs, suspension pivots, pedals, e.g. Guerrilla Gravity, Santa Cruz
- Contains: 1 piece
- Extras: deep groove races with the largest possible balls, 90 % grease fill, MAX version: full complement without retainer, 35 to 40 % more load capacity, static load rating per manufacturer 1.46 kN
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
