Enduro Bearings "R 8" Bearing - 1/2 x 1 1/8 x 5/16 inch
- Weight : 0.03kg / 0.07lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36422
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/enduro-bearings-r-8-bearing-12-x-1-18-x-516-inch-p-36422
Printed: 11/03/2026
Printed: 11/03/2026

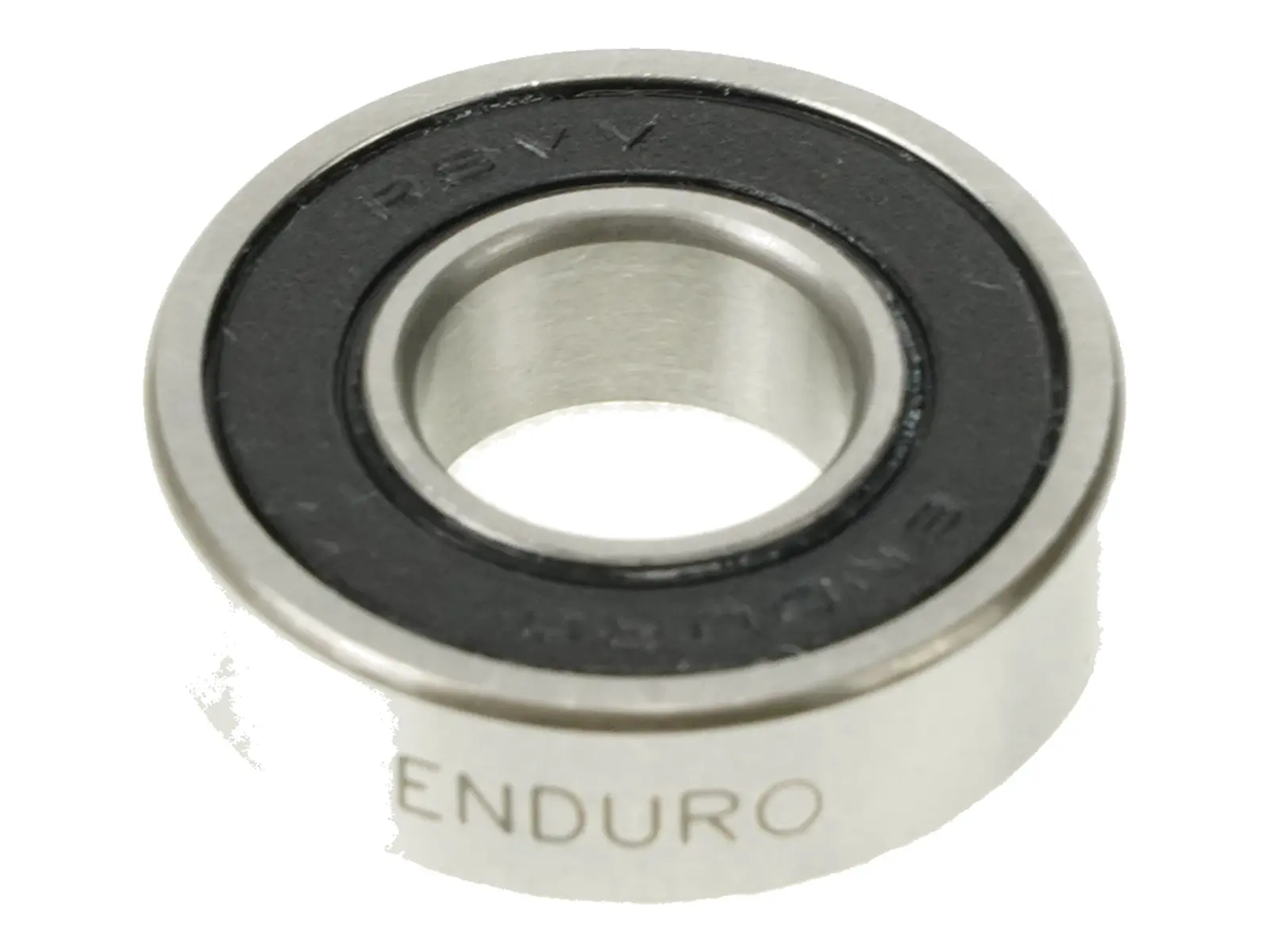

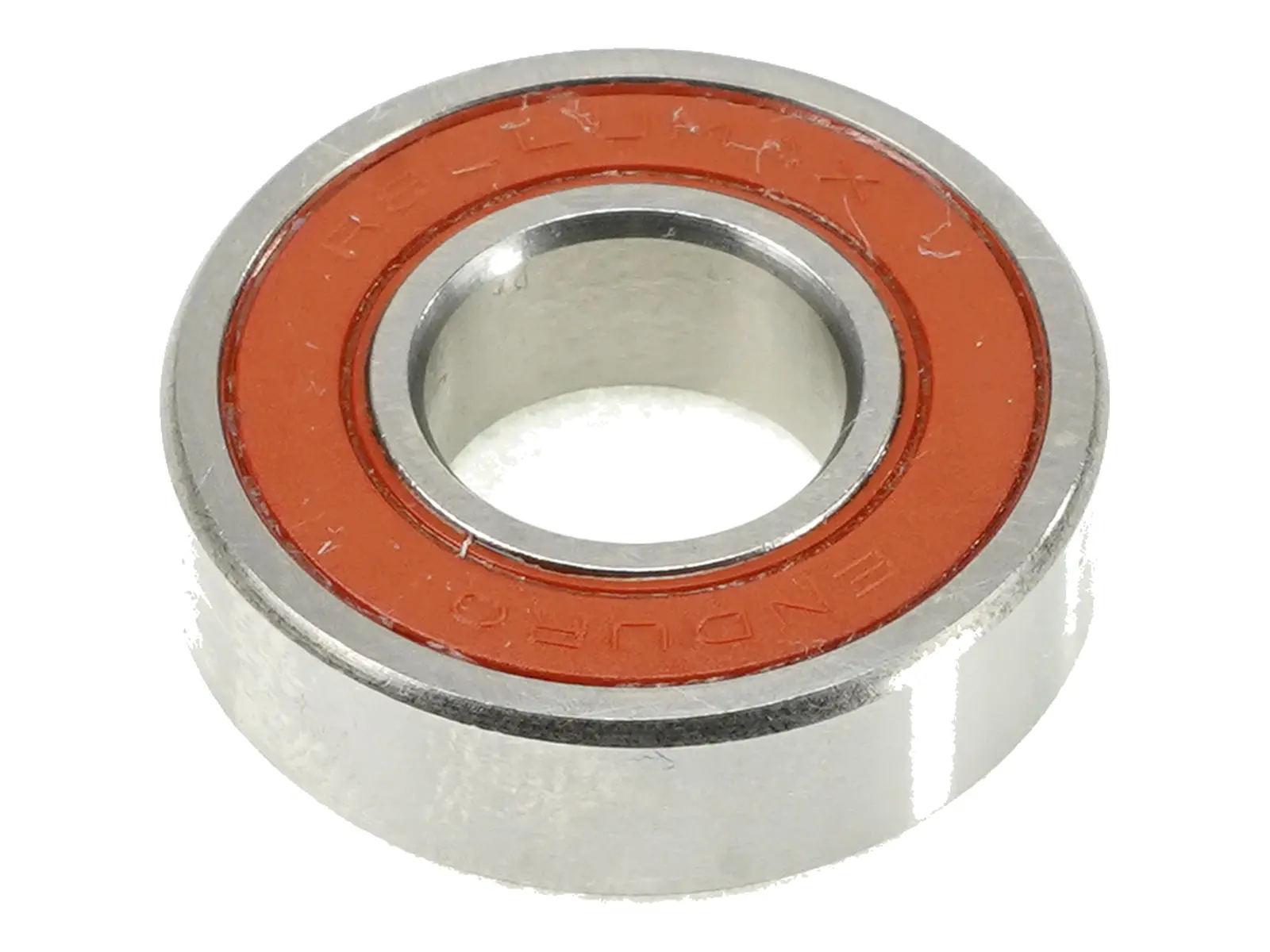

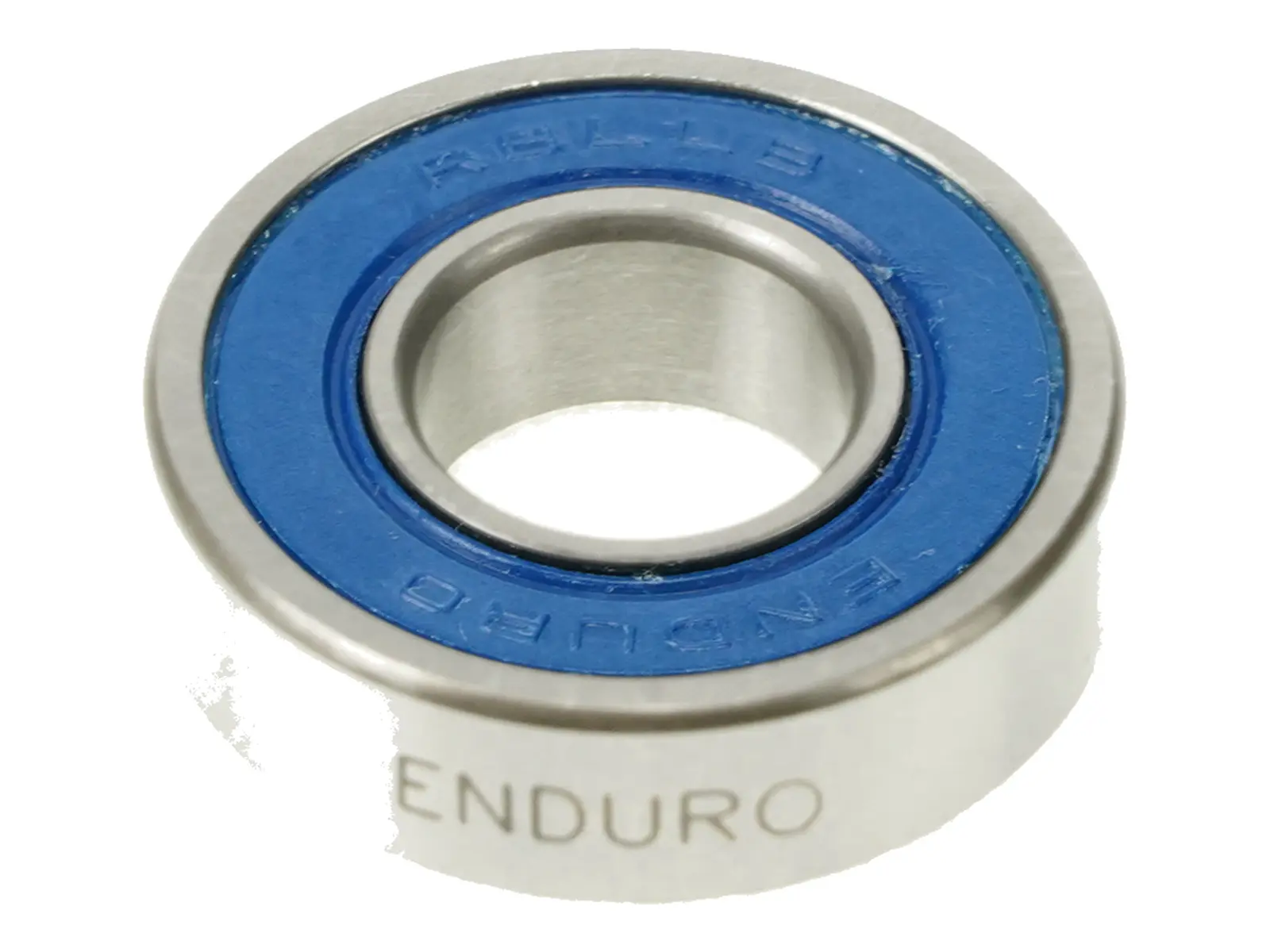

The Enduro Bearings "R 8" Bearing - 1/2 x 1 1/8 x 5/16 inch is a sealed deep groove ball bearing, size 1/2 x 1 1/8 x 5/16 inch (inner diameter x outer diameter x width). Enduro Bearings builds its bearings with the deepest possible race grooves and the largest balls that fit, plus dual lip seals that run in a groove of the inner race and form a labyrinth against water and dirt. The manufacturer names the following applications: BMX hubs, suspension pivots, e.g. Santa Cruz. The versions differ in seal, material and precision grade, see the technical details. The MAX version has no ball retainer and takes the maximum number of balls, which gives 35 to 40 % more load capacity and makes it the right choice for suspension pivots that only rotate a few degrees.
Facts: Enduro Bearings "R 8" Bearing - 1/2 x 1 1/8 x 5/16 inch
- Bearing Size: R 8 (1/2 x 1 1/8 x 5/16 inch)
- Version: Ceramic Hybrid LLB, LLB ABEC 3, LLU MAX ABEC 3 or VV ABEC 5 (C3)
- Seal:
- LLB ABEC 3: LLB (light contact dual lip labyrinth seal)
- VV ABEC 5 (C3): VV (non contact, lowest drag)
- VV ABEC 5 (CN): VV (non contact, lowest drag)
- LLU MAX ABEC 3: LLU (medium contact dual lip seal)
- Ceramic Hybrid LLB: LLB (light contact dual lip labyrinth seal) - Material:
- LLB ABEC 3: 52100 chromium steel (races and balls)
- VV ABEC 5 (C3): 52100 chromium steel (races and balls)
- VV ABEC 5 (CN): 52100 chromium steel (races and balls)
- LLU MAX ABEC 3: 52100 chromium steel (races and balls)
- Ceramic Hybrid LLB: ceramic hybrid (chromium steel races, Si3N4 ceramic balls) - Fits: BMX hubs, suspension pivots, e.g. Santa Cruz
- Contains: 1 piece
- Extras: deep groove races with the largest possible balls, 90 % grease fill, MAX version: full complement without retainer, 35 to 40 % more load capacity, static load rating per manufacturer 2.99 kN
