Excess "XLC" BMX Race Rim - 20 Inch (451) - 36H - V-Brake
- Weight : 0.29kg / 0.64lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45605
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/excess-xlc-bmx-race-rim-20-inch-451-36h-v-brake-p-45605
Printed: 10/30/2026
Printed: 10/30/2026

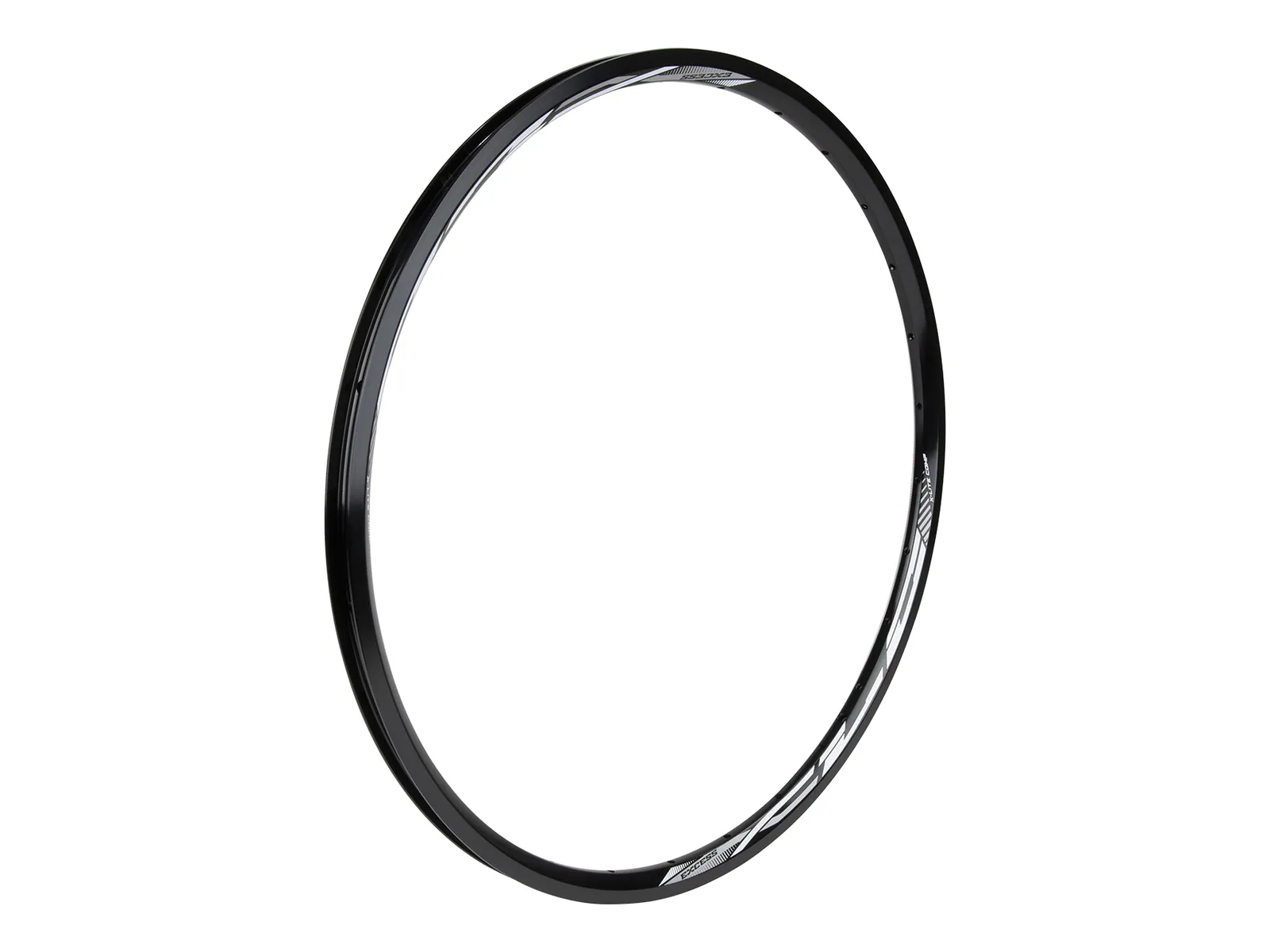

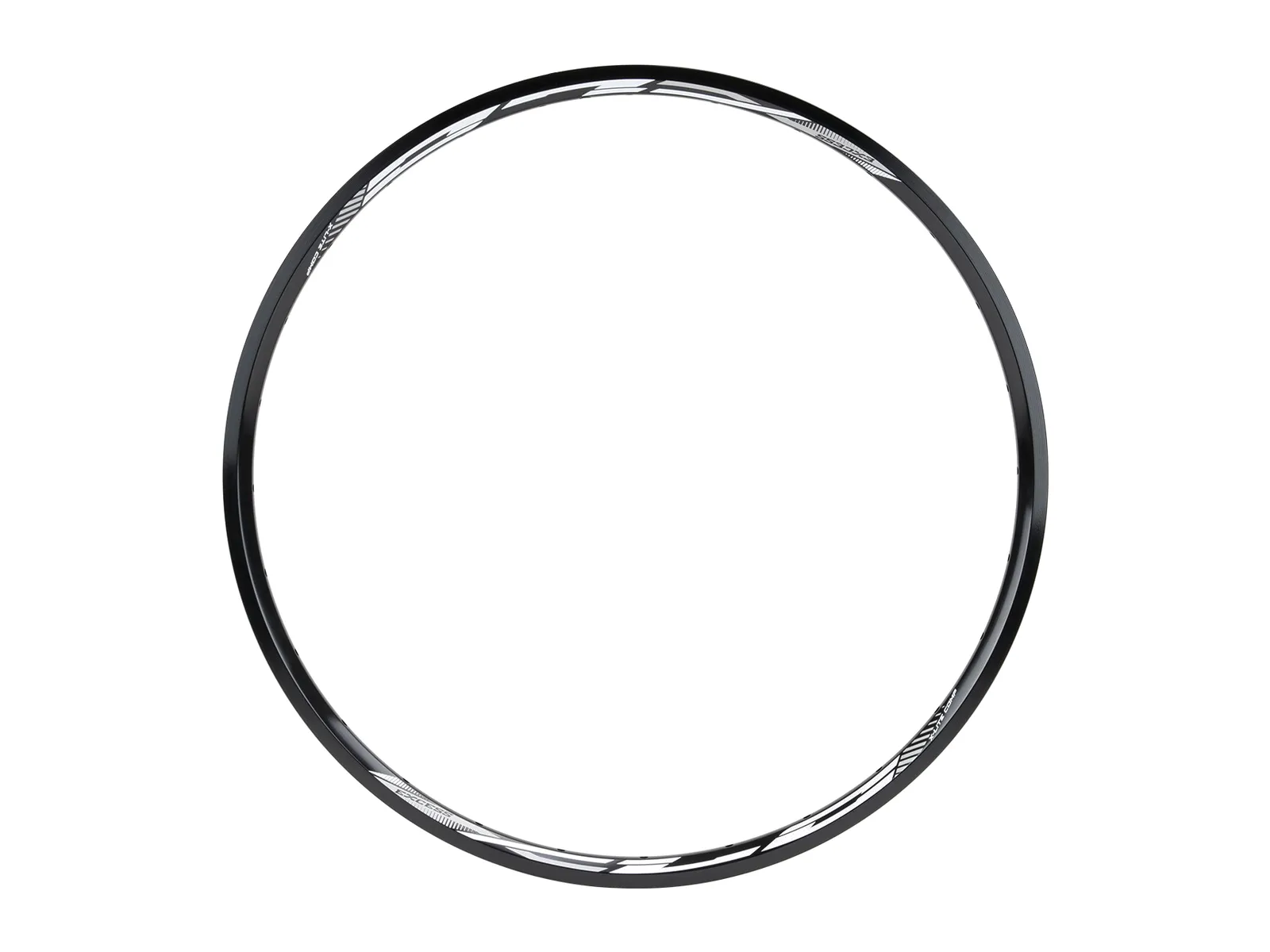

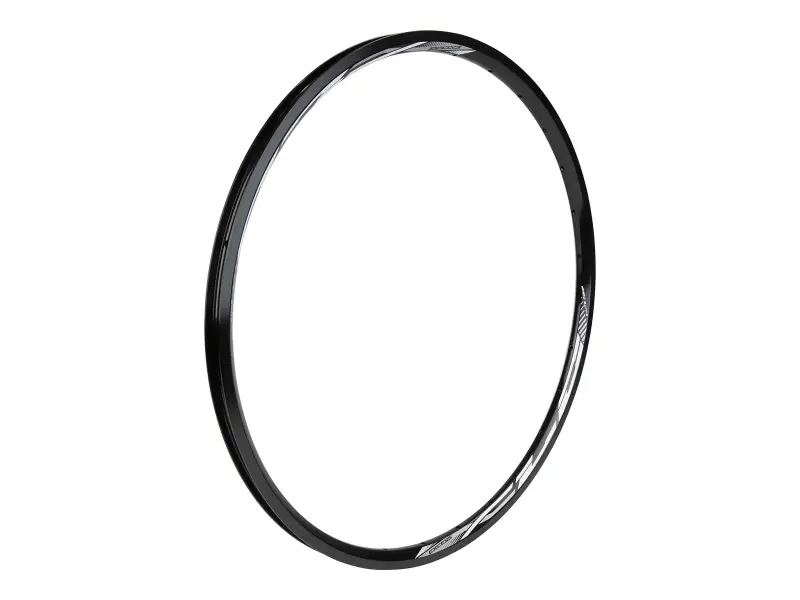

The Excess "XLC" BMX Race Rim - 20 Inch (451) - 36H - V-Brake is a BMX race double wall rim made of 6061-T6 aluminum with an anodized finish. Excess makes the XLC rims in two aero profiles, this is the rear profile with a CNC machined brake track for V-brakes. The spoke holes are slightly angled, so the spokes run in more directly and the wheel gets stiffer.
It measures 451x19.5mm for 20 x 1-1/8" to 1-3/8" tires, is 16mm high, weighs 286g according to US Pro and has 36 spoke holes and a Presta valve hole.
Facts: Excess "XLC" BMX Race Rim - 20 Inch (451) - 36H - V-Brake
- Wheel Size: 20"
- Material: 6061-T6 aluminum, double wall, anodized
- Holes: 36H
- Width: 19.5mm
- Height (Rim Wall): 16mm
- ETRTO ⌀: 451mm
- ERD: 438mm
- Rim Wall: CNC machined brake track for V-brakes, rear
- Valve Hole Diameter: for Presta valve
- Extras: 20 x 1-1/8" to 1-3/8", angled nipple holes, spoke tension up to 115 kgf
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
