Excess "XLC Mini/Expert 120" BMX Race Cassette Hub - 10mm - 36H
- Weight : 0.31kg / 0.68lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45578
- Product safety
Weight
Source: BMX Glossary
Printed: 10/29/2026

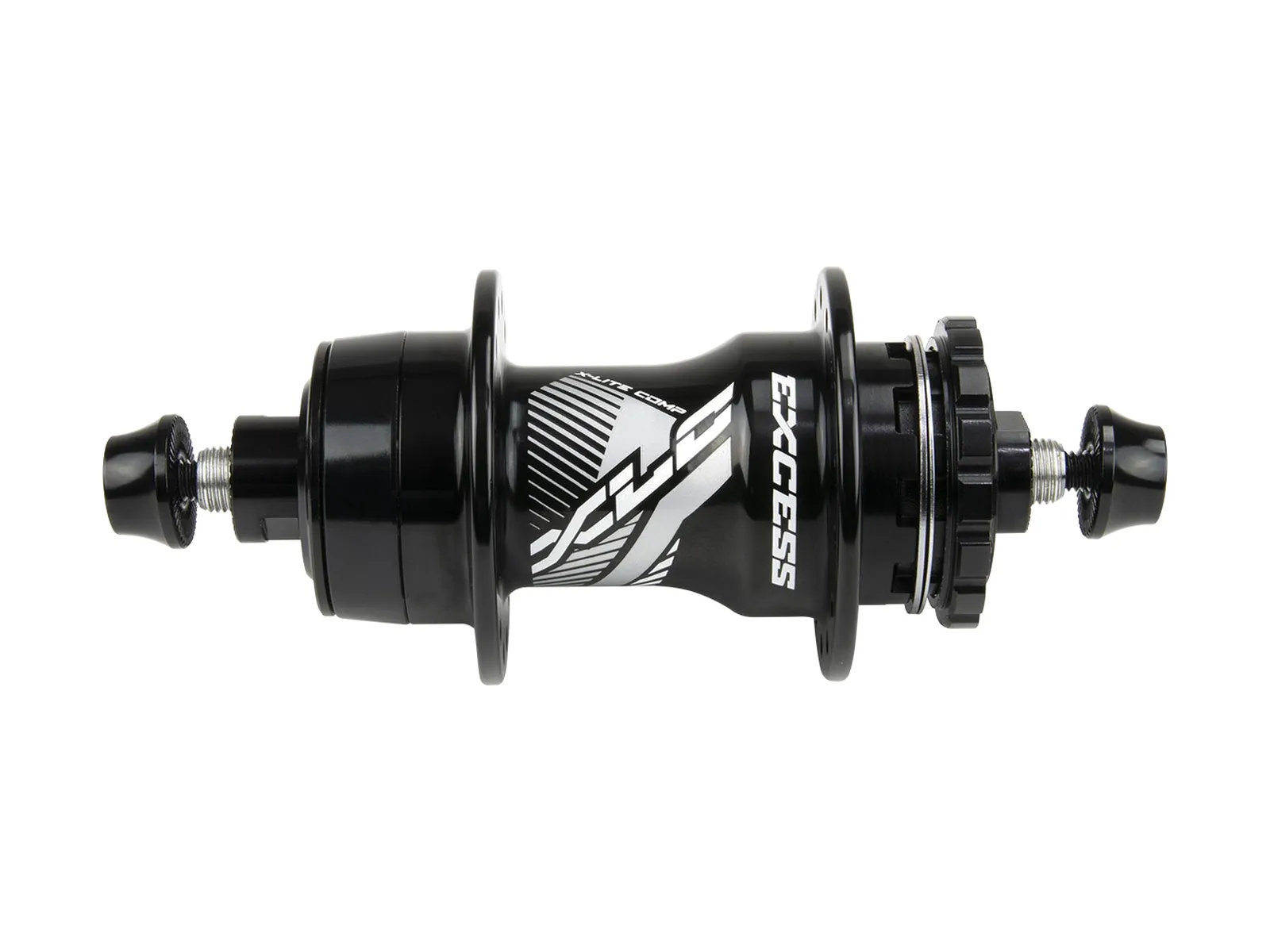

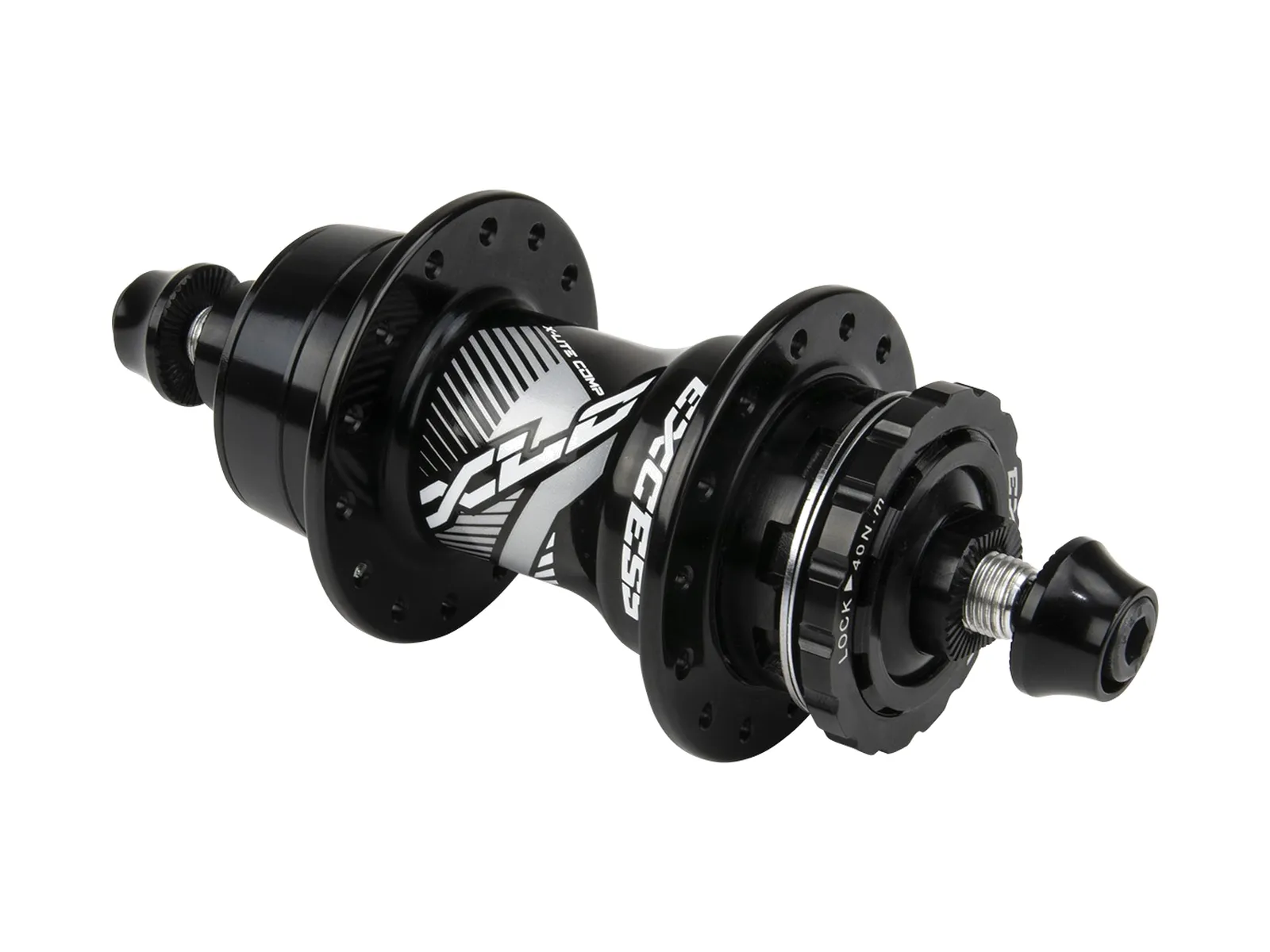

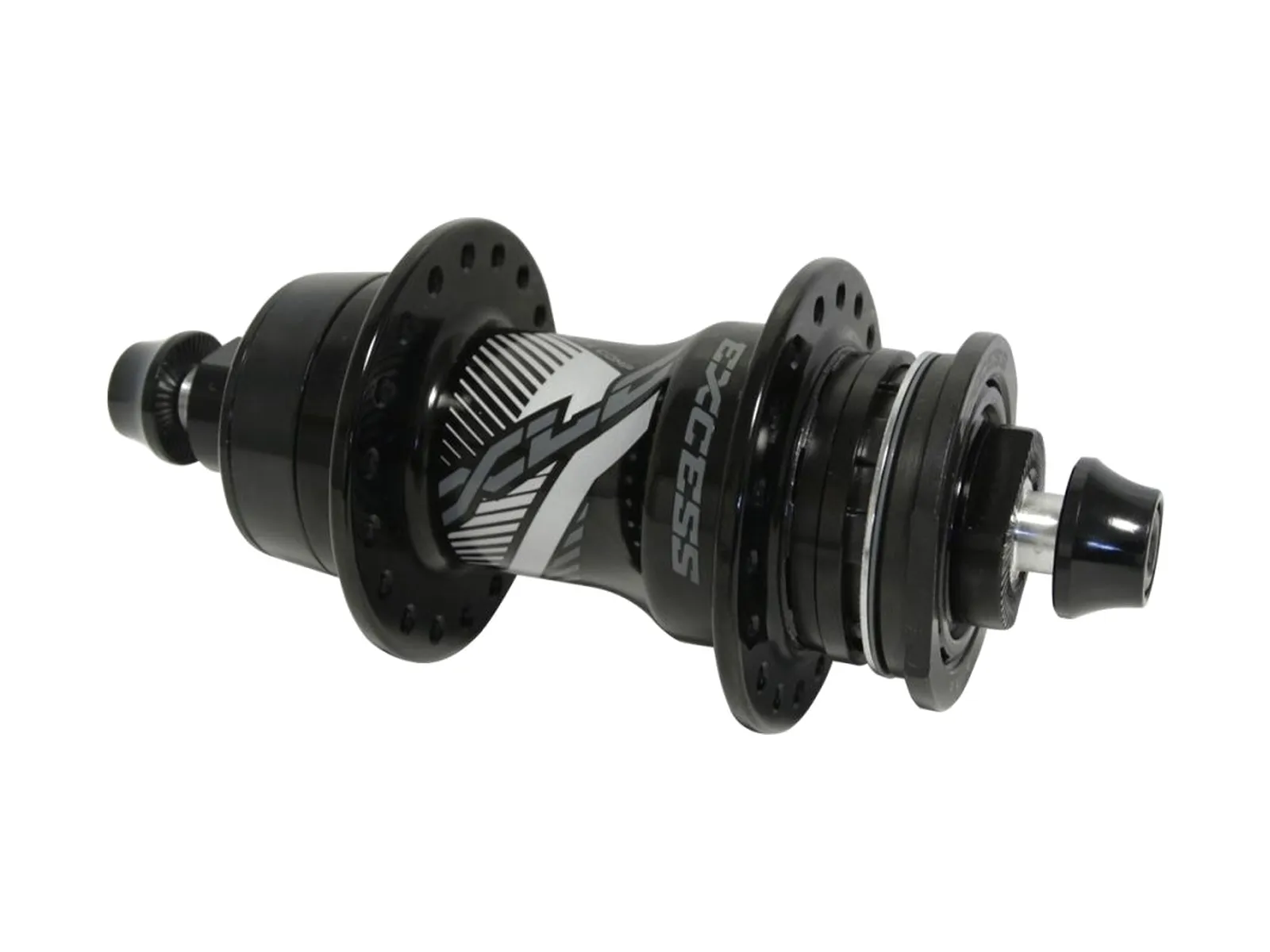

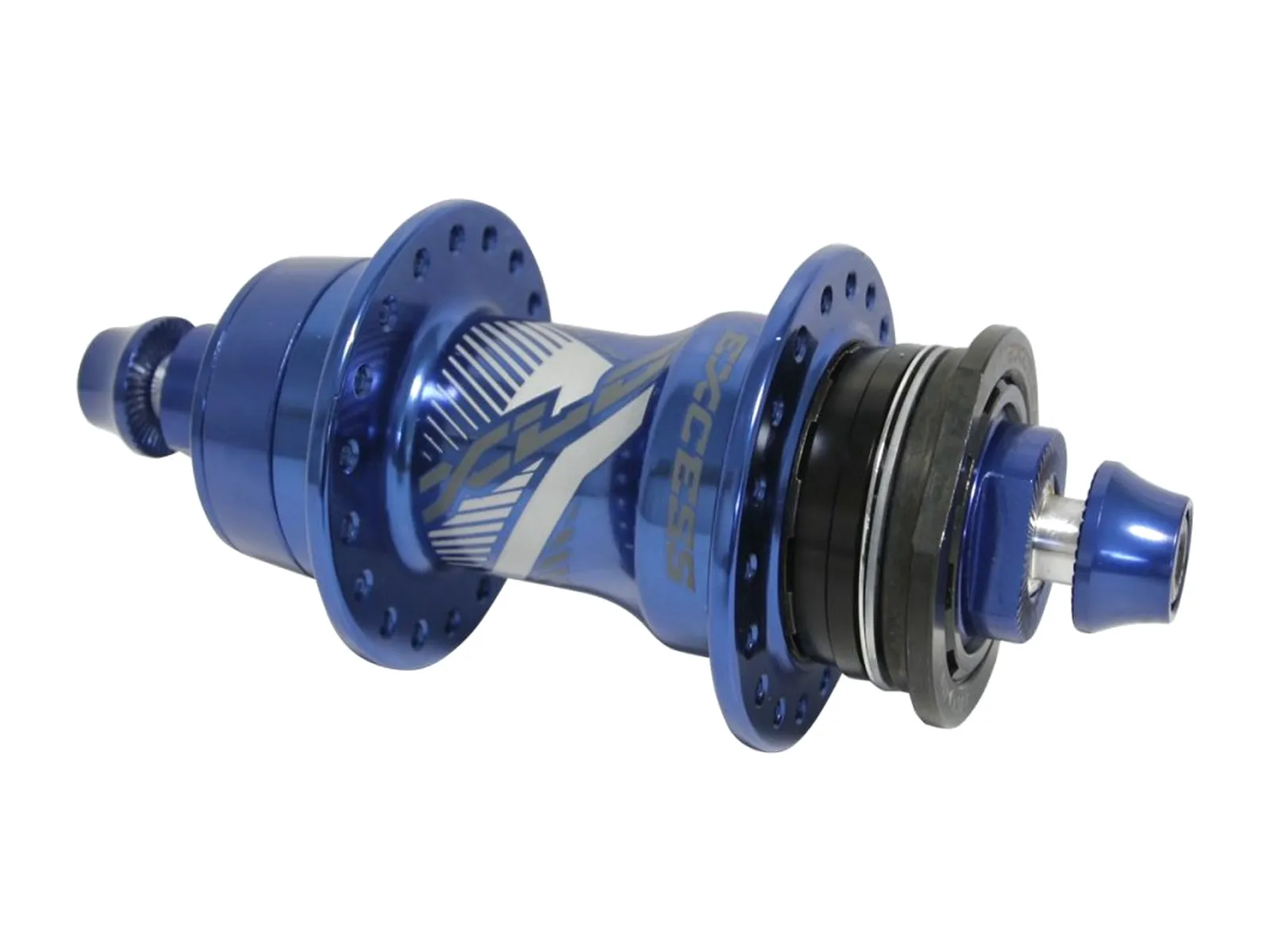

The Excess "XLC Mini/Expert 120" BMX Race Cassette Hub - 10mm - 36H is a 36 hole cassette hub for young racers on Mini and Expert bikes. Inside the freehub 3 pawls with 5 teeth each engage a 120 tooth ratchet, so the hub bites almost instantly out of the gate and when you pedal again. The shell is CNC machined from 6061-T6 aluminum and runs on sealed bearings.

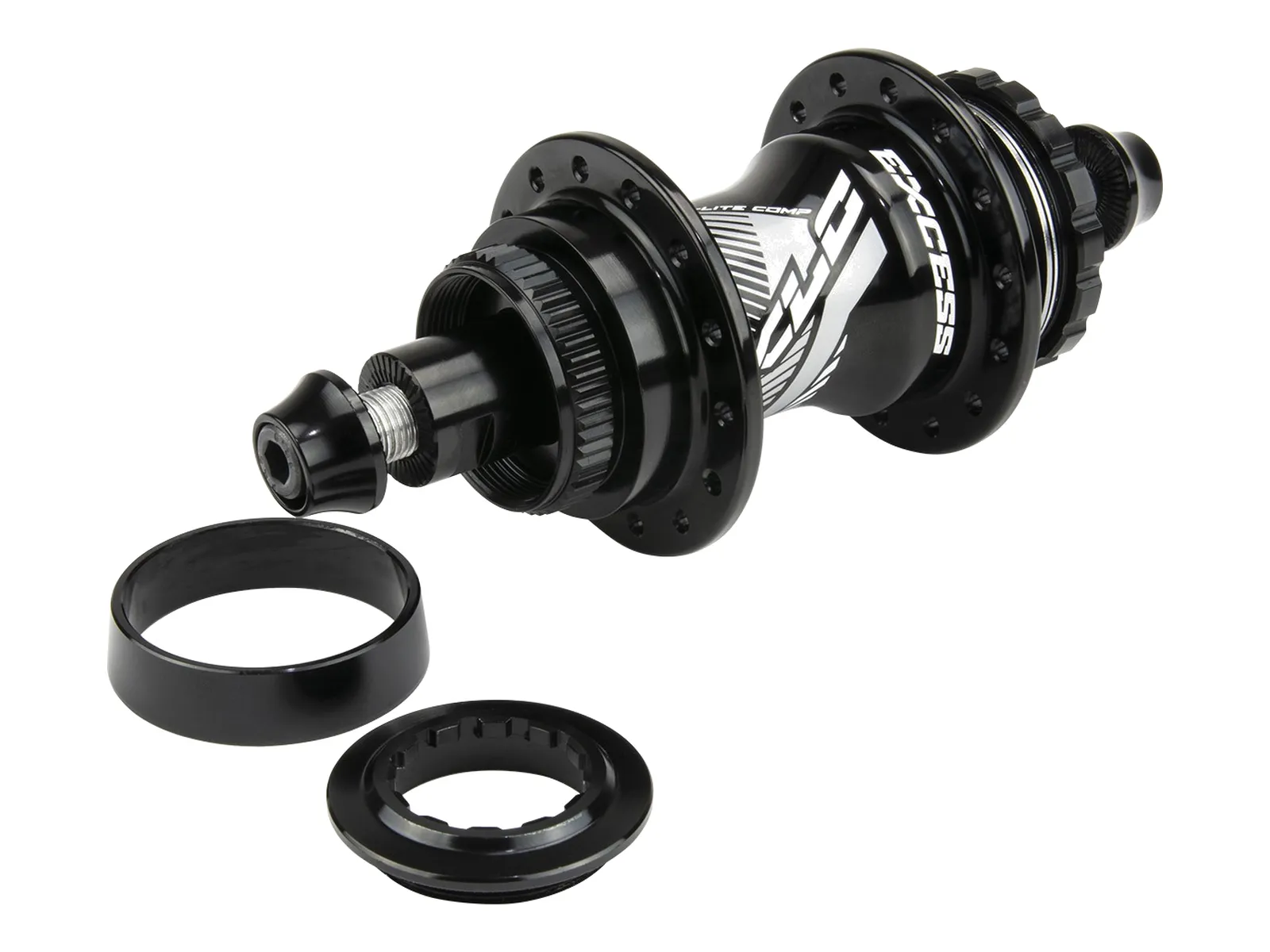

The rotor mounts with CenterLock, which is quicker than bolts and sits stiffer, so you can run the hub with a V-brake or a disc brake. The freehub body is aluminum and takes Shimano standard cogs. The axle body is aluminum with a 10mm outer diameter, fastened with M6 hex key bolts. Spacers and lockring are included, cog and CenterLock/ISO adapter are sold separately. The hub weighs 307g.
Facts: Excess "XLC Mini/Expert 120" BMX Race Cassette Hub - 10mm - 36H
- Material Hub Shell: 6061-T6 aluminum, CNC machined
- Holes: 36H
- Axle: 10mm (3/8"), aluminum axle body, M6 hex key axle bolts
- Driver: aluminum, Shimano standard freehub body
- Bearing: sealed (SB), 3 pawls with 5 teeth each, 120 tooth ratchet
- Extra: CenterLock rotor mount, for V-brake and disc brake, cog and CenterLock/ISO adapter not included
- Content: 1 cassette hub, spacers, lockring
