Excess "XLC Mini/Expert 24" BMX Race Cassette Hub - 10mm - 28H
- Weight : 0.36kg / 0.79lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45622
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/excess-xlc-miniexpert-24-bmx-race-cassette-hub-10mm-28h-p-45622
Printed: 10/29/2026
Printed: 10/29/2026

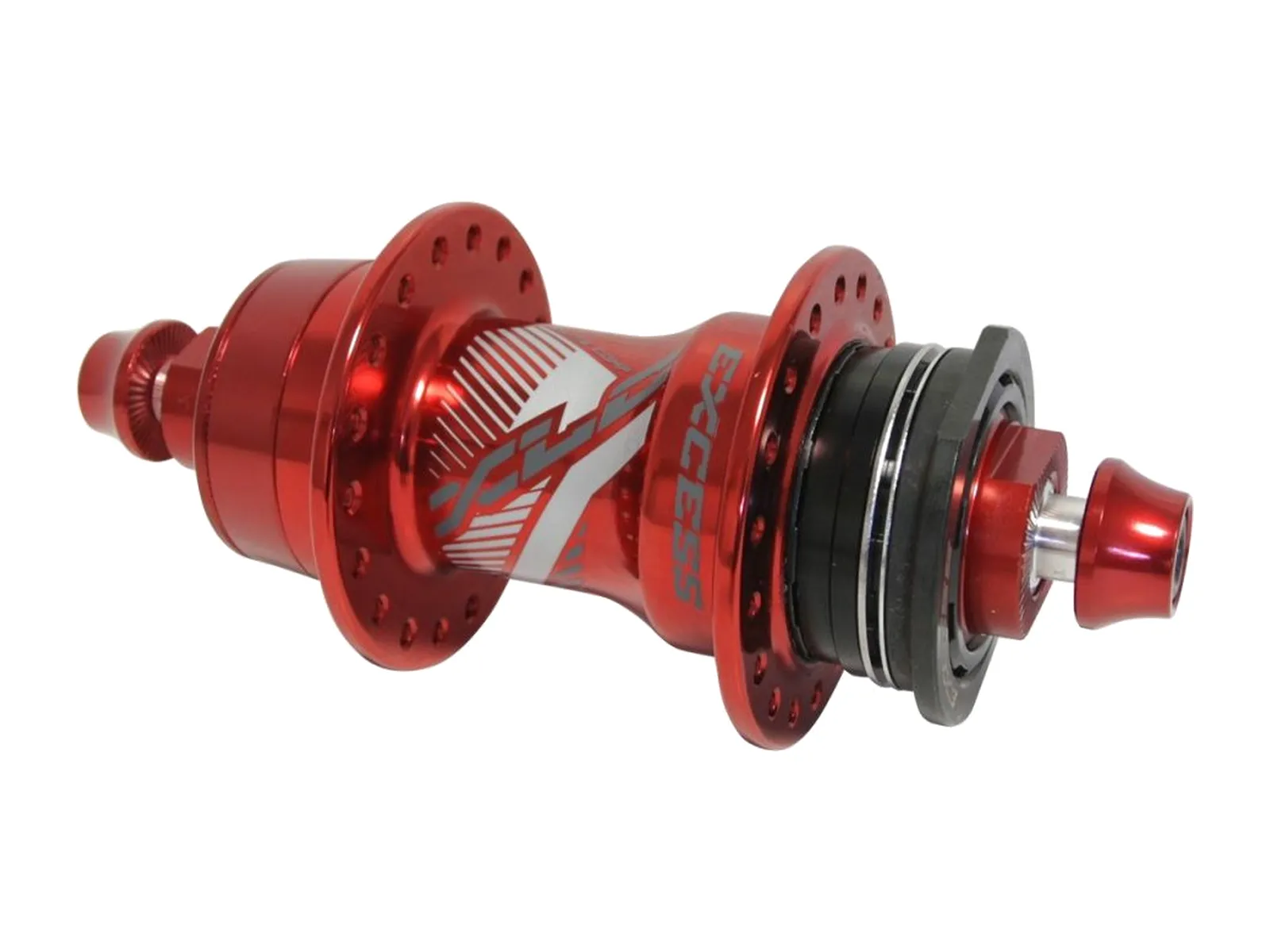

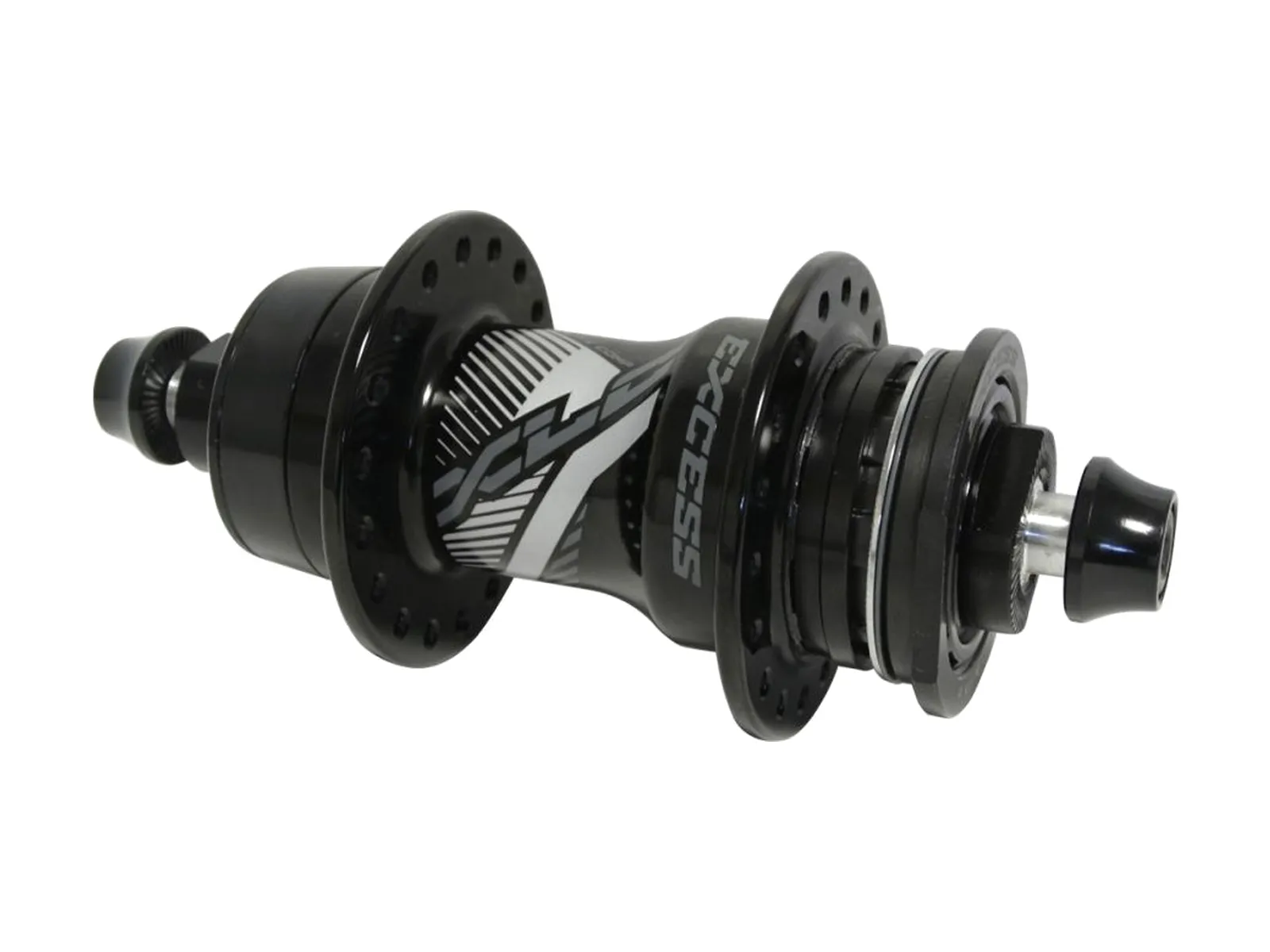

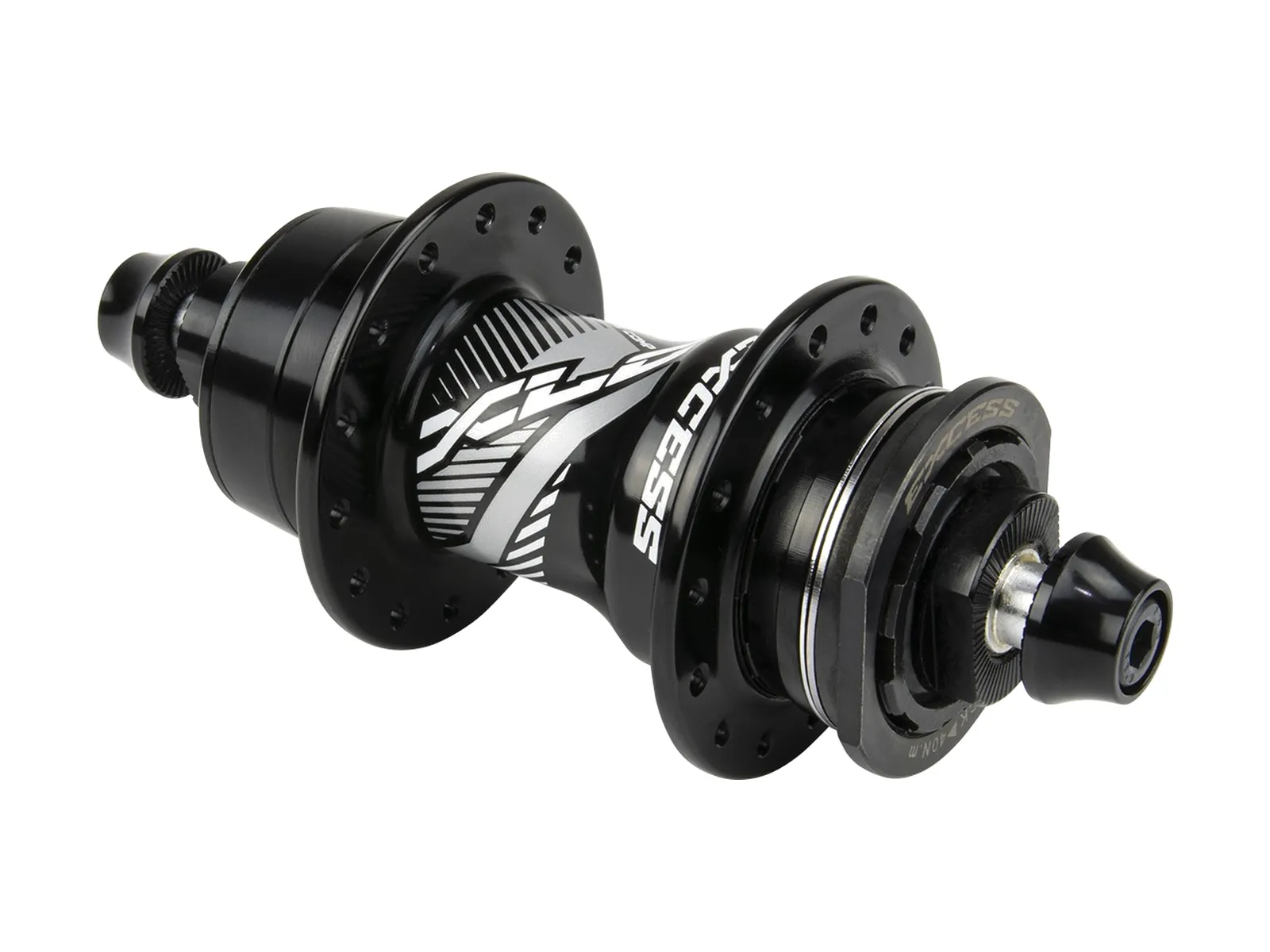

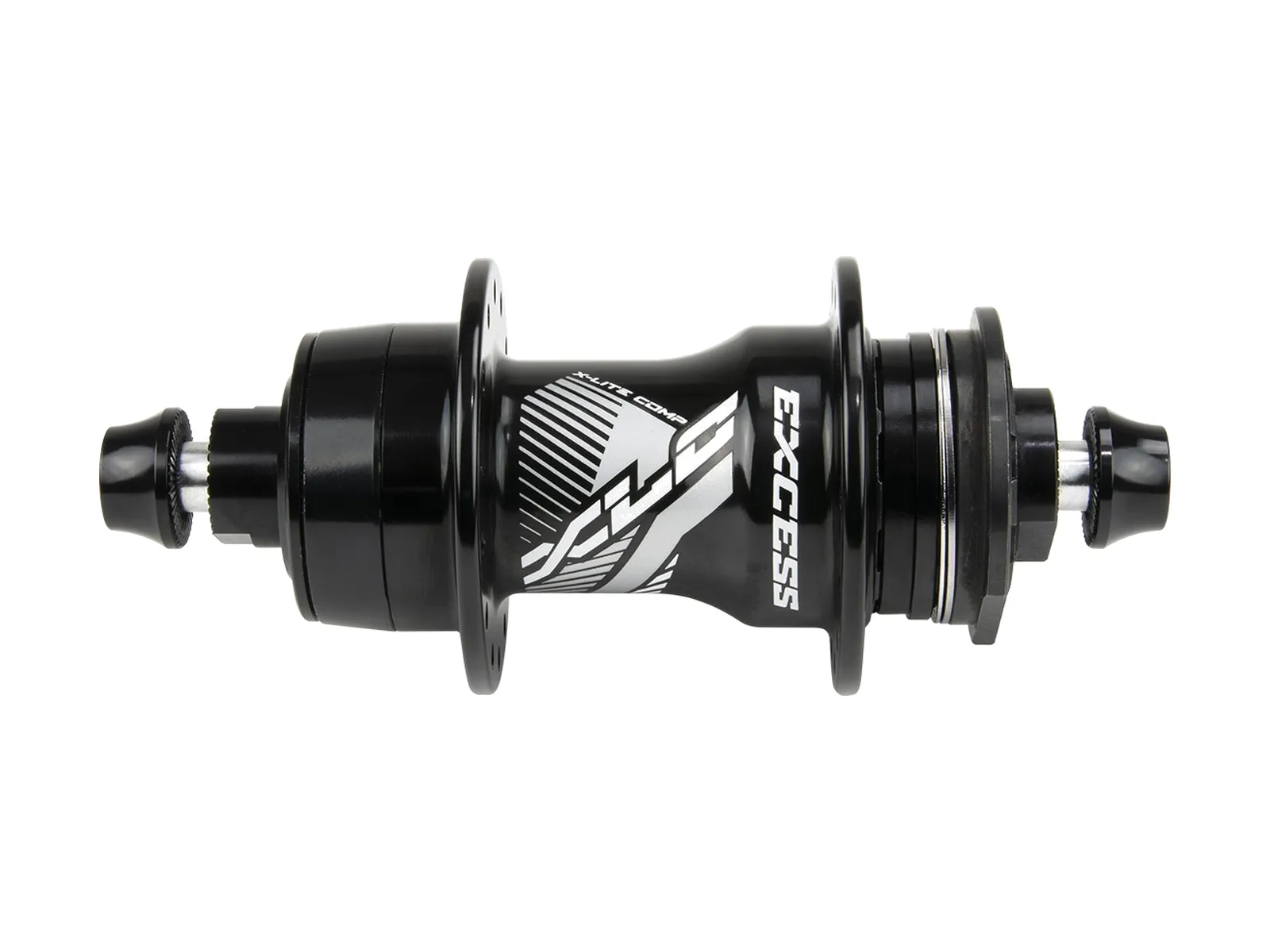

The Excess "XLC Mini/Expert 24" BMX Race Cassette Hub - 10mm - 28H is a 28 hole cassette hub for young racers on Mini and Expert bikes. Inside the freehub 3 pawls engage a 24 tooth ratchet. The shell is CNC machined from 6061-T6 aluminum and runs on sealed bearings.
The rotor mounts with CenterLock, which is quicker than bolts and sits stiffer, so you can run the hub with a V-brake or a disc brake. The freehub body is chromoly and takes Shimano standard cogs. The axle body is aluminum with a 10mm outer diameter, fastened with M6 hex key bolts. Spacers and lockring are included, cog and CenterLock/ISO adapter are sold separately. The hub weighs 363g.
Facts: Excess "XLC Mini/Expert 24" BMX Race Cassette Hub - 10mm - 28H
- Material Hub Shell: 6061-T6 aluminum, CNC machined
- Holes: 28H
- Axle: 10mm (3/8"), aluminum axle body, M6 hex key axle bolts
- Driver: chromoly, Shimano standard freehub body
- Bearing: sealed (SB), 3 pawls, 24 tooth ratchet
- Extra: CenterLock rotor mount, for V-brake and disc brake, cog and CenterLock/ISO adapter not included

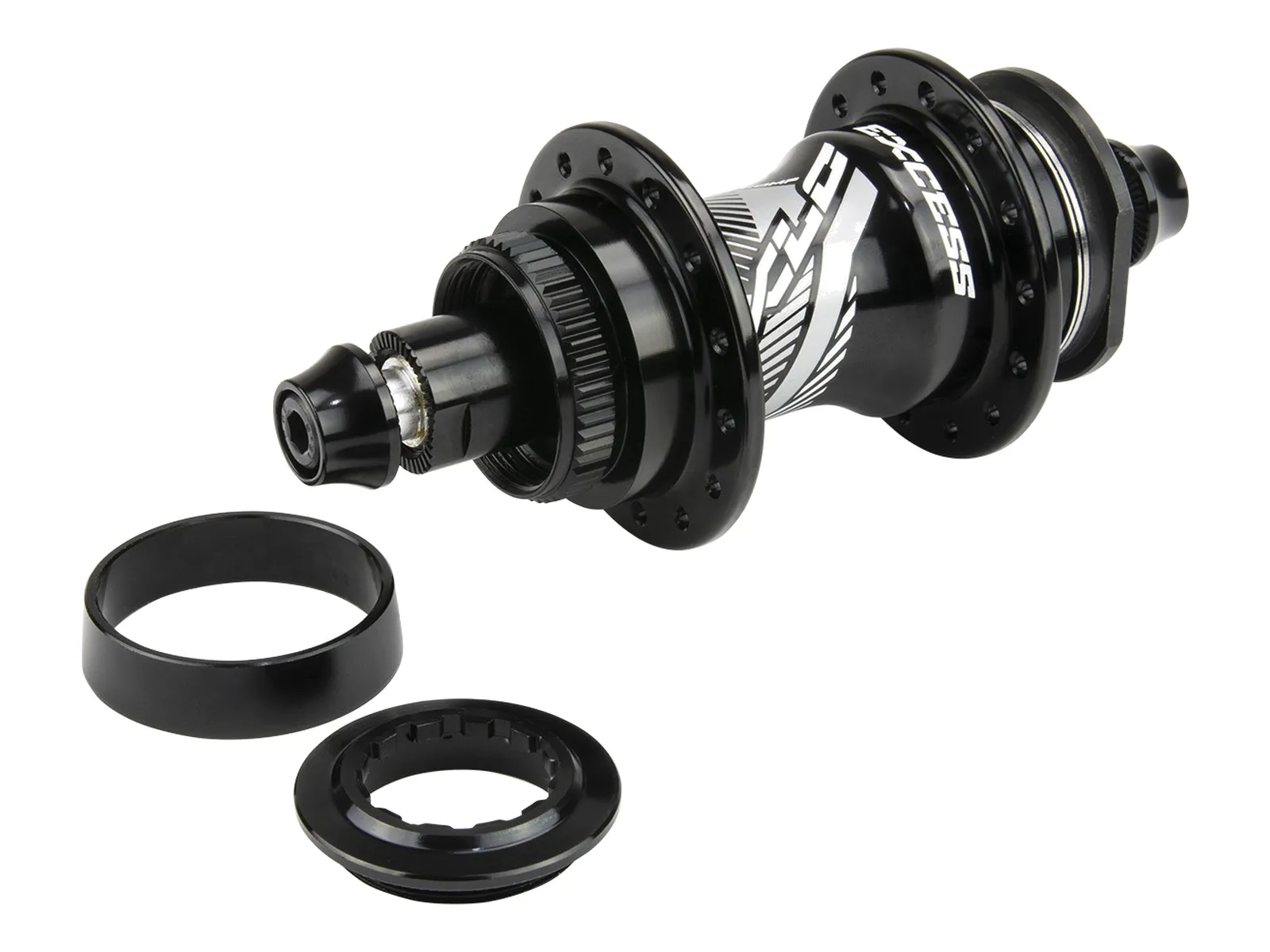

- Content: 1 cassette hub, spacers, lockring
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
