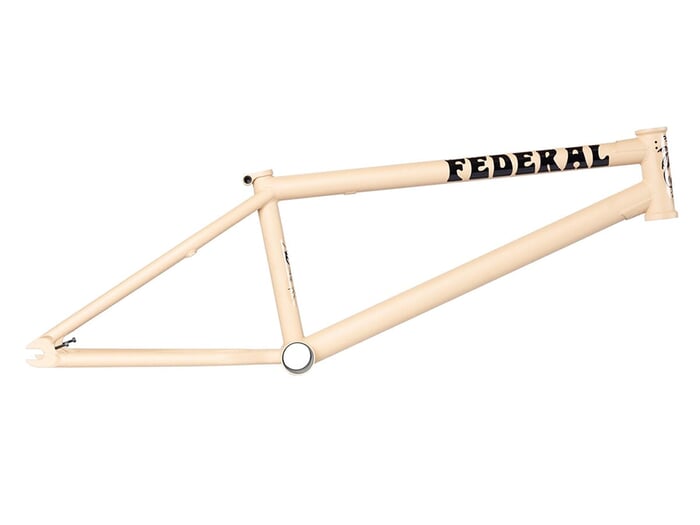

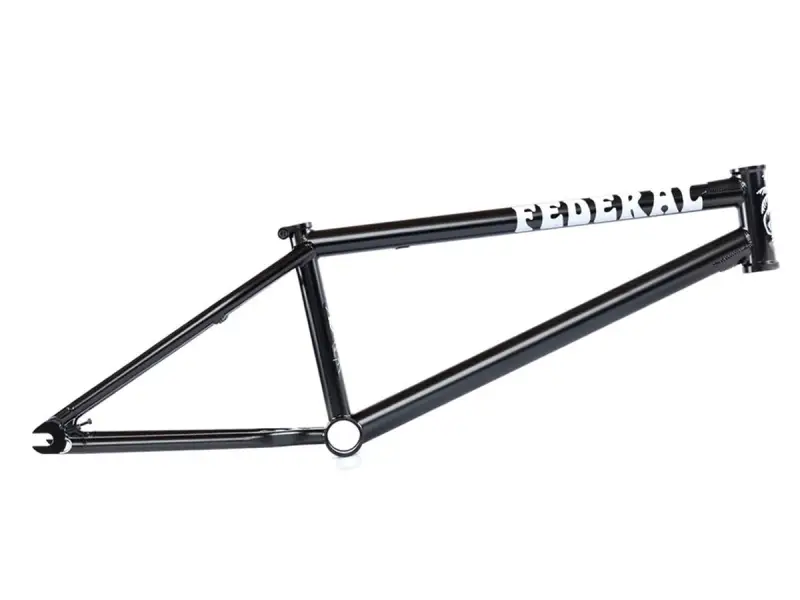

Federal Bikes "Boyd ICS2" 2023 BMX Frame
-
Weight : 2.51kg / 5.53lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 22254
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The
Federal Bikes "Boyd ICS2" 2023 BMX Frame
is Boyd Hilder's signature frame and was in accordance to his riding style designed and manufactured for allround BMX riding in bowls, skateparks and street as well. The
Federal Bikes "Boyd ICS2" 2023 BMX Frame
comes with new ICS2 wishbone and smaller, more refined IC dropouts, a slightly taller head tube, oval down tube and with graphics from rich forne.
Caution: The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Caution: The delivery of the frame is without removable brake bosses, gyro tabs and brake cable holder. The Federal Bikes Brake Mount Kit is available separately in our online shop.
Facts: Federal Bikes "Boyd ICS2" 2023 BMX Frame
- Wheel Size: 20"

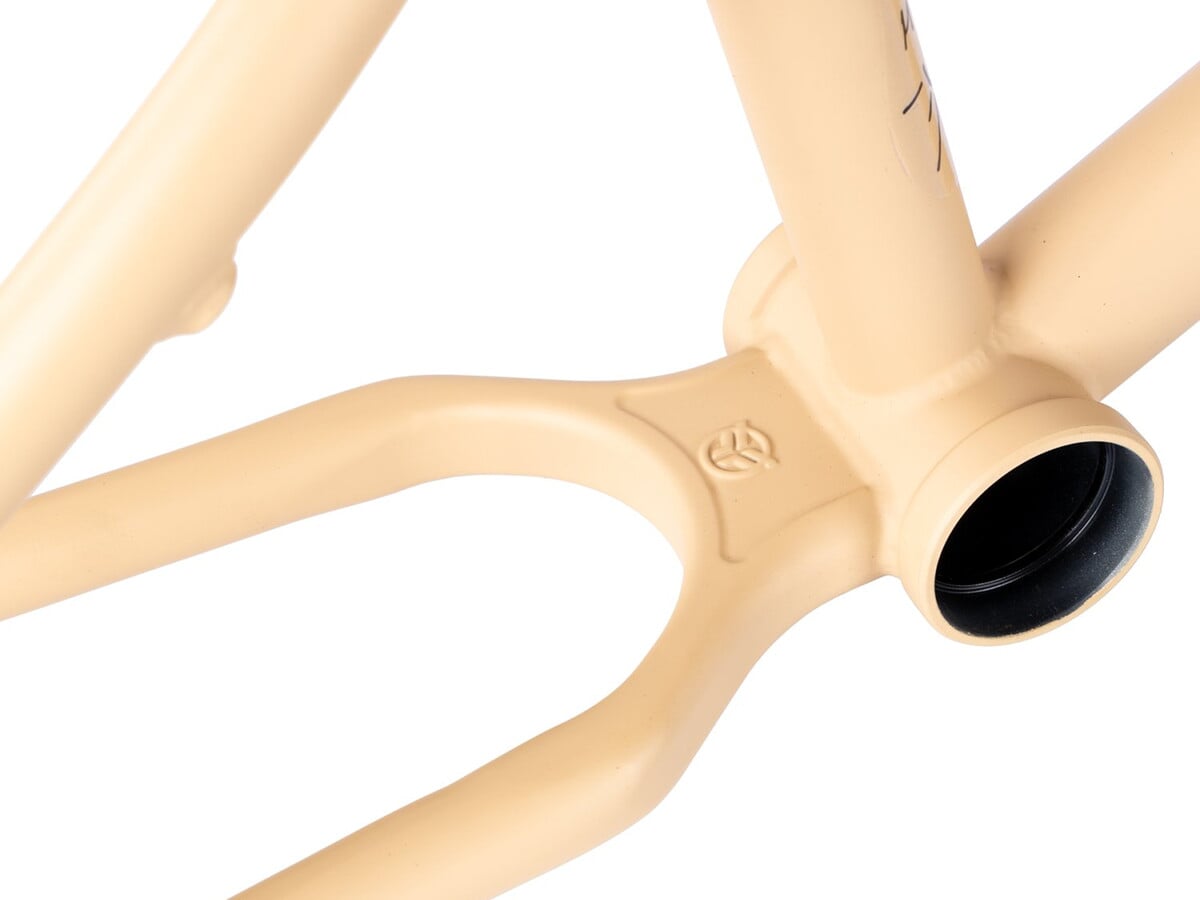

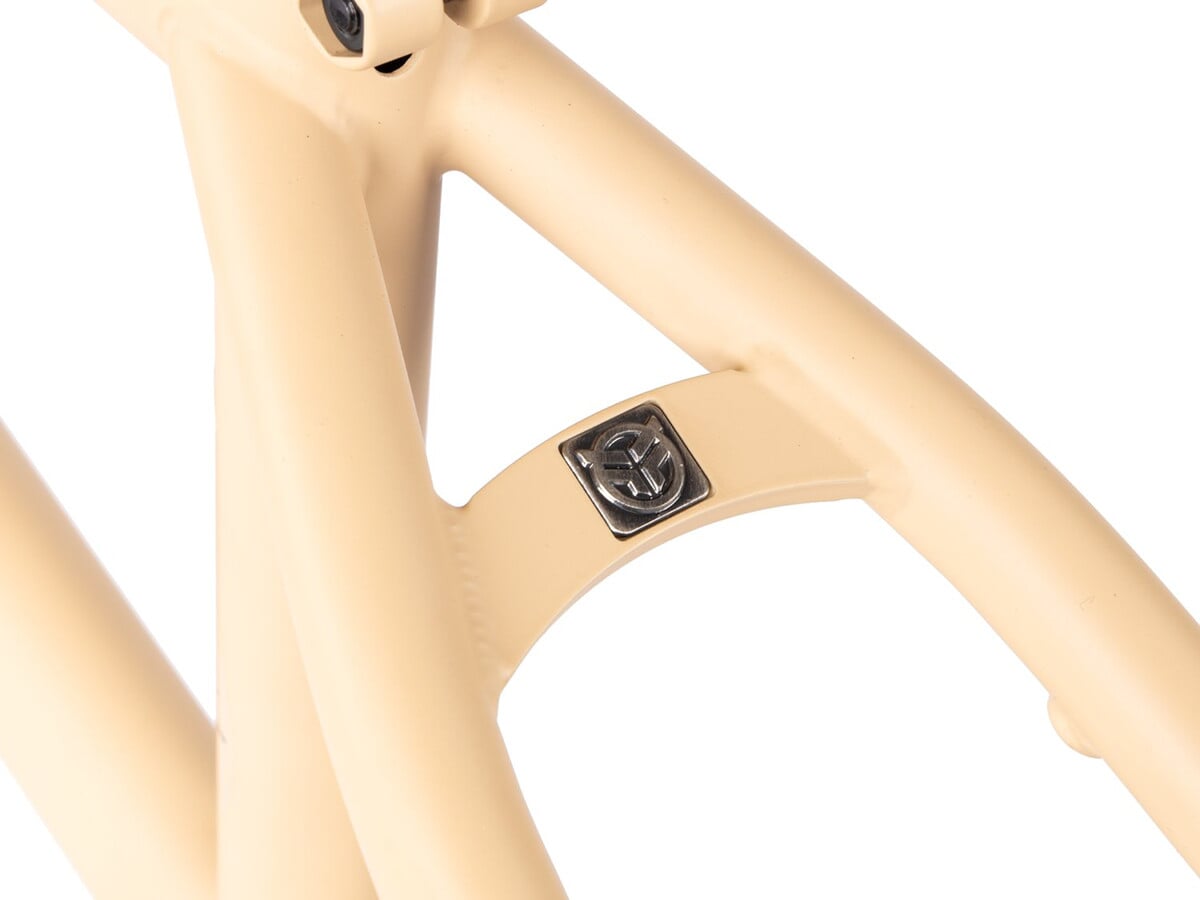

- Material: 100% 4130 CrMo, oval down tube, top tube and down tube gussets, buttet tubes, tappered chainstays, integrated headseat, integrated seatclamp, removable brake hardware, Mid BB, investment cast (ICS) chain stay wishbone
- Geometry:
Top Tube Length (TT): 20.7" or 21.0"
Chainstay Length (CS): 13.4" (34.04cm) - 13.8" (35.05cm)
Head Tube Angle (HA): 75.2°
Seat Tube Angle (SA): 71°
Bottom Bracket Height: 11.7" (29.72cm)

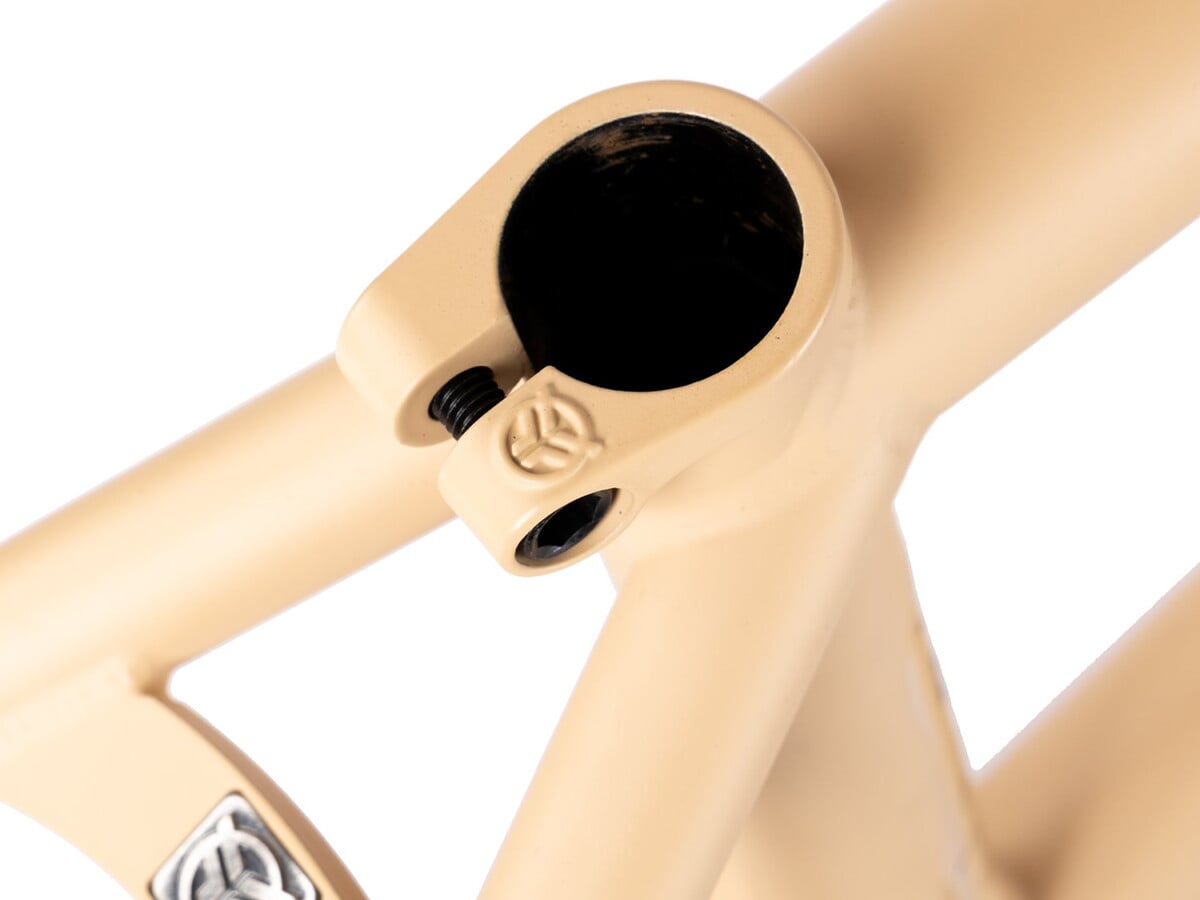

Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

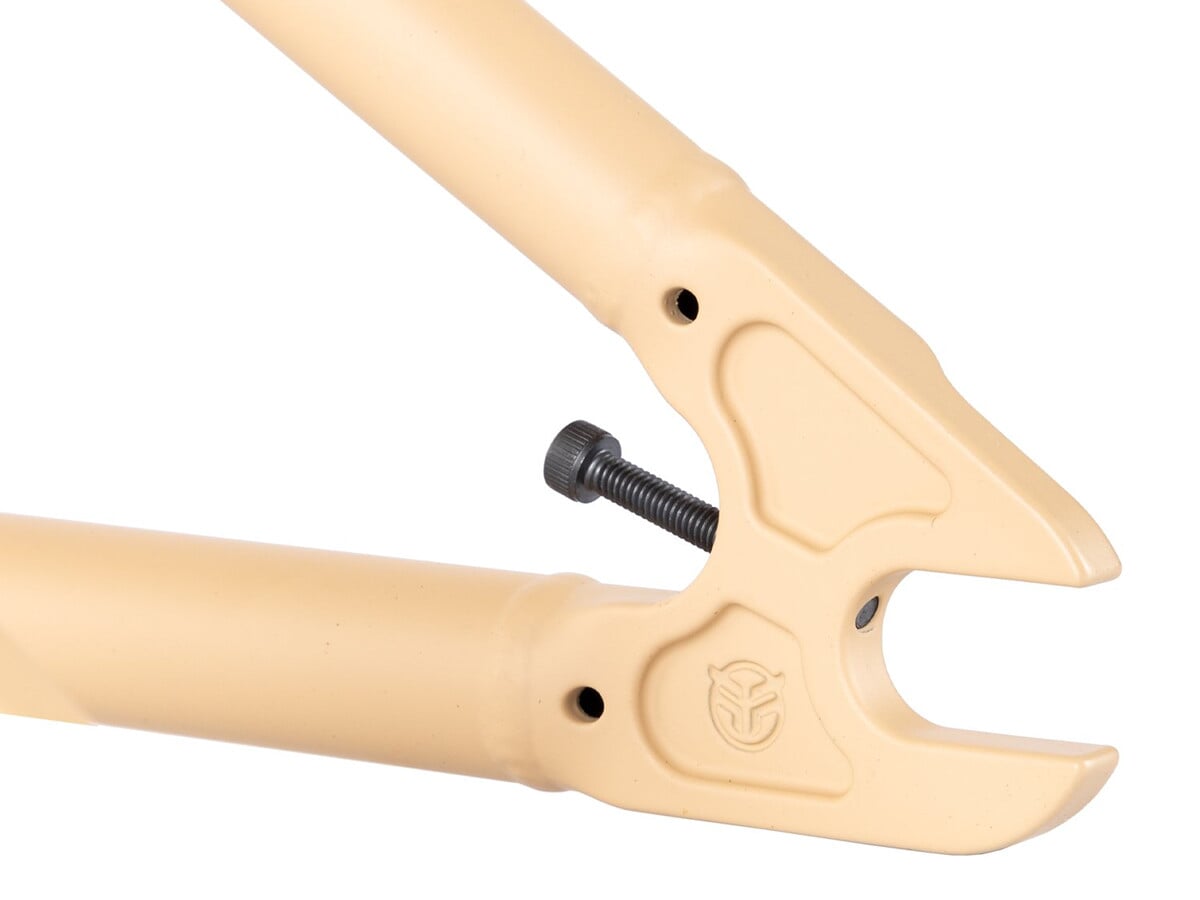

- Dropouts: Investment cast, 4130 CrMo, 5mm thick, 14mm slots
- Chain Tensioners: integrated
- Brake Type: U-Brake
- Brakemounts: with (screwable, M8)
- Brakemounts included with delivery: No
- Gyro compatible: Yes
- Features: Boyd Hilder Signature frame, wide rear end for fat 2.5" tires, new investment cast (ICS) chain stay wishbone
- Model Year: 2023
