Federal Bikes "Code" BMX Frame
-
Weight : 2.45kg / 5.40lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 30406
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
The

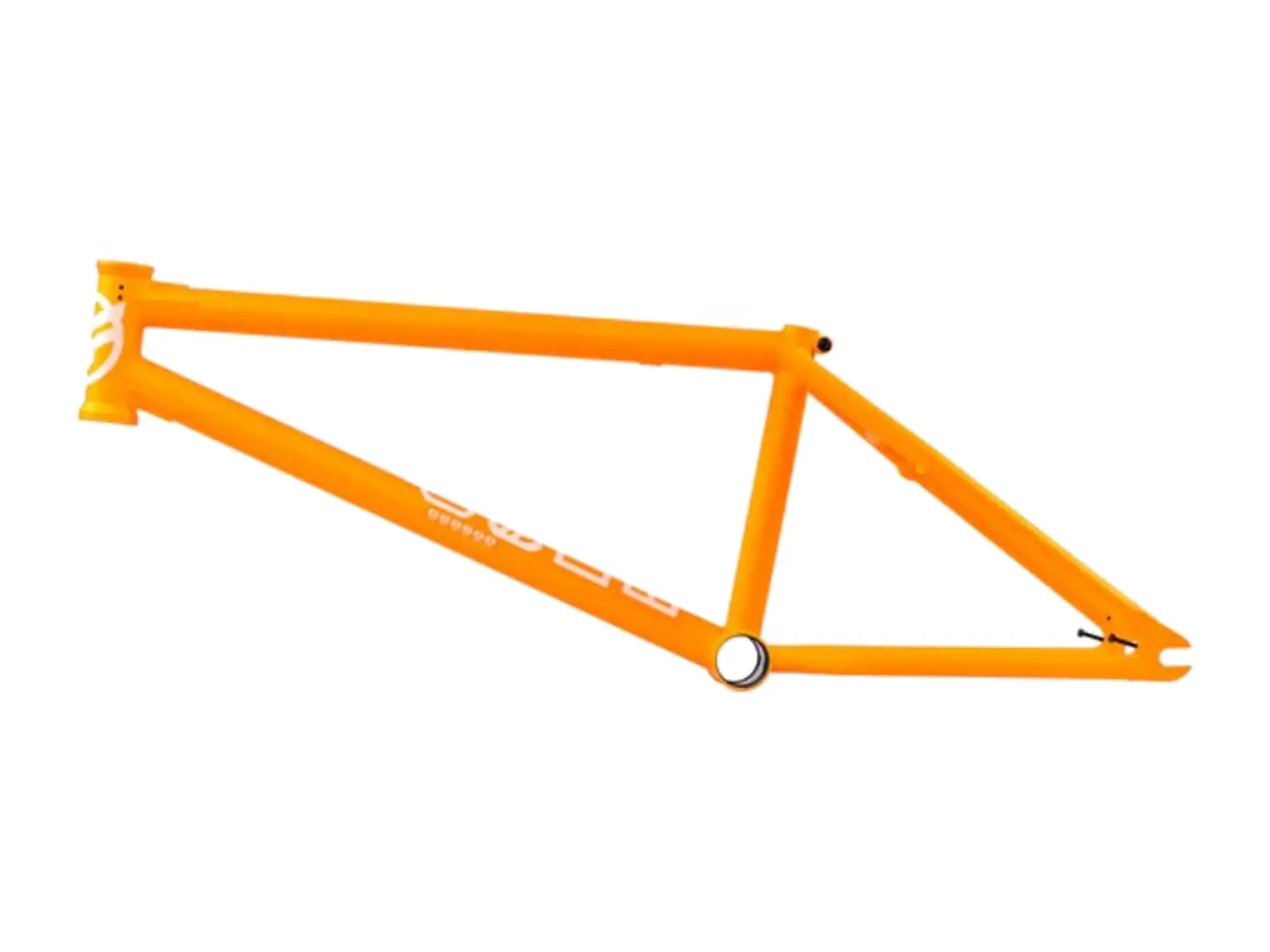

Federal Bikes "Code" BMX Frame
was designed to meet the current street riding requirements. With a standover height of 9.7", it gives the impression of a bigger frame while improving stability and bike control. Its 75.5° head tube angle combined with very short 13" rear stays provides great liveliness and excellent responsiveness.

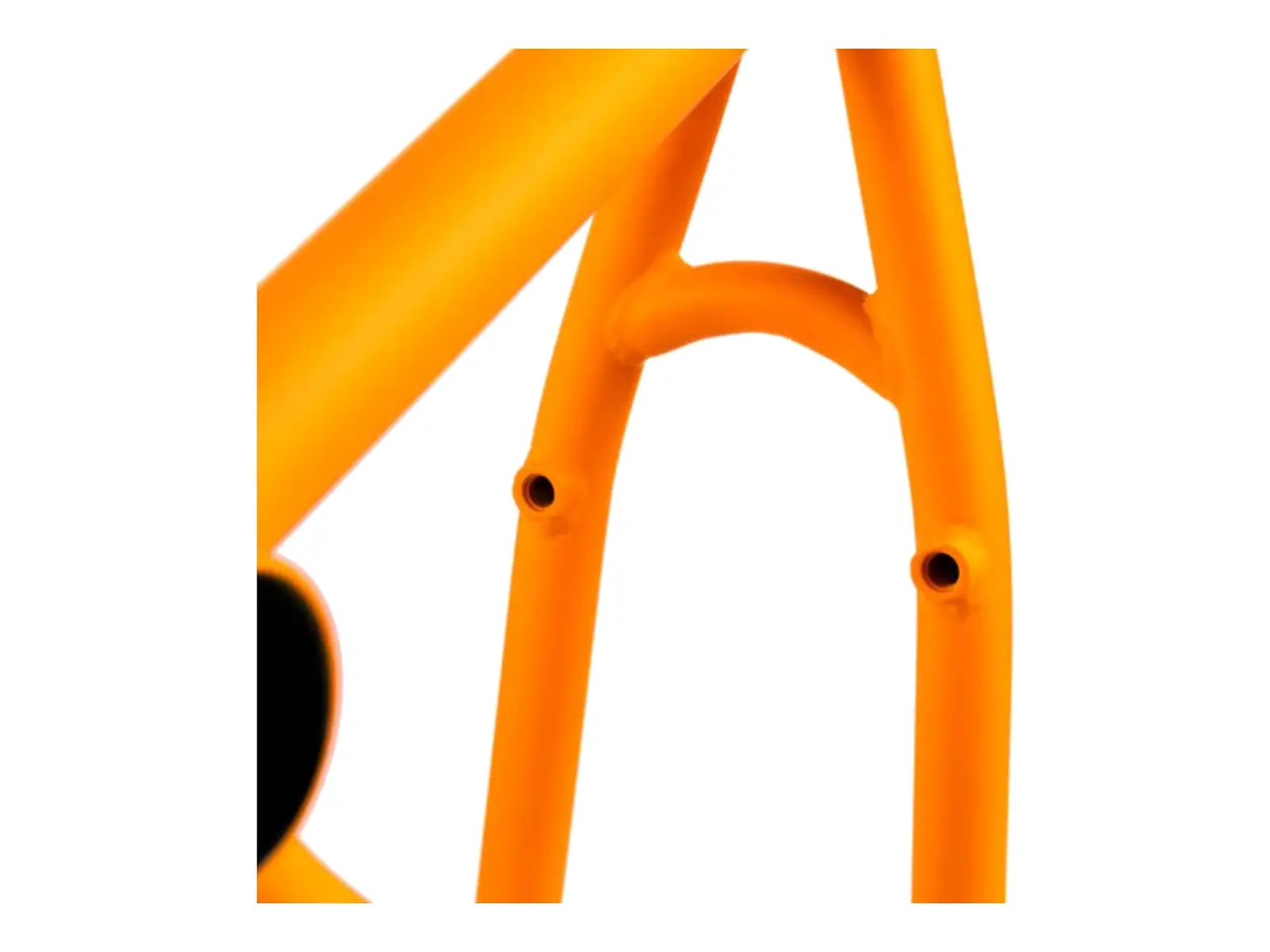

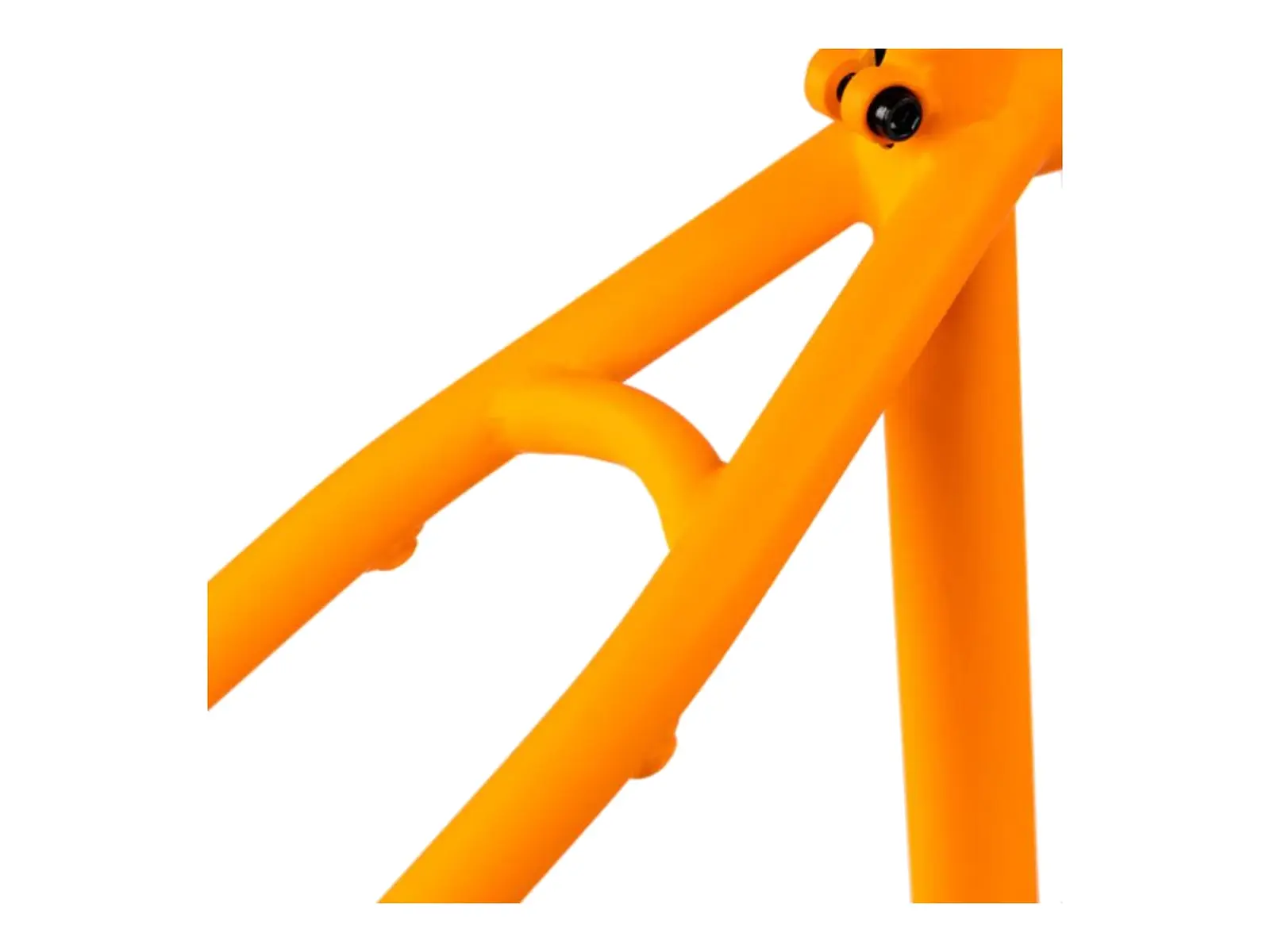

True to the recognized robustness of Federal Bikes frames, this model also focuses on an affordable price thanks to a clean design without unnecessary elements. It features a discreet seat clamp, classic dropouts, and a tubular rear wishbone instead of the previously used IC system. This technical choice preserves all the frame’s strength while contributing, in some areas, to weight savings.
True to the recognized robustness of Federal Bikes frames, this model also focuses on an affordable price thanks to a clean design without unnecessary elements. It features a discreet seat clamp, classic dropouts, and a tubular rear wishbone instead of the previously used IC system. This technical choice preserves all the frame’s strength while contributing, in some areas, to weight savings.
Facts: Federal Bikes "Code" BMX Frame
- Wheel Size: 20"
- Material:
- Tubes: 100% 4130 CrMo
- Gussets: top tube and down tube
- Tube Properties: butted, tapered chainstays

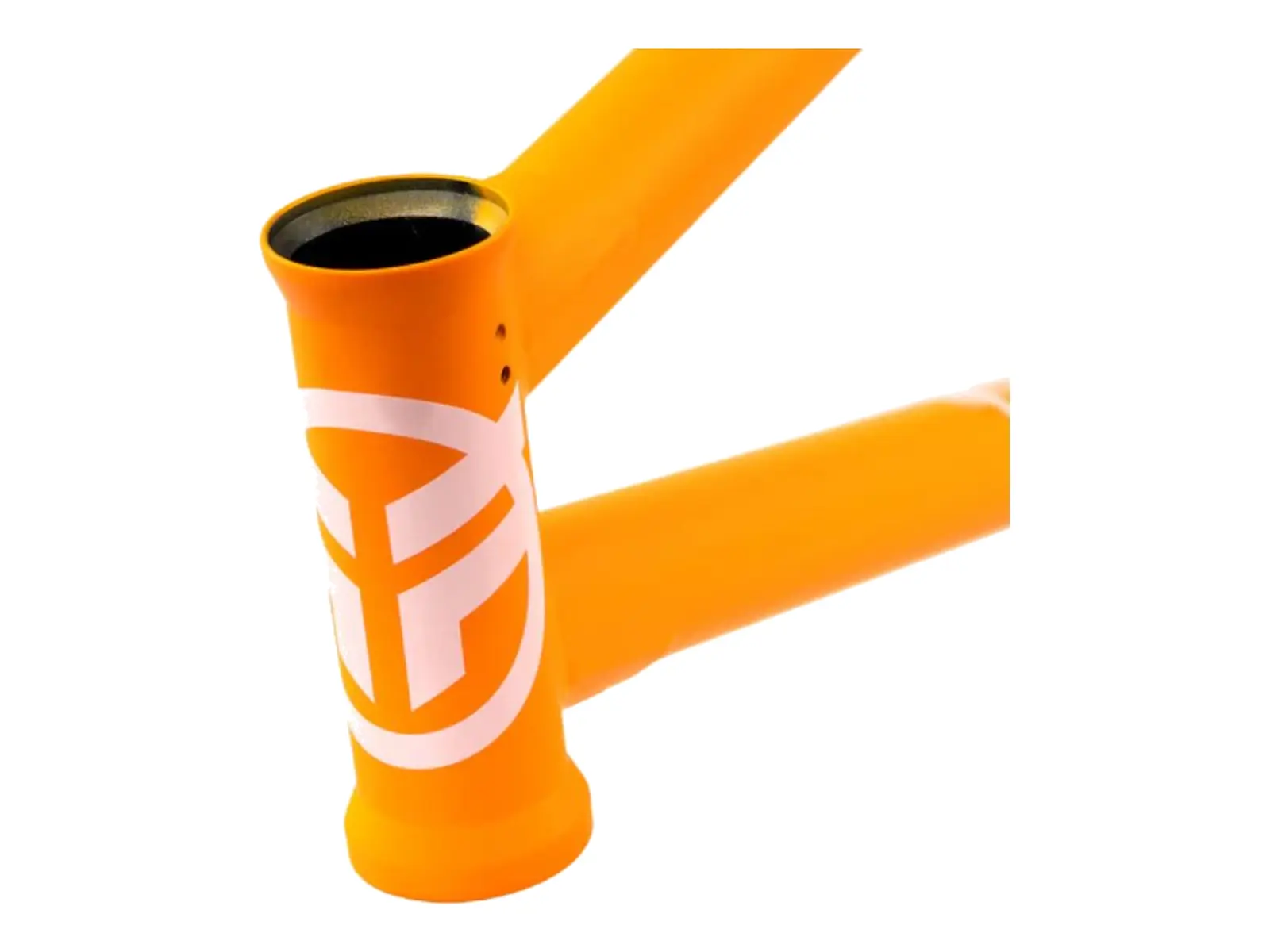

- Headset: integrated

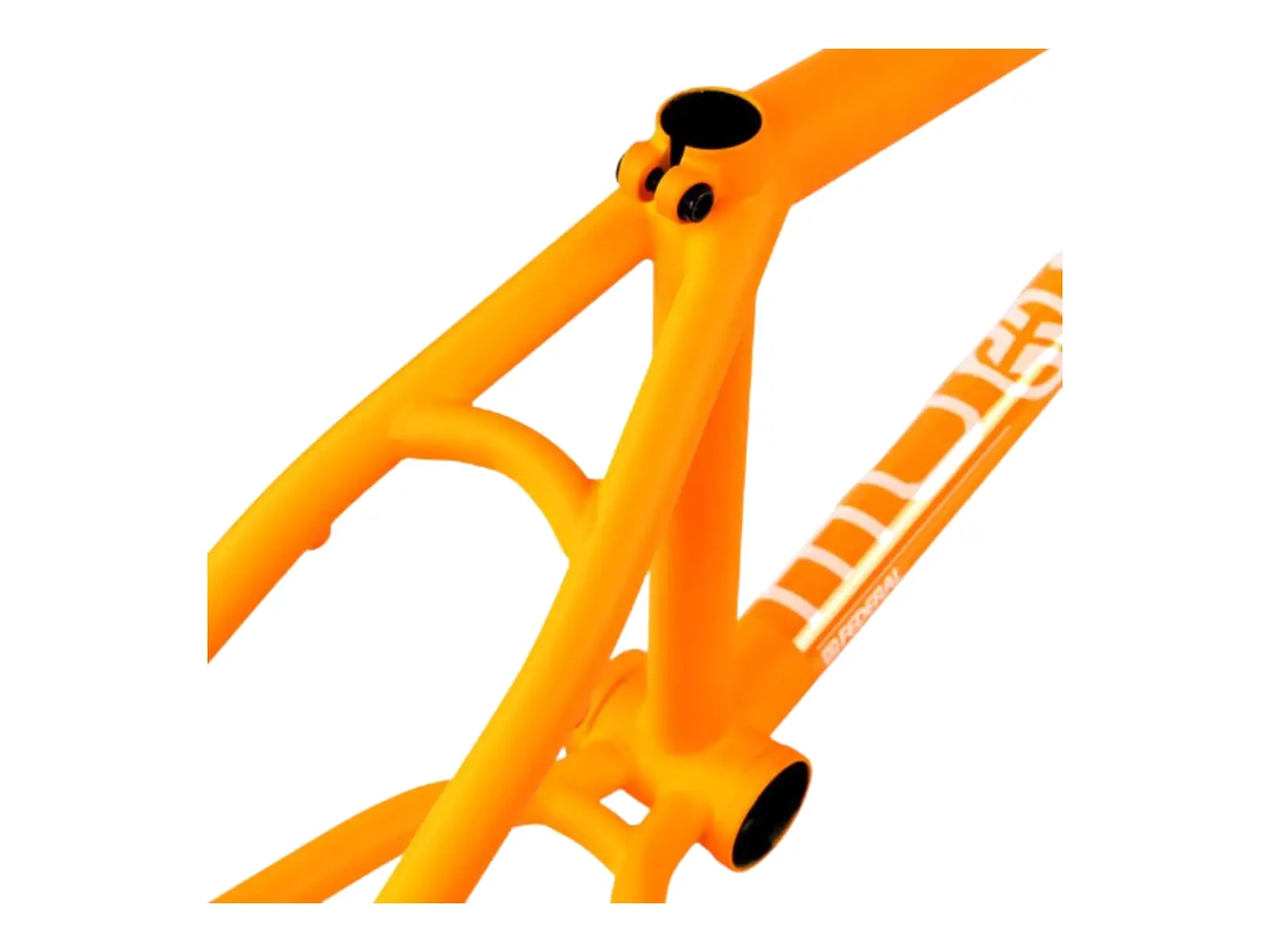

- Seat Clamp: investment cast, included
- Chain Tensioners: integrated

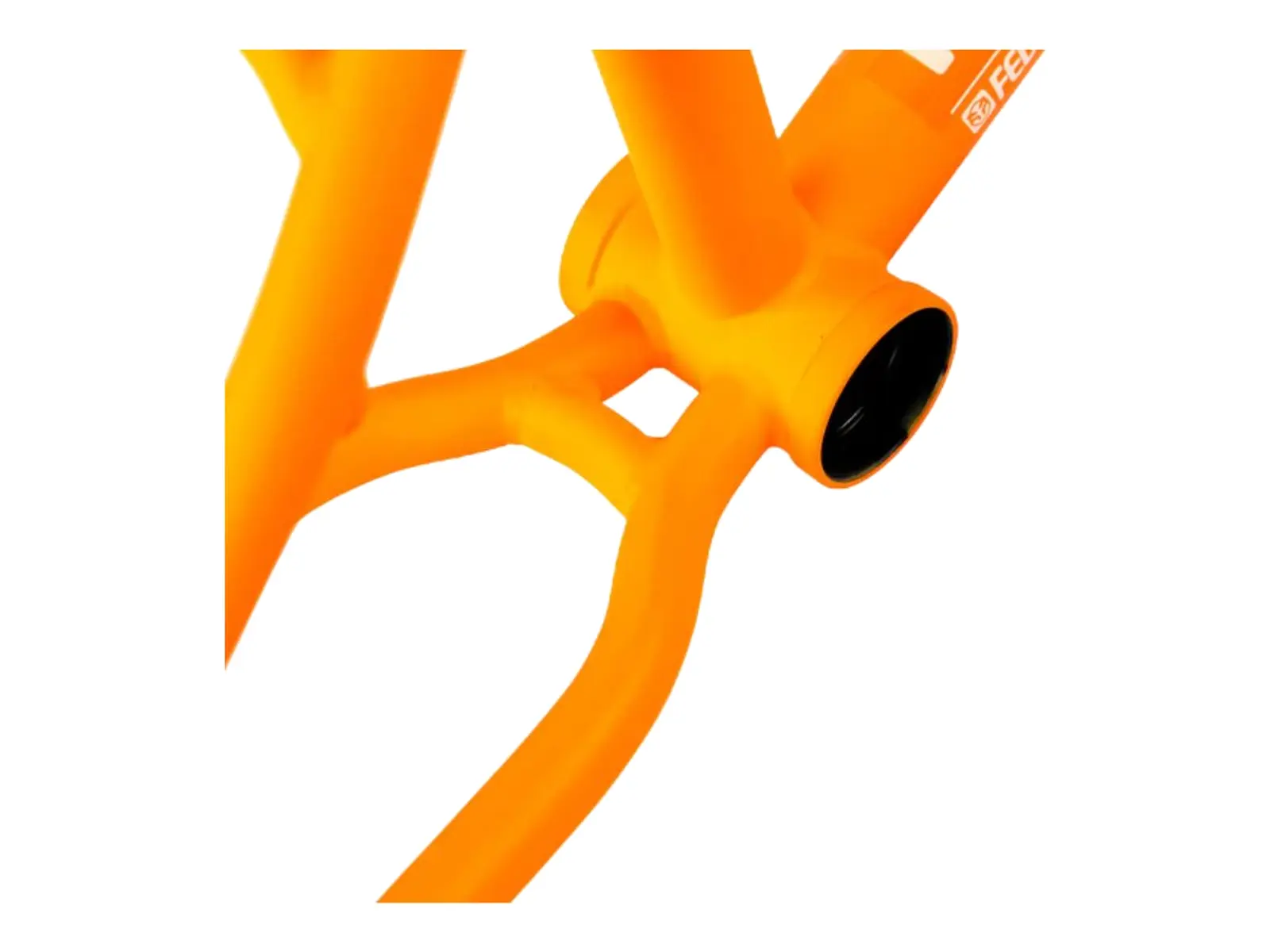

- Bottom Bracket: Mid BB - Geometry:
- Top Tube Length (TT): 20.5" or 21.25"
- Chainstay Length (CS): 13" (33cm) - 13.4" (34.04cm)
- Head Tube Angle (HA): 75.5°
- Seat Tube Angle (SA): 71°
- Bottom Bracket Height: 11.7" (29.72cm)
- Standover Height (SO): 9" (22.86cm) - Seat Clamp: integrated investment cast
- Seat Post Diameter: 25.4mm
- Bottom Bracket: Mid BB

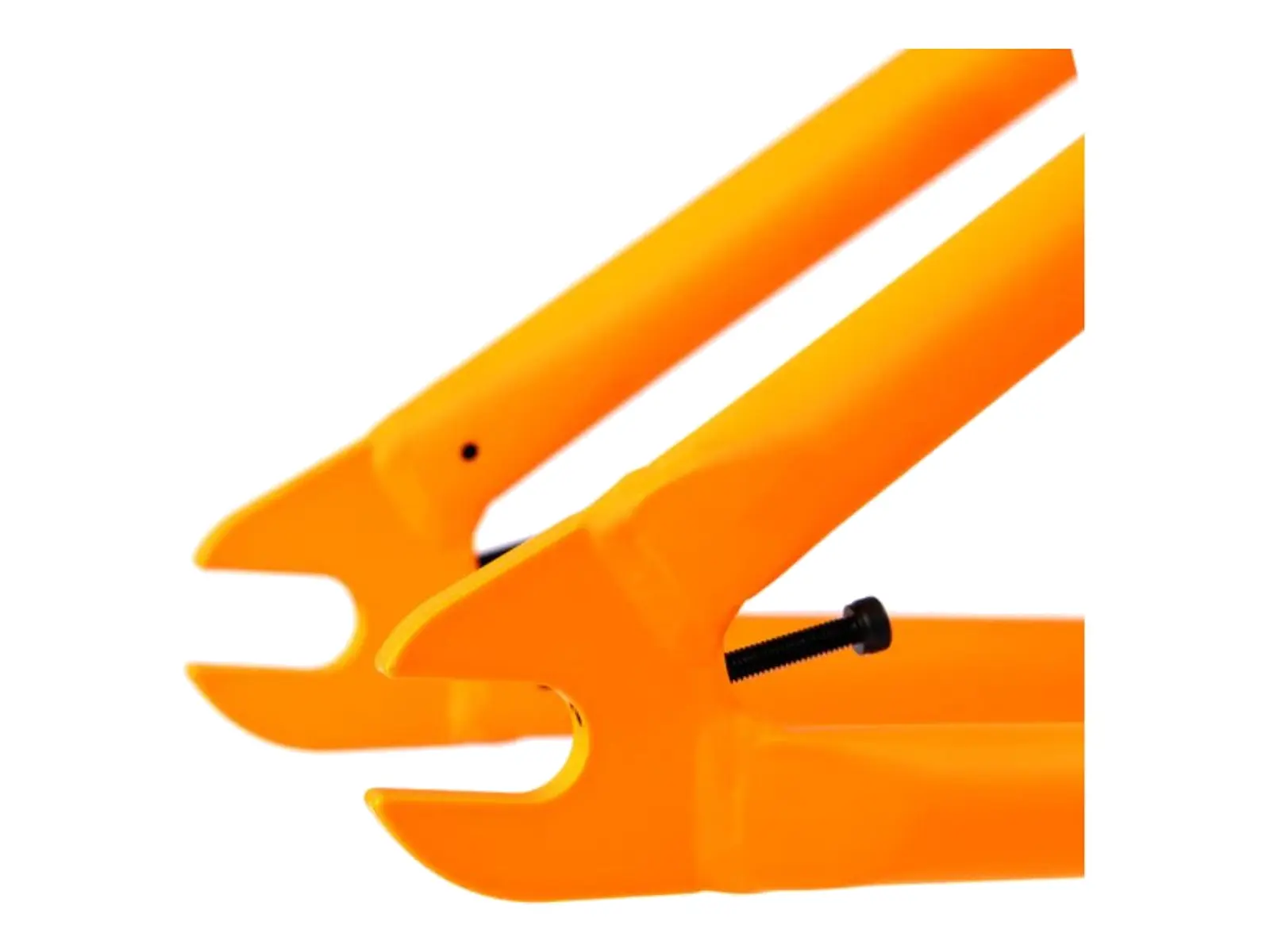

- Dropouts:
- Investment cast
- Thickness: 6.5mm
- Axle Slot: 14mm
- Chain Tensioners: integrated - Chain Tensioners: integrated
- Brake Type: U-Brake
- Brake mounts included: No
- Features: wide rear end for fat 2.4" tires
- Model Year: 2026
