FOX "Float SL Factory" MTB Rear Shock
- Weight : 0.25kg / 0.55lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 36464
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/fox-float-sl-factory-mtb-rear-shock-p-36464
Printed: 11/05/2026
Printed: 11/05/2026

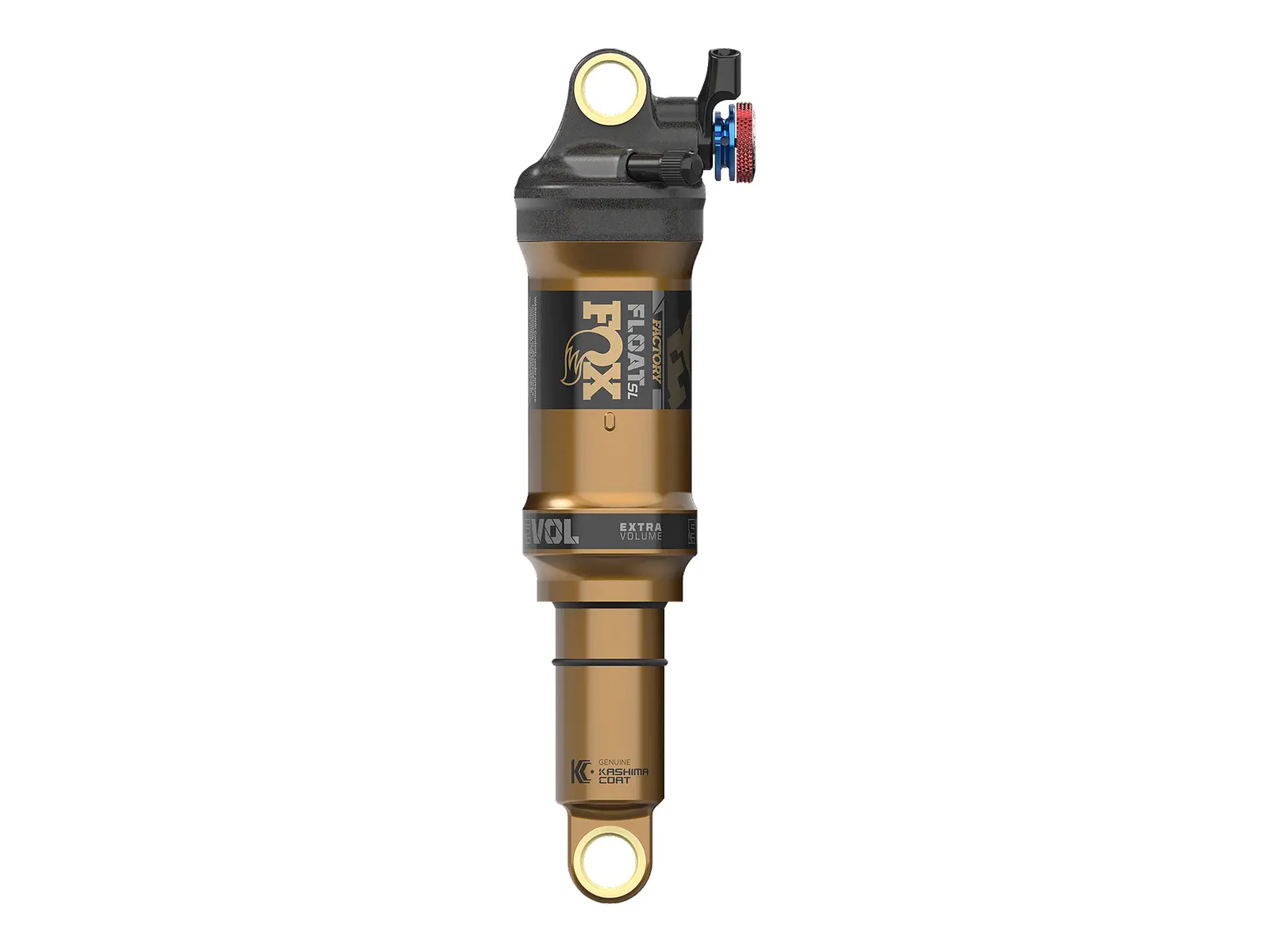

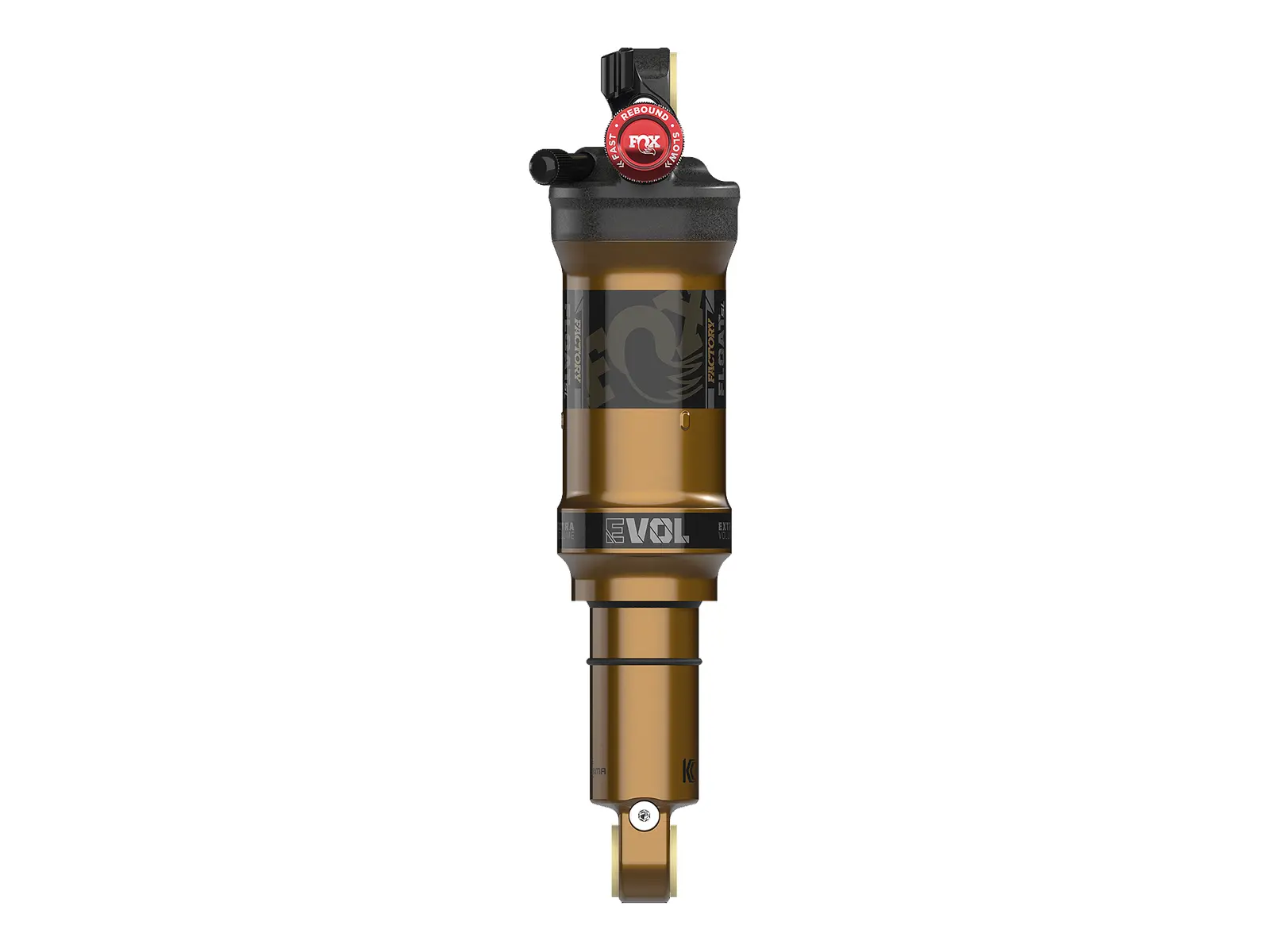

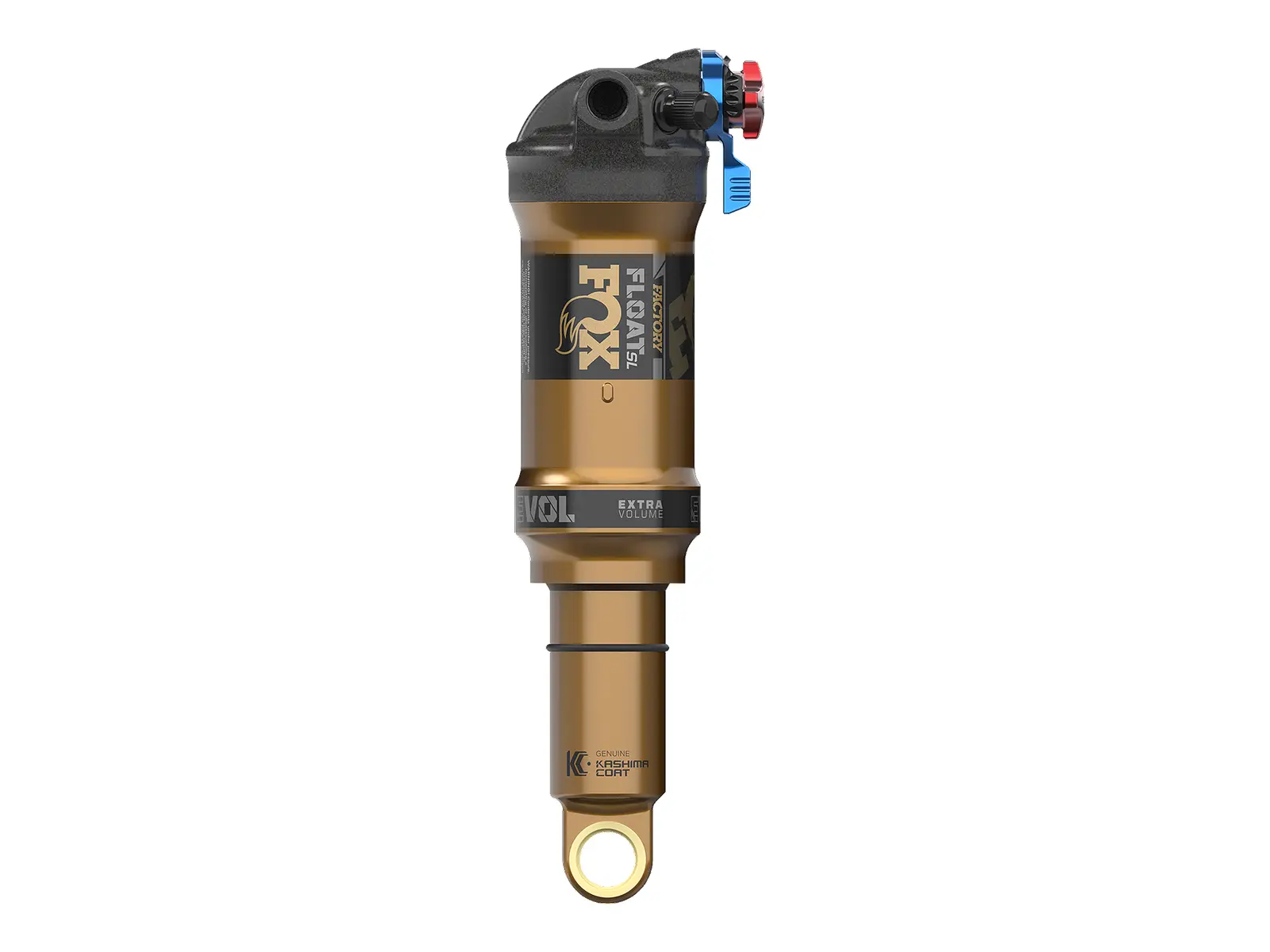

The FOX "Float SL Factory" MTB Rear Shock is the smallest and lightest FOX shock, built for XC racing and light trail bikes: revised main piston, valving and IFP for more grip and consistent damping on descents, plus the proven EVOL air spring. The 3POS version switches between Open, Medium and Firm on the lever and has a 3-position micro adjust in Open mode; the remote versions switch between Open and Firm via a handlebar remote (push to lock, remote not included). Rebound has 12 clicks. Factory series with Kashima Coat.
Facts: FOX "Float SL Factory" MTB Rear Shock
- Eye-to-Eye x Stroke: 165 x 45 mm (Trunnion), 165 x 45 mm (Trunnion) Remote, 190 x 40 mm or 210 x 55 mm Remote
- Spring: EVOL LV air spring (190 x 40 mm: EVOL SV), one-piece air sleeve, inline without reservoir
- Damping:
- 165 x 45 mm trunnion, 190 x 45 mm and 190 x 40 mm: 3-position lever Open, Medium, Firm (3POS) with 3-position micro adjust in Open mode
- 190 x 45 mm, 210 x 55 mm and 165 x 45 mm trunnion remote: 2 positions Open/Firm via handlebar remote, push to lock, remote not included
- Low-speed rebound: 12 clicks - Mounting: Metric or trunnion, see version
- Hardware: Not included (mounting hardware depends on the frame)
- Weight: From 249 g (190 x 45 mm, with Igus bushings, without mounting hardware, manufacturer)
- Contains: 1 shock, owner's manual
- Extras: Factory series, Kashima Coat
