FOX "Podium Factory Grip X2" MTB Fork - 29 Inch
-
Weight : 2.7kg / 5.95lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Piece
- Product ID (PID): 36454
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

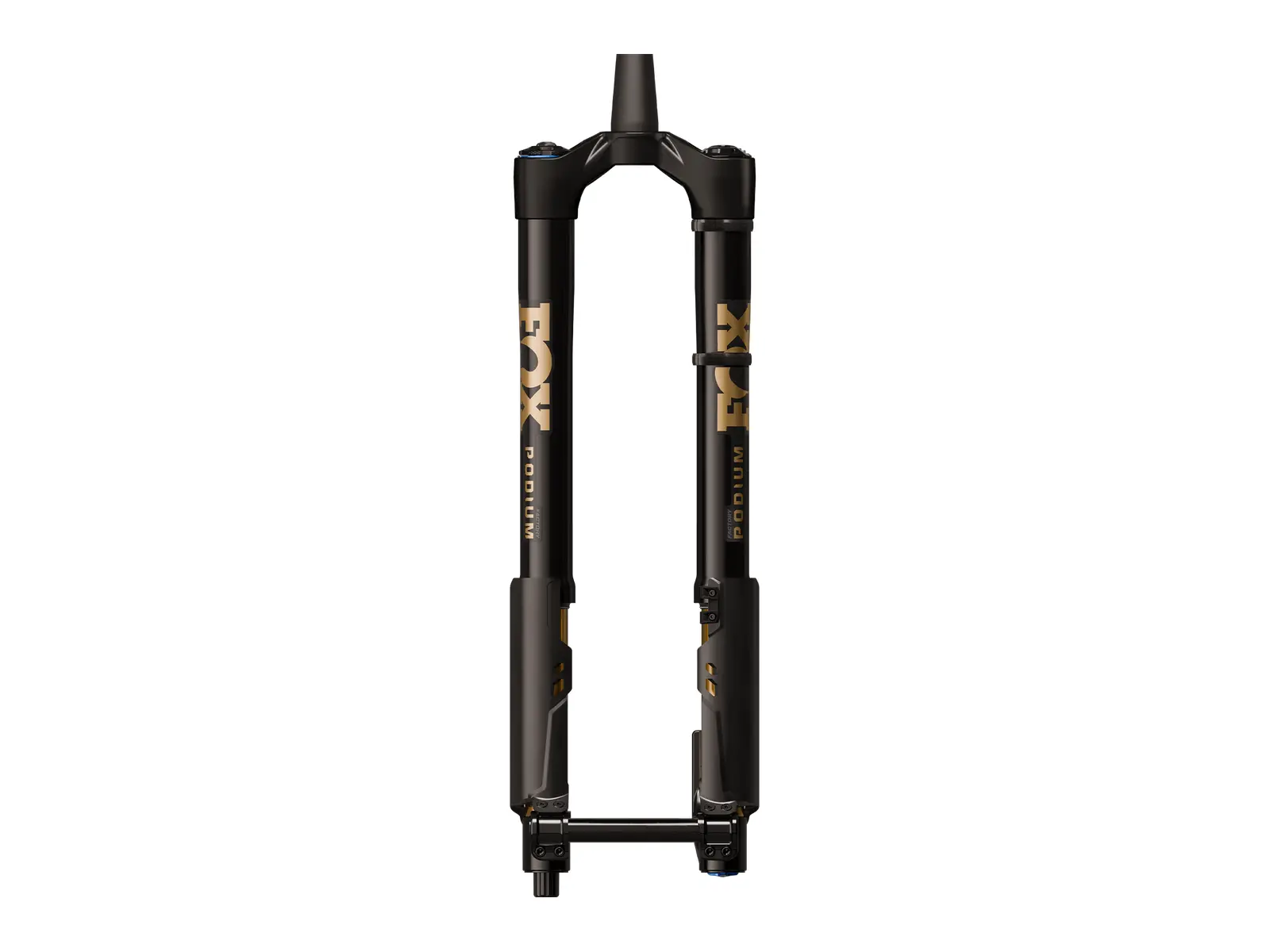

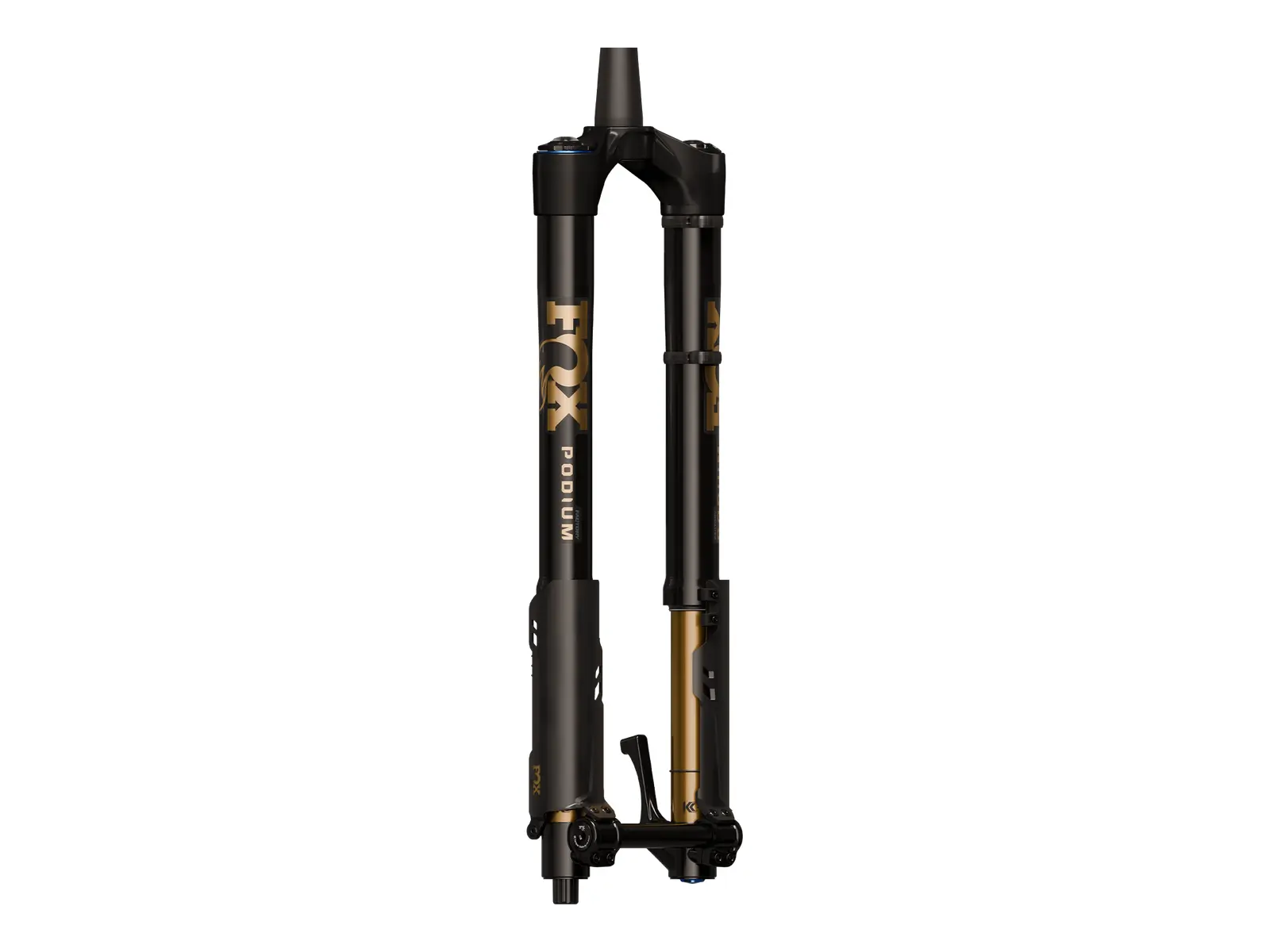

The FOX "Podium Factory Grip X2" MTB Fork - 29 Inch is the inverted fork from FOX, designed to be ridden like a downhill fork, with a single crown and 160 or 170 mm of travel. 47 mm upper tubes and a massive crown bring it close to the stiffness of a 40, the 20 x 110 mm steel axle delivers the torsional stiffness a fork without an arch would otherwise lack. The GRIP X2 damper is tuned for the Podium with more compression support, the GlideCore air spring reduces friction, the carbon stanchion guards are included. The FOX "Podium Factory Grip X2" MTB Fork - 29 Inch is meant for enduro racing and freeride lines that would otherwise call for a downhill bike.
Facts: FOX "Podium Factory Grip X2" MTB Fork - 29 Inch
- Wheel Size: 29"
- Travel: 160mm or 170mm
- Axle-to-Crown Height (A-C):
- 160 mm travel: 577.0 mm
- 170 mm travel: 587.0 mm - Offset (Rake): 44mm
- Damping: GRIP X2 damper, high-speed compression (8 clicks), low-speed compression (18 clicks), high-speed rebound (8 clicks), custom tuned for the Podium
- Spring System: FLOAT EVOL GlideCore air spring
- Rebound: Externally adjustable, high-speed (8 clicks) and low-speed (16 clicks)
- Steerer Tube Diameter: 1-1/8" - 1.5" (28.6mm - 38.1mm)
- Steerer Tube Length: 244mm
- Crown: 58HT (for head tubes with 58 mm outer diameter)
- Axle Type: 20 x 110 mm Boost DH, steel thru axle (floating axle)
- Stanchions: Inverted design: 47 mm upper tubes at the crown, stanchions at the bottom with Kashima Coat and carbon stanchion guards
- Lower Legs: Post Mount 200 mm direct mount, bleeder valves
- Max. Rotor Size: 230 mm (with adapter)
- Recommended Use: Enduro, freeride, downhill
- Model Year: 2026
- Contains: 1 fork incl. thru axle, carbon stanchion guards, star nut, brake hose clip, 6 volume spacers
- Extras: Mud guard mount at the crown (optional), max. tyre width 29 x 2.6, max. system weight 169 kg, category 5 to EN 17406, class 3 e-bike approved
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
