Identiti "Rebate" Thru Axle Conversion Kit - 15x100mm
- Weight : 0.09kg / 0.2lbs
- Packaging Unit: 1 Set
- Product ID (PID): 43233
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
With the Identiti "Rebate" Thru Axle Conversion Kit - 15x100mm the Identiti Rebate rigid fork with 10mm dropouts runs with a front hub for a 15 x 100mm thru axle. The alloy axle sits in the hub and is tightened into the dropouts from both sides with CrMo bolts.
Important for safety: use safety washers with 21.5mm outer diameter that sit inside the dropout lips, as the 22mm cover caps do not lock into the safety recess.
Facts: Identiti "Rebate" Thru Axle Conversion Kit - 15x100mm
- Fits: Identiti Rebate rigid forks with 10mm dropouts (QR version), with front hubs for a 15 x 100mm thru axle (non boost)
- Version: 15 x 100mm
- Material: alloy axle, CrMo bolts, CNC machined alloy caps

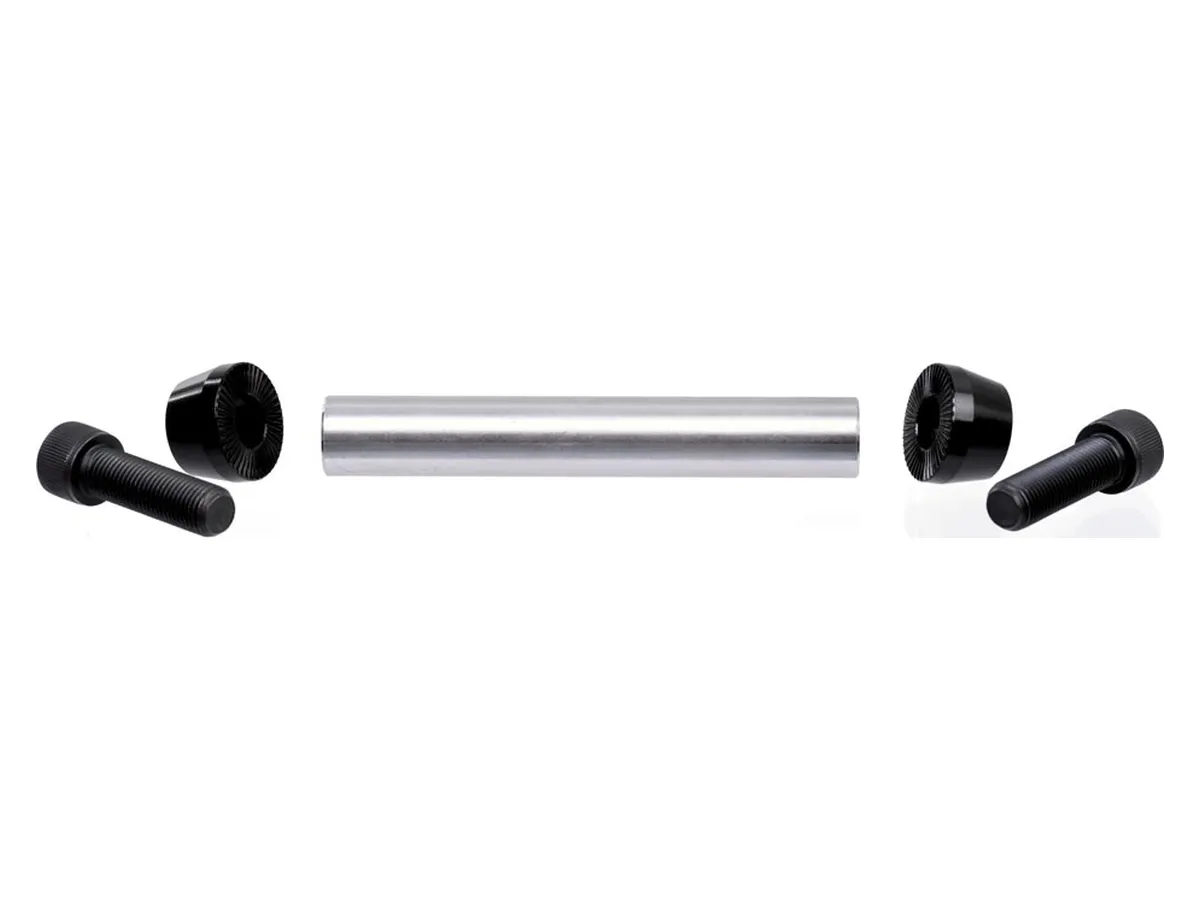

- Contains: 1 axle 15 x 100mm, 2 bolts 9.5mm (3/8") x 30mm with 8mm hex, 2 cover caps 22mm
- Extras:
- axle has a 6mm internal hex to hold it if a bolt spins it
- only ride with 21.5mm outer diameter safety washers sitting in the dropout lips: the 22mm cap does not lock into the Rebate safety recess
- allen keys not included
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
