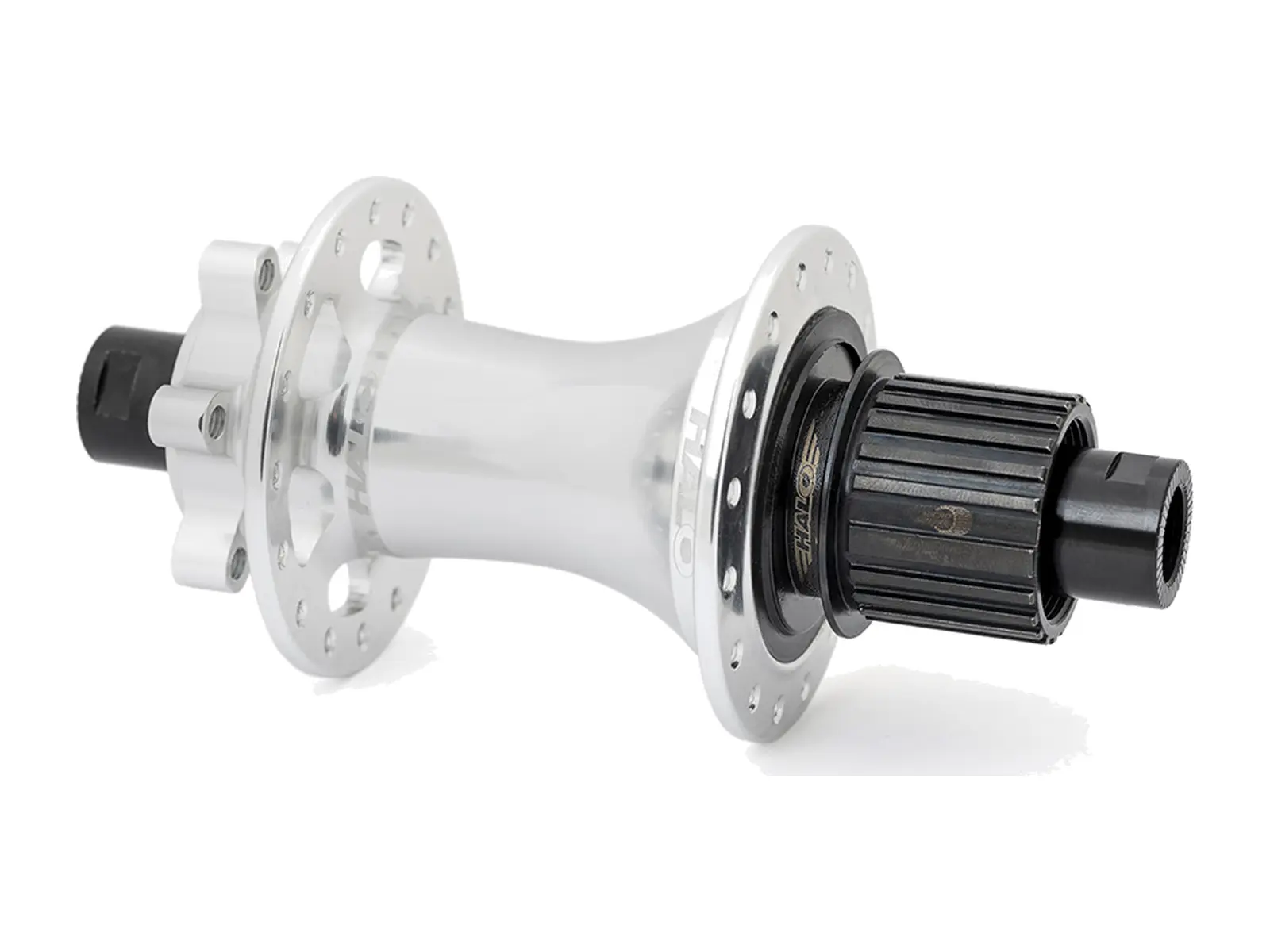

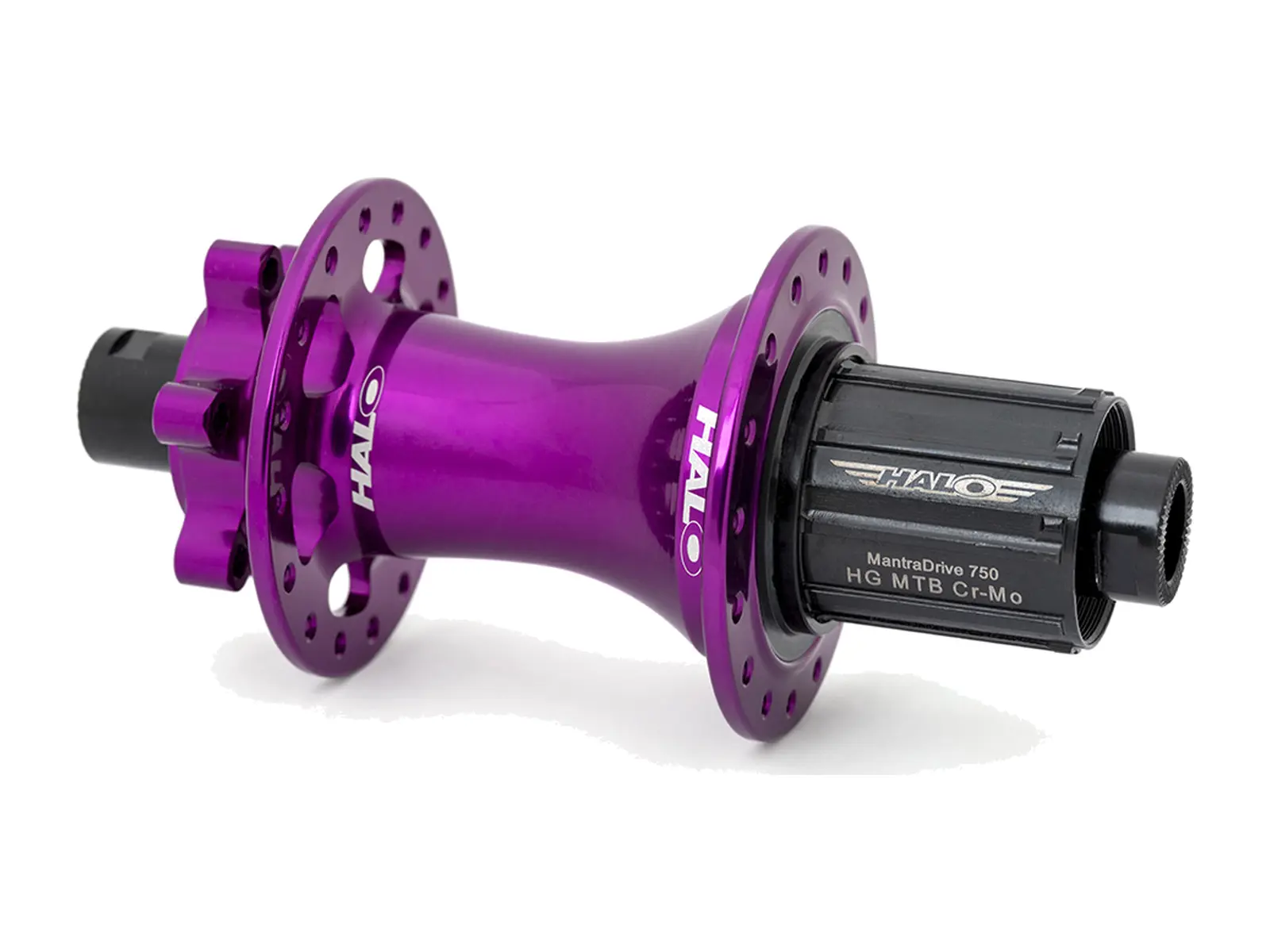

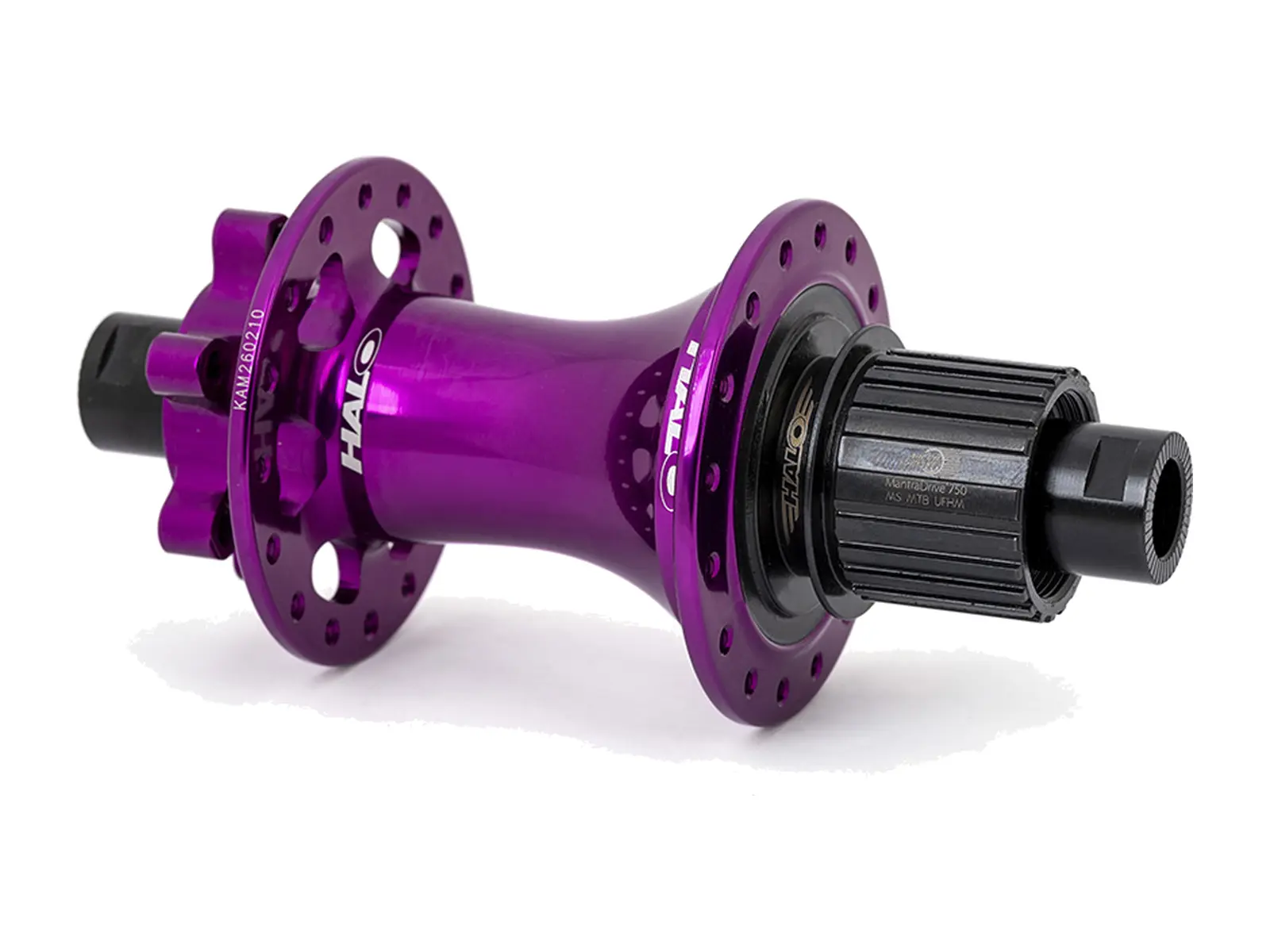

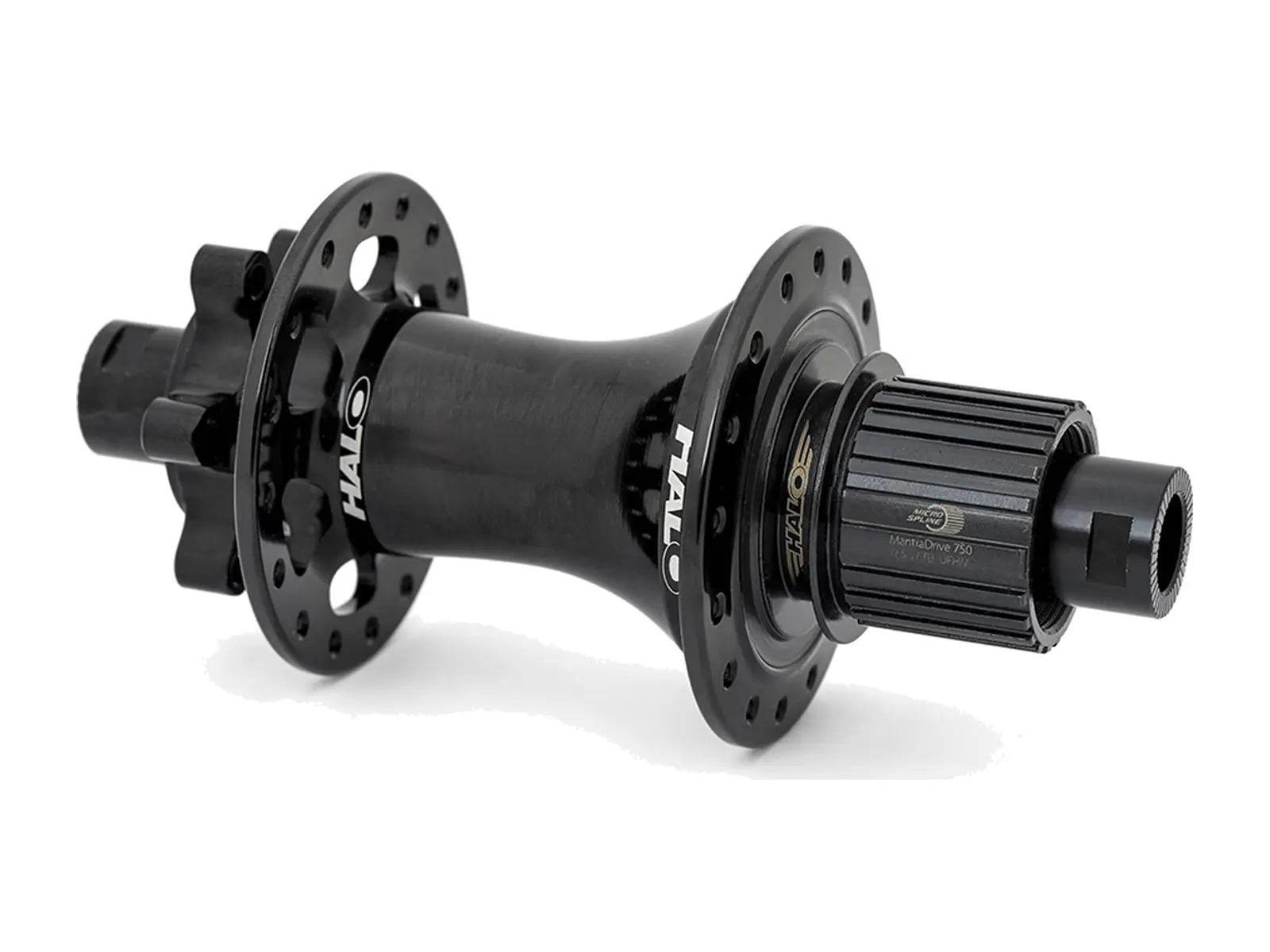

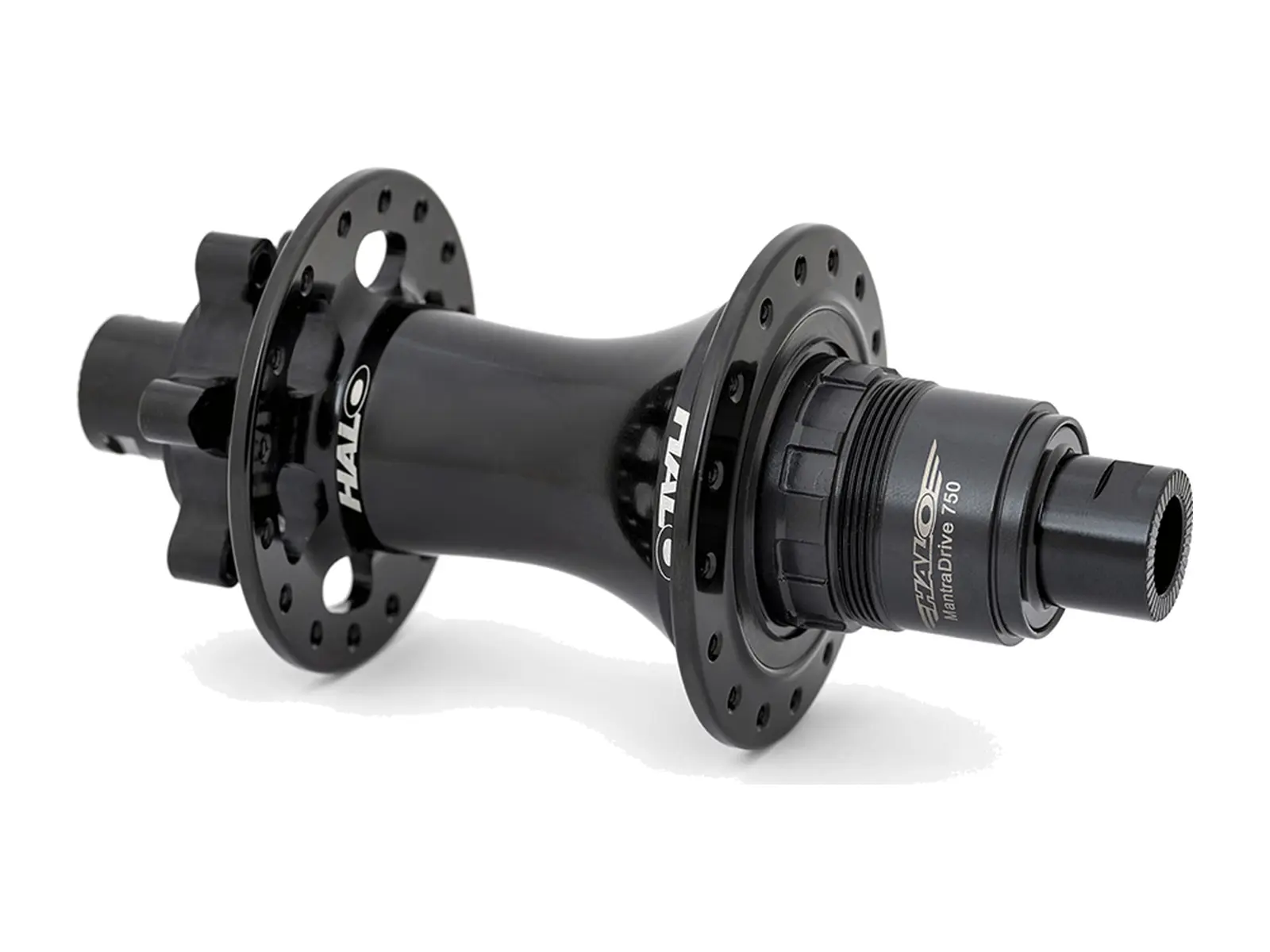

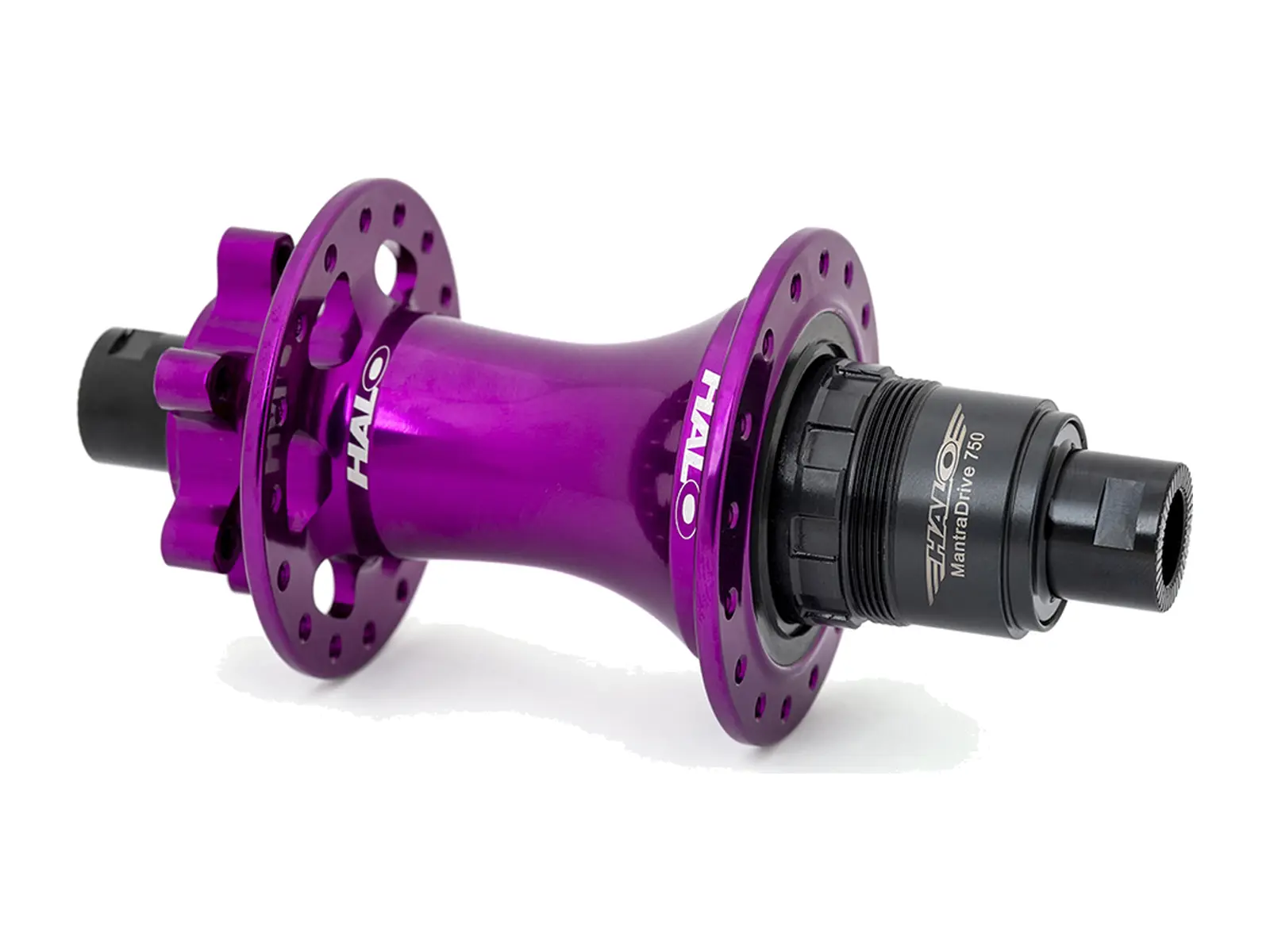

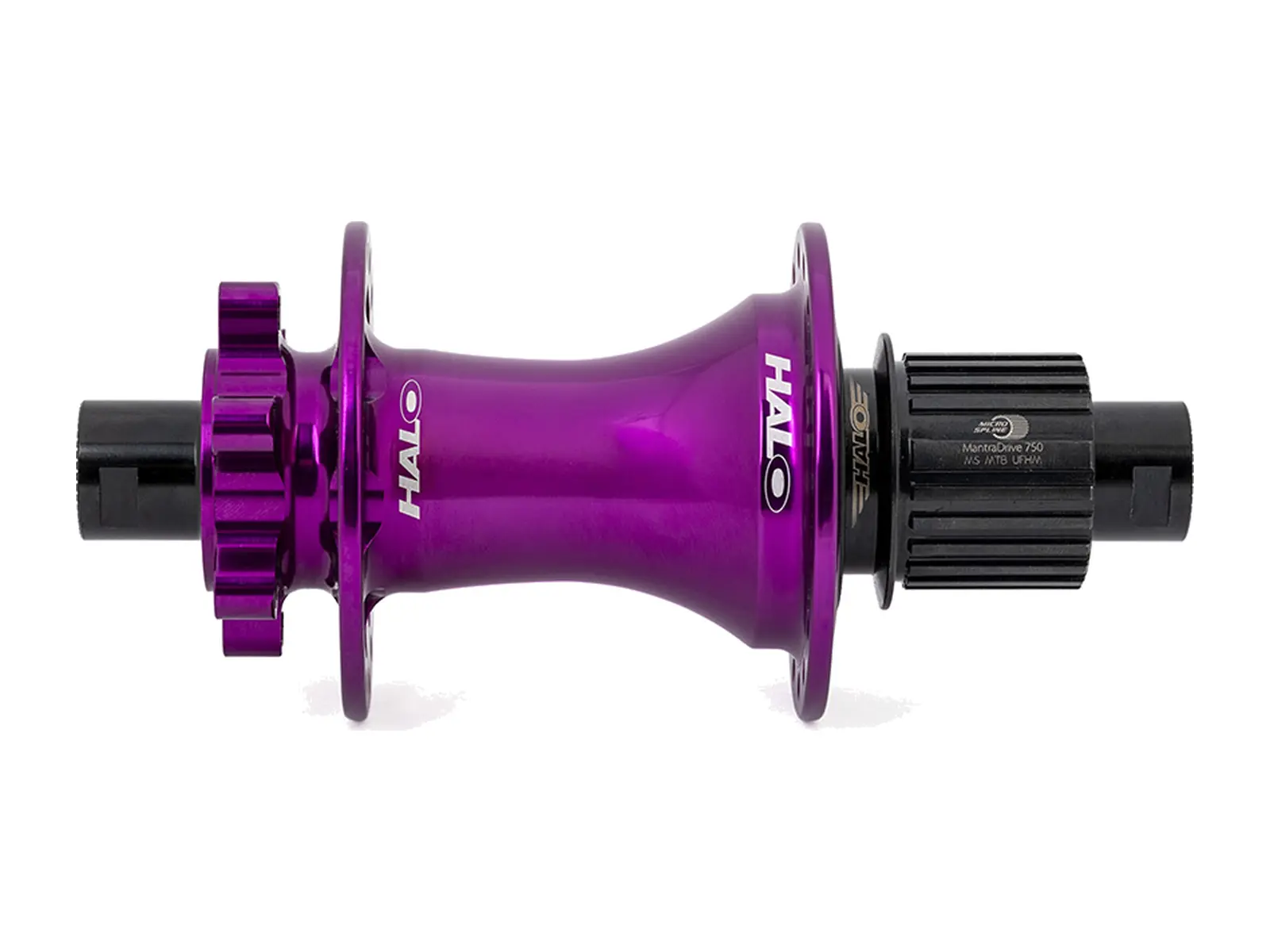

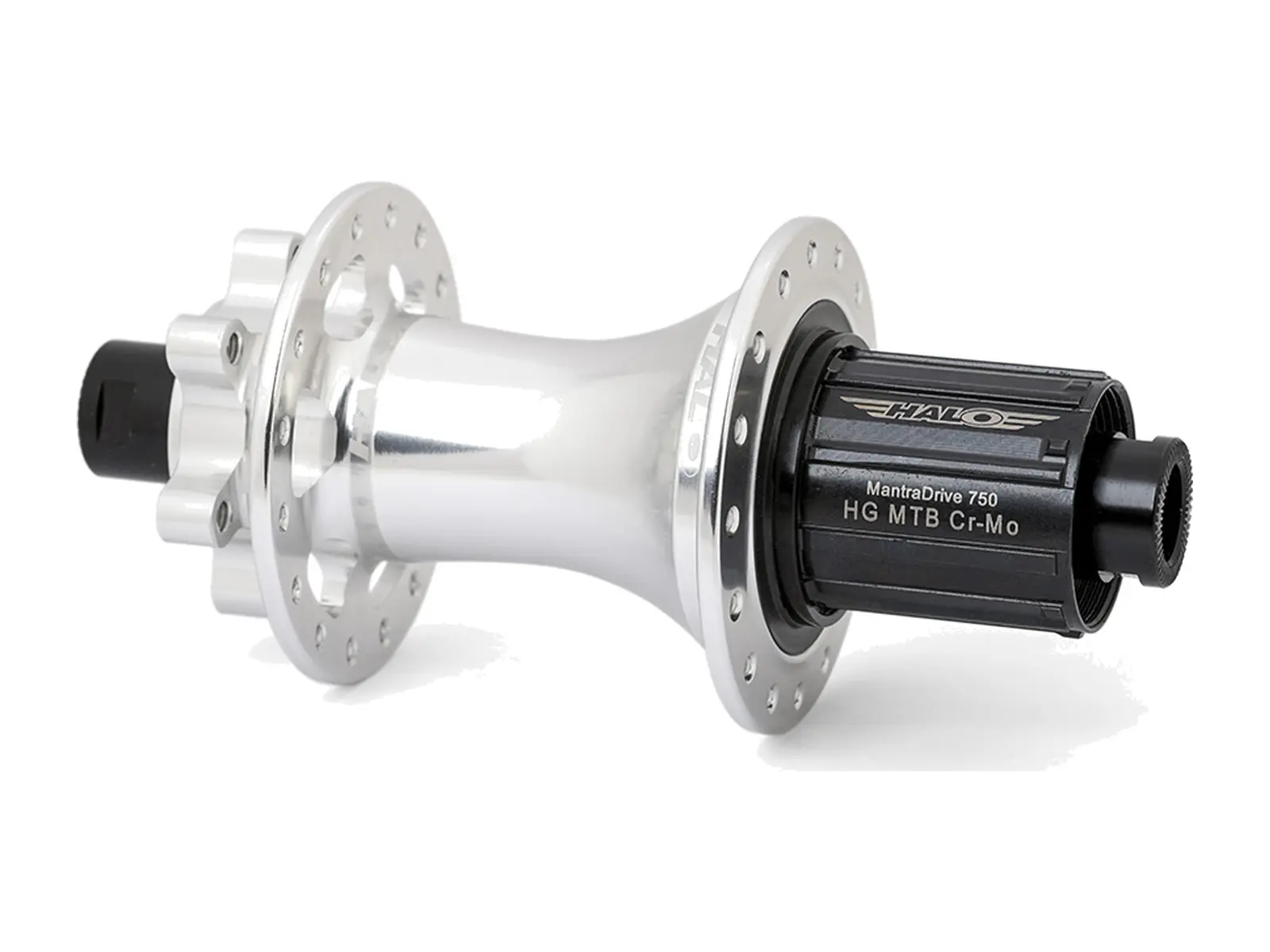

Halo "MT Mantradrive 750" MTB Rear Hub
- Weight : 0.38kg / 0.84lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 43294
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

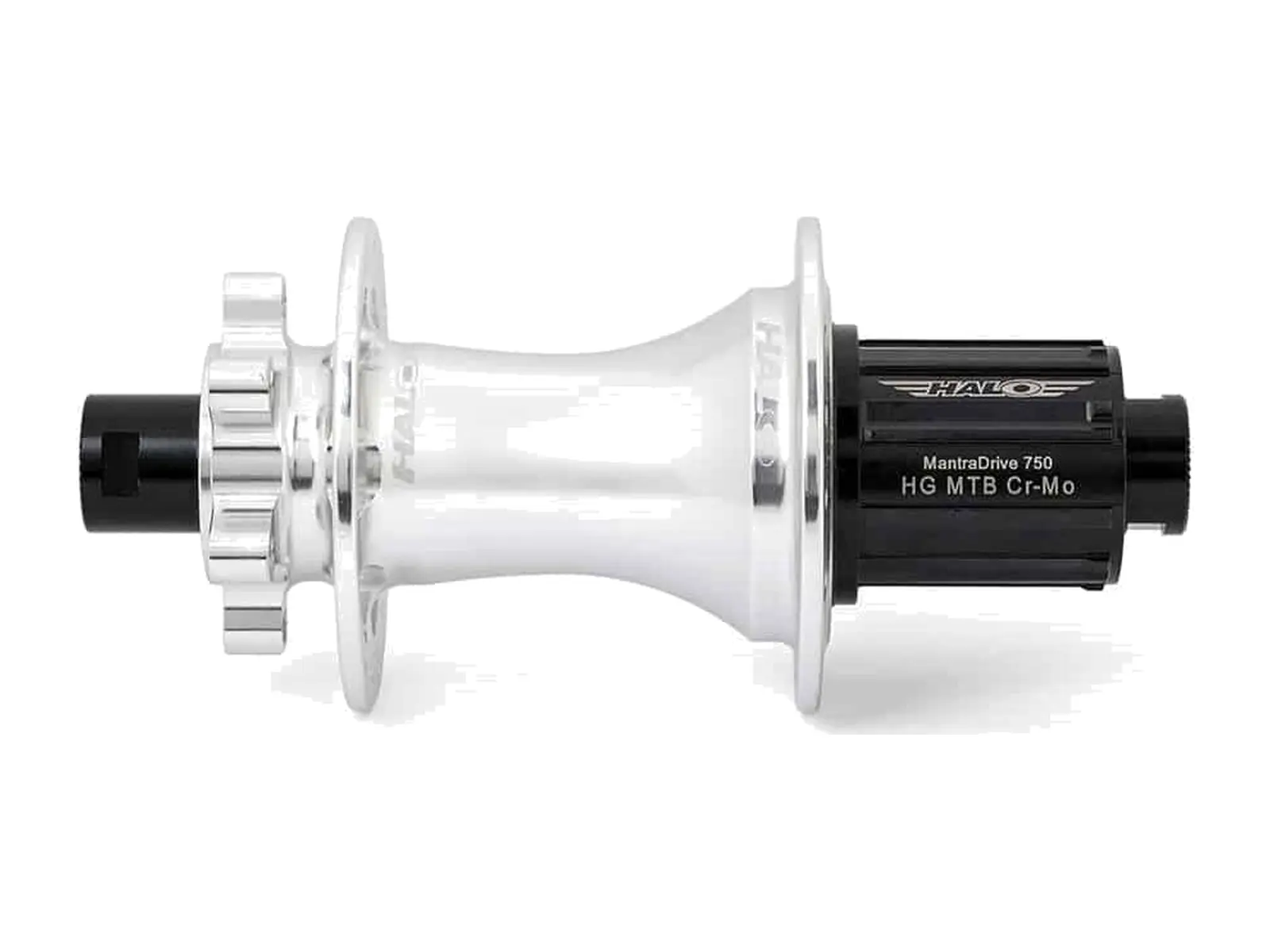

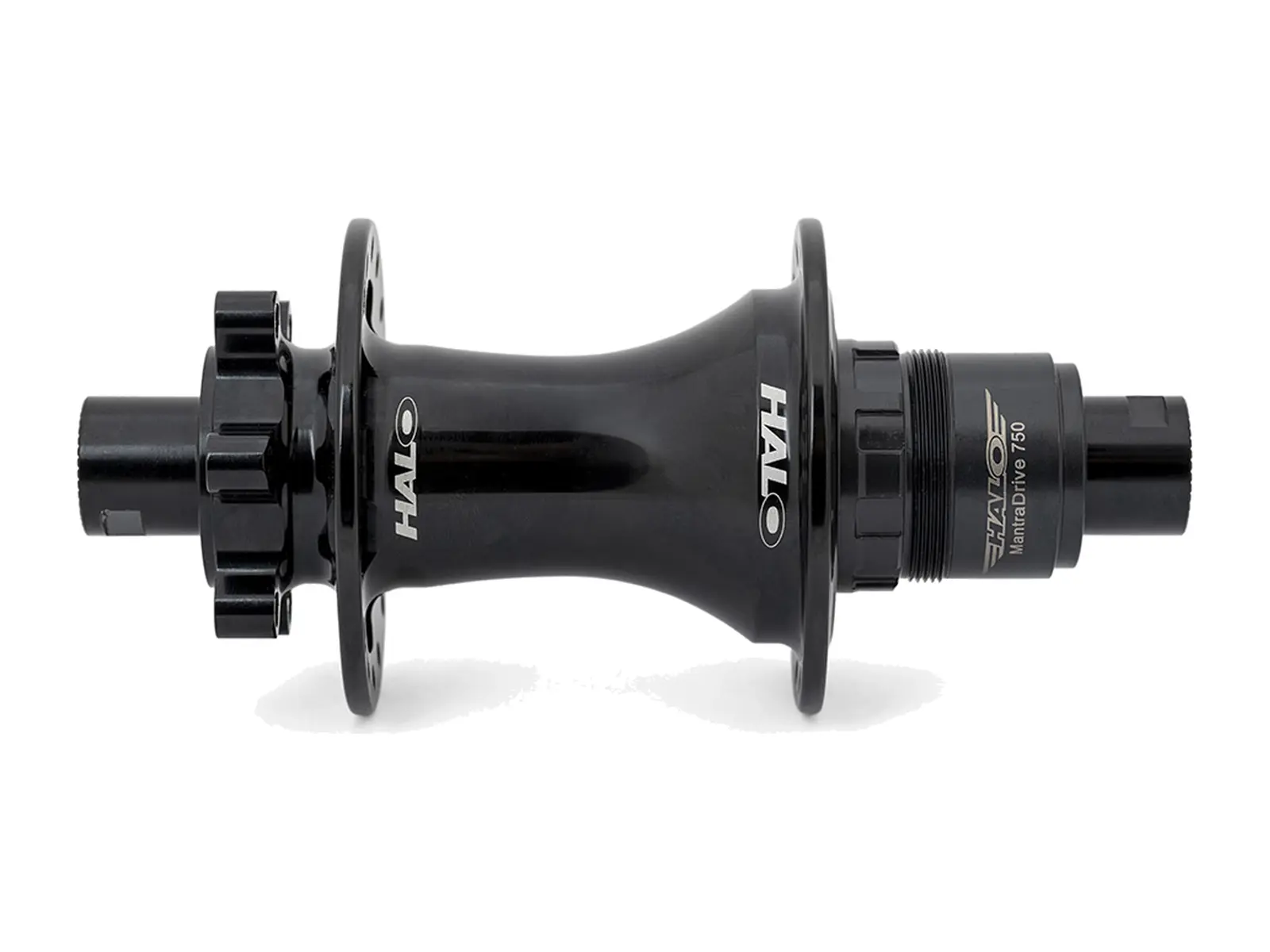

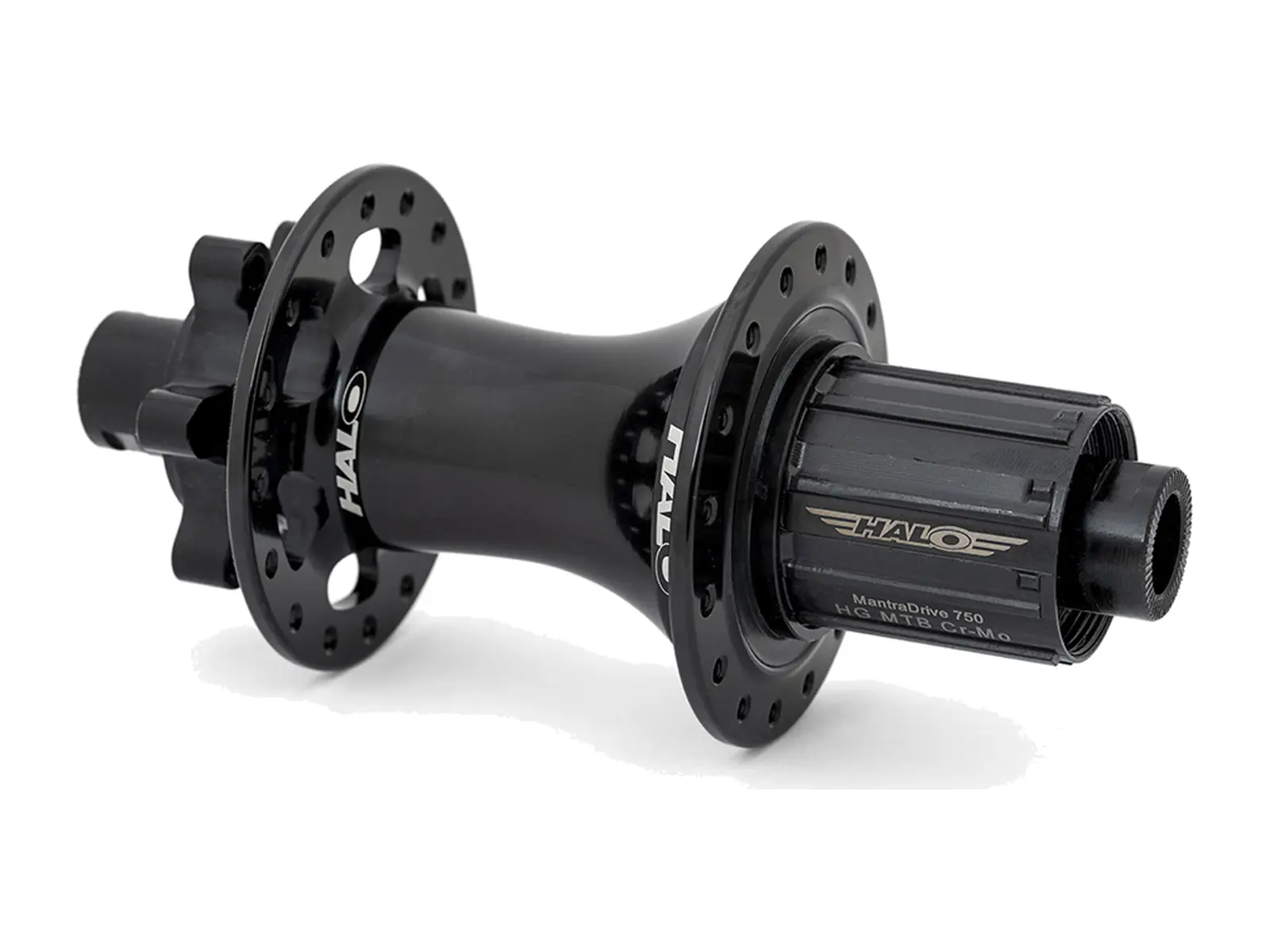

The Halo "MT Mantradrive 750" MTB Rear Hub is Halo's new mountain bike rear hub for Boost frames with 12 x 148 mm. The Mantradrive 750 system uses five leaf spring pawls on a 150 tooth drive ring, giving 150 points of engagement and picking up after 2.4 degrees of rotation. Each pawl engages with seven teeth instead of one, which spreads the load and keeps the system going longer. Axle and freehub body are machined from CrMo, and the CrMo freehub resists cassette bite on HG cassettes. The shell is 6061 aluminium and runs on four sealed 6902 cartridge bearings. You pick colour and freehub (Shimano HG, Shimano Micro Spline or SRAM XD) as options.
Facts: Halo "MT Mantradrive 750" MTB Rear Hub
- Material: Aluminum 6061
- Holes: 32H
- Version: 12 x 148 mm Boost / 6-bolt / Shimano HG, 12 x 148 mm Boost / 6-bolt / Shimano Micro Spline or 12 x 148 mm Boost / 6-bolt / SRAM XD
- Disc Mount: 6-bolt
- Points of Engagement: 150 (150 tooth drive ring, 5 leaf spring pawls, 2.4°)
- Bearings: sealed (SB), 4 x 6902 cartridge bearings
- Scope of Delivery: 1 rear hub
- Extras:
- axle and freehub body CrMo, CNC machined
- centre to flange left 34 mm, right 20 mm
- PCD 58 mm
