Halo "MT Mantradrive 750 SS" MTB Rear Hub
- Weight : 0.35kg / 0.77lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 43295
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

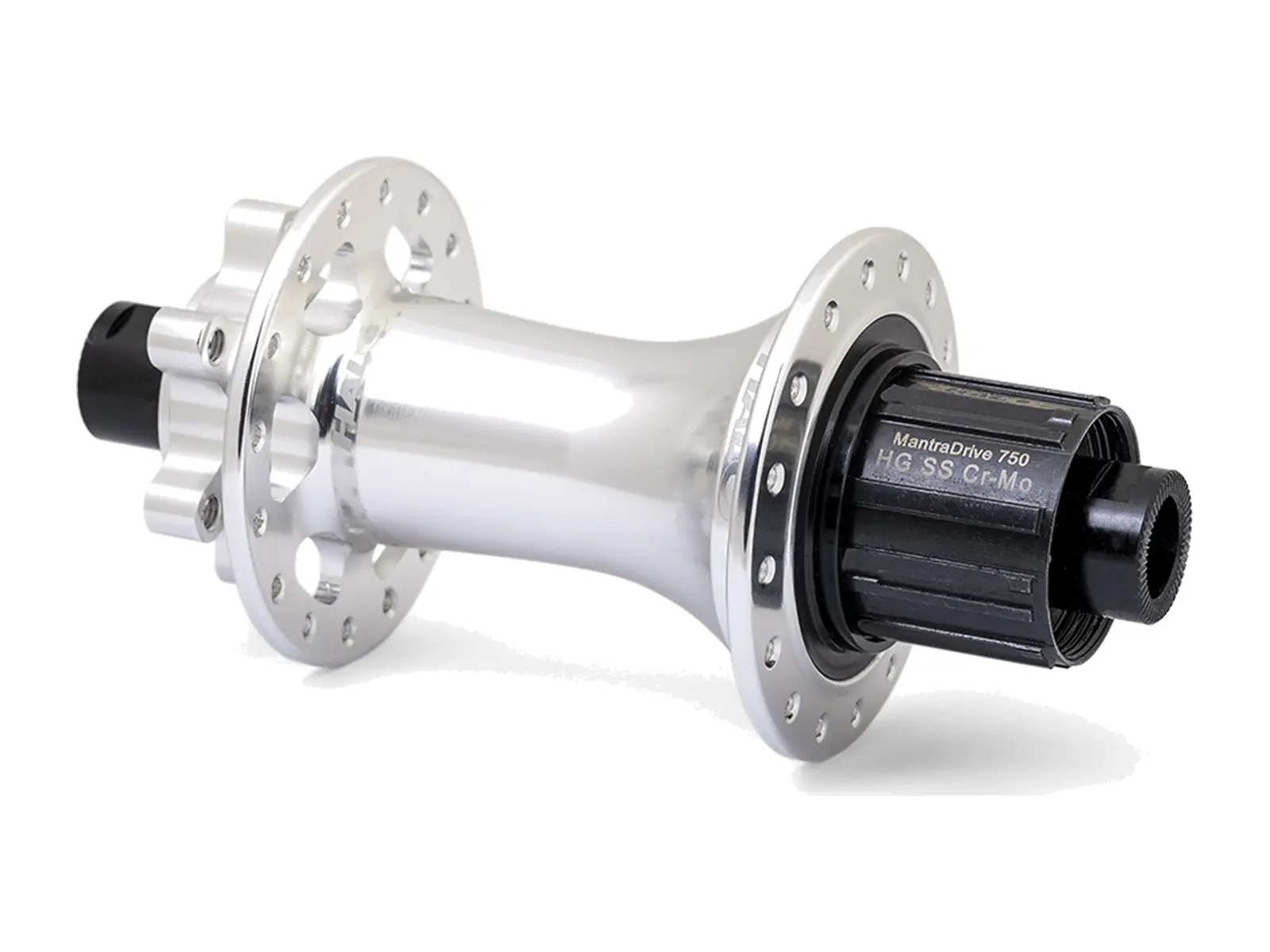

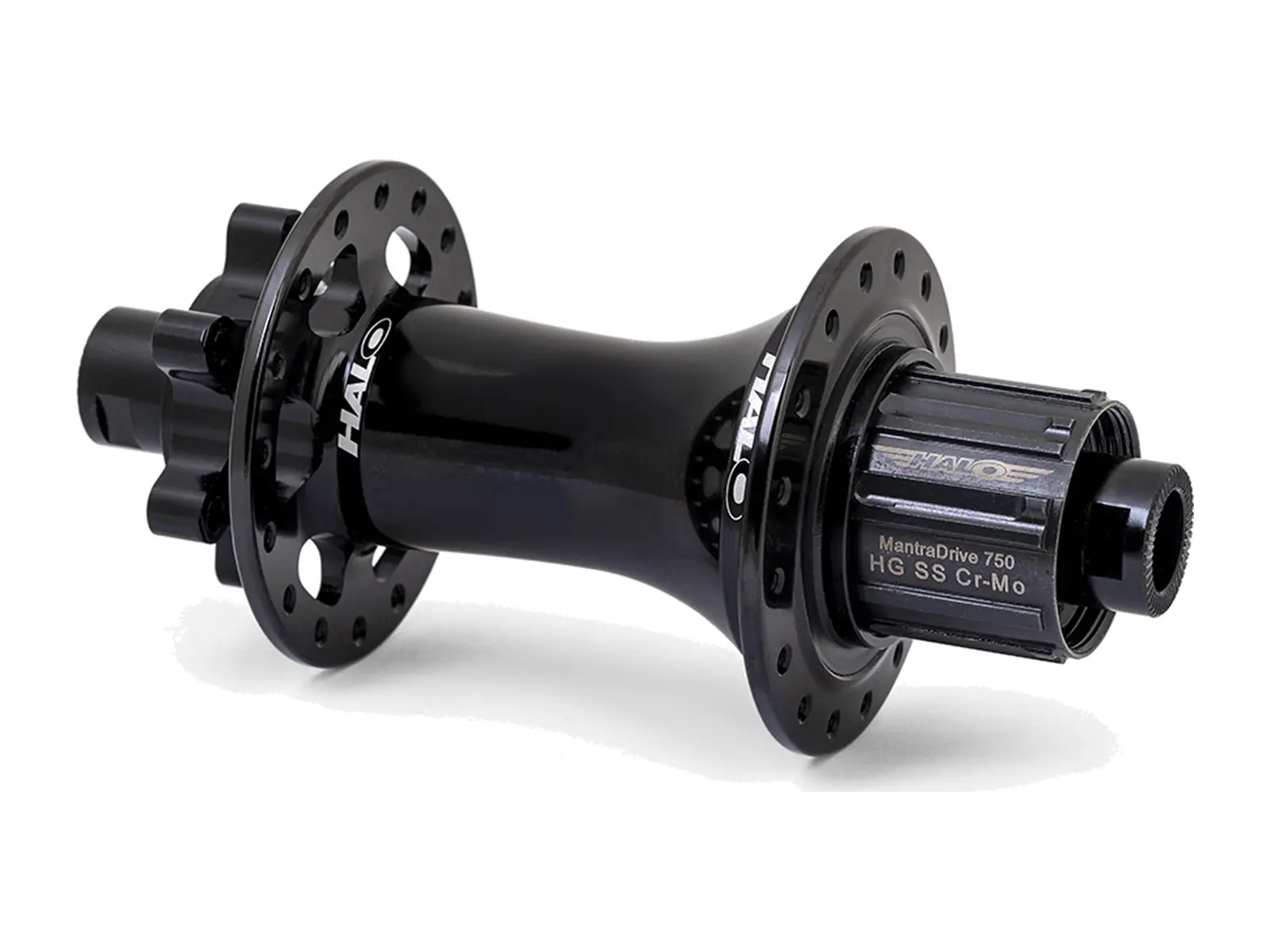

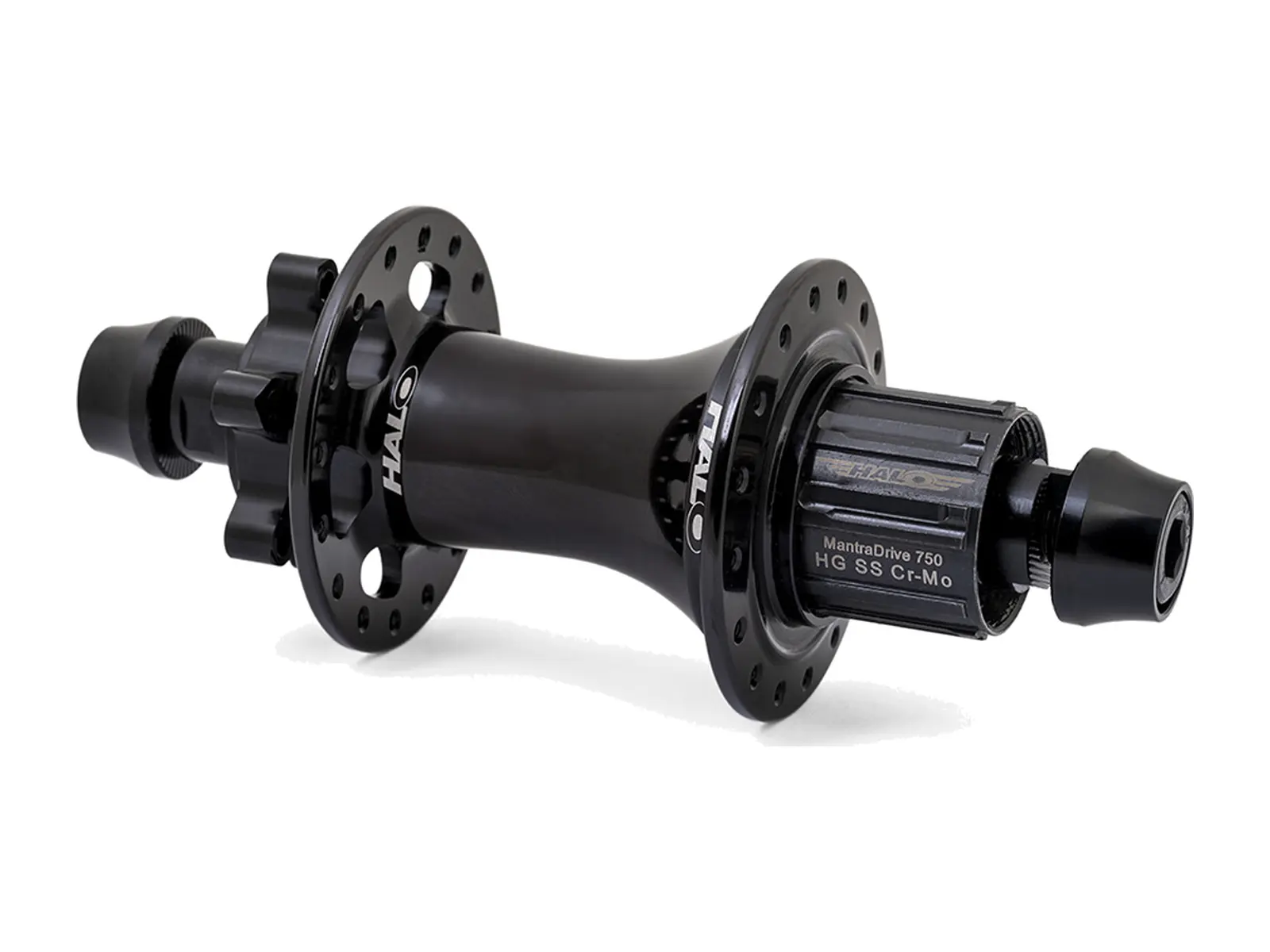

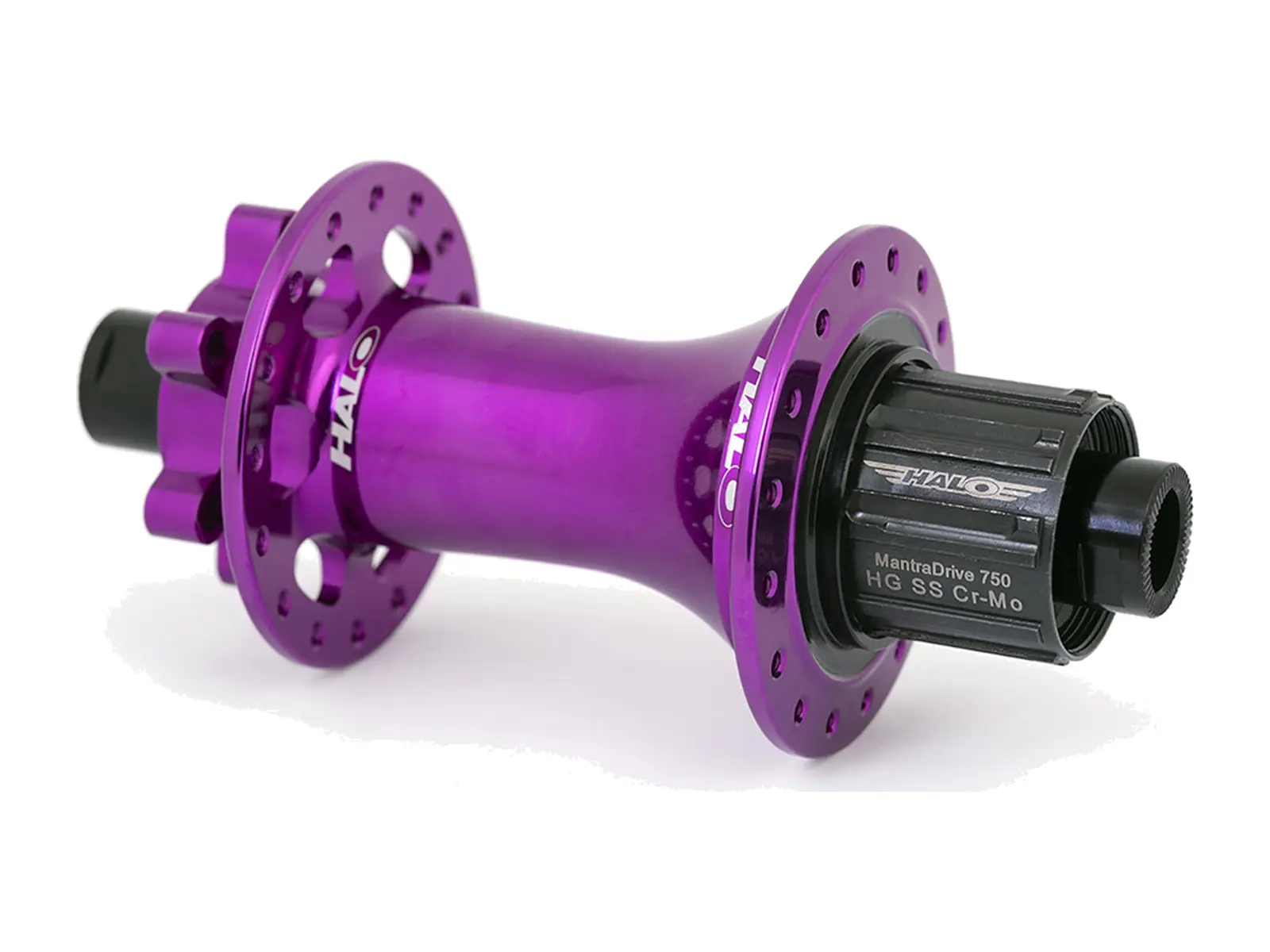

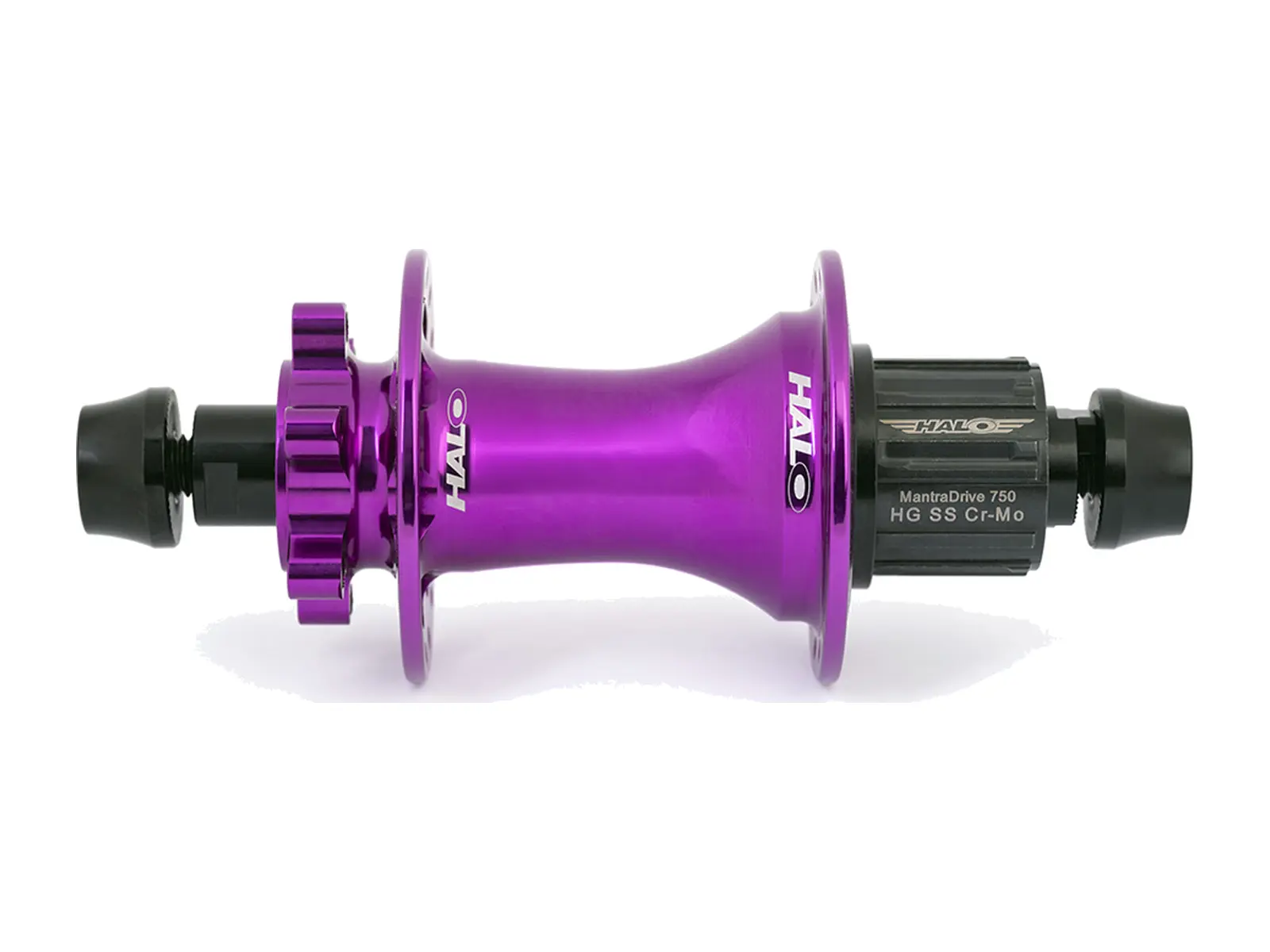

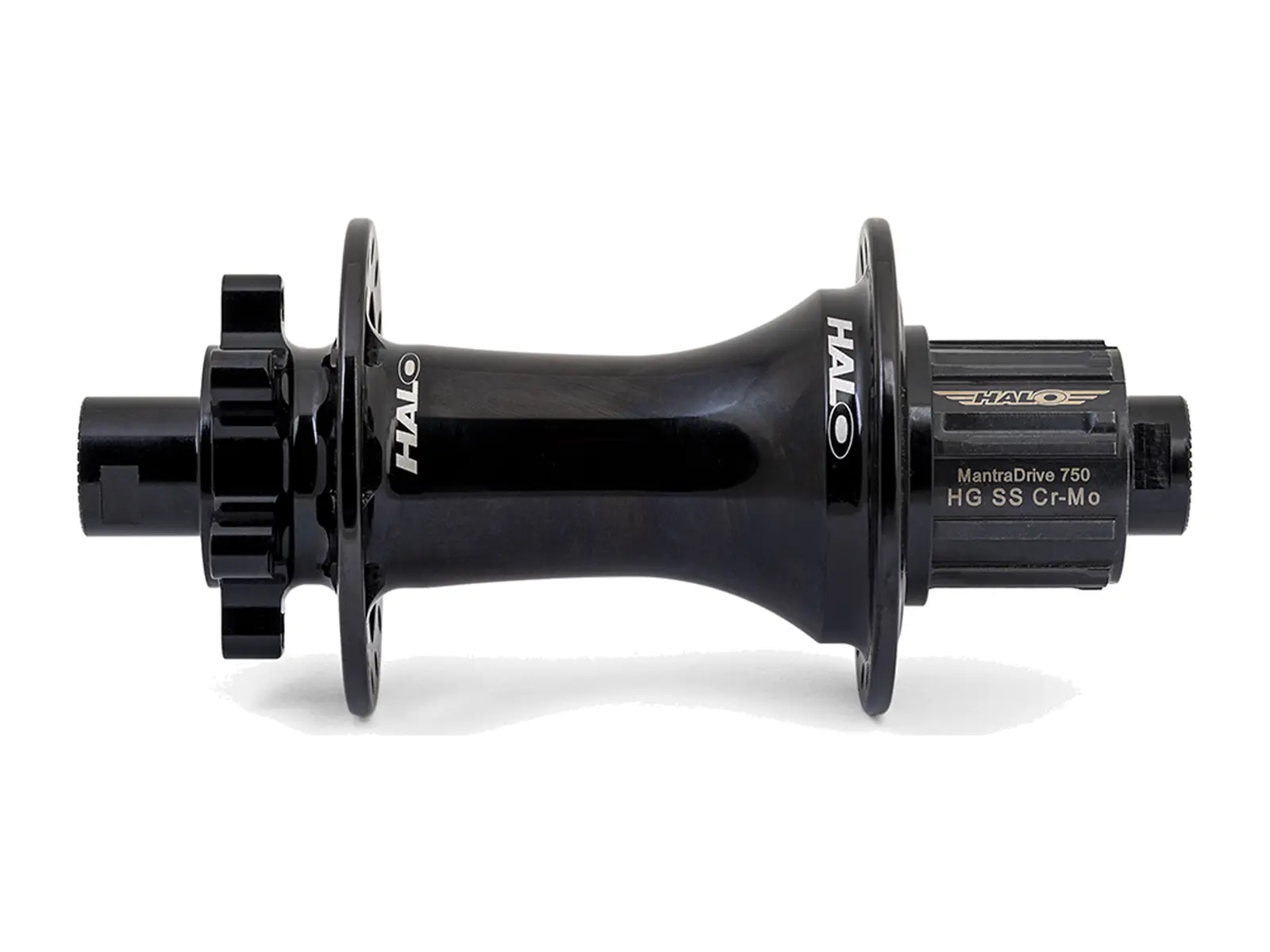

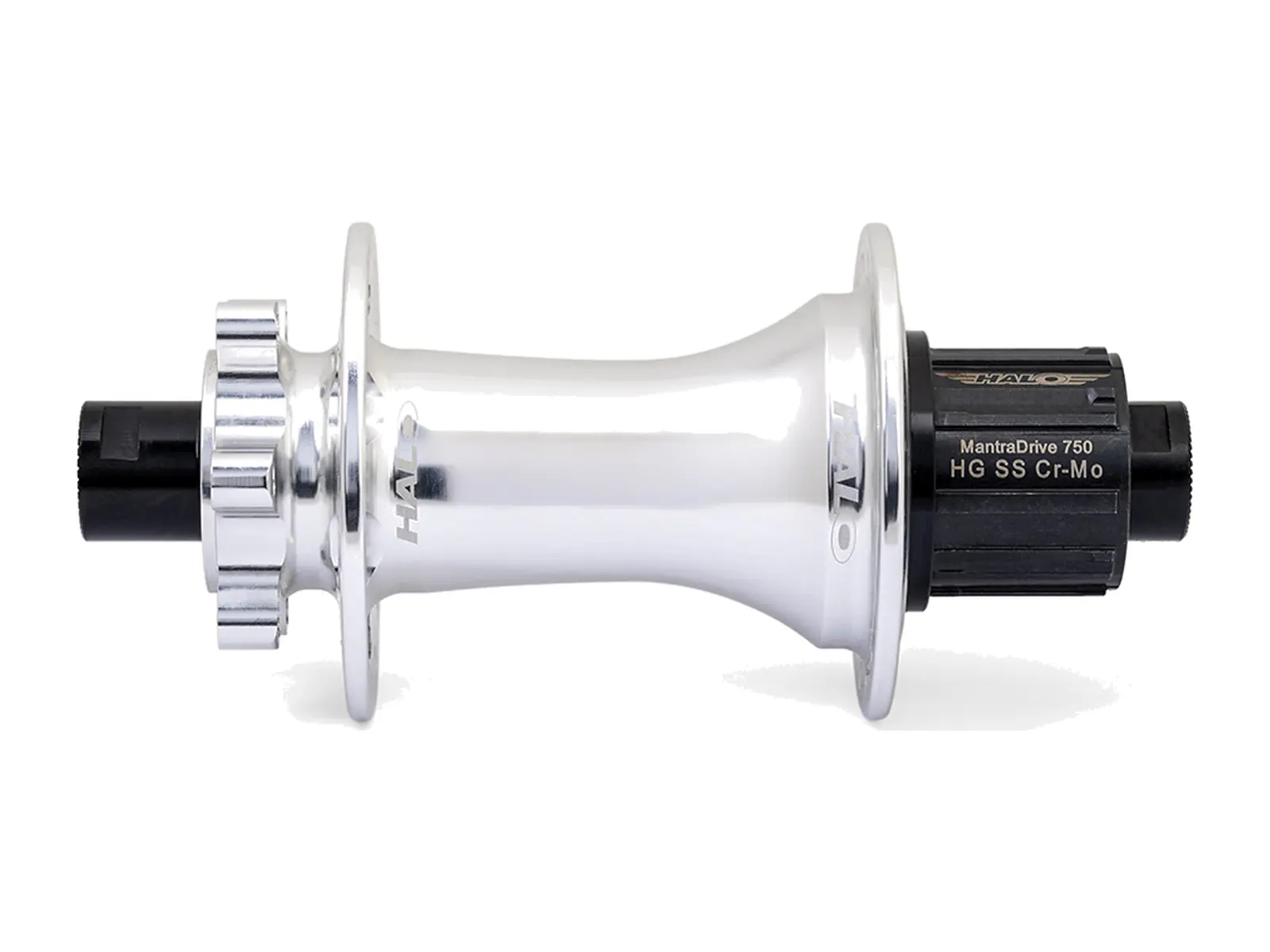

The Halo "MT Mantradrive 750 SS" MTB Rear Hub is the single speed version of Halo's Mantradrive 750 hub, made for slopestyle, dirt and single speed conversions, and according to Halo it also suits Pinion gearboxes. The drive uses five leaf spring pawls on a 150 tooth drive ring, so 150 points of engagement at 2.4 degrees, and each pawl engages with seven teeth. The short Mini HG freehub body and the axle are CrMo, and it runs on sealed 6902 cartridge bearings. It comes for Boost frames with 12 x 148 mm, for 12 x 142 mm thru axle and with a 10 mm bolt axle for 135 mm. You pick colour and axle standard as options.
Facts: Halo "MT Mantradrive 750 SS" MTB Rear Hub
- Material: Aluminum 6061
- Holes: 32H
- Version: 10 x 135 mm / 6-bolt / Mini HG, 12 x 142 mm / 6-bolt / Mini HG or 12 x 148 mm Boost / 6-bolt / Mini HG
- Disc Mount: 6-bolt
- Points of Engagement: 150 (150 tooth drive ring, 5 leaf spring pawls, 2.4°)
- Bearings: sealed (SB), 6902 cartridge bearings
- Scope of Delivery: 1 rear hub
- Extras:
- freehub body Mini HG, CrMo
- axle CrMo
- 12 x 148 mm Boost: centre to flange left 36 mm, right 33 mm, PCD 58 mm
