Hope "Carbon" MTB Crankset
- Weight : 0.71kg / 1.57lbs
- Packaging Unit: 1 Set
- Product ID (PID): 40876
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/hope-carbon-mtb-crankset-p-40876
Printed: 11/11/2026
Printed: 11/11/2026

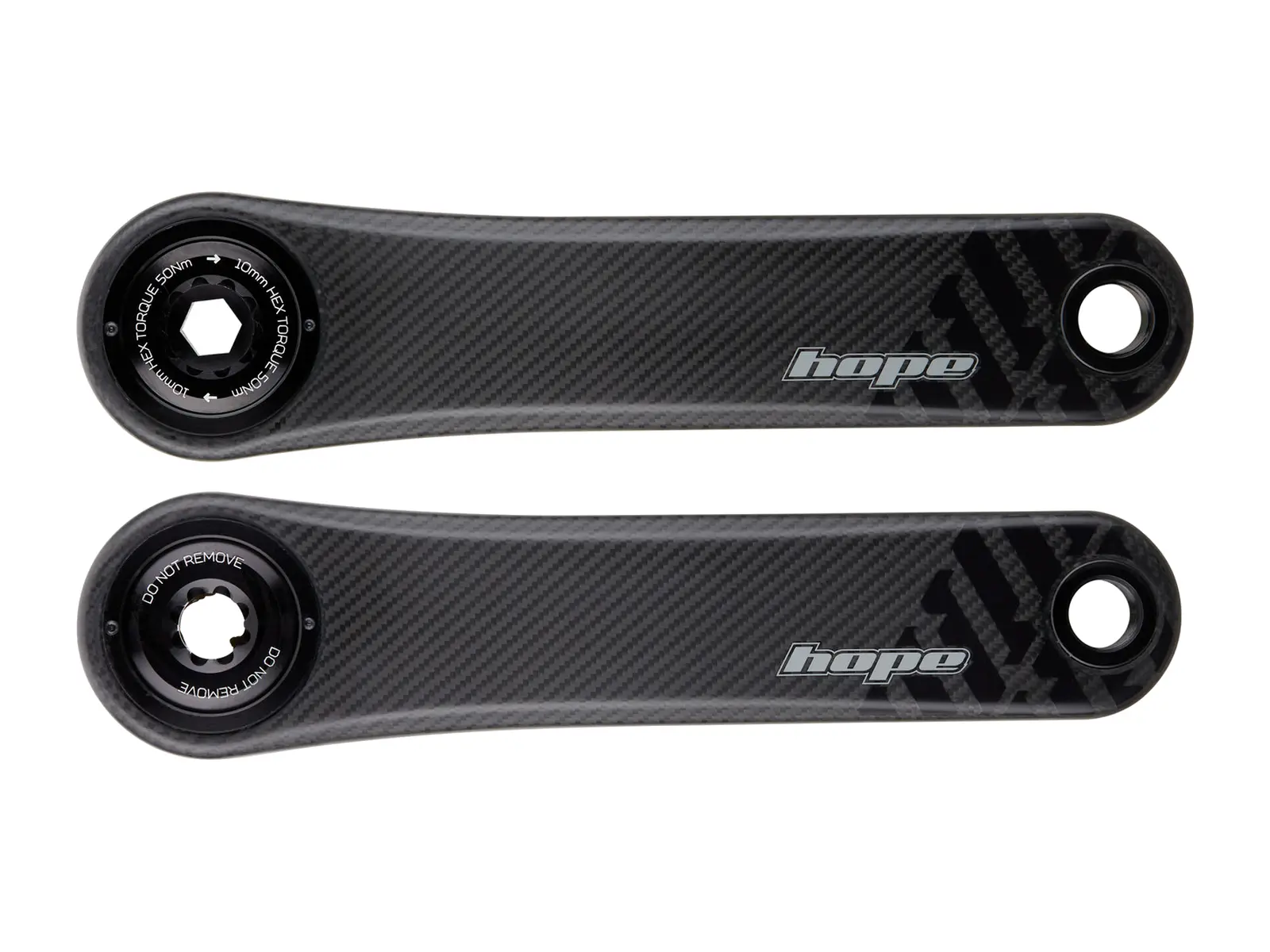

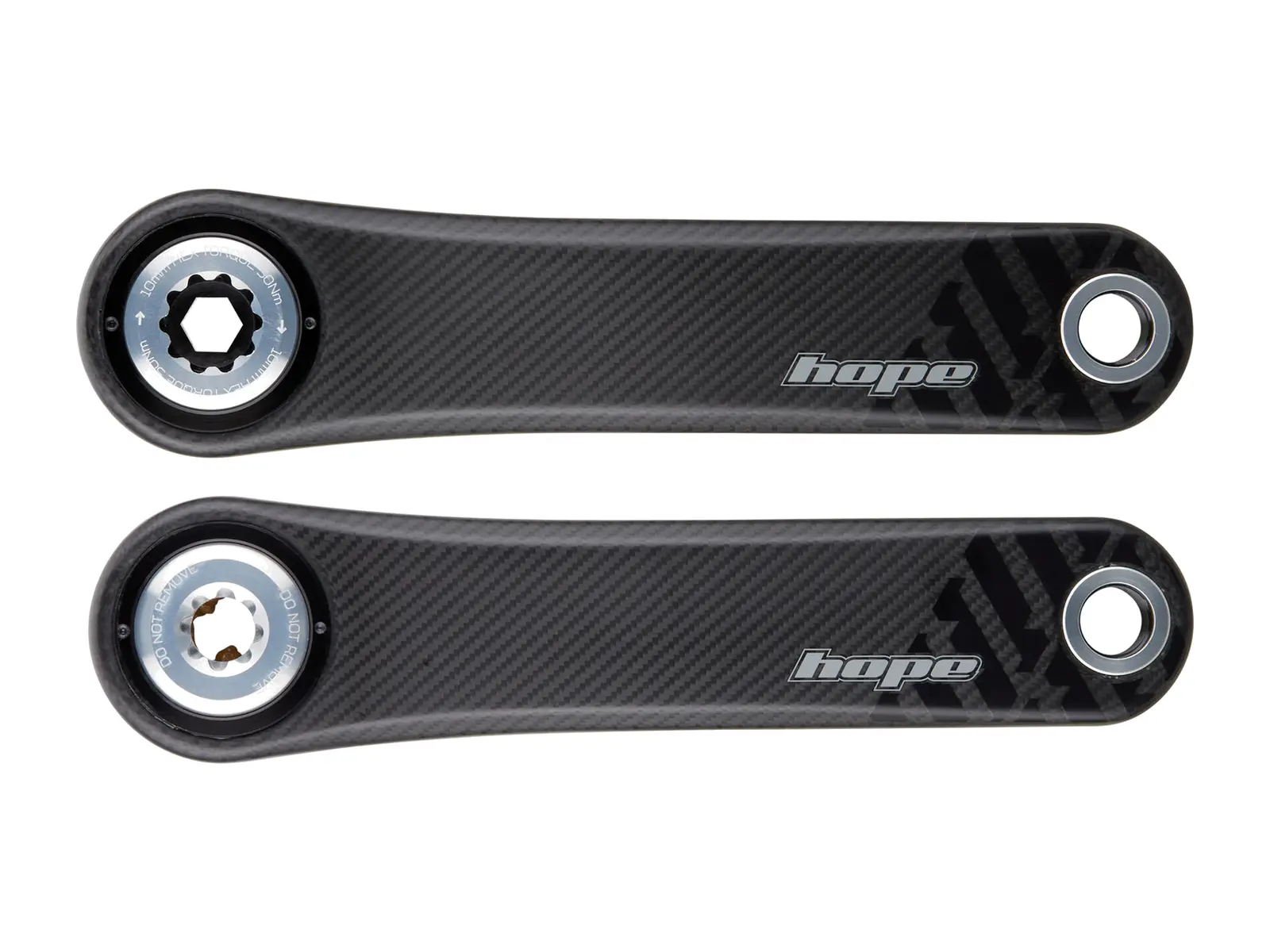

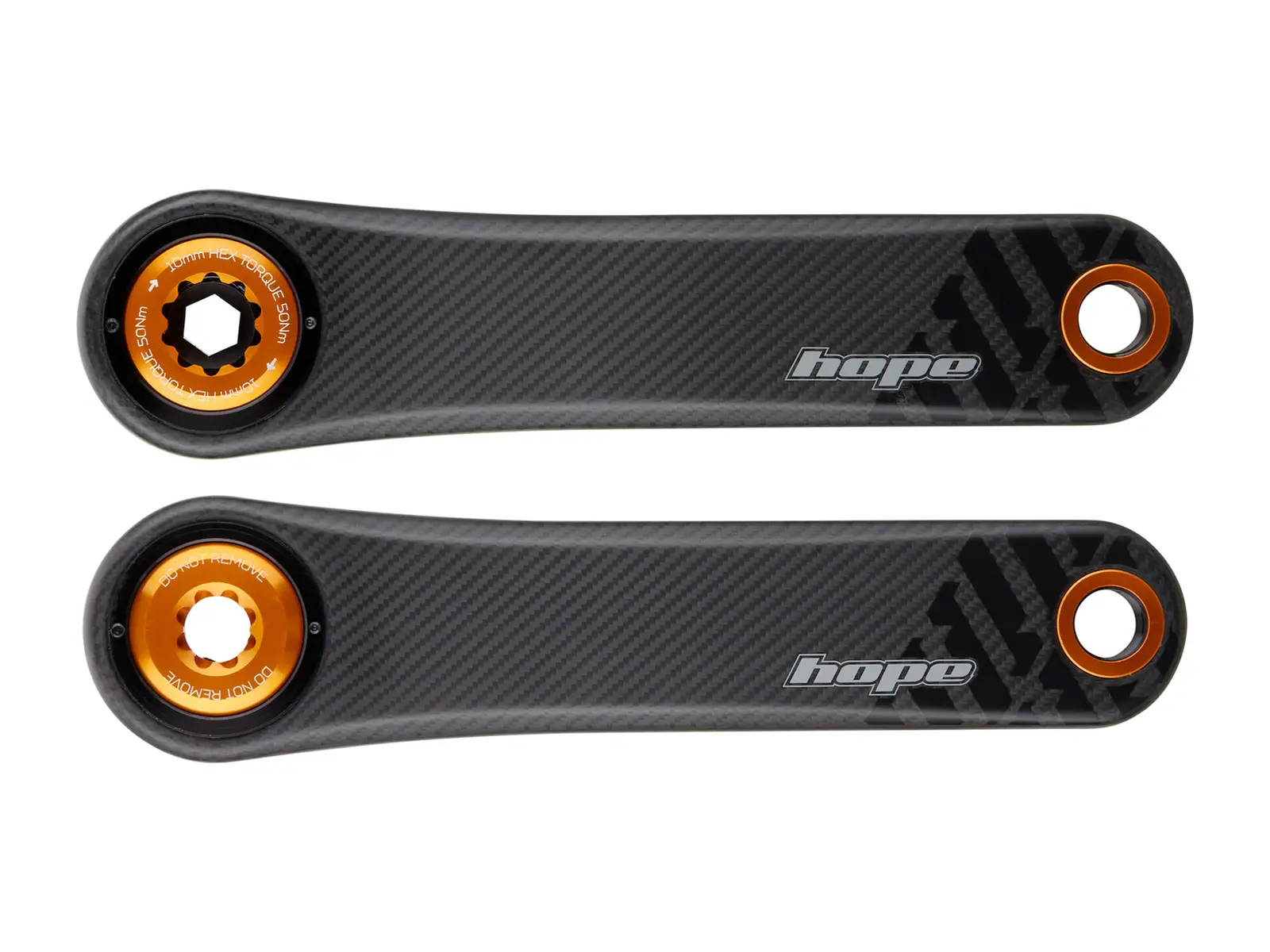

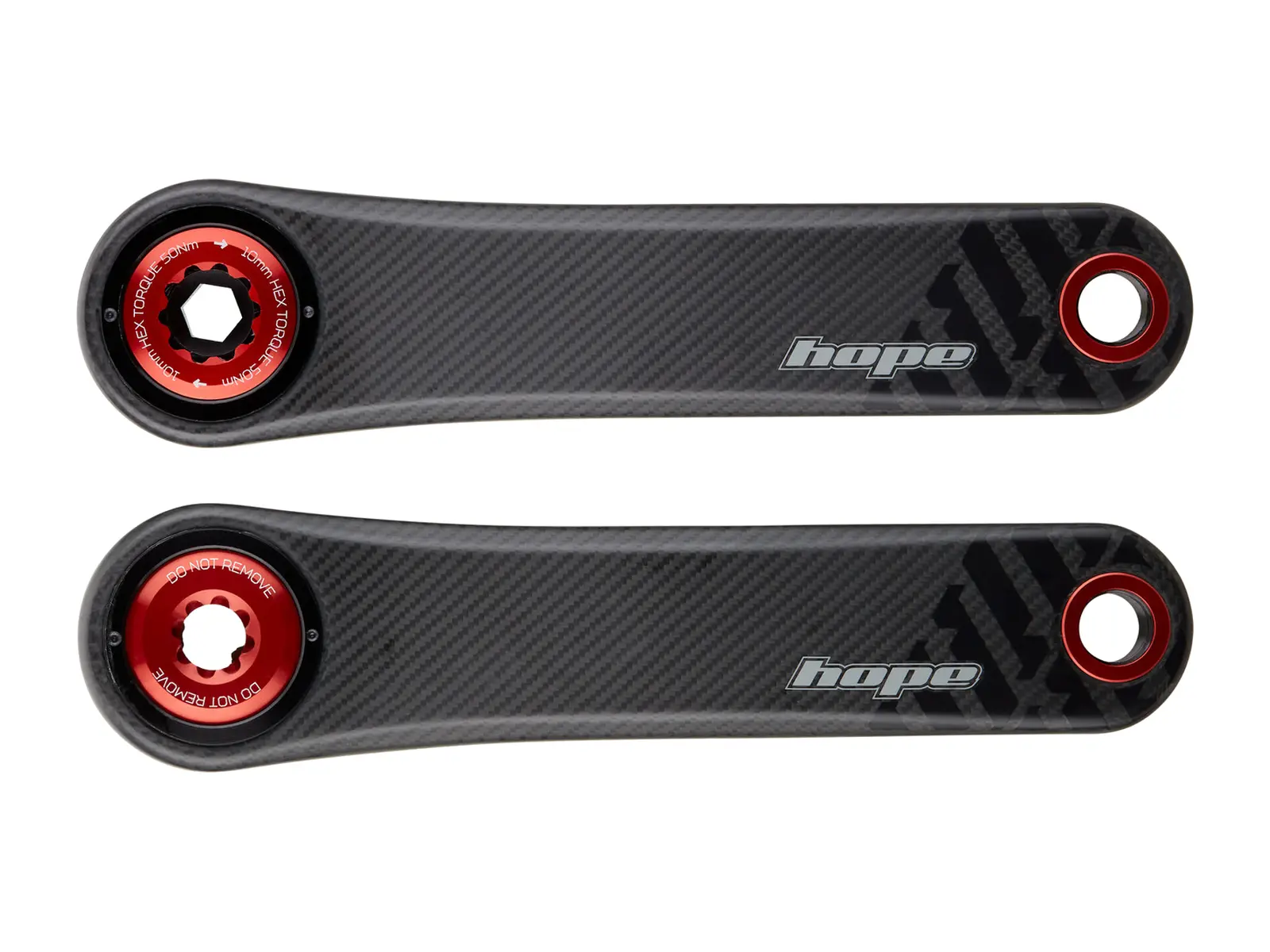

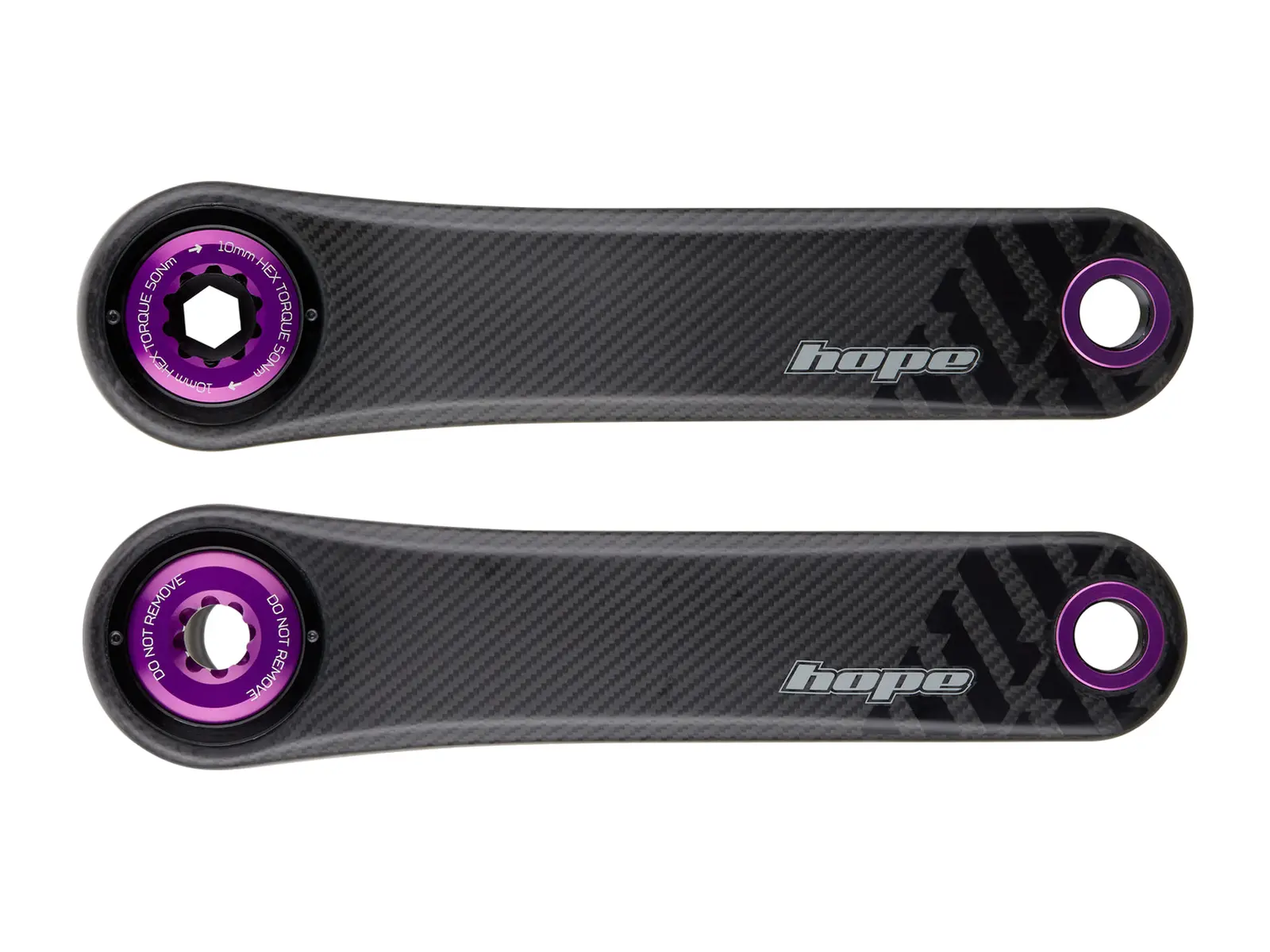

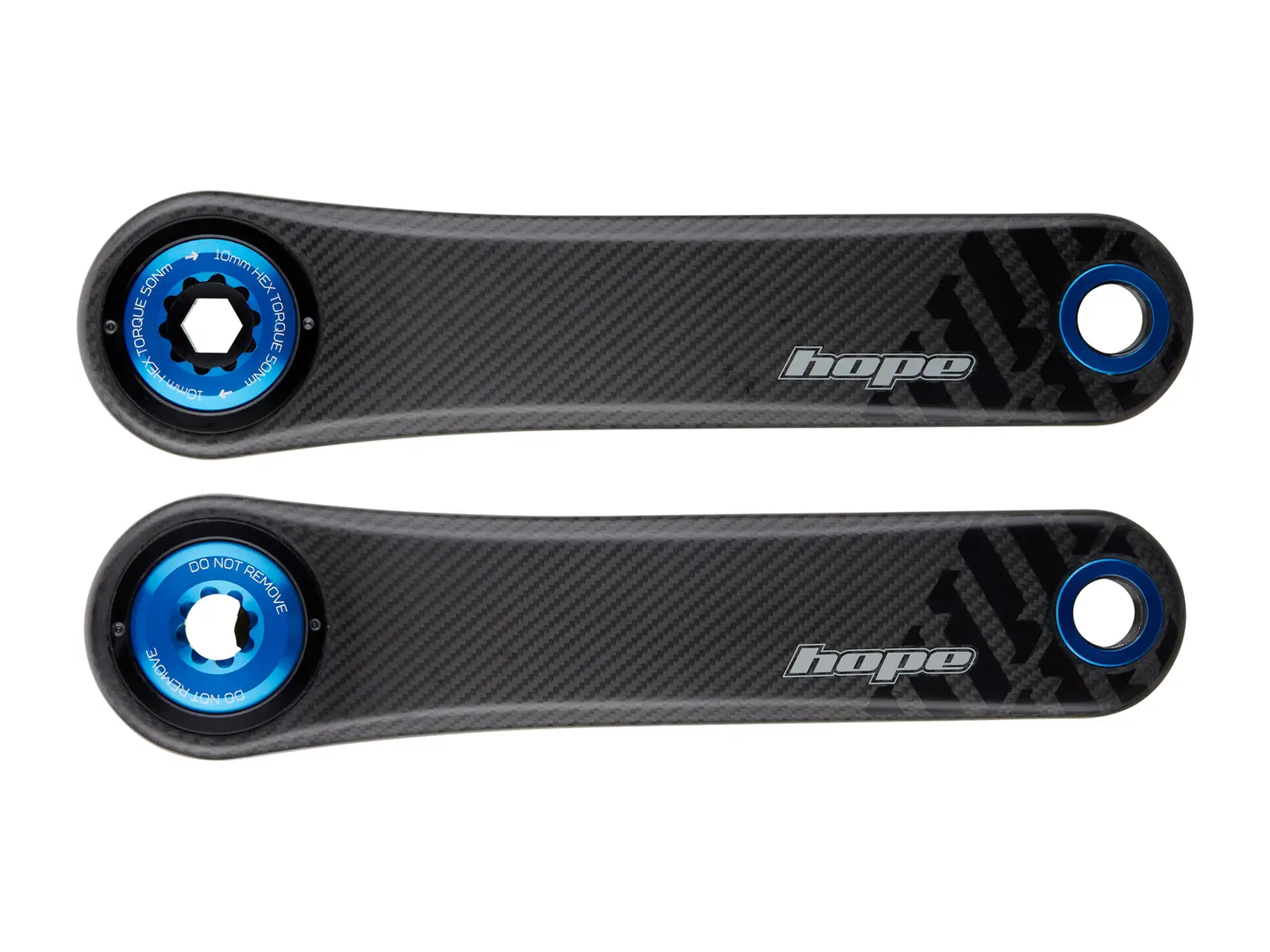

The Hope "Carbon" MTB Crankset is the carbon crank from Hope for trail and all mountain: T700 carbon arms with a 1K outer layer that is more resistant to abrasion, a foam core that damps impacts and vibration, and replaceable pedal thread inserts. The axle is the 30 mm oversize 7075 aluminium axle with the self-extracting interface of the EVO crank. Chainrings mount directly only (Hope Spiderless Retainer, 28 to 36 teeth). The 68/73 mm version has a 52 mm chainline and 168 mm Q factor, the 73 mm Wide a 55 mm chainline and 176 mm Q factor. The colour refers to the anodised hardware.
Facts: Hope "Carbon" MTB Crankset
- Material Crank Arms: carbon (T700, 1K outer layer, foam core), replaceable thread inserts
- Material Crank Spindle: 7075 aluminium
- Crank-Type: 2-piece
- Crank Arm Length: 165mm
- Spindle Diameter: 30mm
- Spindle-Type: Hope, self-extracting like the EVO crank
- Sprocket Mount: Hope Direct Mount only (Spiderless Retainer, 28 to 36 teeth)
- Extras:
- 68/73 mm bottom bracket: chainline 52 mm, Q factor 168 mm
- 73 mm Wide: chainline 55 mm, Q factor 176 mm
- for 1x11 and 1x12, BSA or PF30 bottom brackets
- colour = anodised hardware
- without chainring
