Hope "EVO" MTB Crankset
- Weight : 0.71kg / 1.57lbs
- Packaging Unit: 1 Set
- Product ID (PID): 40875
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/hope-evo-mtb-crankset-p-40875
Printed: 11/11/2026
Printed: 11/11/2026

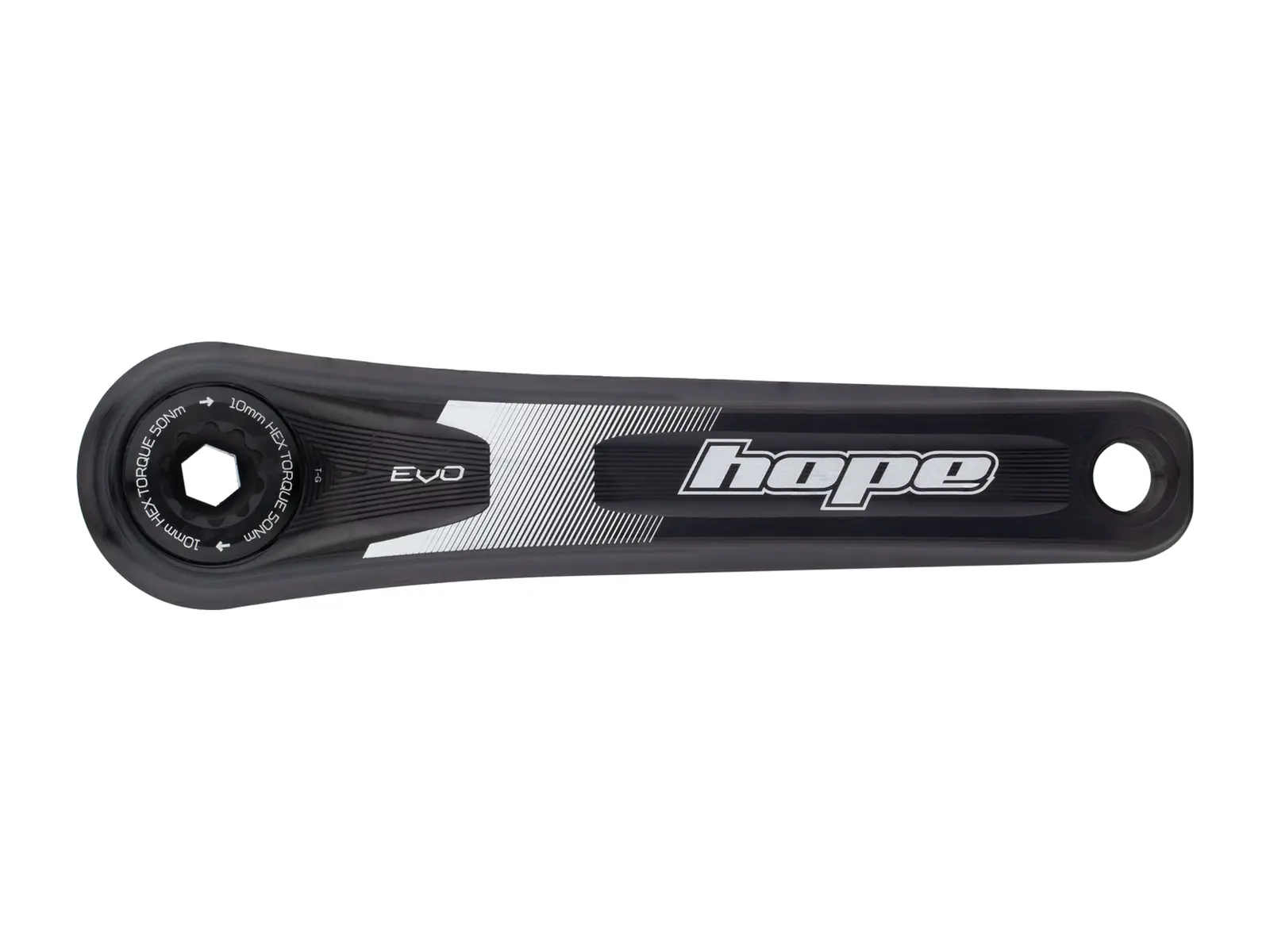

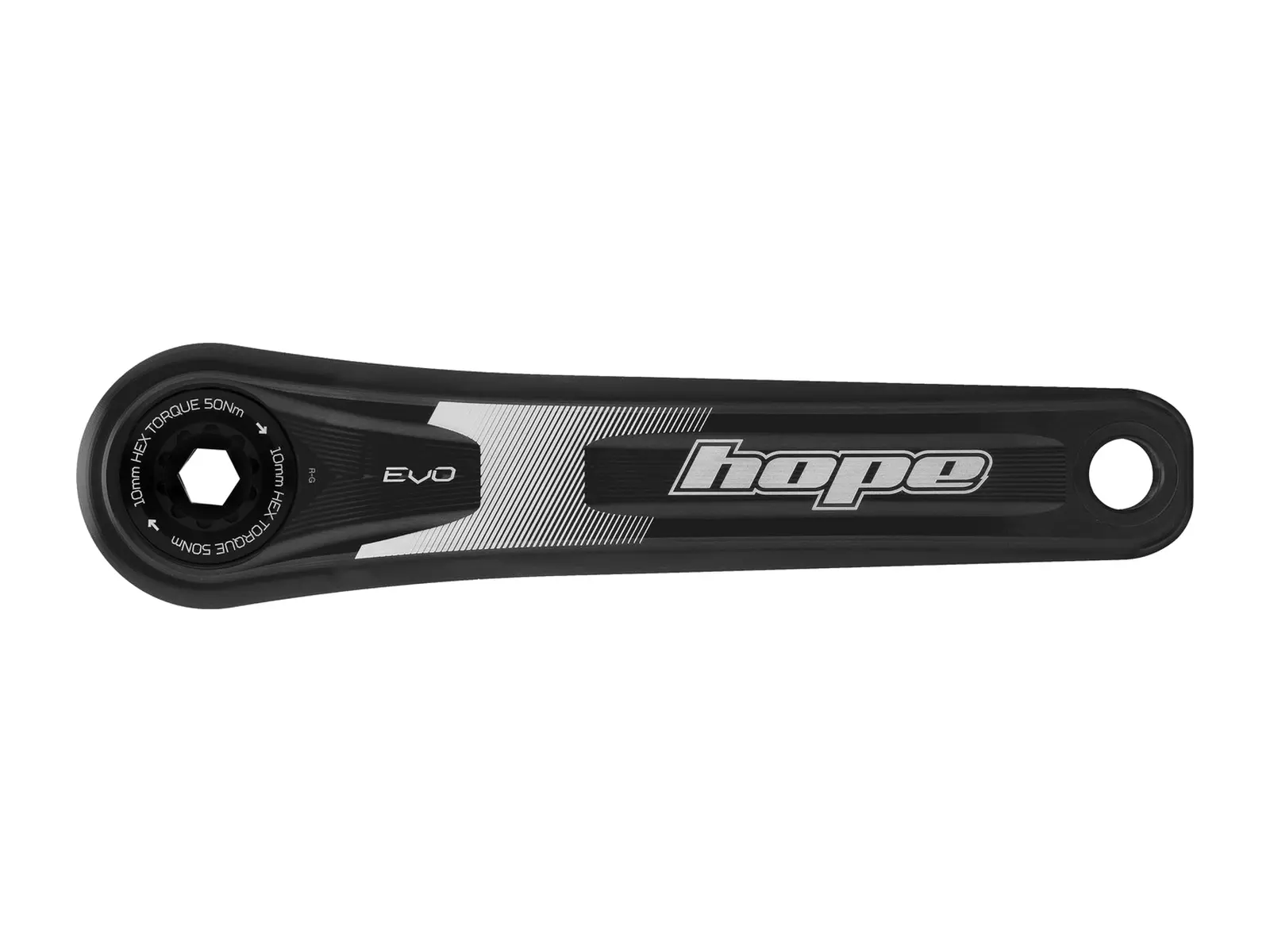

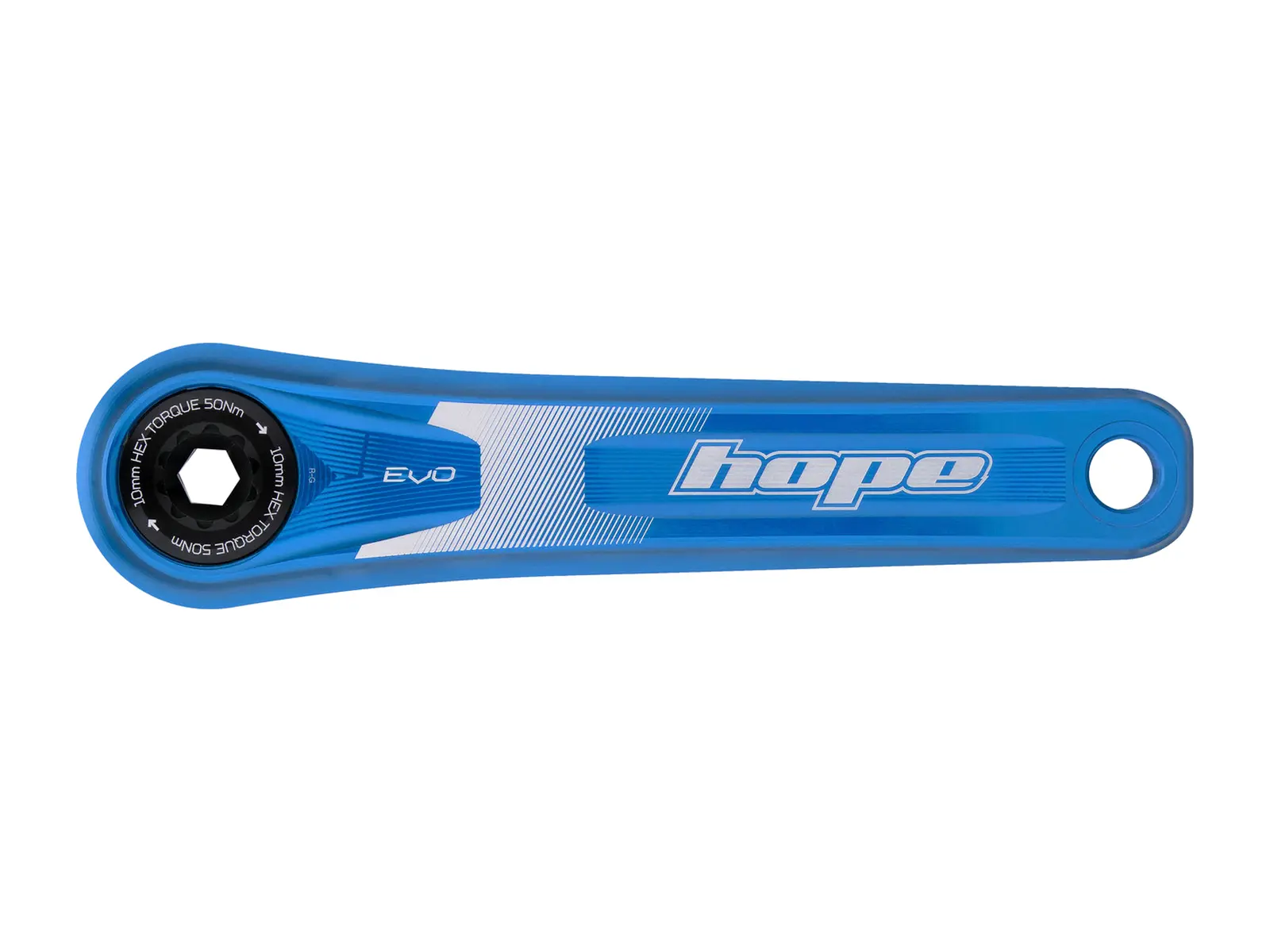

The Hope "EVO" MTB Crankset is the aluminium crank from Hope: forged and CNC machined 7150 aluminium arms on a 30 mm oversize 7075 axle. According to Hope it is 15 percent lighter and stiffer than its predecessor, the self-extracting axle to arm interface (8 mm hex) makes installation and removal easy, bearing preload is set with a lockring. Chainrings mount directly (Hope Direct Mount) or on a spider sold separately, for 9 to 12 speed. The 68/73 mm bottom bracket version comes with a 133.5 mm axle, the 83 mm version with a 148.5 mm axle. Without chainring.
Facts: Hope "EVO" MTB Crankset
- Material Crank Arms: 7150 aluminium, forged, CNC machined
- Material Crank Spindle: 7075 aluminium
- Crank-Type: 2-piece
- Crank Arm Length: 165mm or 170mm
- Spindle Diameter: 30mm
- Spindle-Type: Hope, self-extracting (8 mm hex)
- Sprocket Mount: Hope Direct Mount, spider sold separately
- Contains: left arm incl. axle, right arm; the 83 mm version also includes the Hope M36 lockring tool
- Extras:
- 68/73 mm bottom bracket version: axle 133.5 mm, chainline 49 mm (52 mm with 1x Boost), Q factor 167 mm
- 83 mm bottom bracket version: axle 148.5 mm, chainline 56.5 mm, Q factor 182 mm
- for 9, 10, 11 and 12 speed, single and double
- recommended bottom brackets BSA, Pressfit, PF30
- bearing preload via lockring
- without chainring
