Insight "Chromoly 5.75 Cruiser" BMX Race Handlebar - Ø22.2mm
- Weight : 0.8kg / 1.76lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45541
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-chromoly-575-cruiser-bmx-race-handlebar-222mm-p-45541
Printed: 10/29/2026
Printed: 10/29/2026

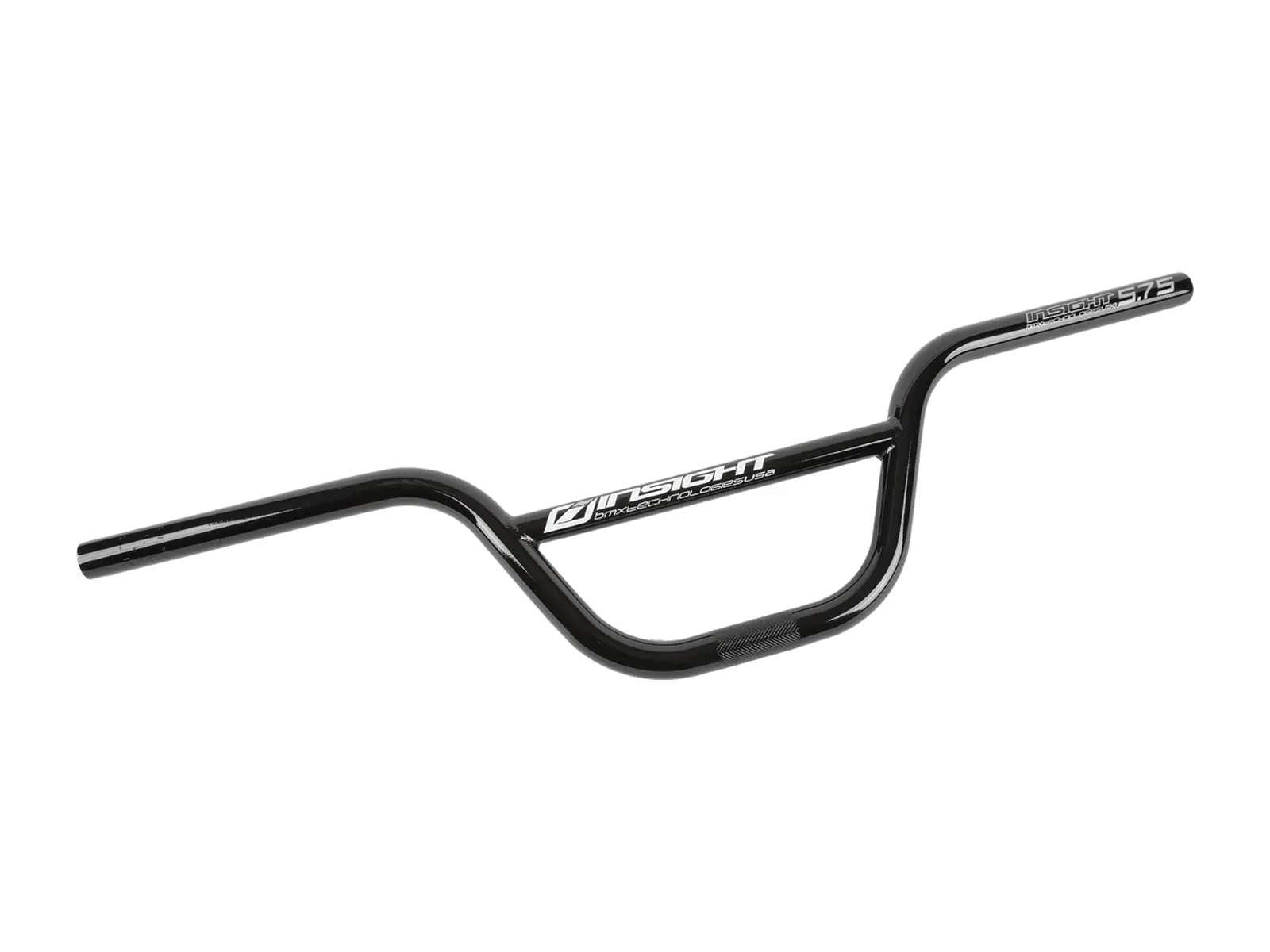

The Insight "Chromoly 5.75 Cruiser" BMX Race Handlebar - Ø22.2mm is the Insight chromoly bar for 24" cruisers. It is made from 4130 chromoly, has a light 3/4 crossbar and a knurled clamp area that keeps the bar from slipping in the stem.
At 5.75" rise it is 27.5" wide, has 11° backsweep and 2.5° upsweep and weighs 802g. It clamps into the stem with 22.2mm.
Facts: Insight "Chromoly 5.75 Cruiser" BMX Race Handlebar - Ø22.2mm
- Material: 4130 chromoly
- Bar-Design: 4-piece, with 3/4 crossbar
- Geometry:
- Height: 5.75"
- Width: 27.5"
- Backsweep: 11°
- Upsweep: 2.5° - Clamping: 22.2mm
- Recommended for: Race
- Extras: knurled clamp area, for 24" cruisers, weight 802g
- Content: 1 handlebar
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
