Insight "Chromoly" BMX Race Handlebar - Ø31.8mm
- Weight : 1.01kg / 2.23lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45534
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-chromoly-bmx-race-handlebar-318mm-p-45534
Printed: 10/29/2026
Printed: 10/29/2026

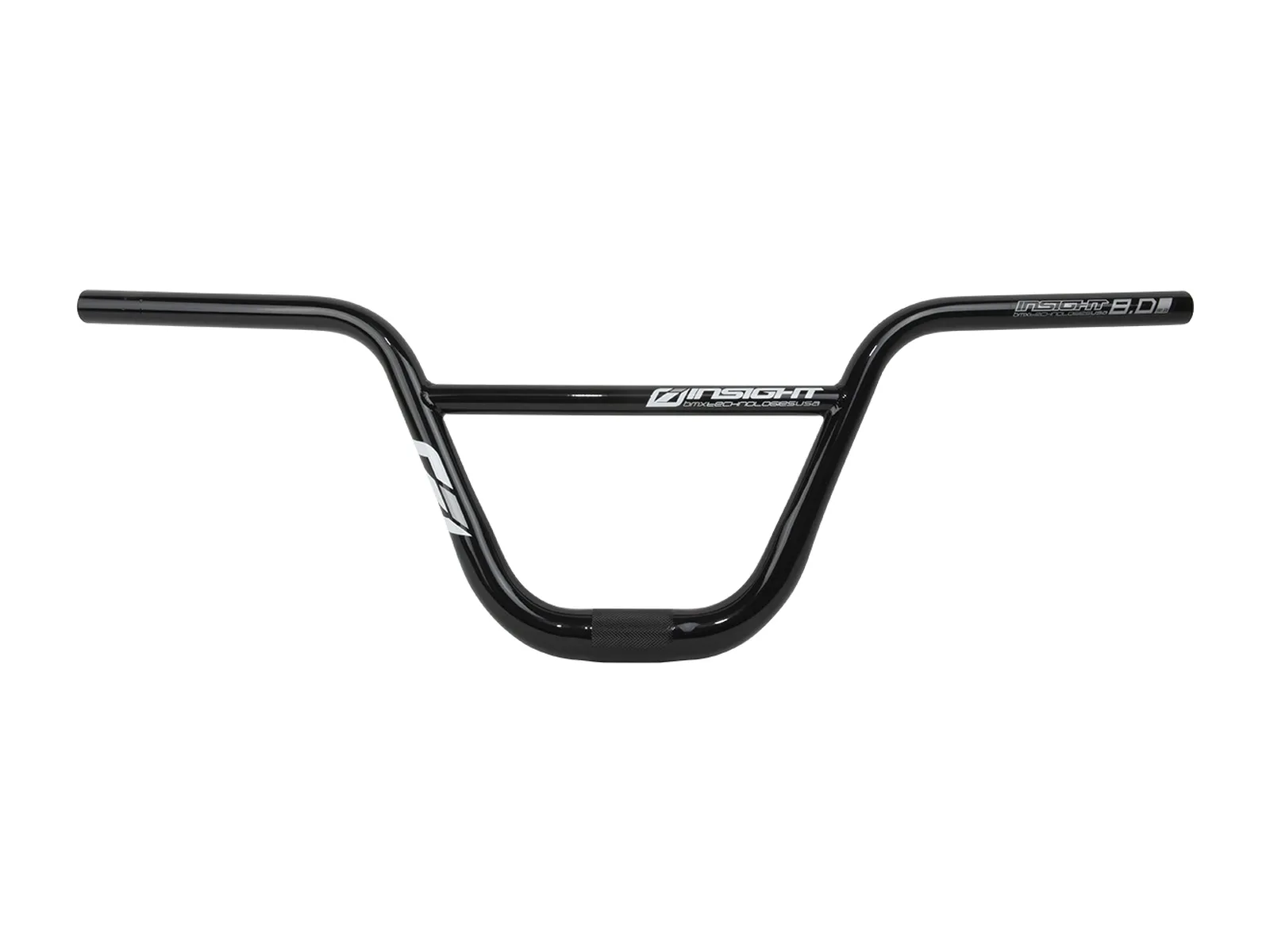

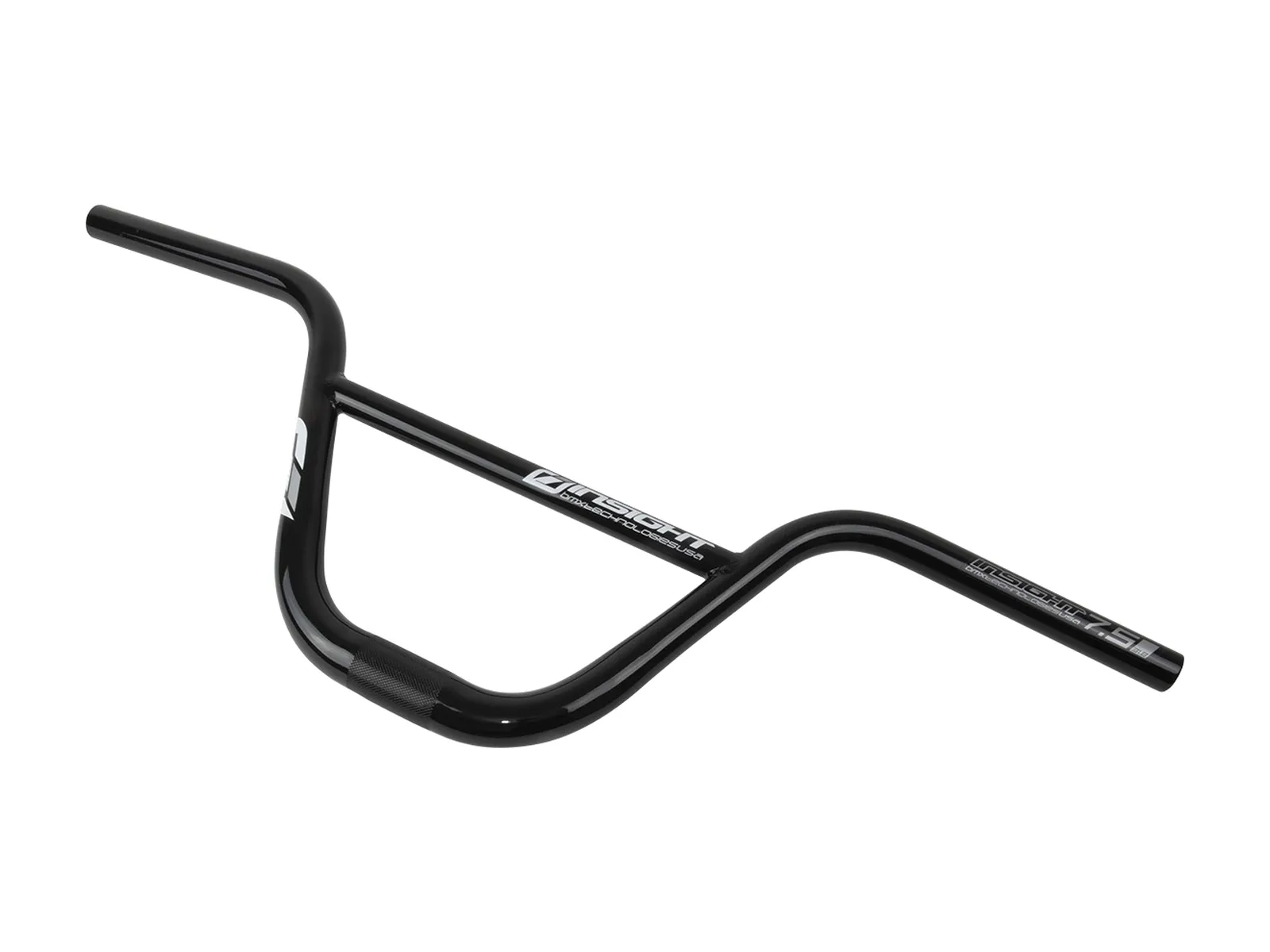

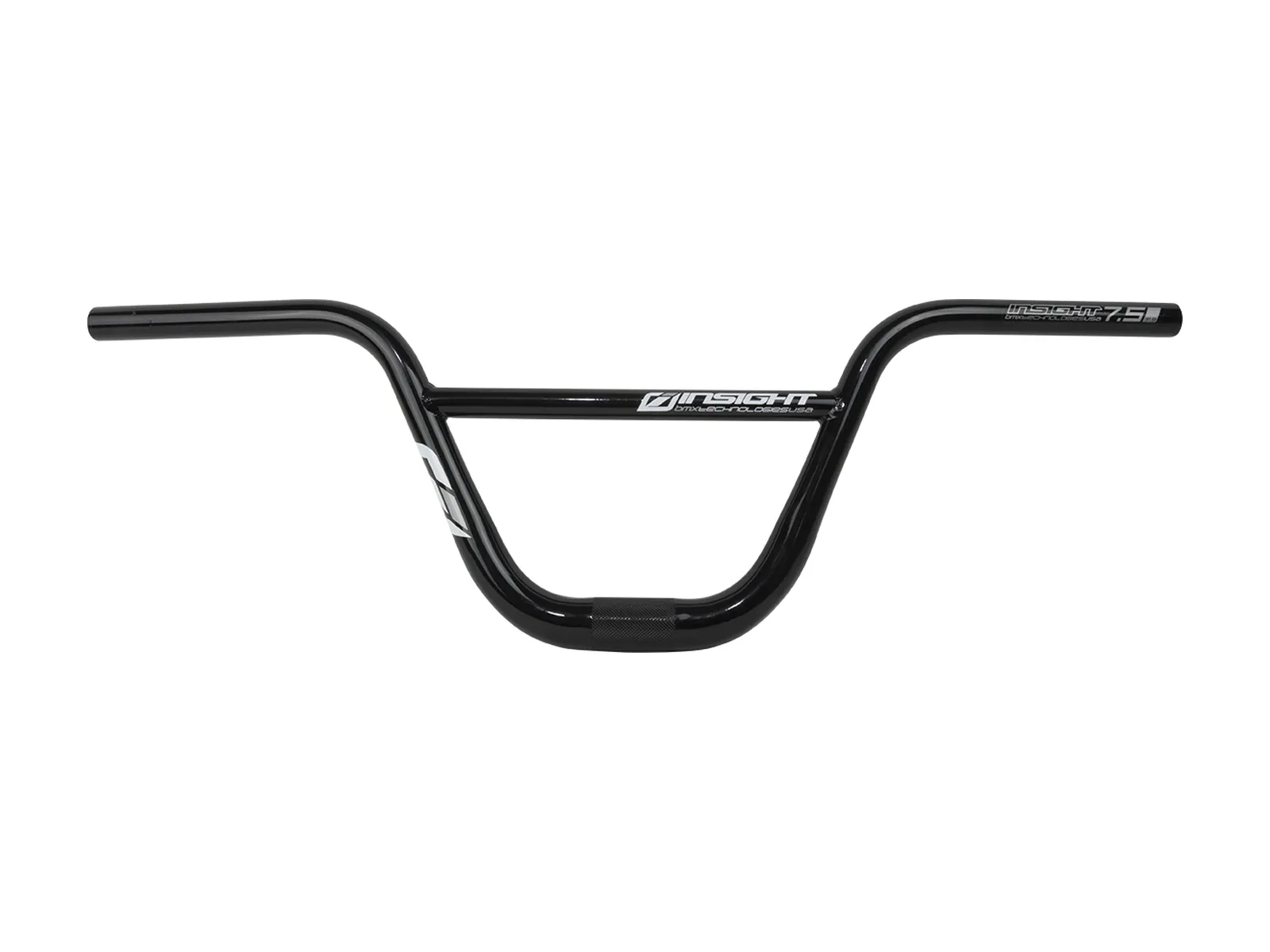

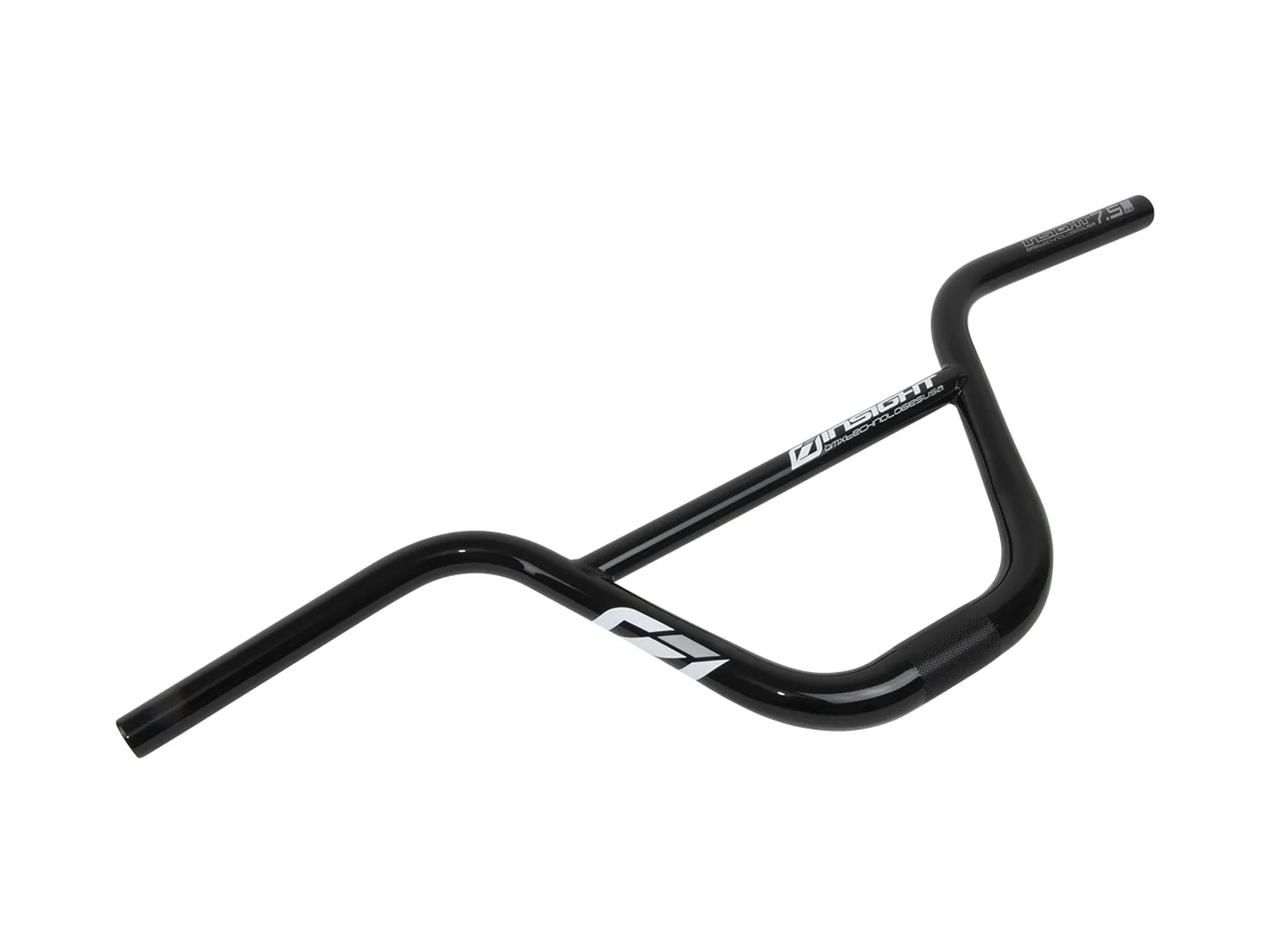

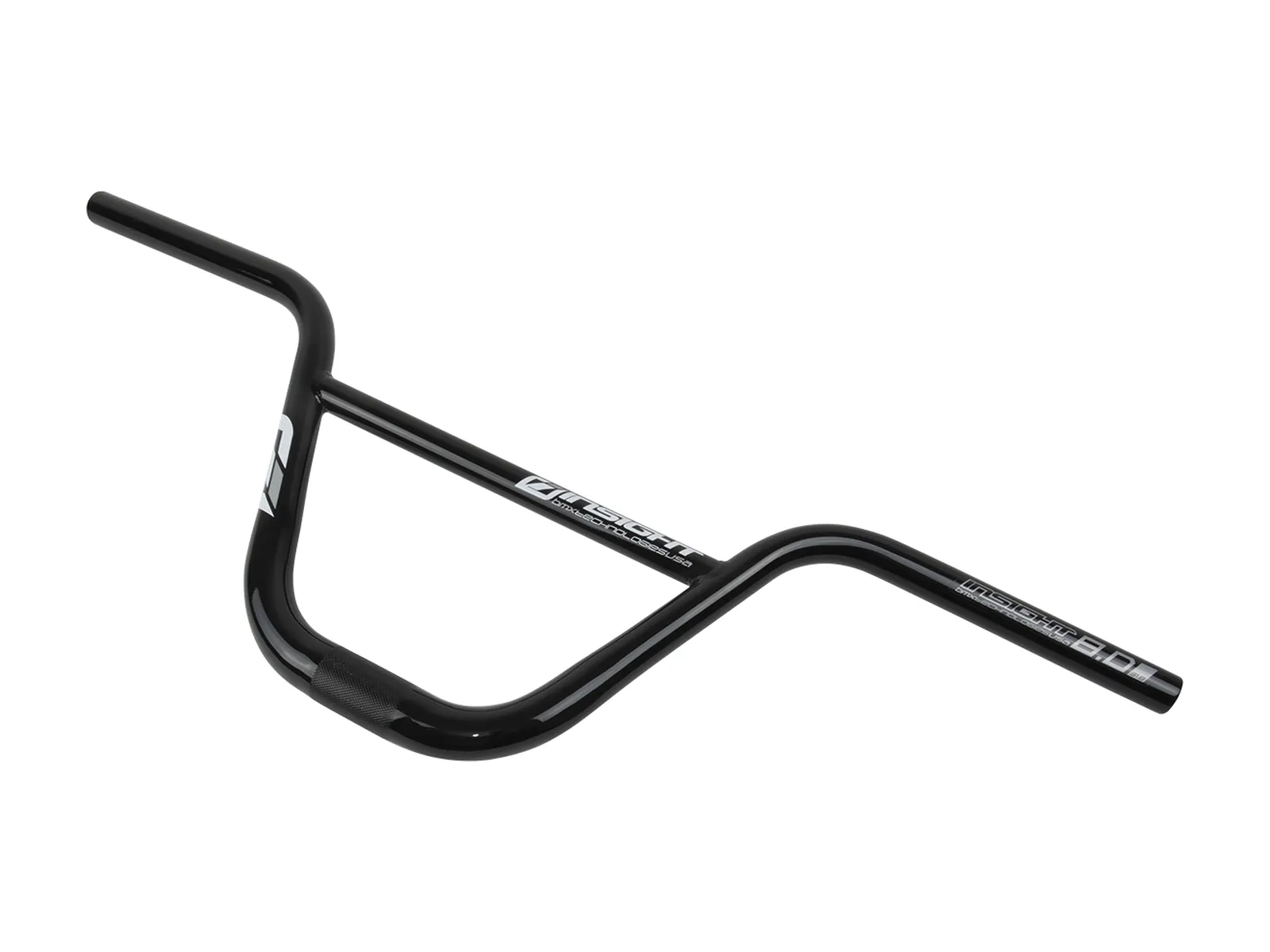

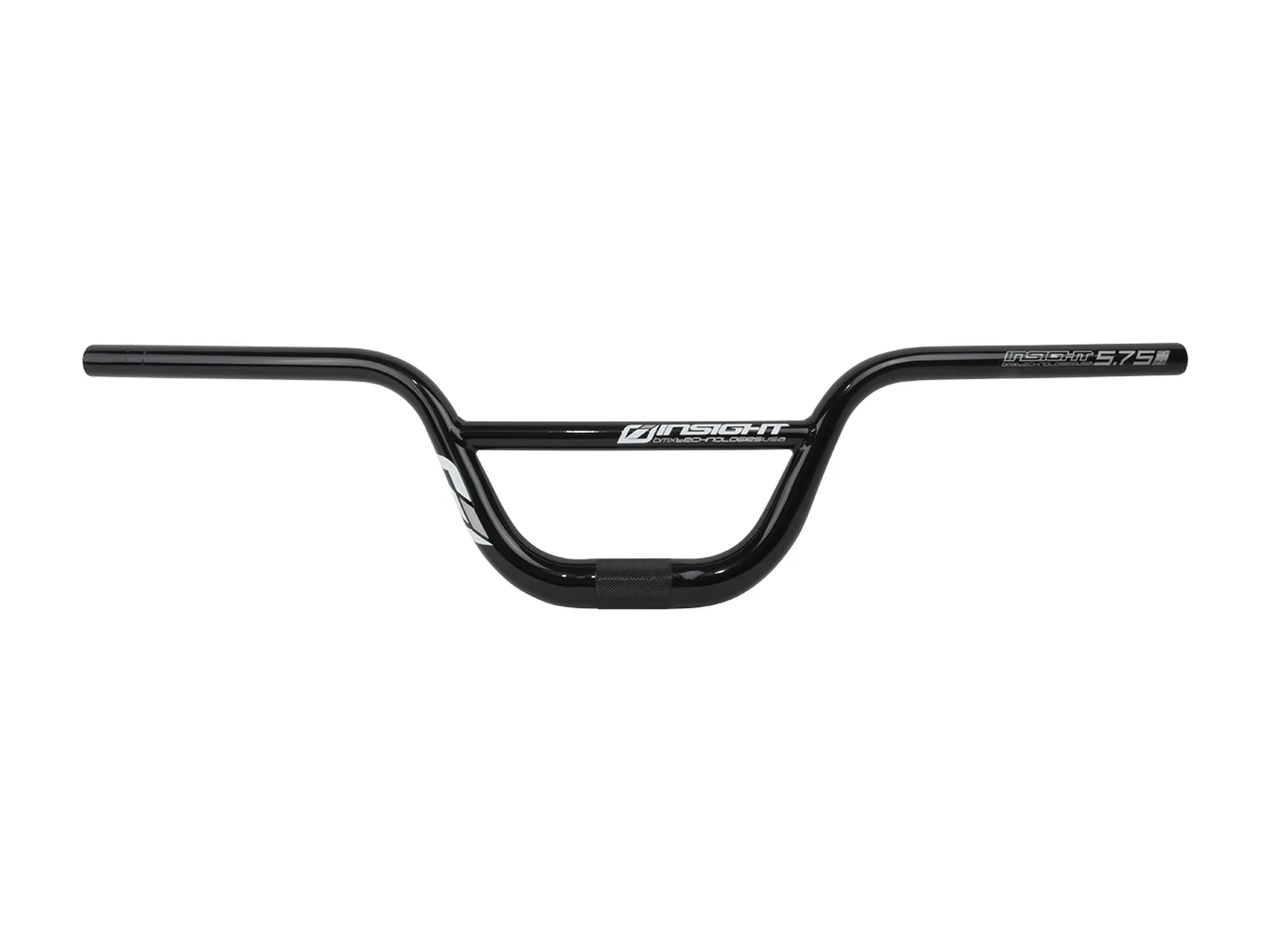

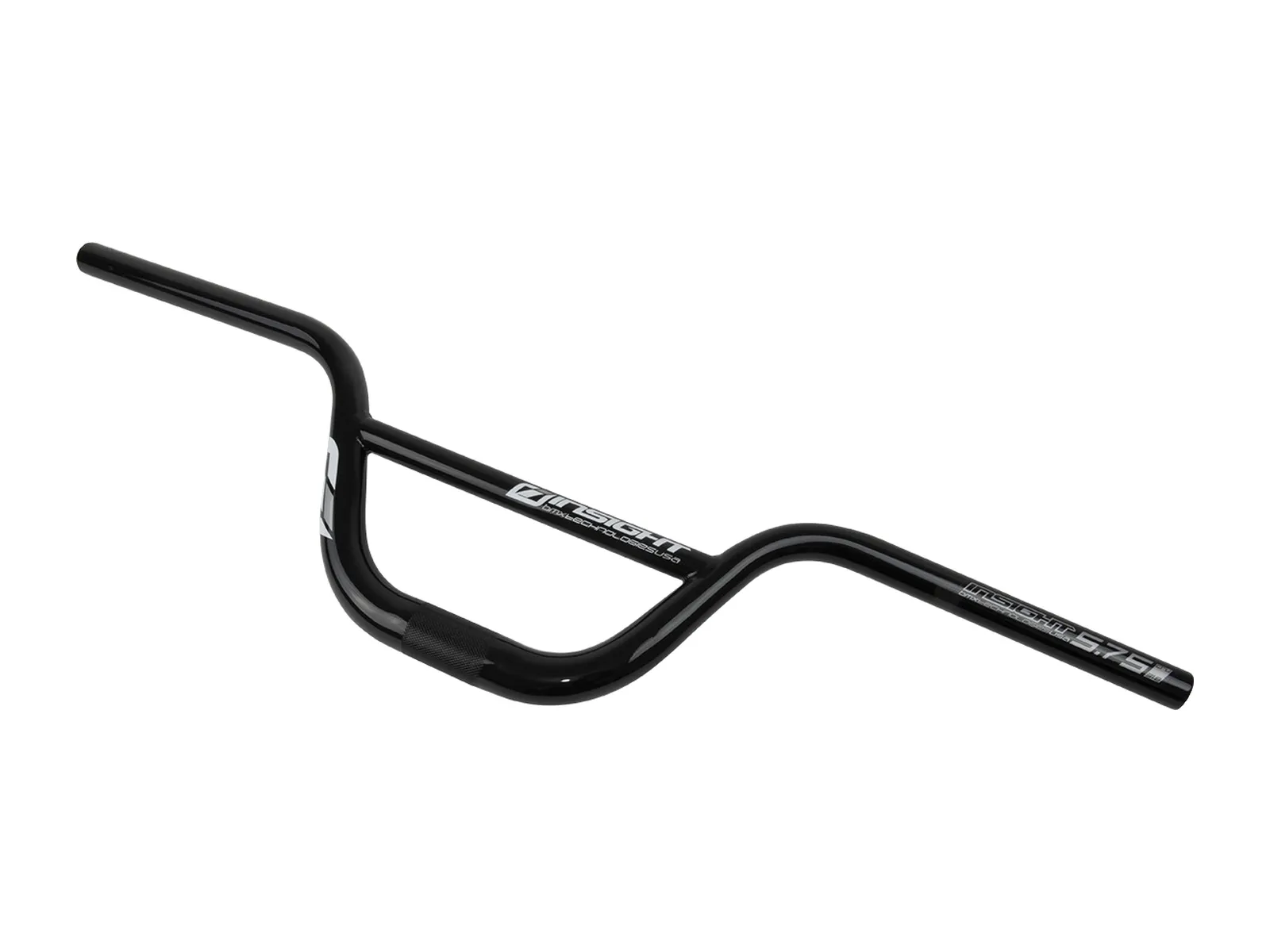

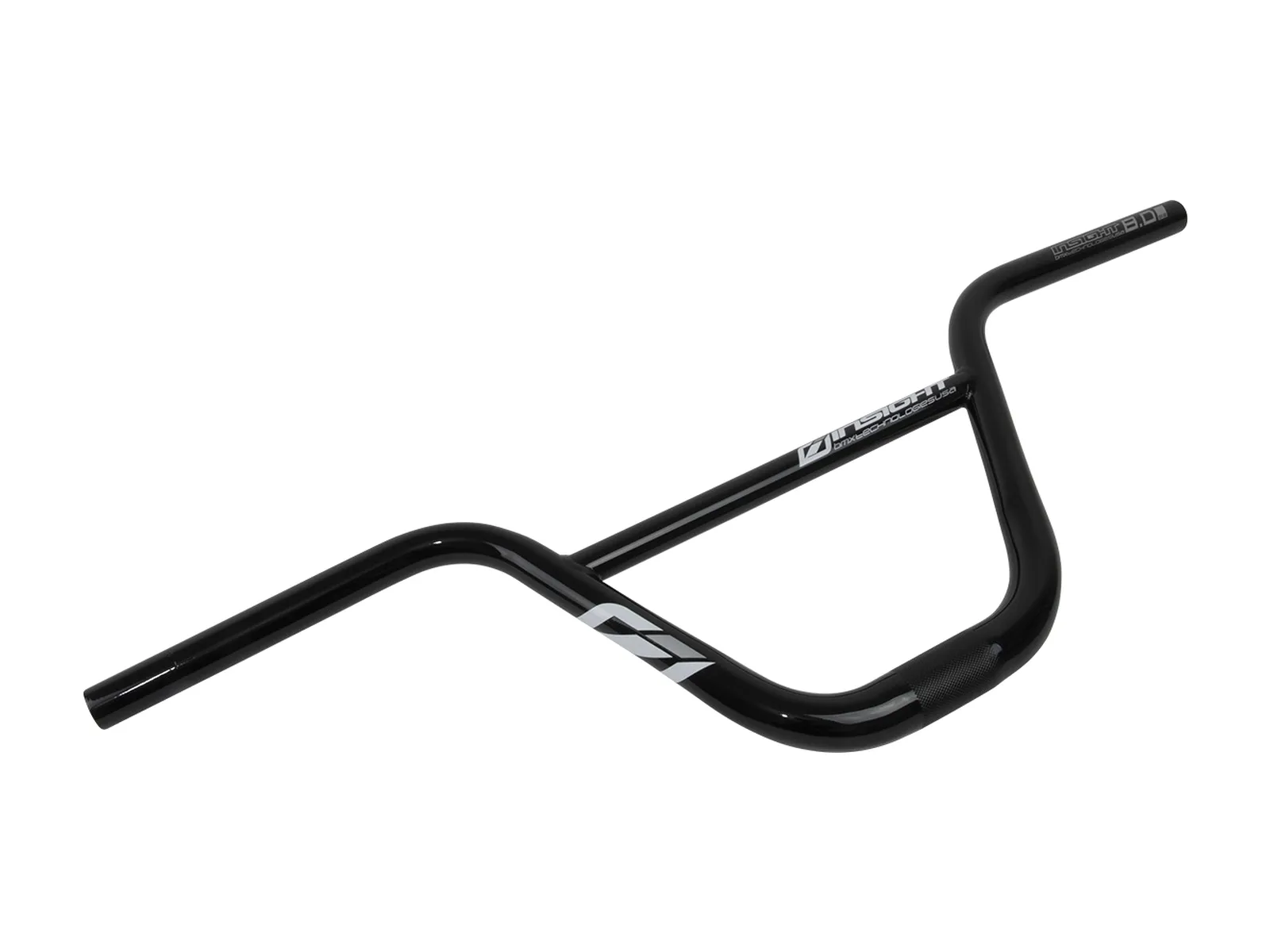

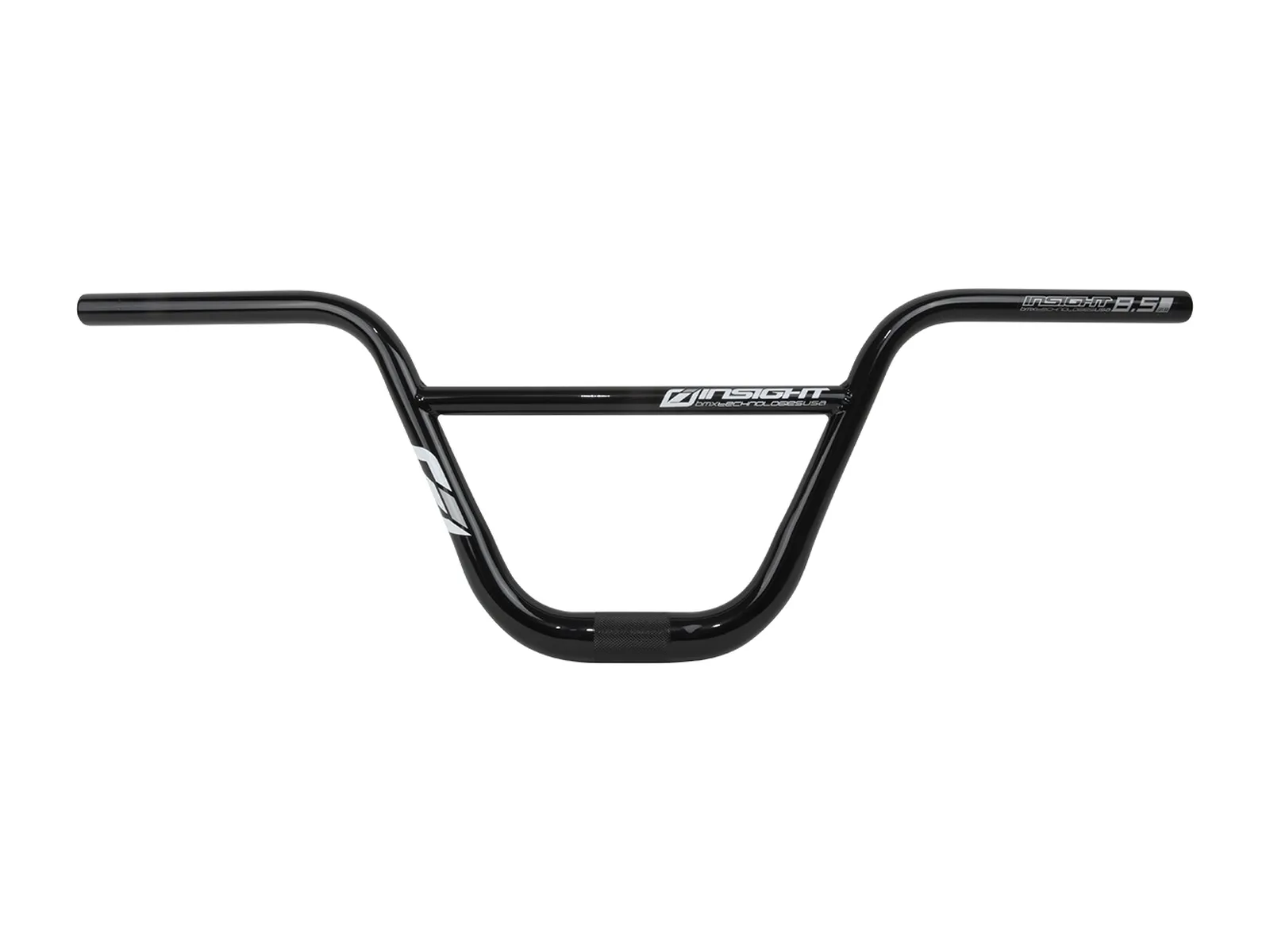

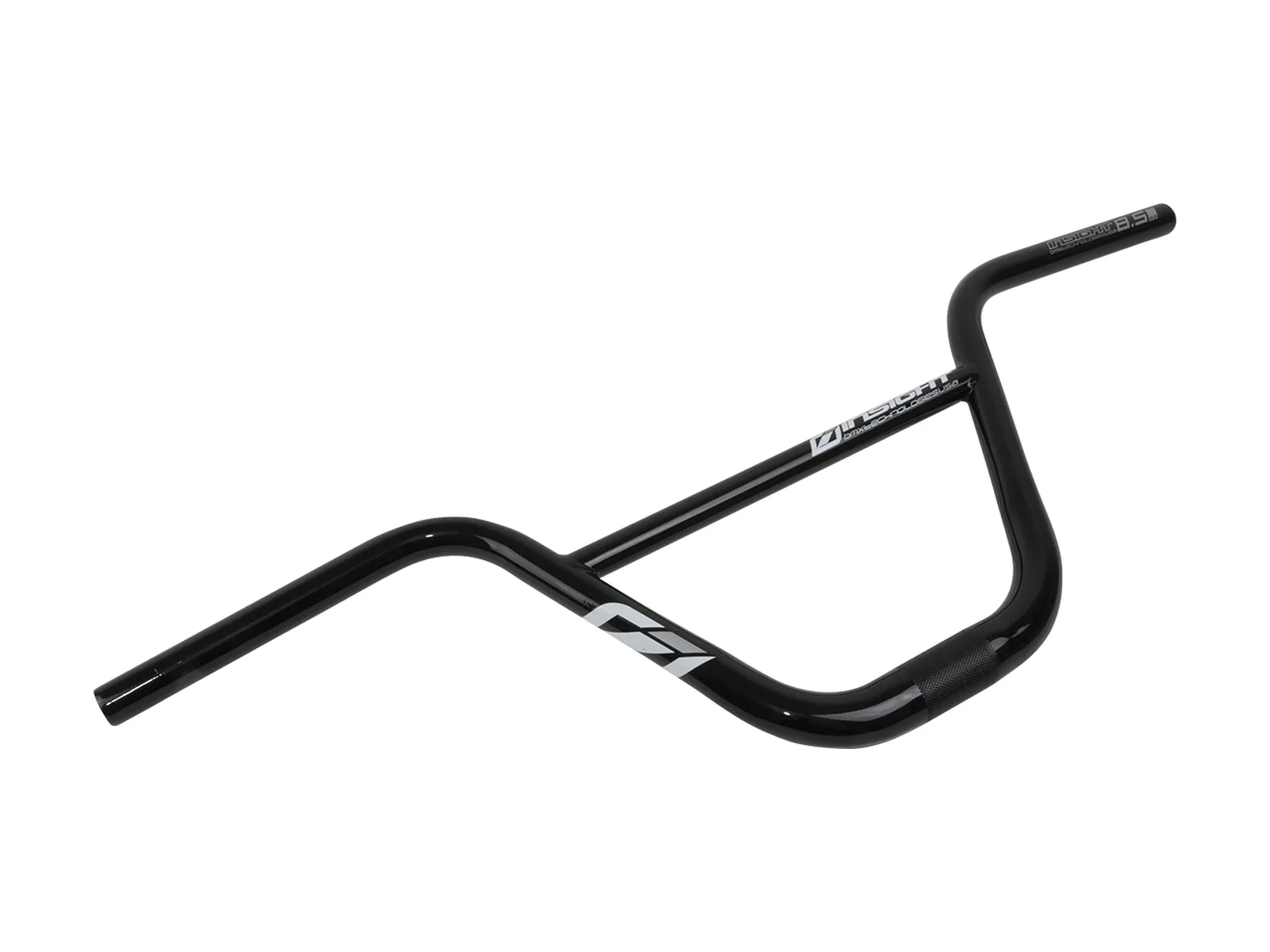

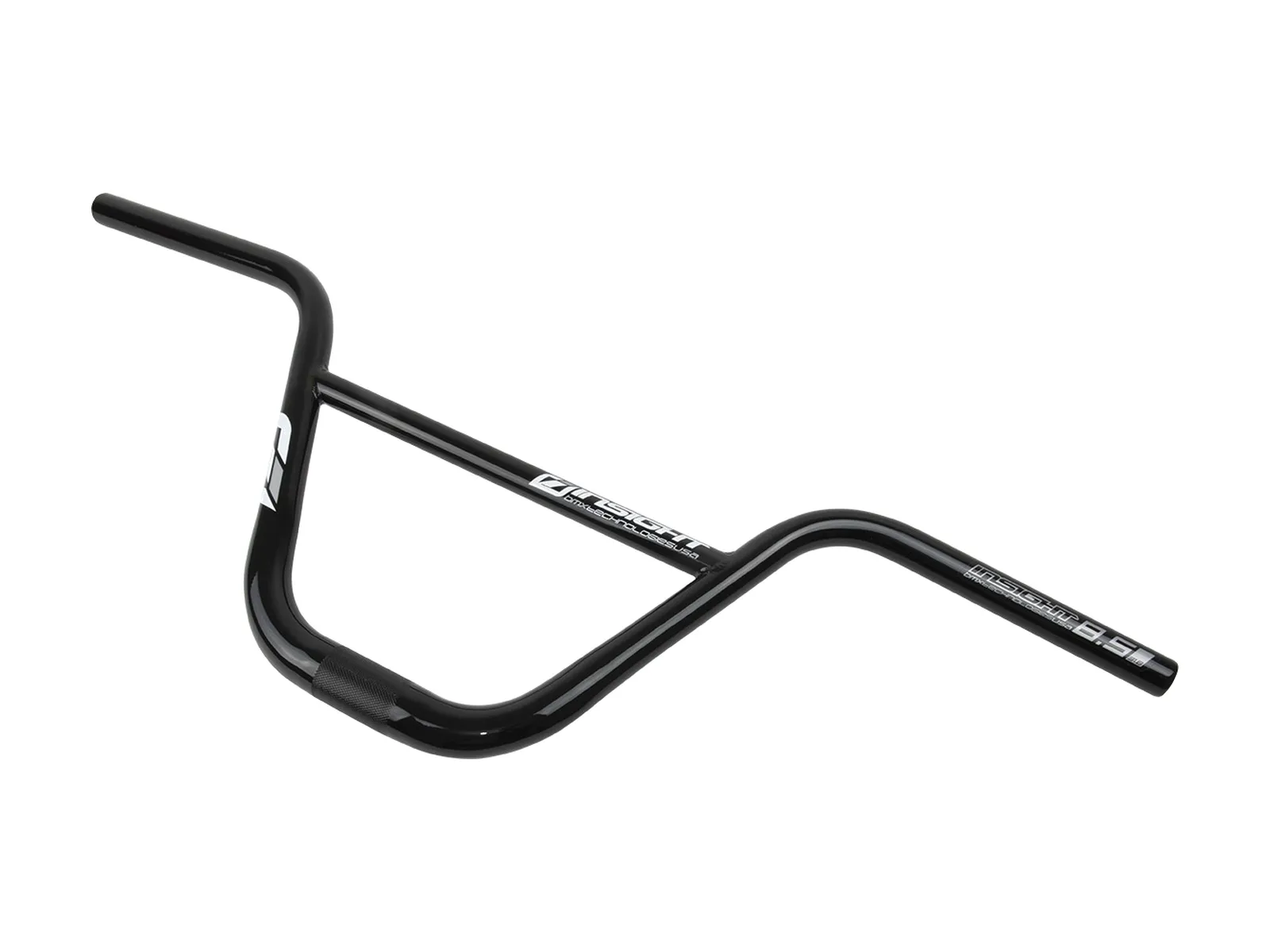

The Insight "Chromoly" BMX Race Handlebar - Ø31.8mm is the Insight chromoly bar with a 31.8mm clamp. The larger clamp diameter comes from mountain biking and makes the cockpit noticeably stiffer. The bar is made from 4130 chromoly, has a light 3/4 crossbar and a knurled clamp area that keeps the bar from slipping in the stem.

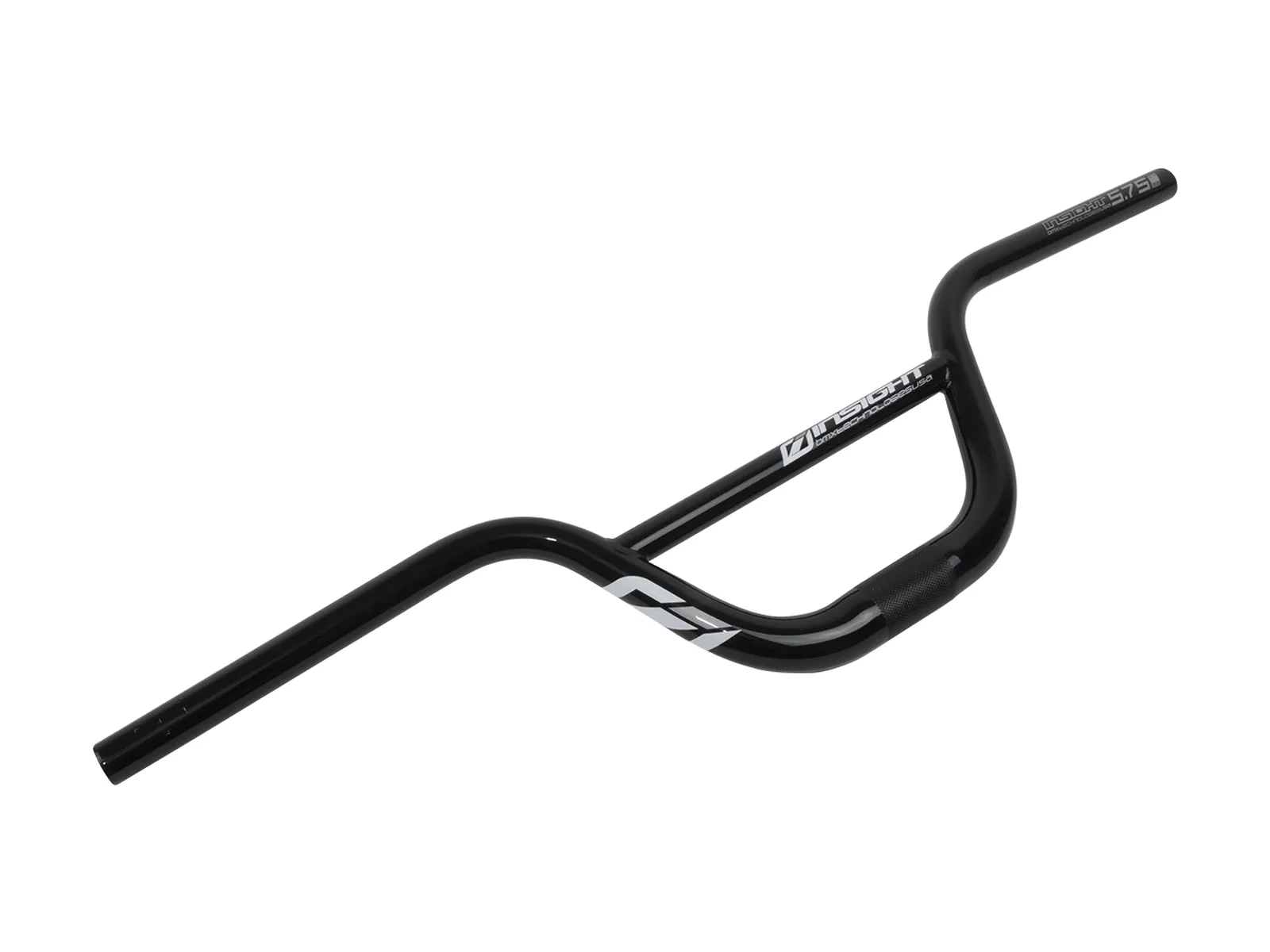

All heights have 10° backsweep and 2° upsweep. The 5.75" cruiser version is 26.25" wide and weighs 940g, the 7.5" version is 28" wide and weighs 950g, the 8.0" version is 28.5" wide and weighs 1010g, the 8.5" version is also 28.5" wide and weighs 1052g. Choose the height as an option, you need a stem with a 31.8mm bar clamp.
Facts: Insight "Chromoly" BMX Race Handlebar - Ø31.8mm
- Material: 4130 chromoly
- Bar-Design: 4-piece, with 3/4 crossbar
- Geometry:
- Height: 5.75", 7.5", 8.0" or 8.5"
- Width: 26.25" (5.75"), 28" (7.5"), 28.5" (8.0"), 28.5" (8.5")
- Backsweep: 10°
- Upsweep: 2° - Clamping: 31.8mm
- Recommended for: Race
- Extras: knurled clamp area, weight 940g (5.75"), 950g (7.5"), 1010g (8.0"), 1052g (8.5")
- Content: 1 handlebar
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
