Insight "Pro Cruiser" BMX Race Fork - 24 Inch - 10mm
- Weight : 1.06kg / 2.34lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 45531
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-pro-cruiser-bmx-race-fork-24-inch-10mm-p-45531
Printed: 10/29/2026
Printed: 10/29/2026

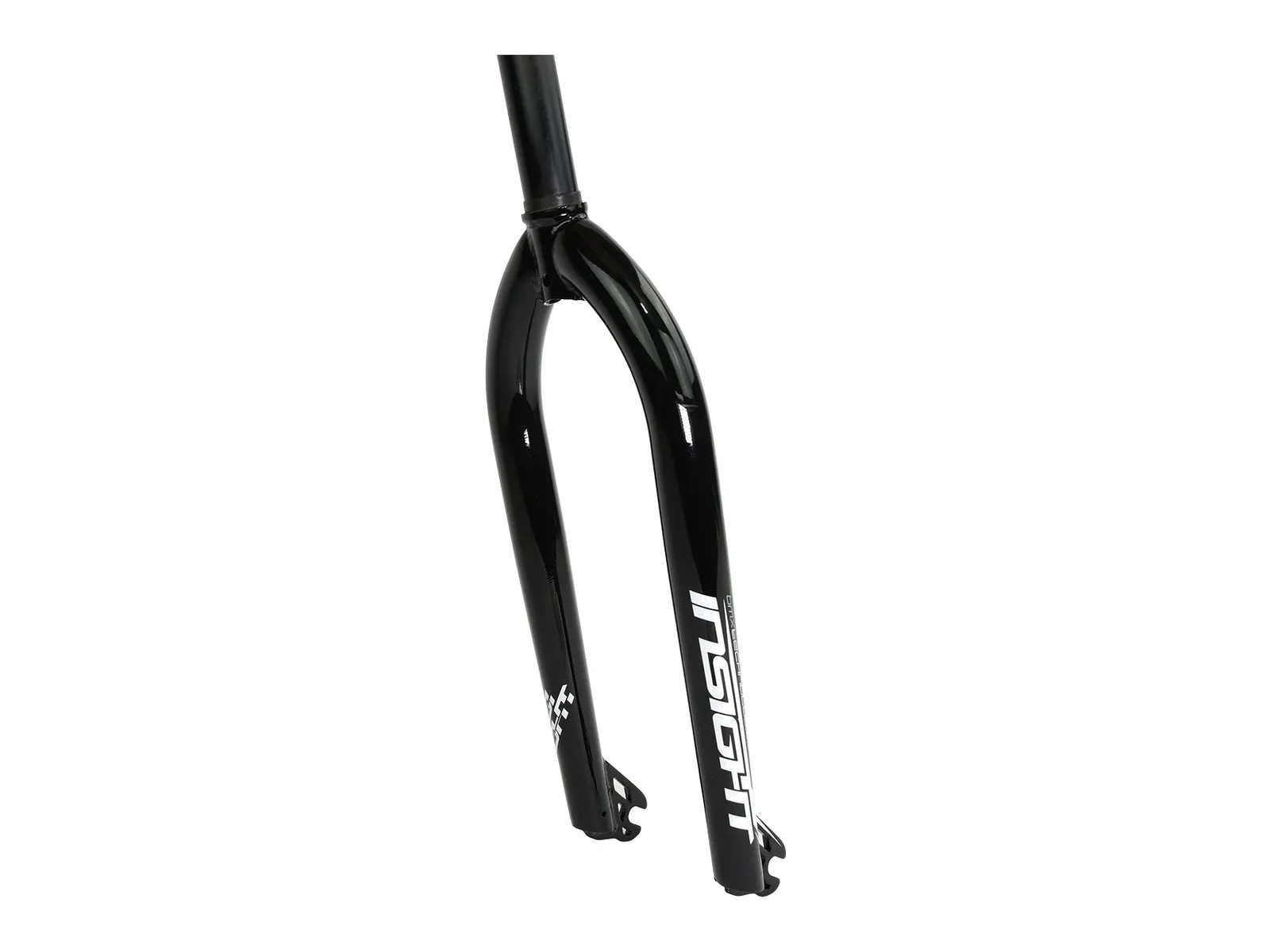

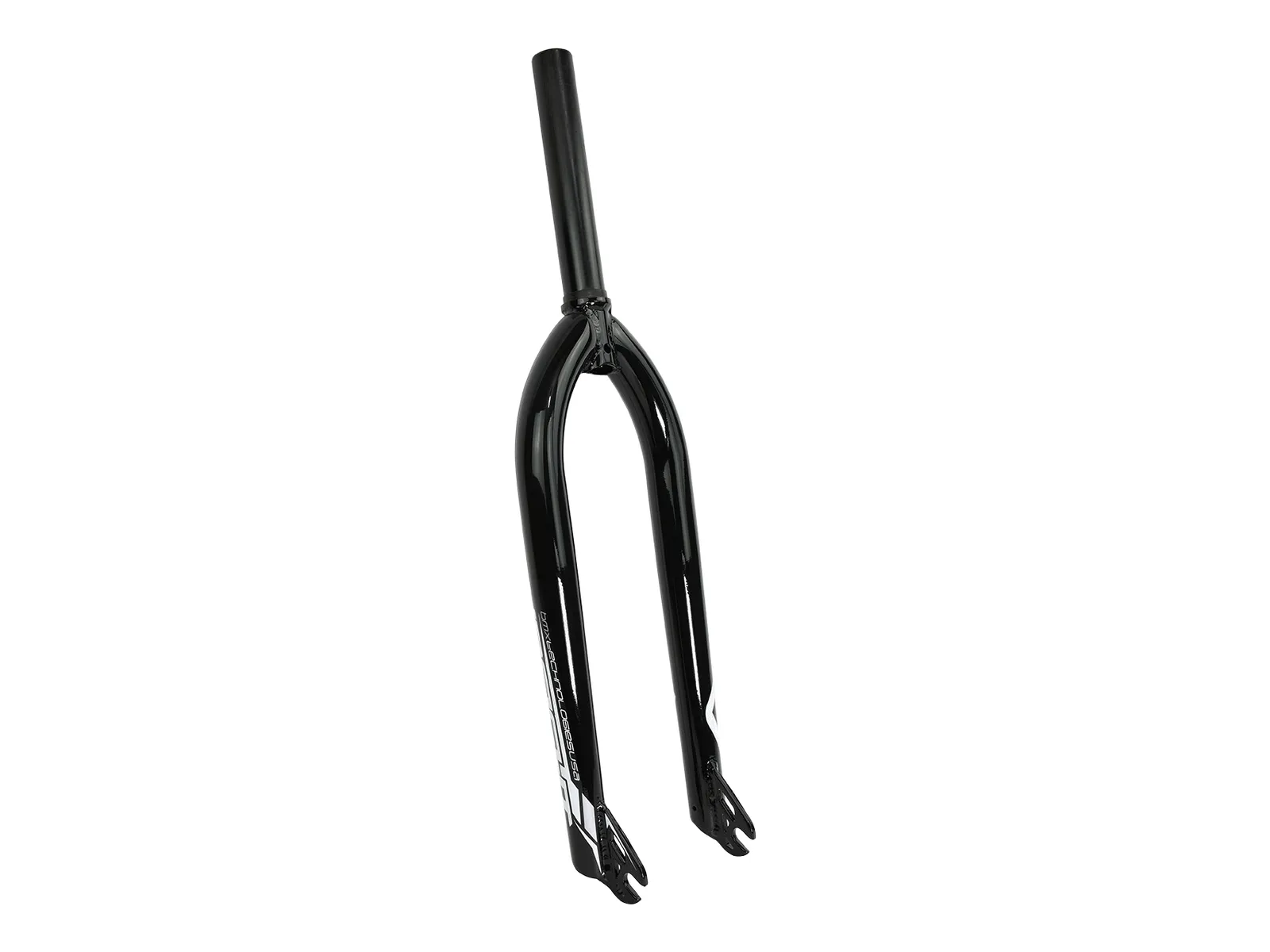

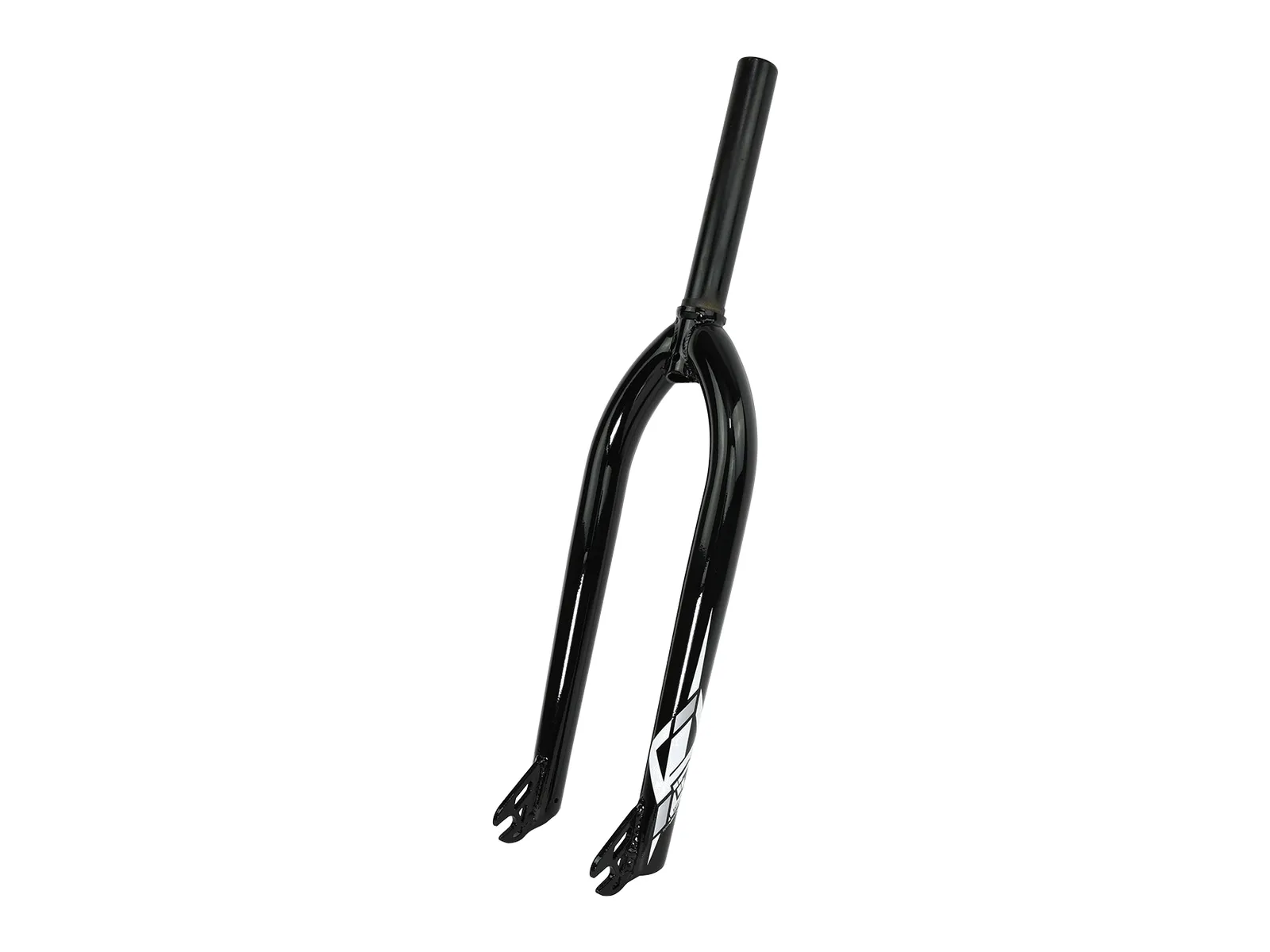

The Insight "Pro Cruiser" BMX Race Fork - 24 Inch - 10mm is the Insight chromoly fork for 24" cruiser frames with a 1-1/8" head tube. It is made from heat treated 4130 chromoly and has butted, tapered legs, so it stays strong and saves some weight over a stock fork. Insight states 1056g.
The CNC machined dropouts take a 10mm axle, the offset is 29mm and the steerer is 172mm long. A top cap is not included.
Facts: Insight "Pro Cruiser" BMX Race Fork - 24 Inch - 10mm
- Wheel Size: 24"
- Material: 4130 chromoly, heat treated, butted and tapered legs
- Steerer Tube Diameter: 1-1/8" (28.6mm)
- Steerer Tube Length: 172mm
- Top Bolt: not included
- Dropouts: CNC machined, 10mm (3/8") axles
- Offset: 29mm
- Recommended for: Race
- Extras: for 24" cruiser frames with a 1-1/8" head tube
- Content: 1 fork without top cap
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
