Insight "Euro BSA" BMX Race Bottom Bracket - ISIS
- Weight : 0.28kg / 0.62lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45518
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/insight-euro-bsa-bmx-race-bottom-bracket-isis-p-45518
Printed: 10/29/2026
Printed: 10/29/2026

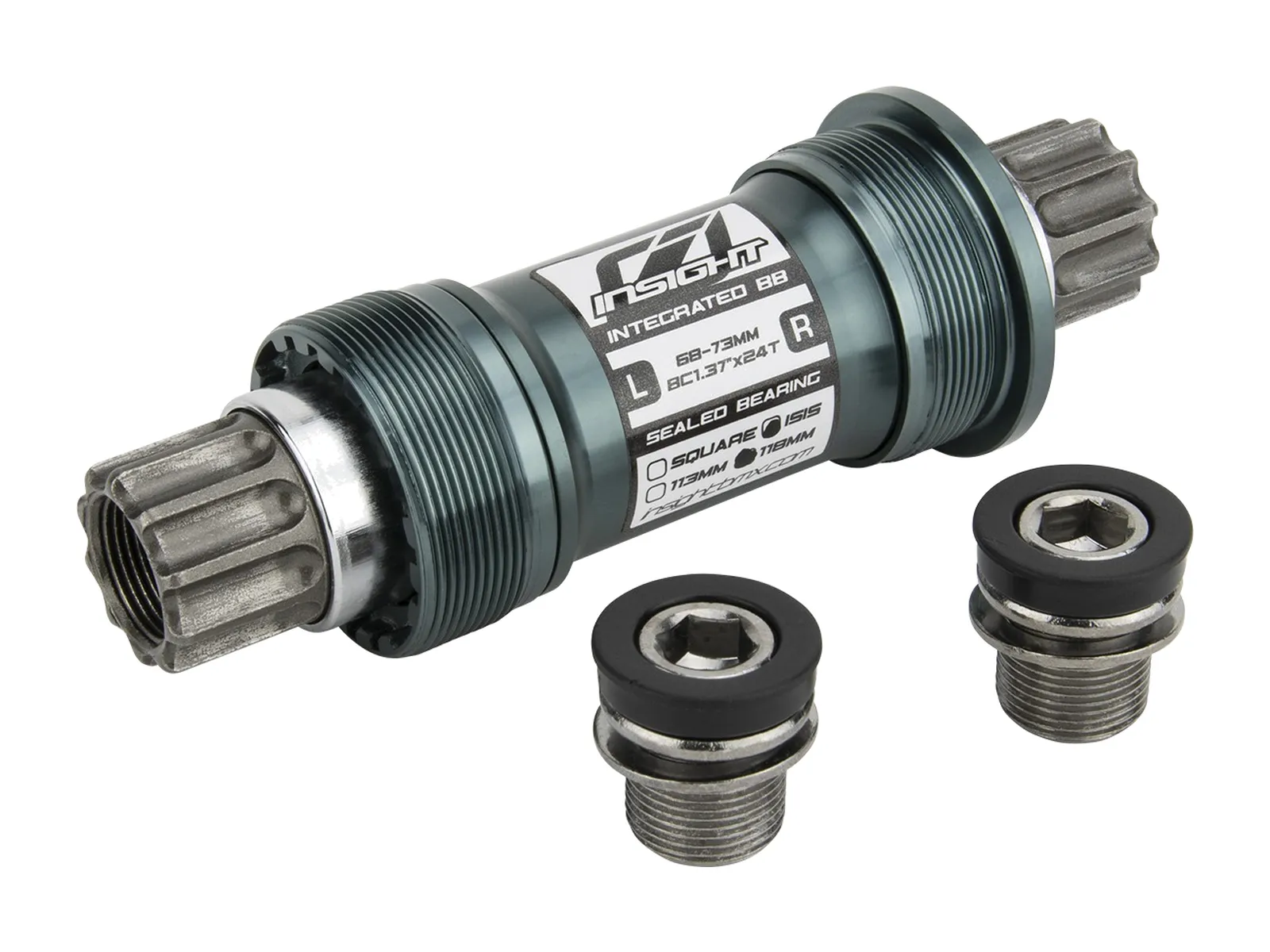

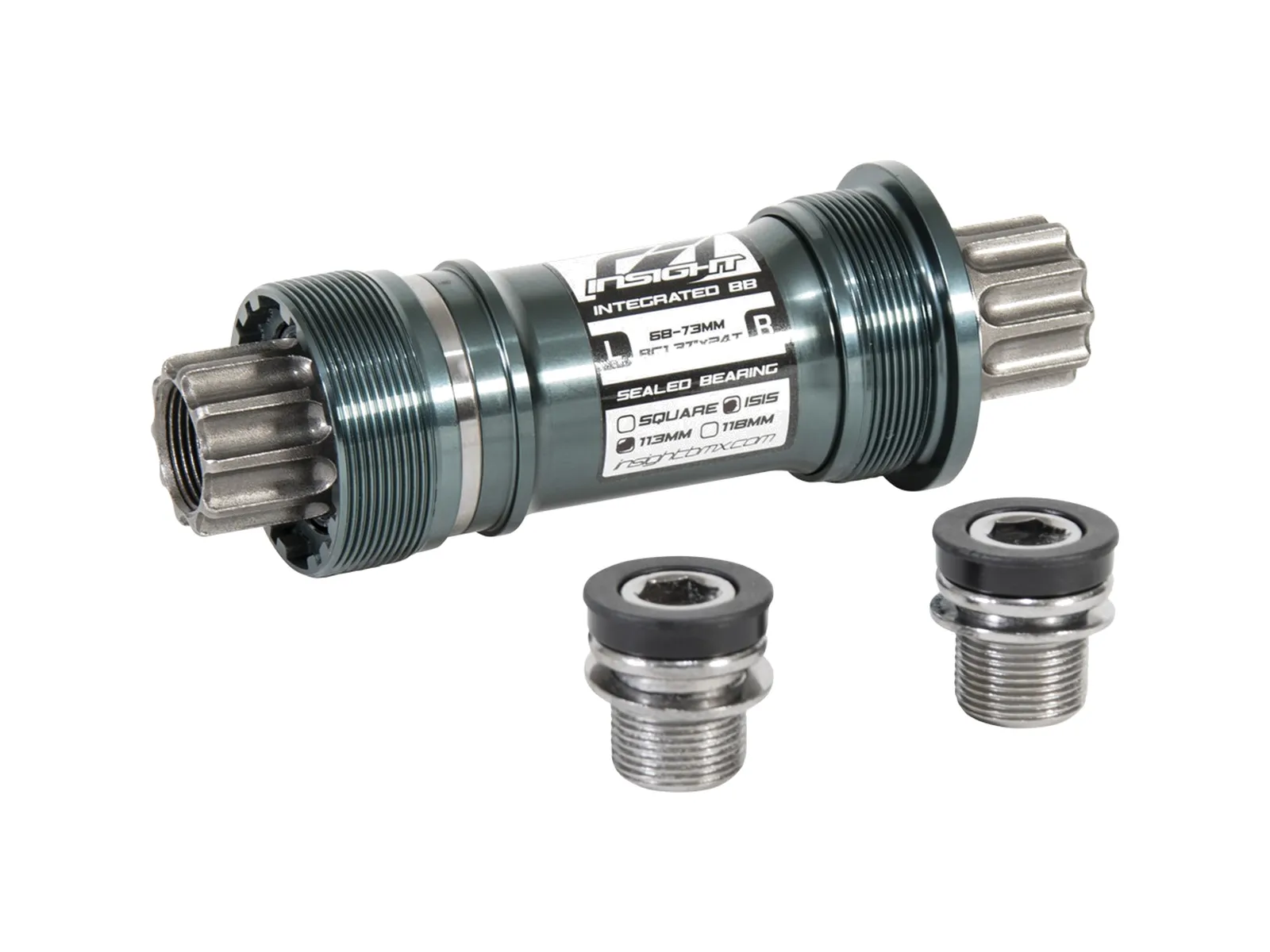

The Insight "Euro BSA" BMX Race Bottom Bracket - ISIS is a cartridge bottom bracket for frames with a Euro bottom bracket shell (BSA/BSC thread, 68mm wide) and cranks with an ISIS splined spindle. The hollow chromoly spindle saves weight, and the large sealed bearings spin smoothly without play.
Insight intends it for young riders. The spindle comes in 113mm and 118mm length, two M15 spindle bolts are included. To find the right length, measure the spindle of your old bottom bracket.
Facts: Insight "Euro BSA" BMX Race Bottom Bracket - ISIS
- Style: BSA (Euro, cartridge)
- Thread: BSA/BSC
- Shell width: 68mm
- Outside diameter: 34.5mm
- Axle Diameter: ISIS (splined)
- Axle length: 113mm or 118mm
- Bearings: 2 x sealed bearings
- Material: cups aluminium, forged, spindle chromoly, hollow
- Contains: 1 cartridge bottom bracket, 2 spindle bolts M15 x 1.0, 2 spacers
- Extras: for cranks with ISIS interface only, weight 277g (118mm)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
