KHE Bikes "Prism" BMX Fork - With Brake Mounts
- Weight : 1.14kg / 2.51lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 41634
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/khe-bikes-prism-bmx-fork-with-brake-mounts-p-41634
Printed: 11/14/2026
Printed: 11/14/2026

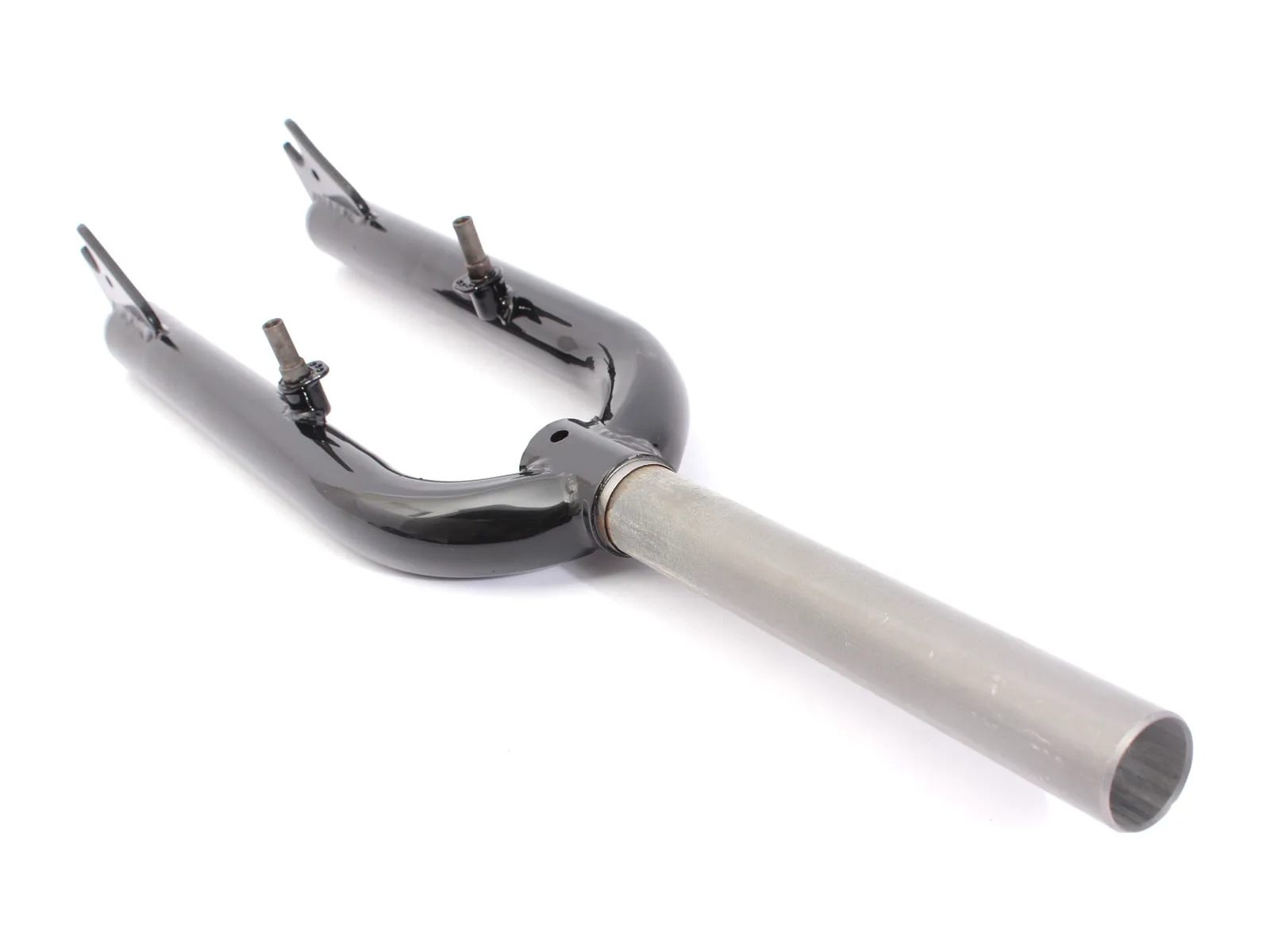

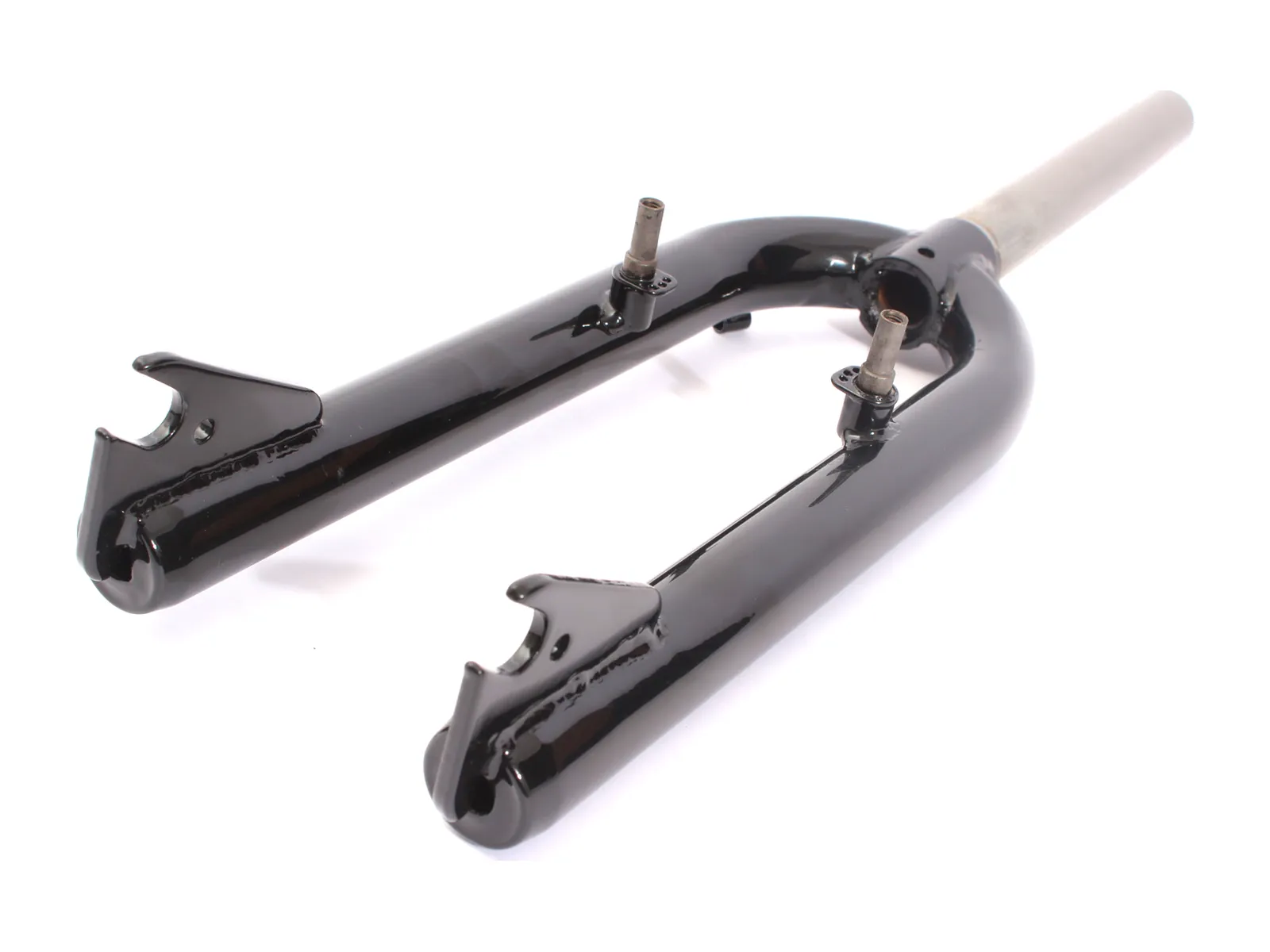

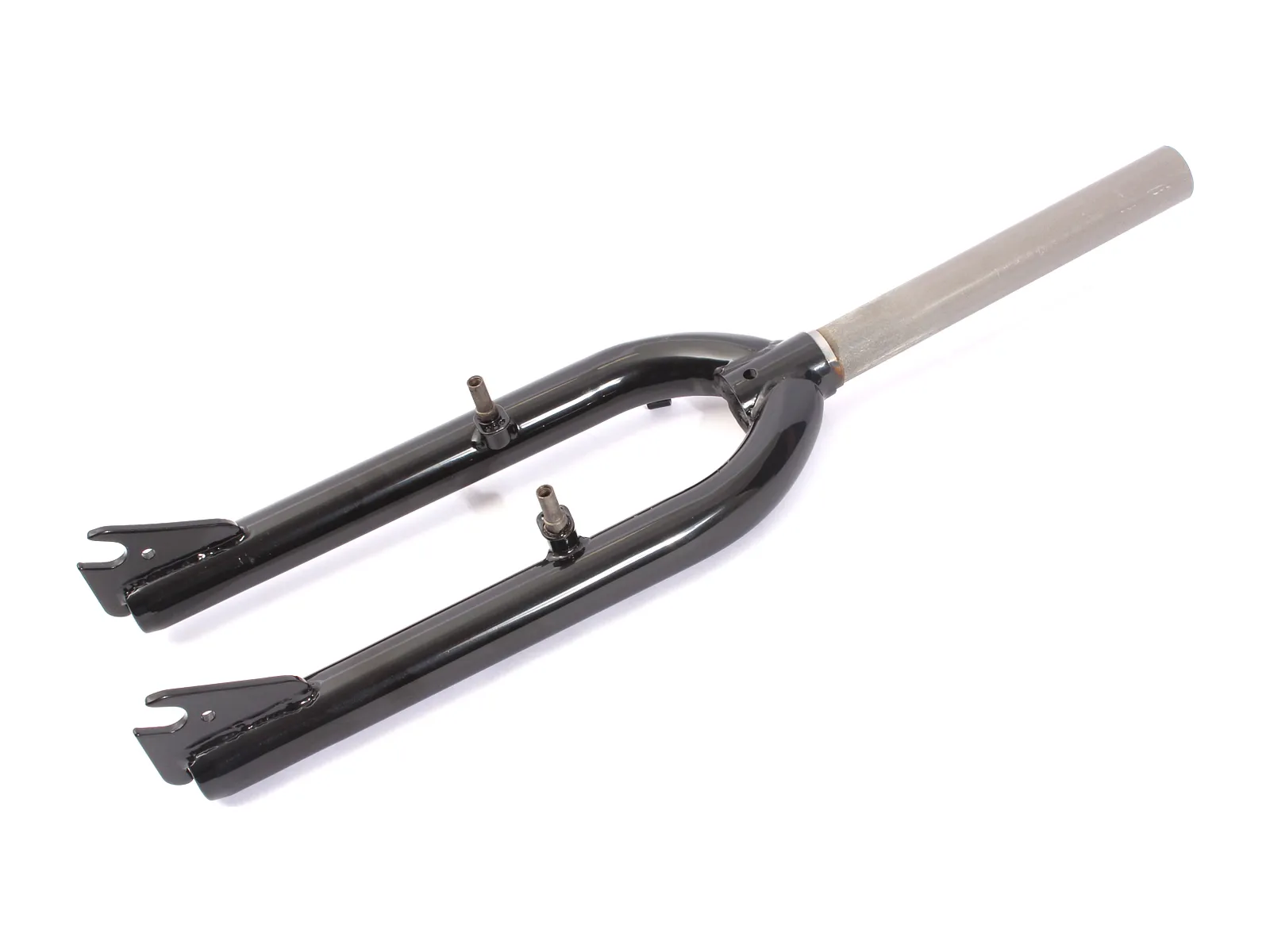

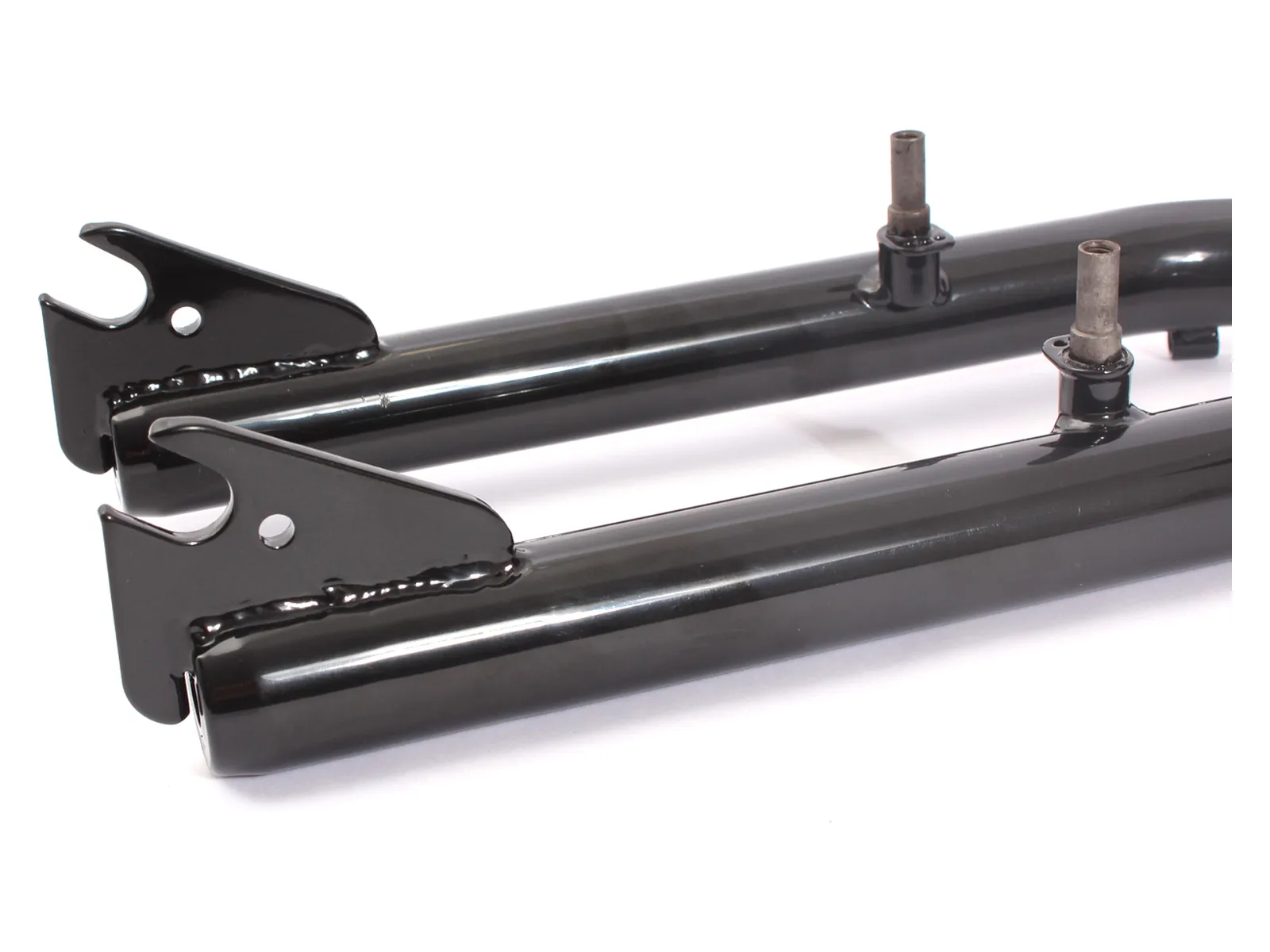

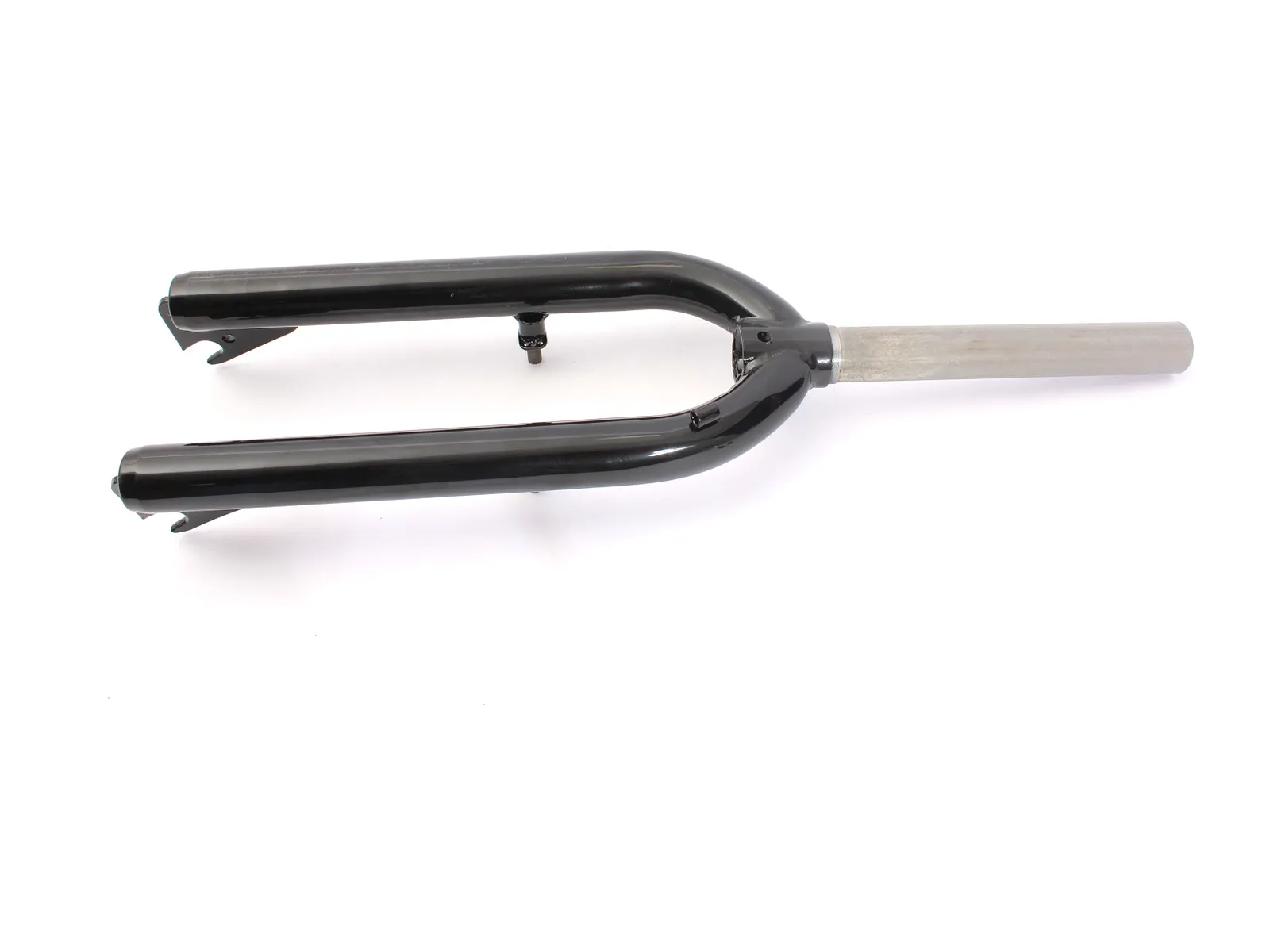

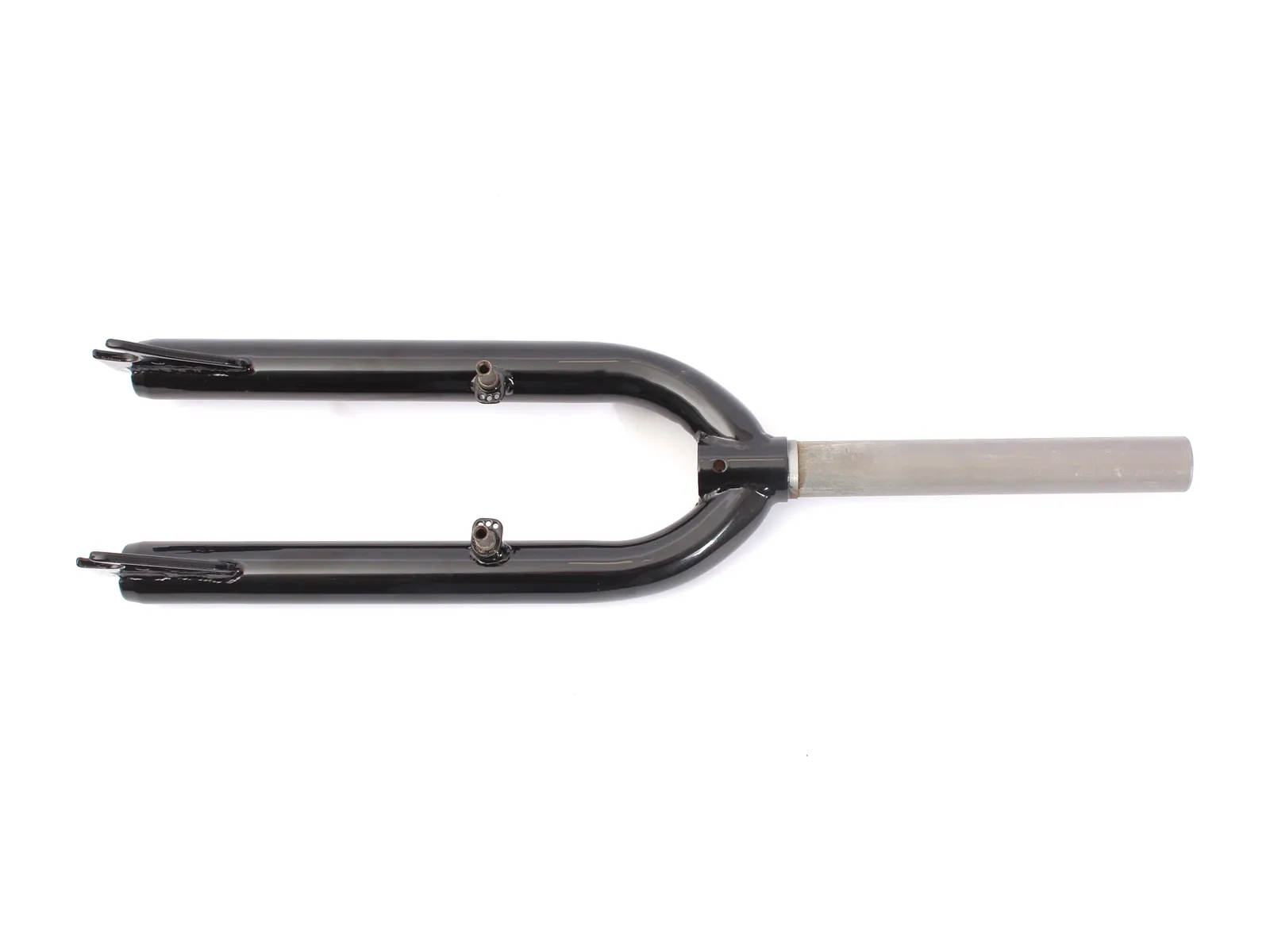

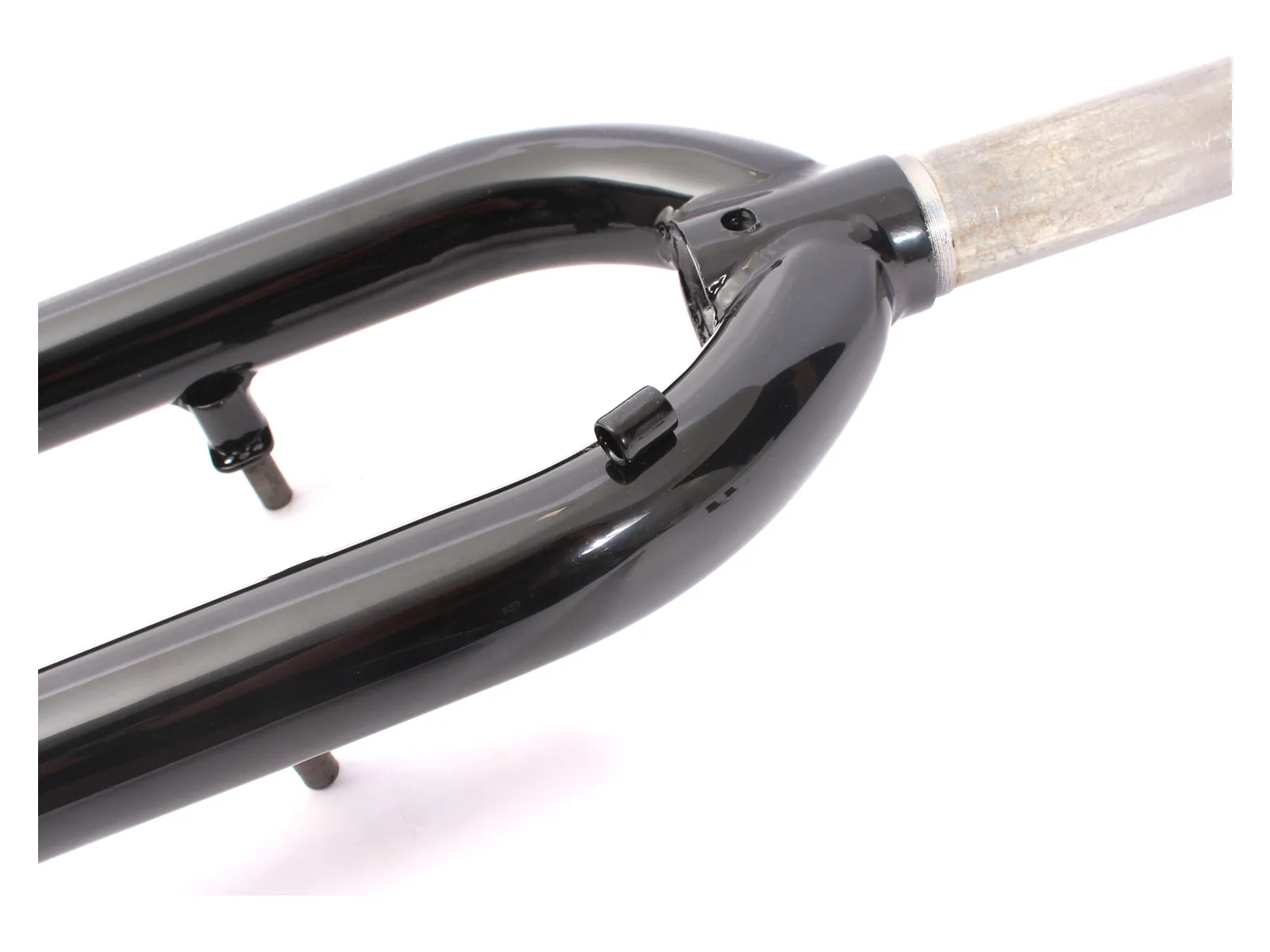

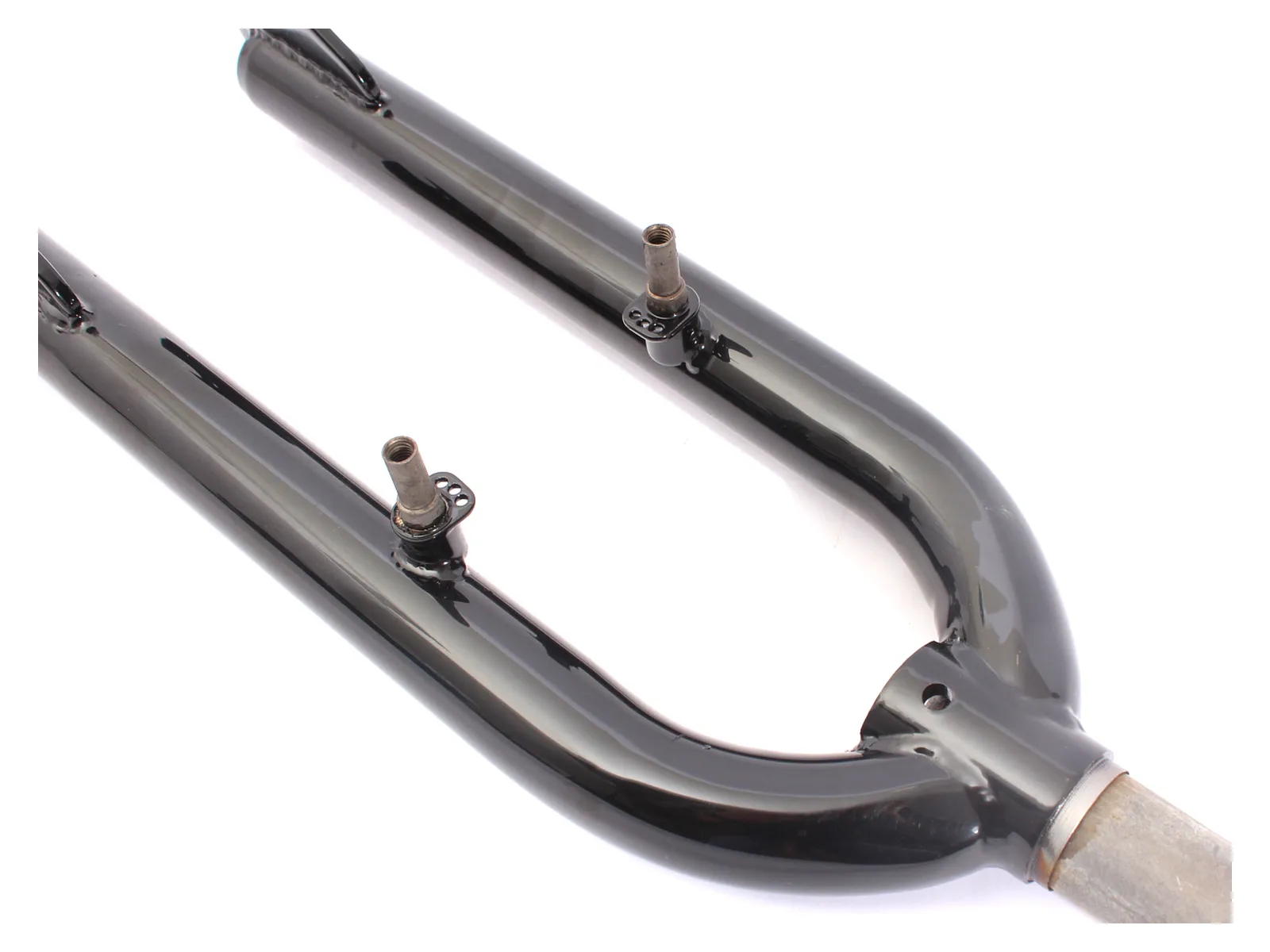

The KHE Bikes "Prism" BMX Fork - With Brake Mounts is a sturdy 20 inch steel BMX fork with welded-on brake mounts for a V-brake. The 1 1/8 inch threadless steerer is 200 mm long, the fork measures 320 mm in installation height and 100 mm in hub spacing. There is room for tires up to about 80 mm wide between the legs. The dropouts take 14 mm axles, and 10 mm axles can be run with adapters. The fork weighs 1,140 g.
Facts: KHE Bikes "Prism" BMX Fork - With Brake Mounts
- Wheel Size: 20"
- Material: Steel
- Steerer Tube Diameter: 1-1/8" (28.6mm), threadless
- Steerer Tube Length: 200mm
- Dropouts: 14mm axles (10mm axles with adapter)
- Brake Mounts: with (welded)
- Brake Typ: V-Brake
- Recommended for: Trails
- Extras:
- Installation height 320mm
- Hub spacing 100mm
- Tire clearance max. approx. 80mm
