Meybo "HSX AL Expert" 2026 BMX Race Frame + Fork Set
- Weight : 2.08kg / 4.59lbs
- Packaging Unit: 1 Set
- Product ID (PID): 42555
- Product safety
Weight
Source: BMX Glossary
Printed: 11/23/2026

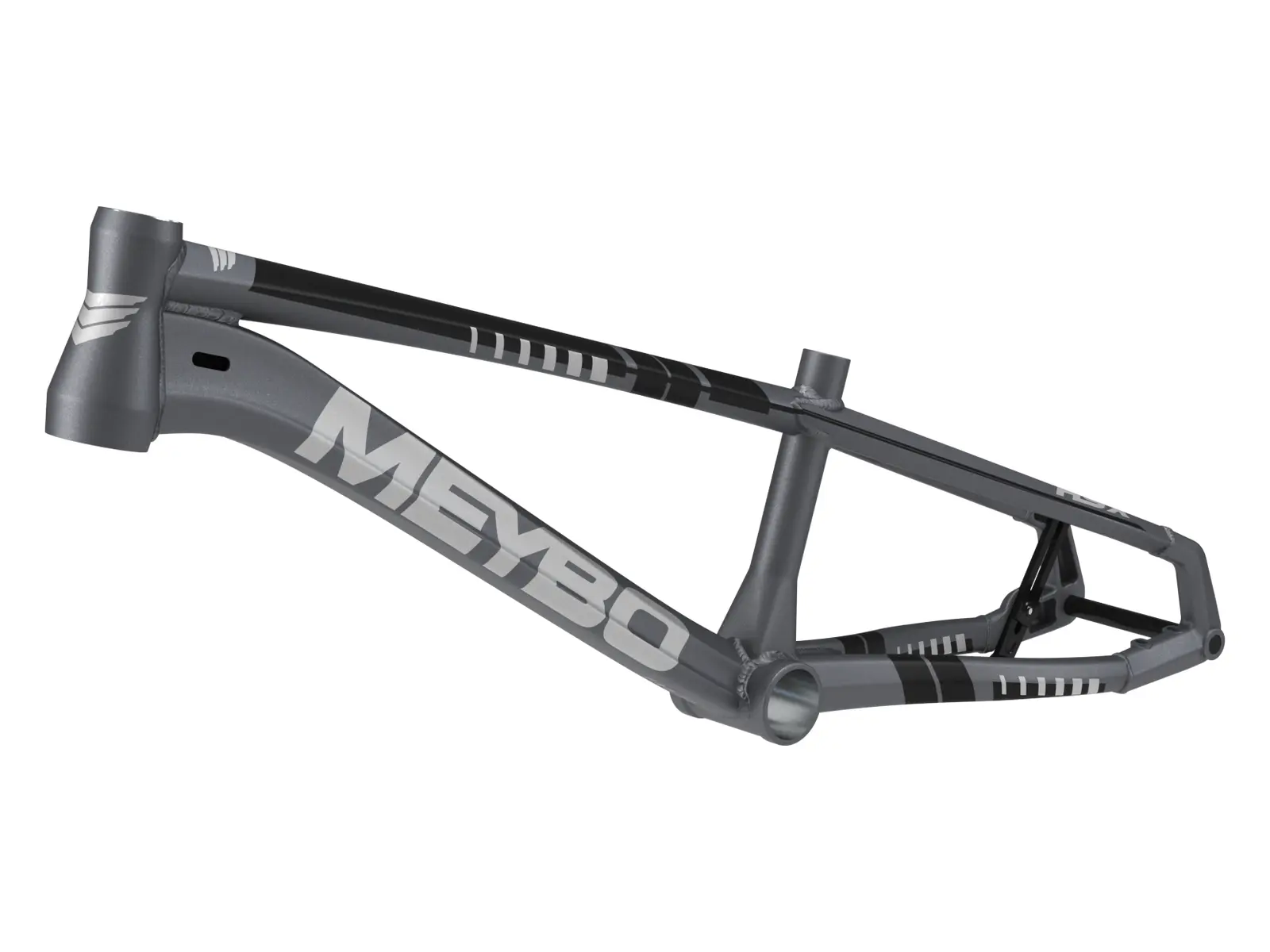

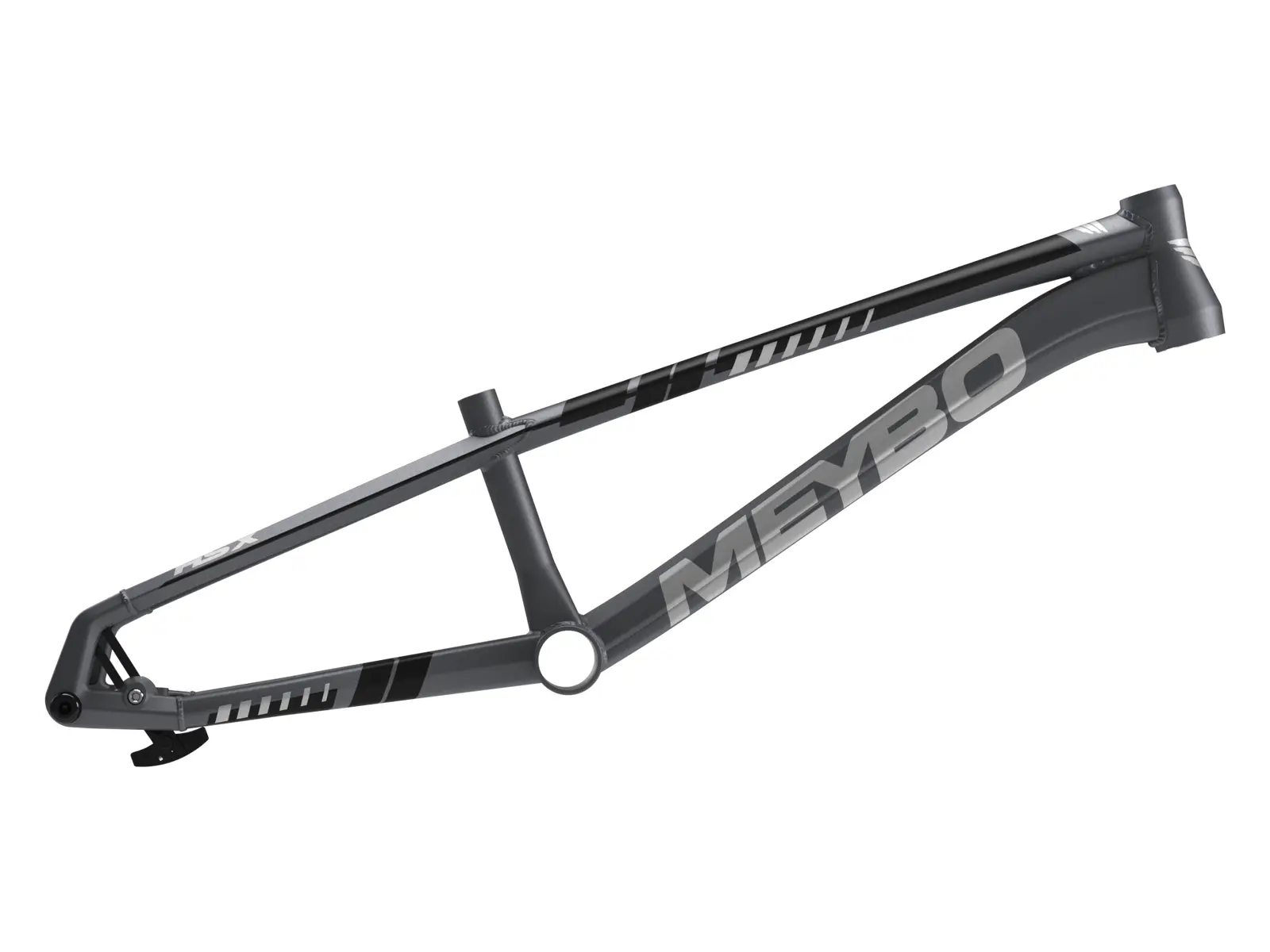

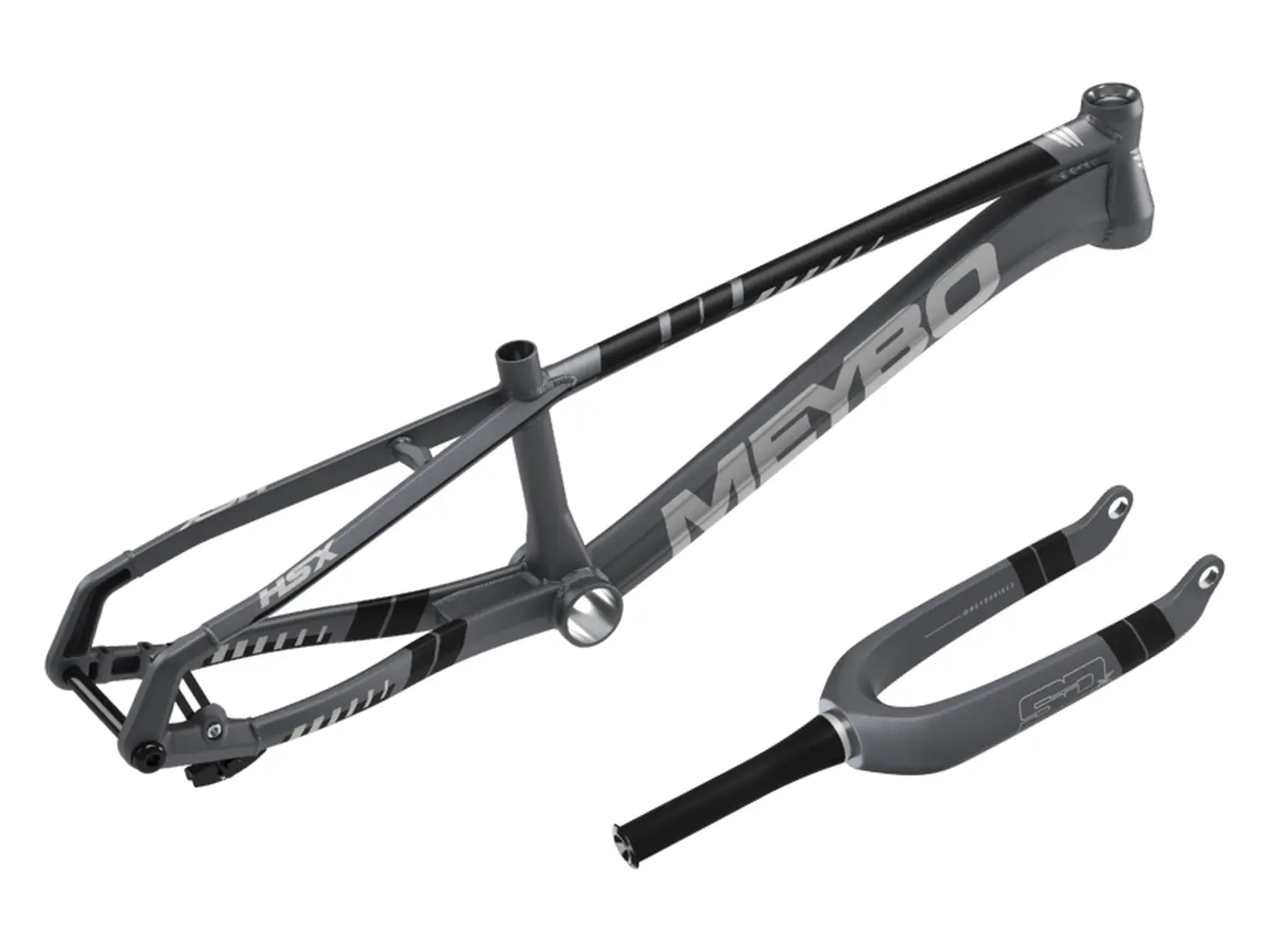

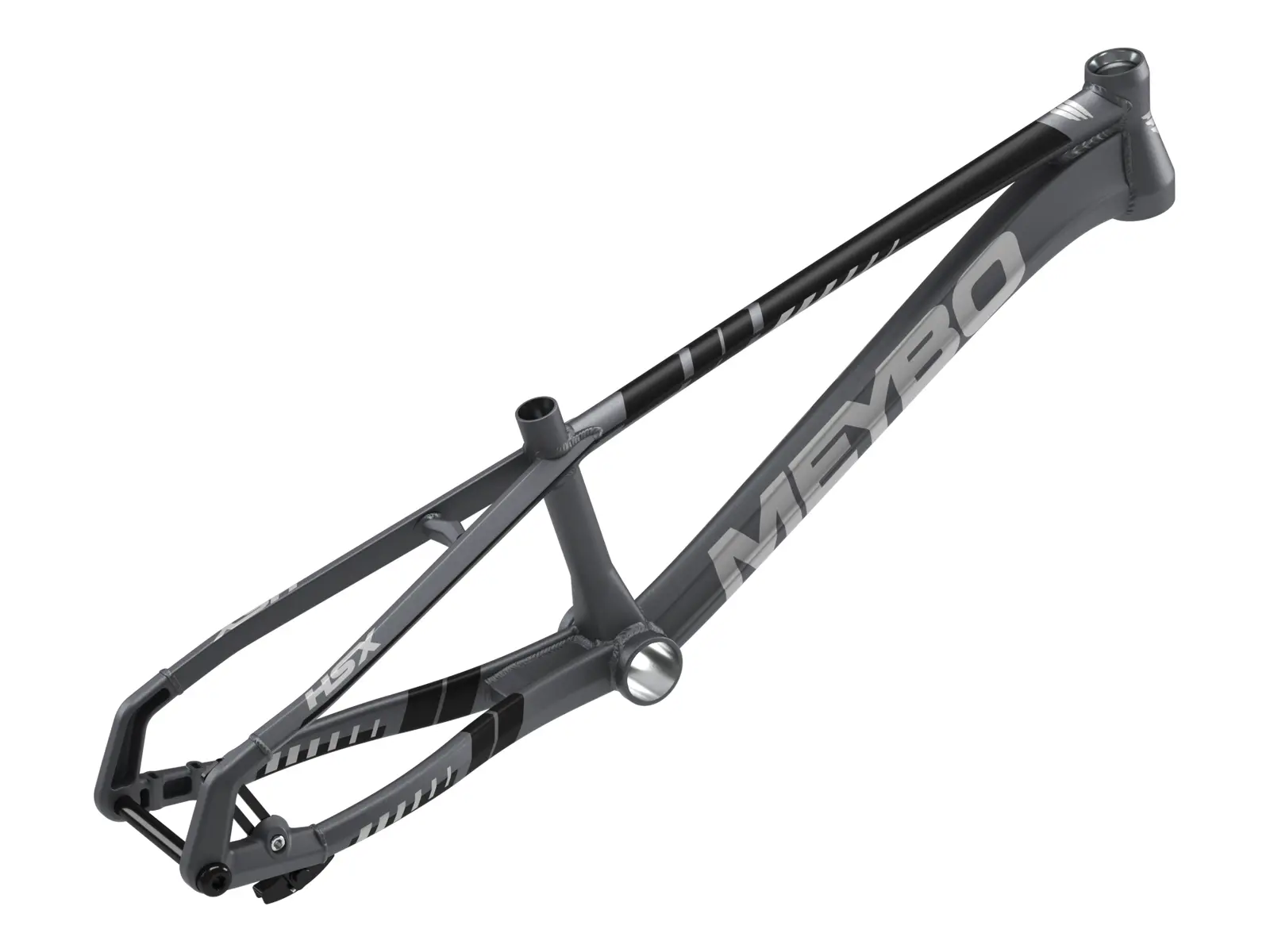

The Meybo "HSX AL Expert" 2026 BMX Race Frame + Fork Set combines the Meybo "HSX AL" frame with the SD Components "Carbon V2" fork. The HSX AL is the fastest aluminum frame in the Meybo line-up: hydroformed, multi-butted 6061-T6 tubing, a geometry developed for championship and World Cup tracks, and almost all tubes reworked for the new model for more stiffness at less weight.
The frame is compatible with flat mount brake calipers and 120mm rotors only (not 140mm); 1, 2 and 4mm spacers for rotor alignment are included. Depending on the size it uses a BB86 (Expert, Expert XL) or a BB386 EVO press fit bottom bracket. At the rear, a CNC-machined 15mm thru axle in 7005 aluminum keeps the rear triangle stiff, and the integrated Meybo chain tensioner keeps the chain tension constant with any gearing.

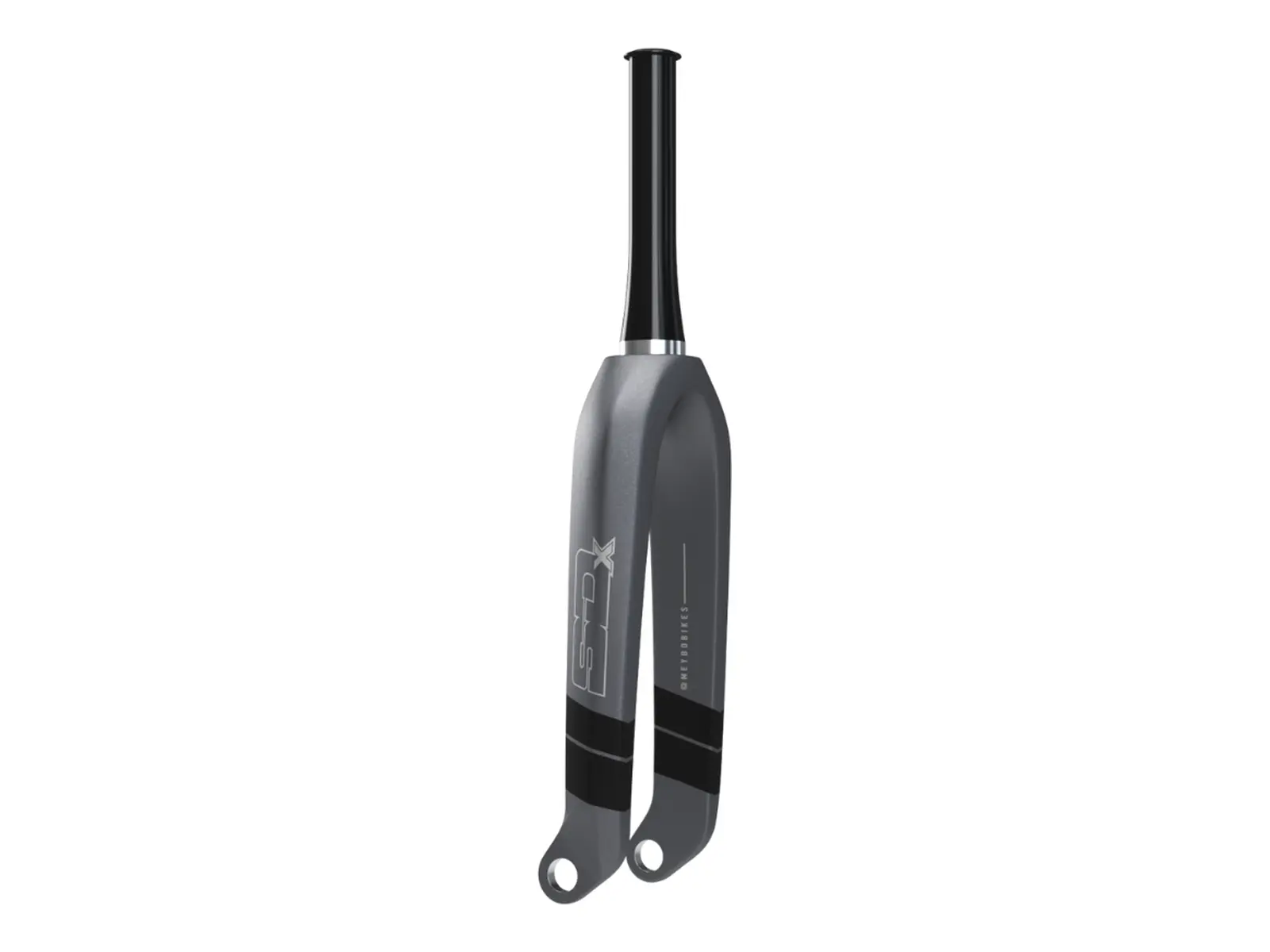

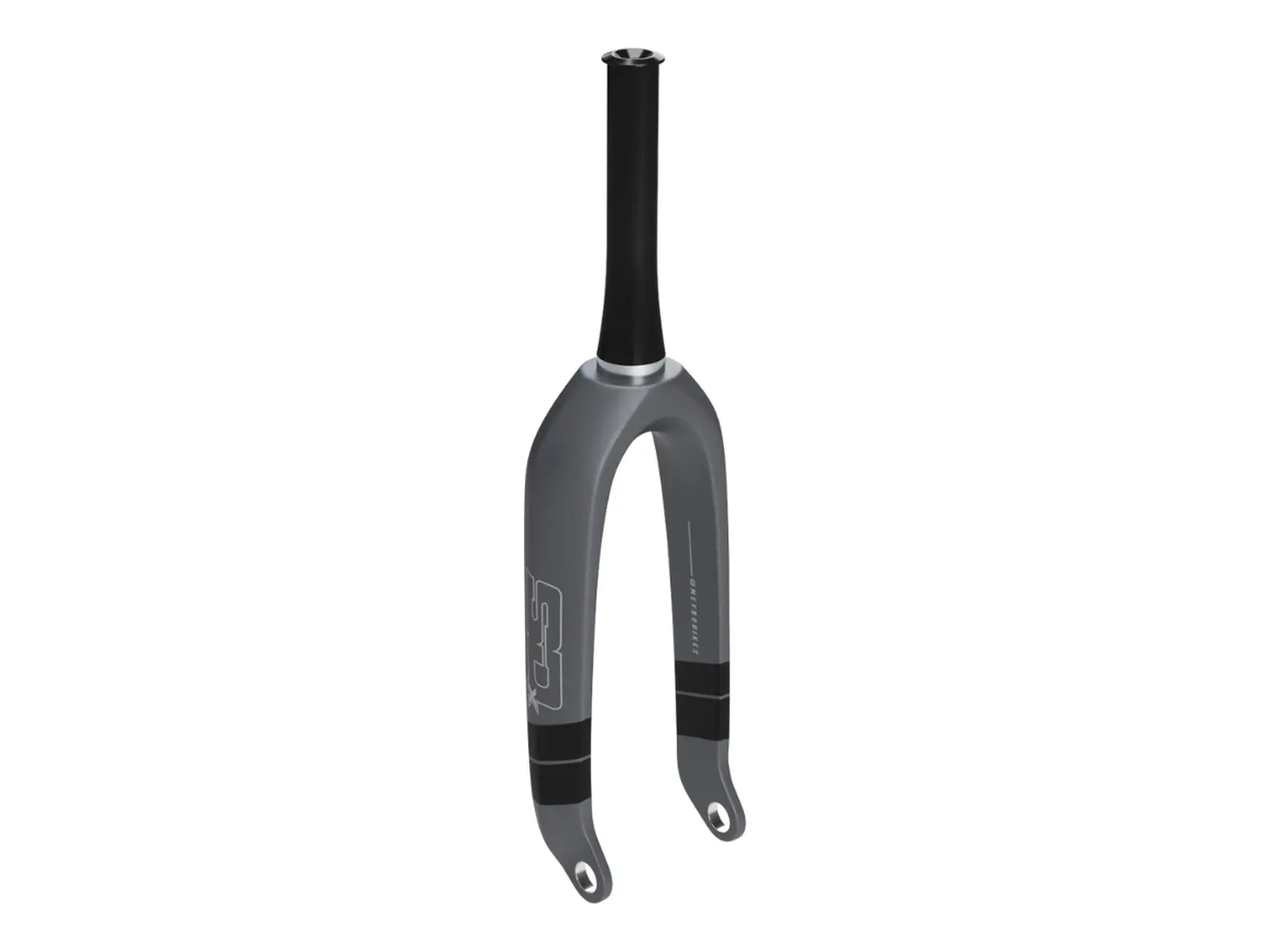

The SD Components "Carbon V2" fork has carbon legs and a 7075-T6 aluminum steerer. Frame and fork comply with the CPSC and EN 14781 standards.
Facts: Meybo "HSX AL Expert" 2026 BMX Race Frame + Fork Set
- Frame: Meybo "HSX AL Expert" 2026 BMX Race Frame
- Wheel size: 20"
- Race size: Expert
- Model year: 2026
- Material: 100% 6061-T6 aluminum, hydroformed multi-butted tubing
- Geometry:
- Top Tube (TT): 19.69"
- Chainstay (CS): 13.39" (340mm), fixed
- Head Tube Angle (HA): 73.5°
- Seat Tube Angle (SA): 71° - Head tube: 1-1/8"
- Bottom bracket: BB86 (Ø41mm), for 24mm or 30mm crank axles
- Dropouts: 15mm, incl. CNC-machined 15mm thru axle (7005 aluminum, fixed)
- Chain tensioner: integrated (Meybo)
- Brake mount: flat mount hydraulic disc only, 120mm rotor only
- Seat post diameter: 25.4mm
- Frame weight: 1402g (manufacturer)
- Fork: SD Components "Carbon V2" BMX Race Fork
- Material: carbon (legs), 7000 series aluminum (steerer)
- Wheel size: 20" (406)
- Axle: 20mm
- Steerer: tapered 1-1/8" - 1.5", 180mm (not cuttable)
- Compression bolt: M22 x 20mm
- Fork height: 310mm
- Offset: 30mm
- Fork weight: 680g (incl. compression bolt)
- Content: 1 frame incl. 15mm thru axle and rotor spacers, 1 fork
