Meybo "HSX AL Pro 22" 2026 BMX Race Frame + Fork Set

1,157.95 EUR

Taxfree excl. shipping

Color | Top Tube Length

Please Select
- - berry/orange | 21.93"
  - purple/pink | 21.93"

Straight to the checkout with PayPal: delivery address and payment come from there. The amount (incl. shipping) is only reserved and charged only when you order. Vouchers & discount codes can then be redeemed in the checkout.

pick up in our shop?

Simply order online, choose as delivery method Pickup and pick up after receiving the pick-up confirmation.

Weight : 2.37kg / 5.22lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Packaging Unit: 1 Set
Product ID (PID): 42558
Product safety

Found an error? Report it. 5 EUR voucher if confirmed.

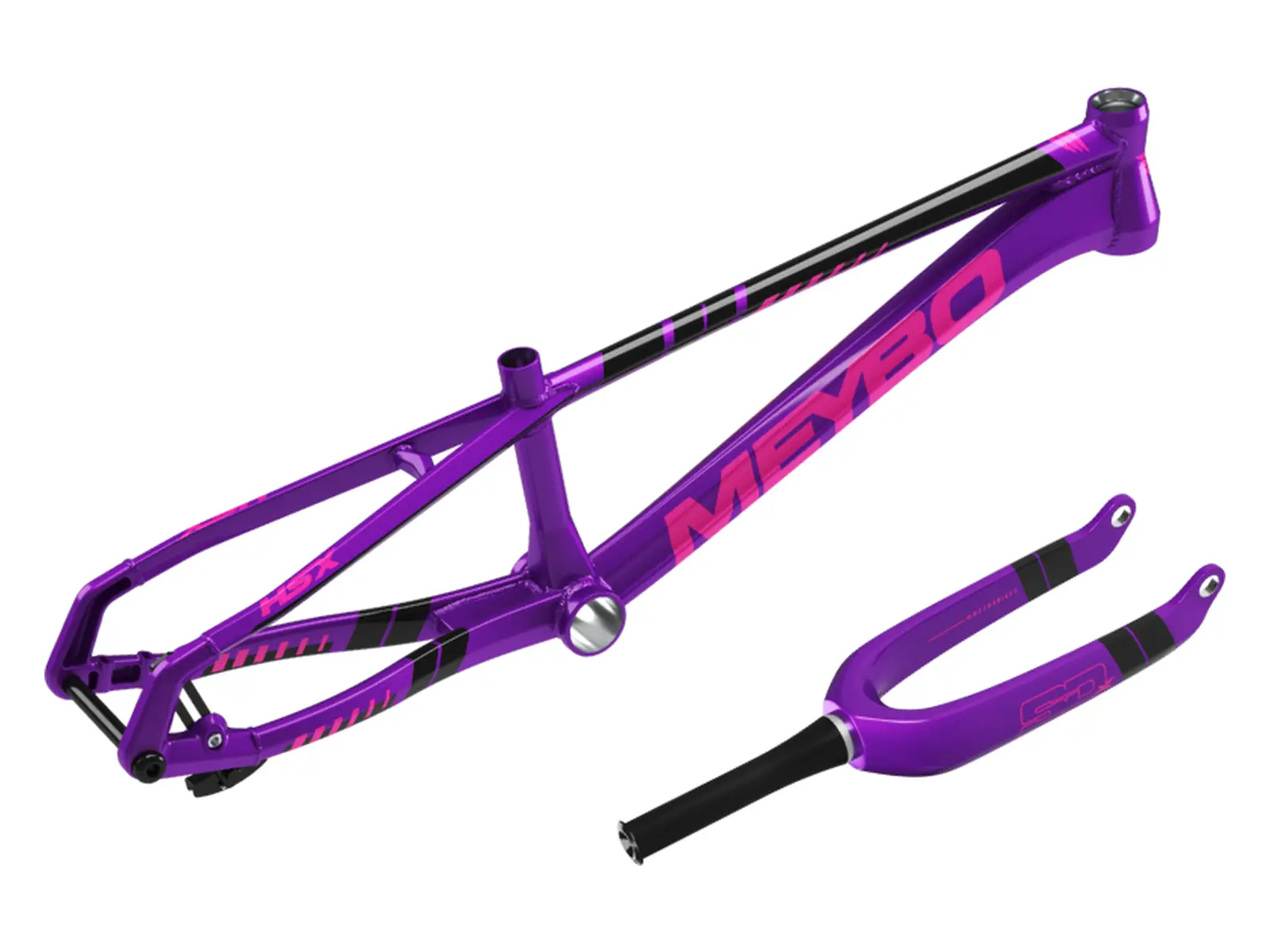

The Meybo "HSX AL Pro 22" 2026 BMX Race Frame + Fork Set combines the Meybo "HSX AL" frame with the SD Components "Carbon V2" fork. The HSX AL is the fastest aluminum frame in the Meybo line-up: hydroformed, multi-butted 6061-T6 tubing, a geometry developed for championship and World Cup tracks, and almost all tubes reworked for the new model for more stiffness at less weight.

The frame is compatible with flat mount brake calipers and 120mm rotors only (not 140mm); 1, 2 and 4mm spacers for rotor alignment are included. Depending on the size it uses a BB86 (Expert, Expert XL) or a BB386 EVO press fit bottom bracket. At the rear, a CNC-machined 15mm thru axle in 7005 aluminum keeps the rear triangle stiff, and the integrated Meybo chain tensioner keeps the chain tension constant with any gearing.

The SD Components "Carbon V2" fork has carbon legs and a 7075-T6 aluminum steerer. Frame and fork comply with the CPSC and EN 14781 standards.

Facts: Meybo "HSX AL Pro 22" 2026 BMX Race Frame + Fork Set

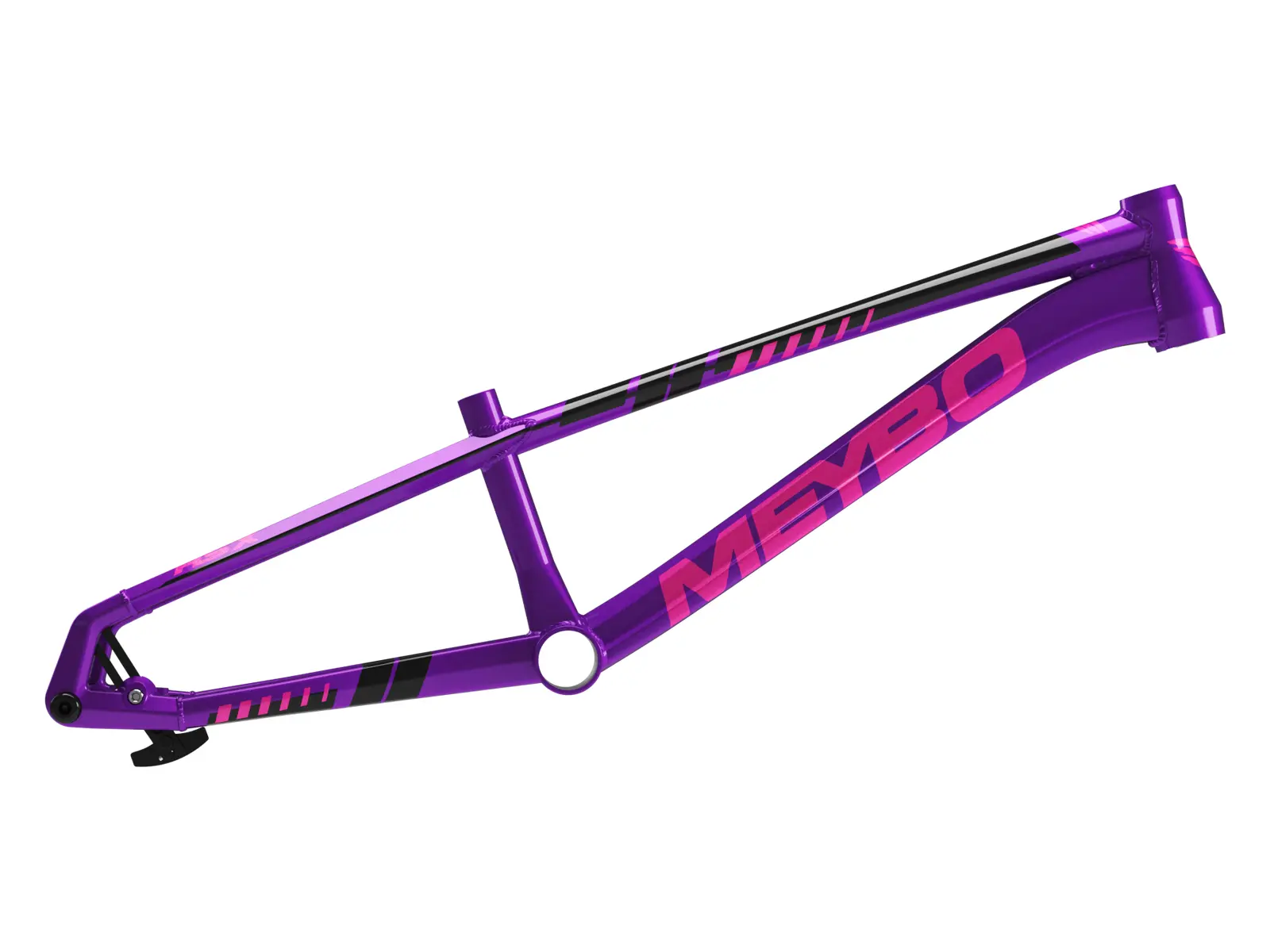

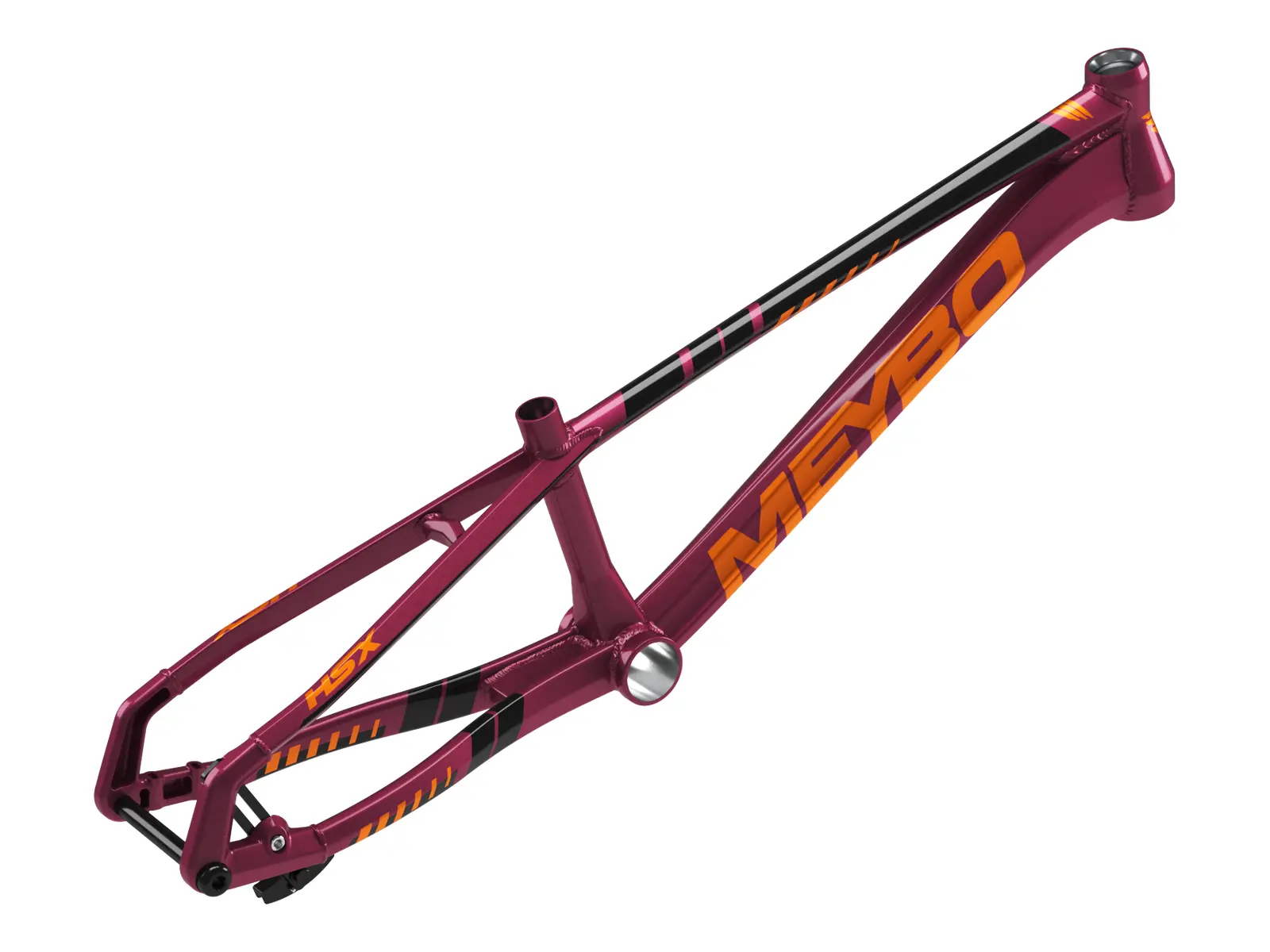

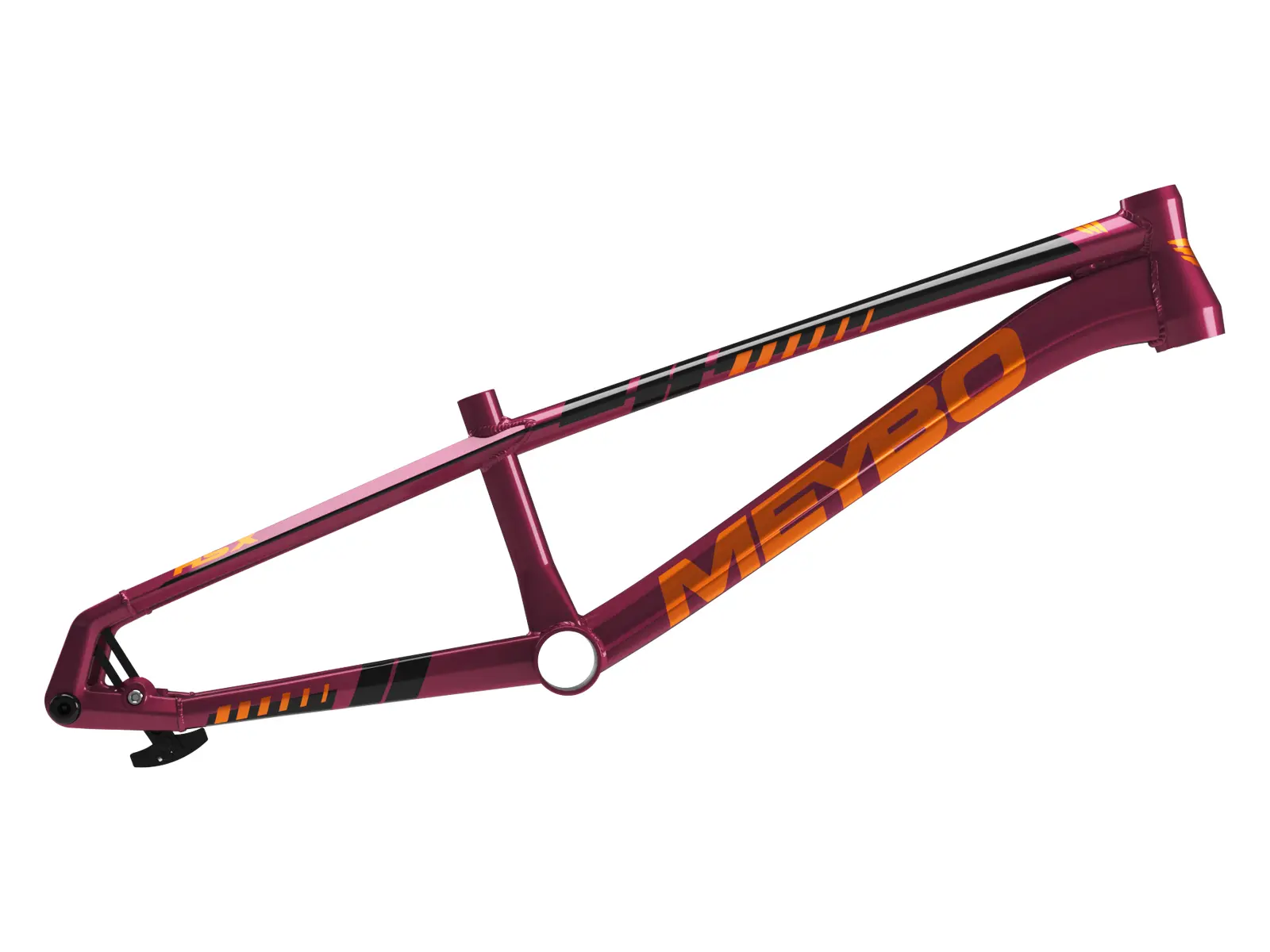

Frame: Meybo "HSX AL Pro 22" 2026 BMX Race Frame
Wheel size: 20"
Race size: Pro
Model year: 2026
Material: 100% 6061-T6 aluminum, hydroformed multi-butted tubing
Geometry:
- Top Tube (TT): 21.93"
- Chainstay (CS): 15.20" (386mm), fixed
- Head Tube Angle (HA): 74°
- Seat Tube Angle (SA): 71°
Head tube: Tapered 1-1/8" - 1.5"
Bottom bracket: BB386 EVO (Ø46mm), for 24mm or 30mm crank axles
Dropouts: 15mm, incl. CNC-machined 15mm thru axle (7005 aluminum, fixed)
Chain tensioner: integrated (Meybo)
Brake mount: flat mount hydraulic disc only, 120mm rotor only
Seat post diameter: 27.2mm
Frame weight: 1687g (manufacturer)

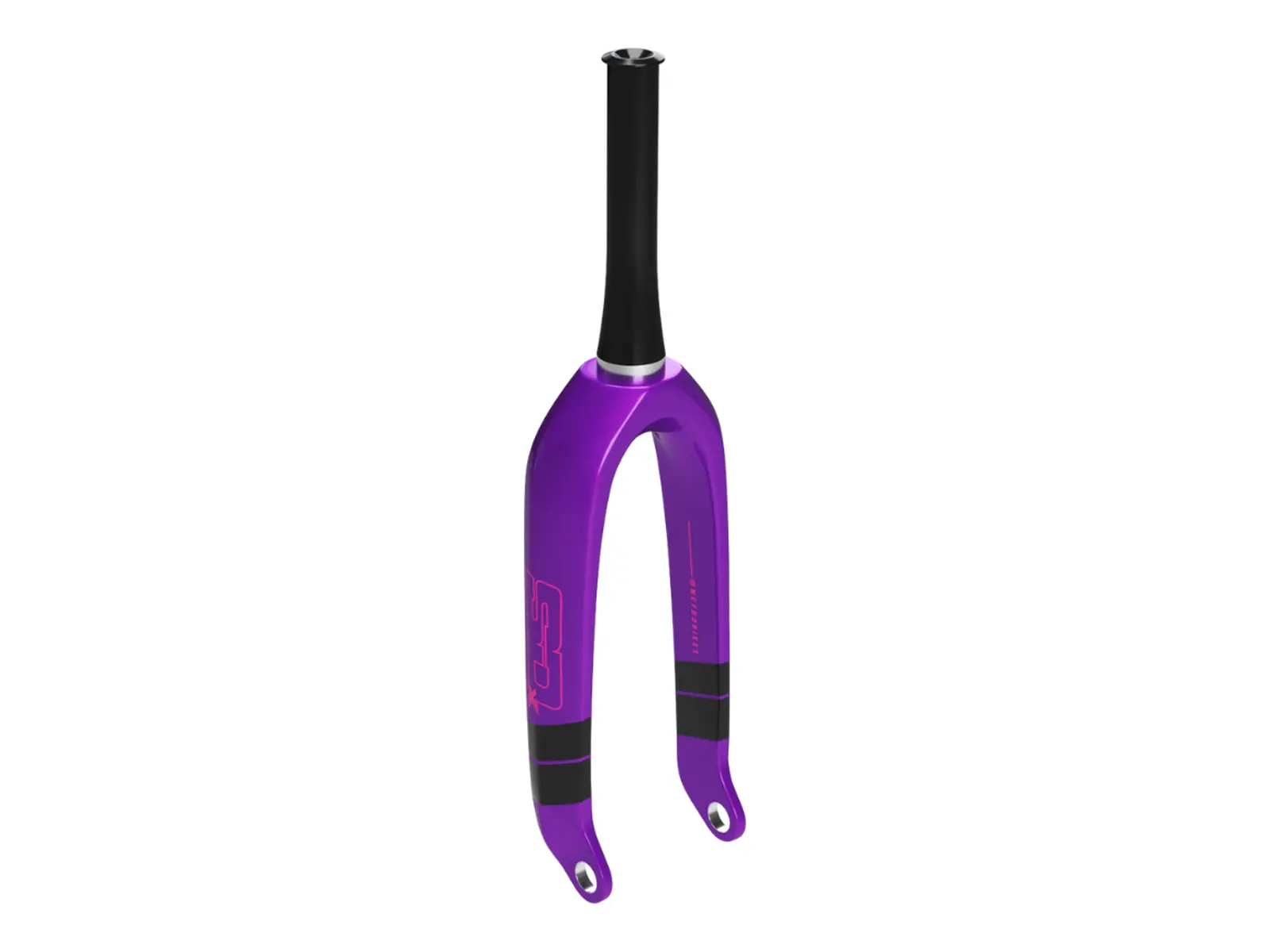

Fork: SD Components "Carbon V2" BMX Race Fork
Material: carbon (legs), 7000 series aluminum (steerer)
Wheel size: 20" (406)
Axle: 20mm
Steerer: tapered 1-1/8" - 1.5", 180mm (not cuttable)
Compression bolt: M22 x 20mm
Fork height: 310mm
Offset: 30mm
Fork weight: 680g (incl. compression bolt)
Content: 1 frame incl. 15mm thru axle and rotor spacers, 1 fork
