Odyssey BMX "Thunderbolt DJ" MTB Crank
kunstform Pick
-
Weight : 0.8kg / 1.76lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 28936
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.
New for 2025! The proven 41-Thermal® heat-treated

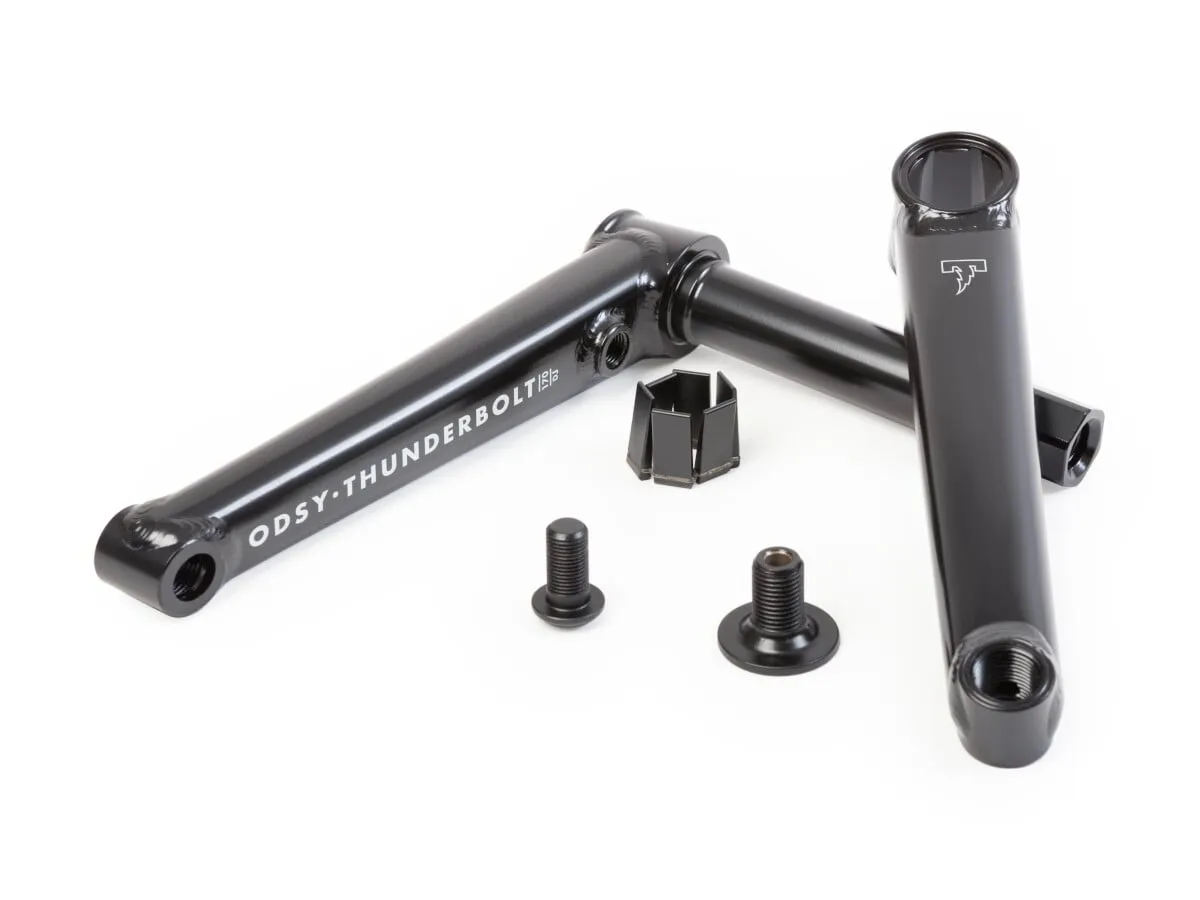

Odyssey BMX "Thunderbolt DJ" MTB Crank
from Odyssey – now specifically tuned for the growing dirt jump/MTB scene.
Based on repeated feedback from Odyssey's test riders who wanted BMX-level durability for larger bikes, the Thunderbolt DJ crank has been equipped with a longer spindle to ensure compatibility with 73mm Euro bottom bracket shells.
The
Odyssey BMX "Thunderbolt DJ" MTB Crank
is one of the most technically advanced crank designs on the market. Thanks to ongoing development of Odyssey’s legendary 41-Thermal® process and specialized heat-treatment system, fatigue life has been significantly increased.
Facts: Odyssey BMX "Thunderbolt DJ" MTB Crank
- Material Crank Arms: 41 Thermal, heat treated
- Material Crank Spindle: 4130 CrMo, heat treated, hollow
- Crank-Type: 2-piece
- Crank Arm Length: 170mm
- Spindle Diameter: 22mm
- Spindle-Type: Hexagon
- possible Sprocket Mount by:
- Bolt-Drive (25T or larger): right (RHD) and left (LHD) (selectable as Option) - Pedal Threat: for 9/16" pedals
- Spindle Bolt: 1x bolts (12x1.25mm) with 6mm allen key
- Sprocket Bolt: 1x bolt (10x1.5mm)(Standard)
- Extras: completely surround welded axle and pedal jacks, including cuff to fix
- Recommended for: Dirtjump, MTB
