Position One "Euro BSA" BMX Race Bottom Bracket - ISIS
- Weight : 0.33kg / 0.73lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45718
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/position-one-euro-bsa-bmx-race-bottom-bracket-isis-p-45718
Printed: 10/29/2026
Printed: 10/29/2026

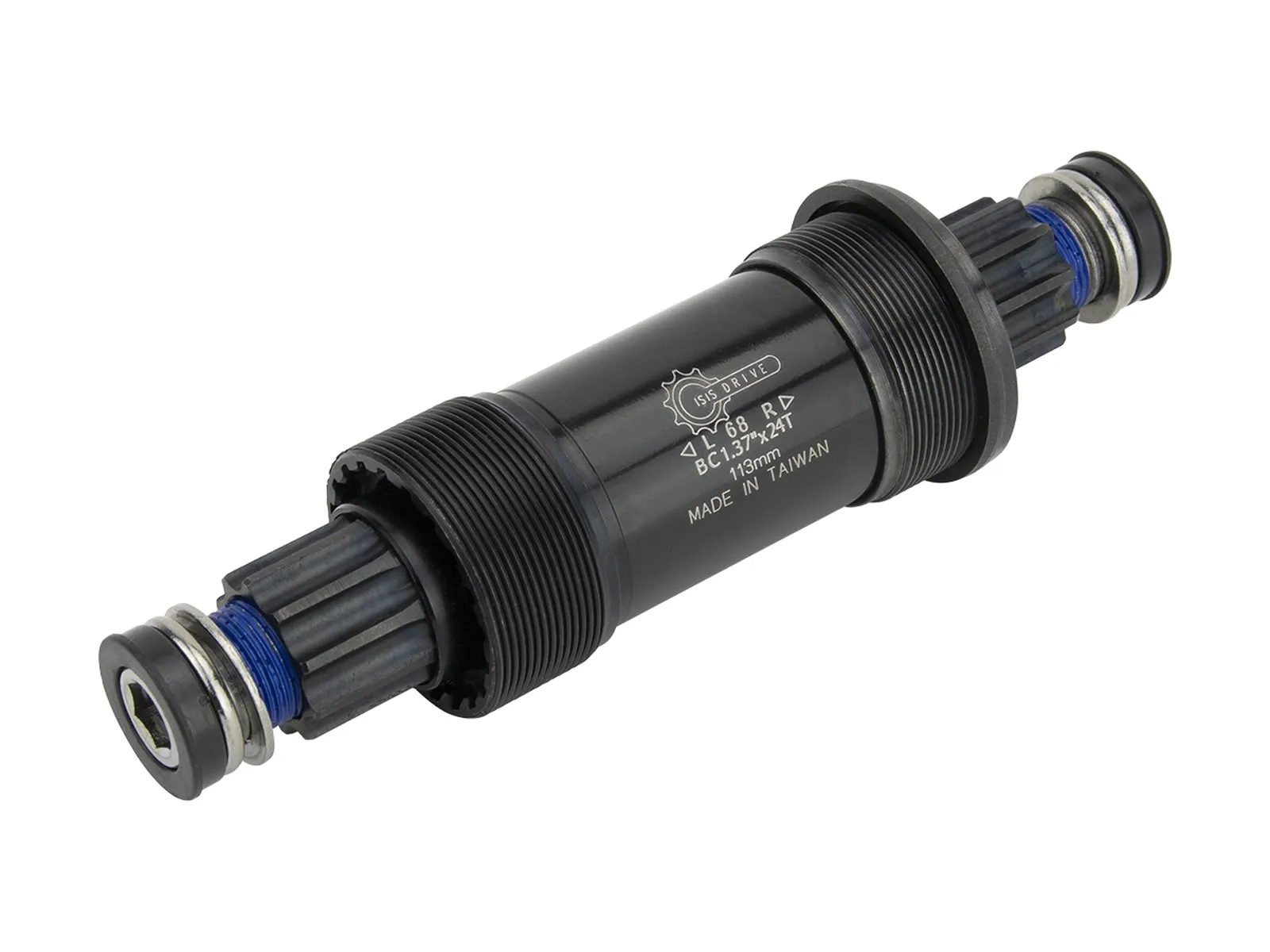

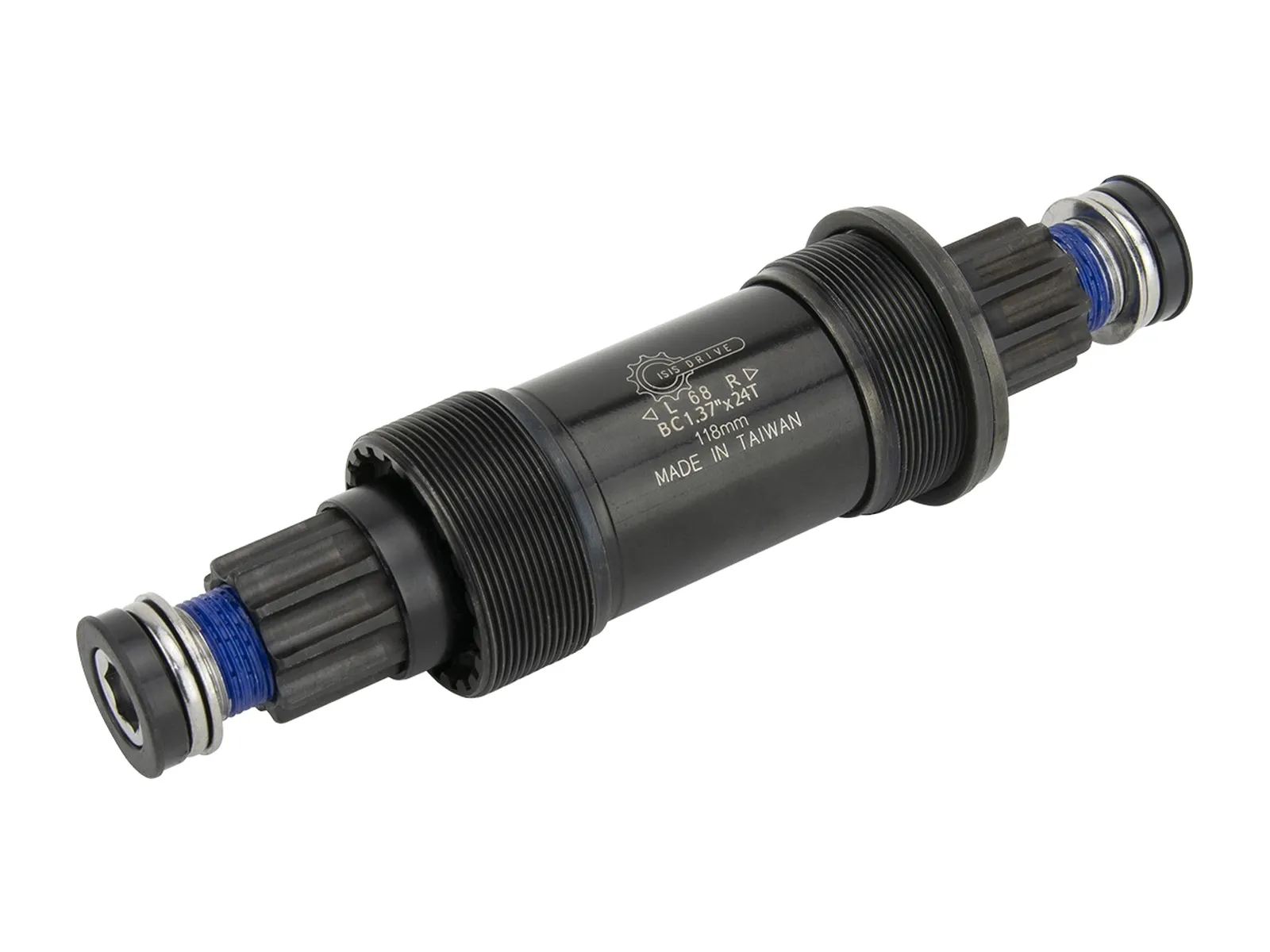

The Position One "Euro BSA" BMX Race Bottom Bracket - ISIS is an affordable cartridge bottom bracket with sealed bearings for young riders. The spindle has ISIS splines and only fits cranks of the same standard.
It only fits frames with an internally threaded Euro BSA/BSC shell, 68mm wide with a 34.5mm diameter. Two spindle bolts are included, the spindle length is 113mm or 118mm. Best measure the spindle of the bottom bracket you want to replace.
Facts: Position One "Euro BSA" BMX Race Bottom Bracket - ISIS
- Style: BSA (Euro, cartridge)
- Thread: BSA/BSC
- Shell width: 68mm
- Outside diameter: 34.5mm
- Axle Diameter: ISIS
- Axle length: 113mm or 118mm
- Bearings: 2 x sealed bearings
- Contains: 1 cartridge bottom bracket, 2 spindle bolts
- Extras: for ISIS spline cranks only, weight 334g (118mm with bolts)
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
