Position One "Press Fit" BMX Race Bottom Bracket - 24mm
- Weight : 0.08kg / 0.18lbs
- Packaging Unit: 1 Set
- Product ID (PID): 45684
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/position-one-press-fit-bmx-race-bottom-bracket-24mm-p-45684
Printed: 10/29/2026
Printed: 10/29/2026

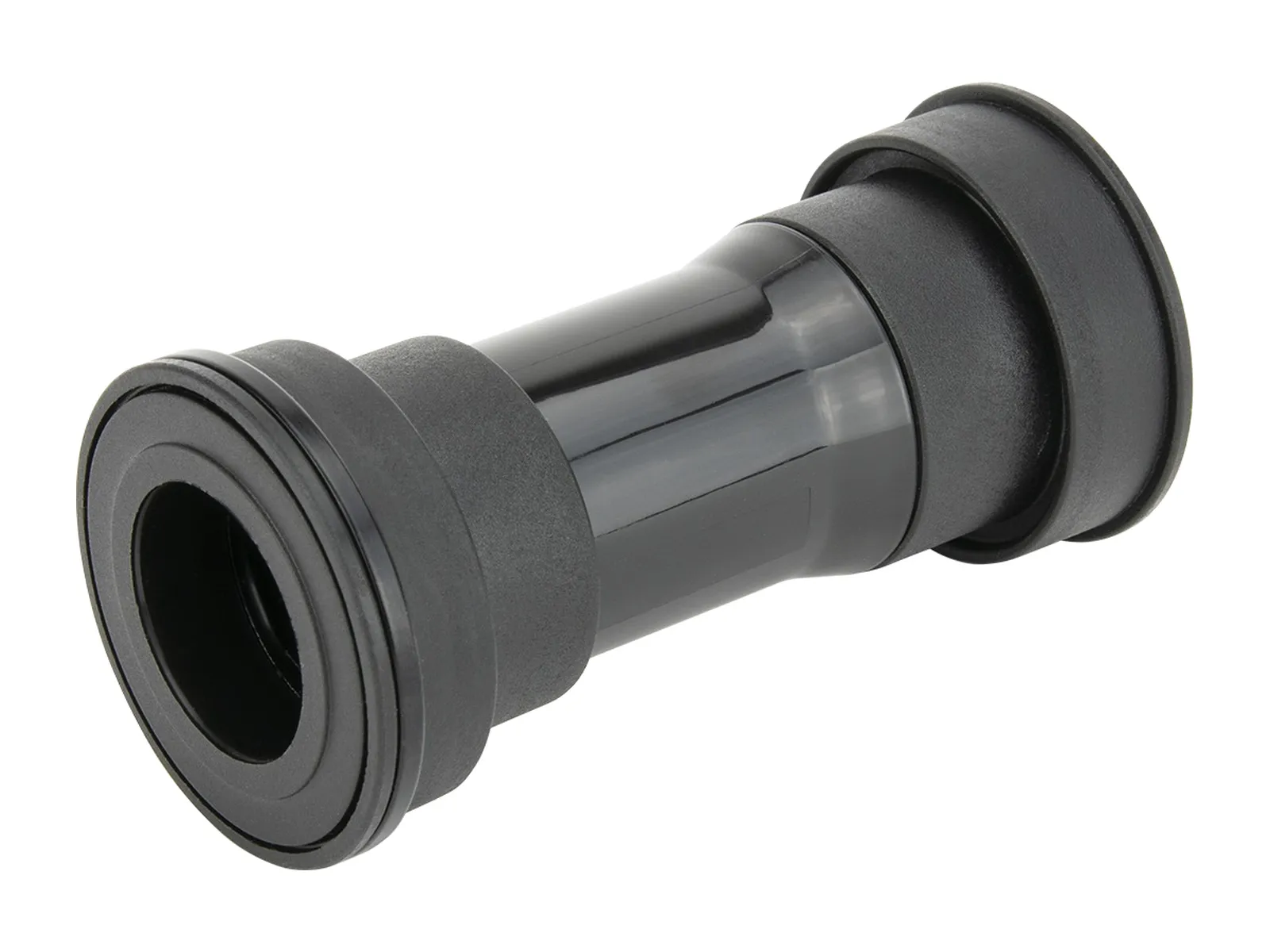

The Position One "Press Fit" BMX Race Bottom Bracket - 24mm is an affordable press fit bottom bracket with sealed bearings for cranks with a 24mm spindle. The cups are made of synthetic resin, which saves weight and gives a precise fit in the frame.
It only fits frames with a press fit BB86 shell (41mm inner diameter, 86 or 92mm wide).
Facts: Position One "Press Fit" BMX Race Bottom Bracket - 24mm
- Style: BB86 press fit (86/92mm)
- Outside diameter: 41mm
- Axle Diameter: 24mm
- Bearings: 2 x sealed bearings
- Material: synthetic resin cups
- Extras: for frames with a press fit BB86 shell only
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
