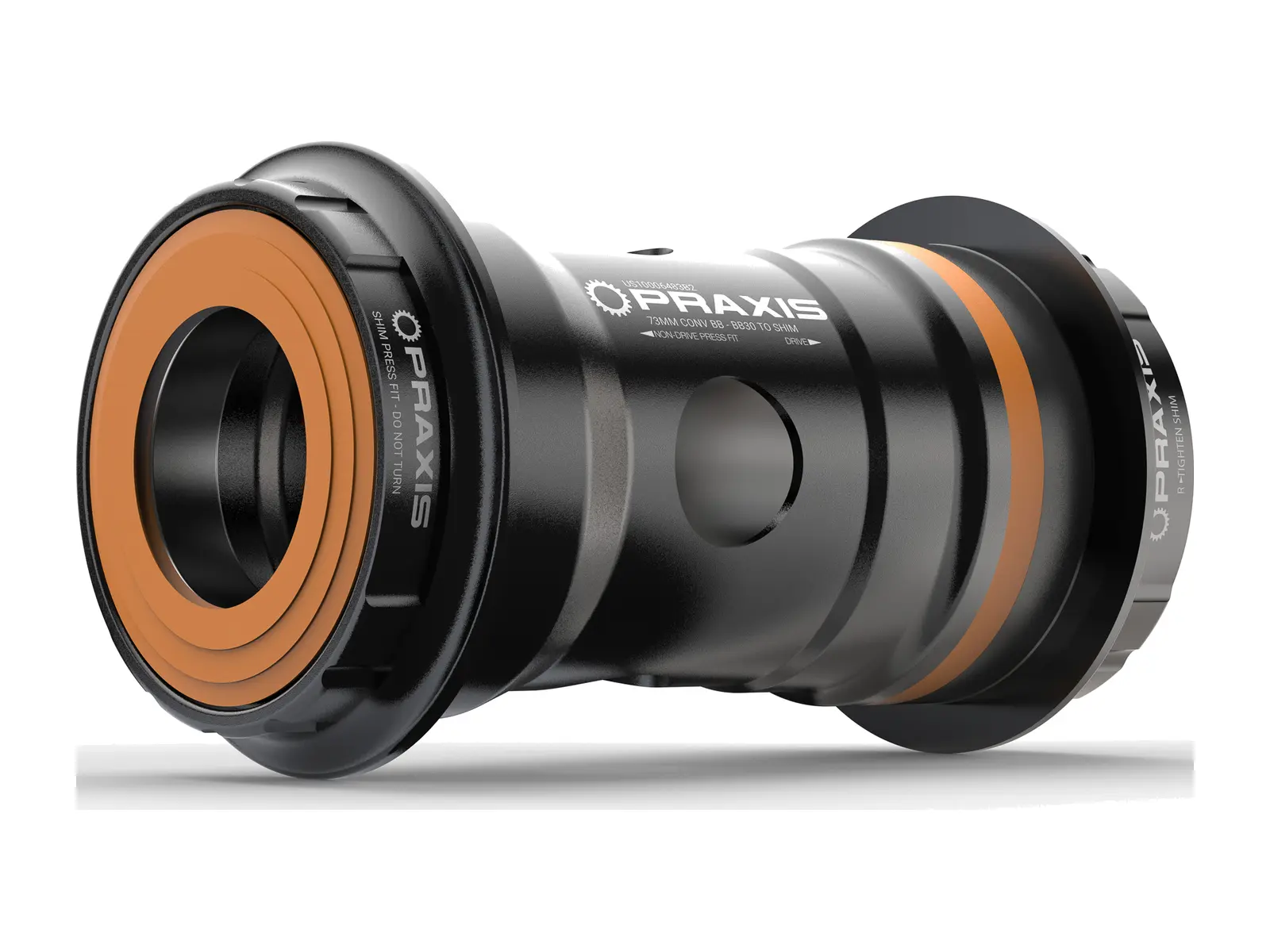

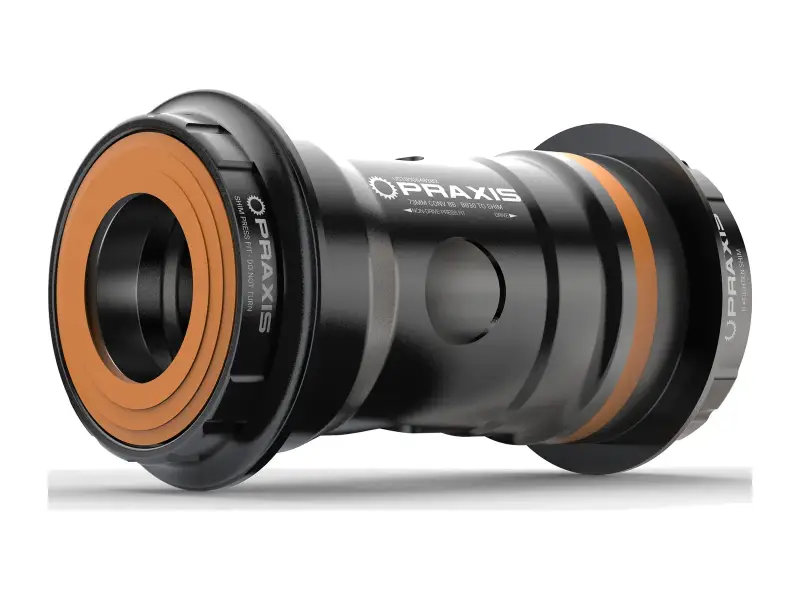

Praxis Works "BB30/PF30 Conversion" MTB Bottom Bracket
-
Weight : 0.15kg / 0.33lbs
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.Source: BMX Glossary
- Packaging Unit: 1 Set
- Product ID (PID): 40338
- Product safety
Found an error? Report it. 5 EUR voucher if confirmed.

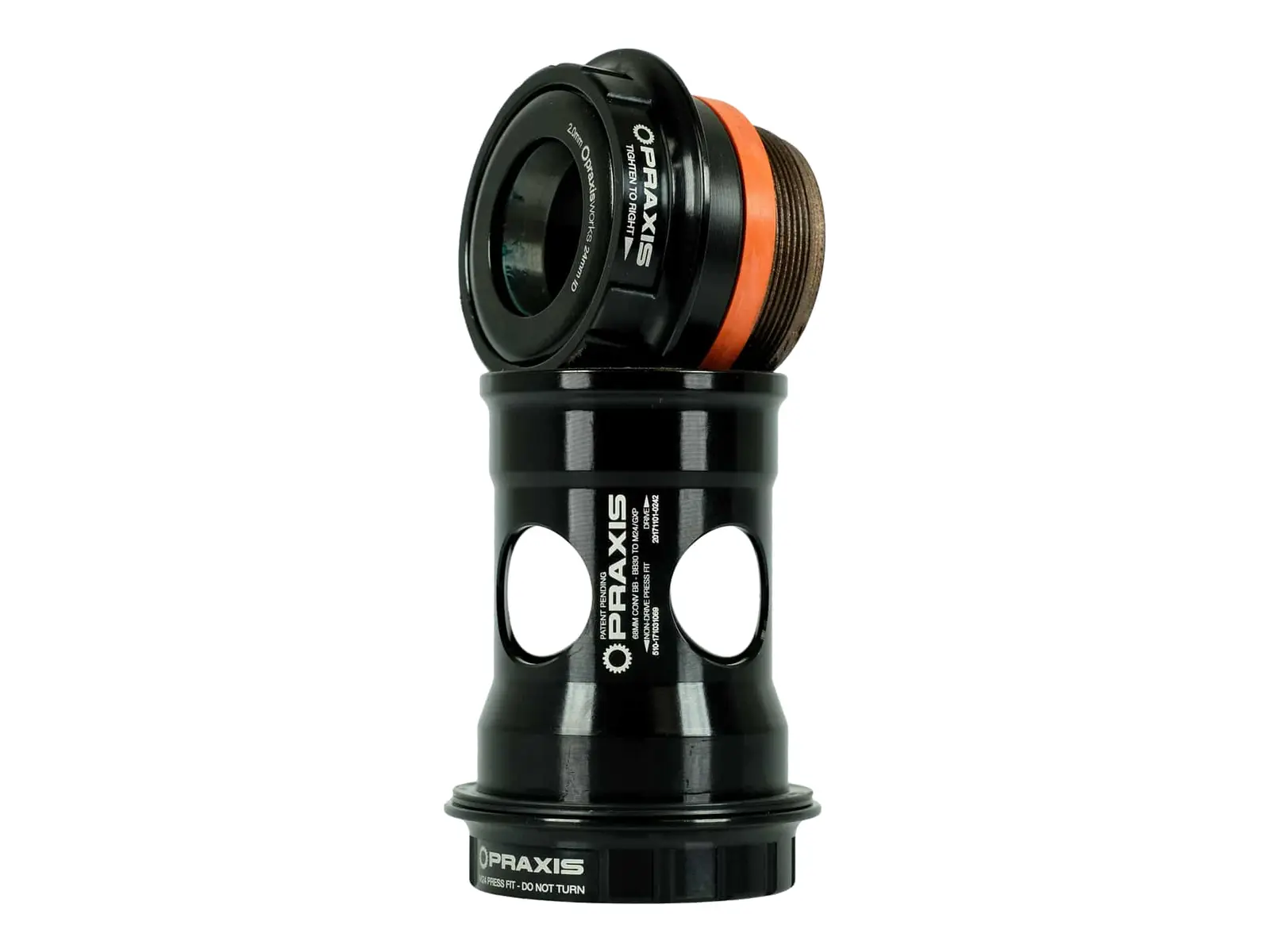

The Praxis Works "BB30/PF30 Conversion" MTB Bottom Bracket is the conversion bottom bracket from Praxis Works for 73mm wide BB30 and PF30 shells on mountain bikes. The two halves are pressed in and threaded together in the middle (Praxis collet design), so cranks with a smaller spindle fit the big shell. The cups are forged and machined from heat-treated aluminium. Your crank decides the version: M30 Thru for 30mm spindles, M24 for SRAM GXP or Shimano Hollowtech II. Not for road cranks and not for the Cannondale proprietary BB30a and PF30a.
Facts: Praxis Works "BB30/PF30 Conversion" MTB Bottom Bracket
- Material: cups aluminium, forged, machined and heat-treated
- Style: conversion bottom bracket, pressed in and threaded together in the middle (Praxis collet design)
- Outside diameter: BB30 42mm, PF30 46mm
- Axle Diameter: 24/22mm, 24mm or 30mm
- Shell Width: 73mm (MTB)
- Bearings: steel cartridge bearings (M24 and Shimano: Enduro 2437, M24 non-drive side 2237)
- Scope of Delivery: 1 bottom bracket, the Shimano version with sleeve for PF30
- Extras:

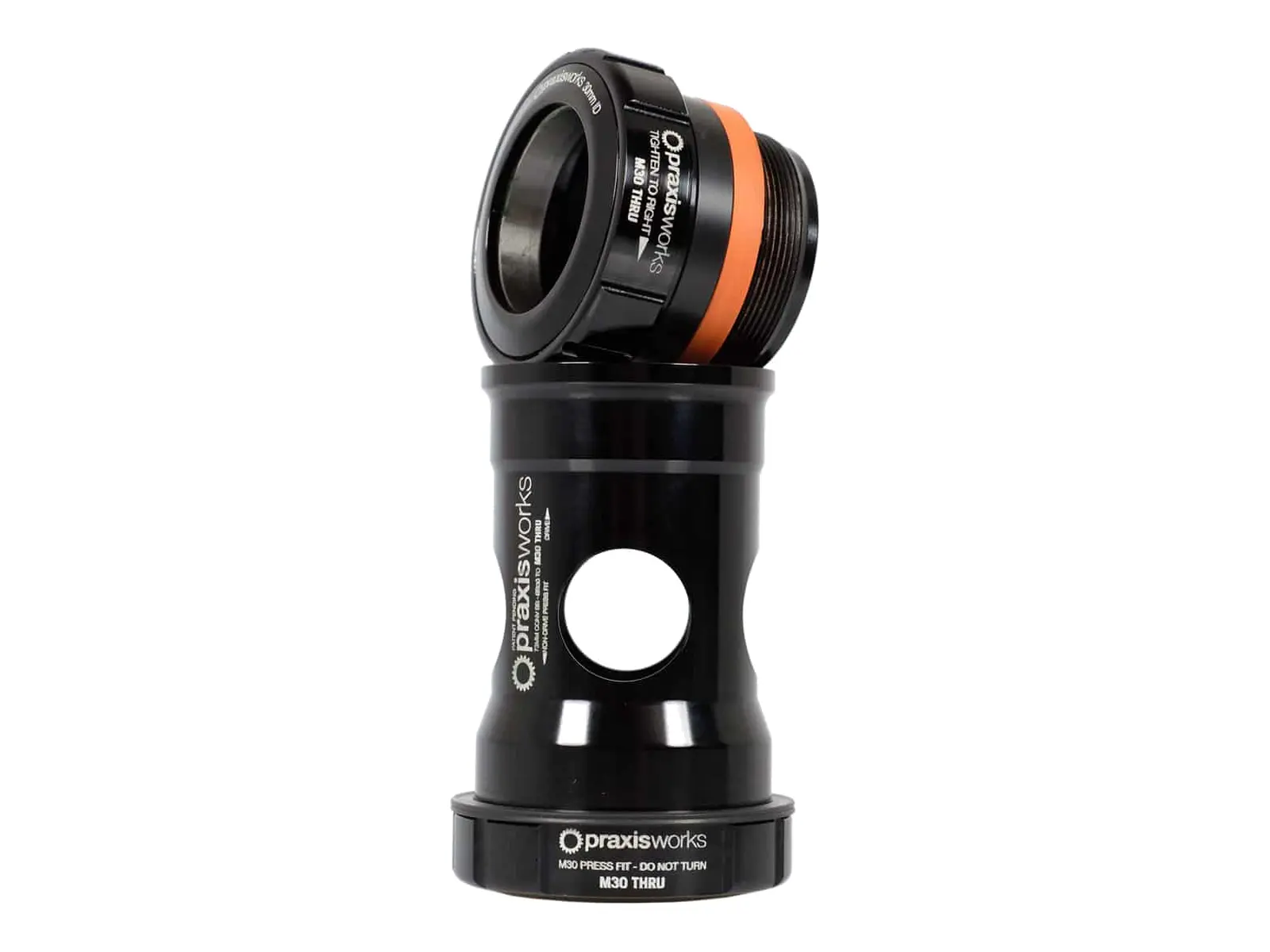

- M30 Thru: for cranks with a straight 30mm spindle, bearings 30mm/30mm, spindle length 108mm or longer
- M24: for Praxis M24 and SRAM GXP steel spindles (24mm/22mm)
- Shimano: for Shimano Hollowtech II MTB cranks
- not for road cranks, not for Cannondale BB30a/PF30a, the shell must not have cable guides or screws inside
- installed with a press tool and two tools (M30 Thru: two Praxis M30 socket tools, M24 and Shimano: two 44mm, 16 notch bottom bracket tools)
- weight approx. 145g (M24), 140g (Shimano), manufacturer
These details come from manufacturer and supplier data. Found an error? Report it, there is a 5 EUR voucher for every confirmed error.
