Pride Racing "Matrix" BMX Race Fork
- Weight : 0.62kg / 1.37lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 28634
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.

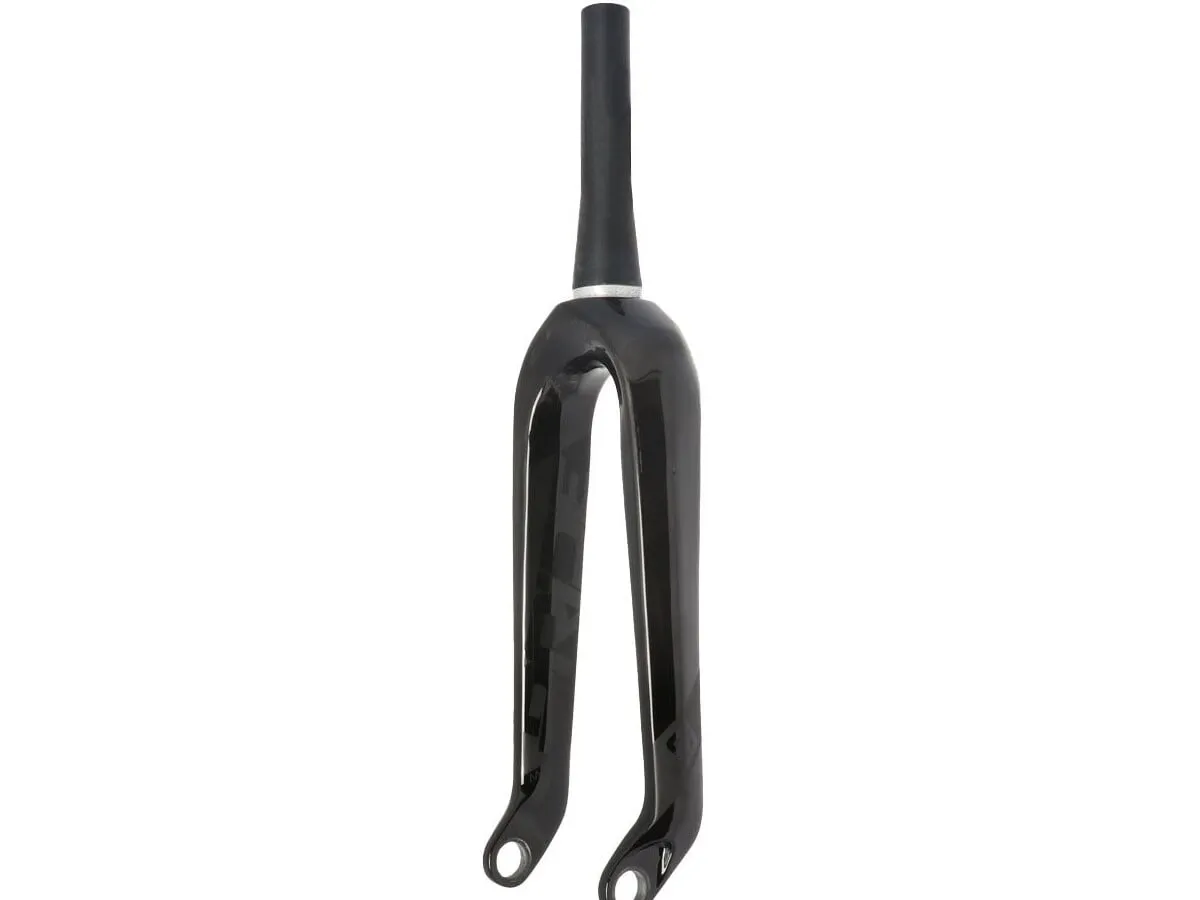

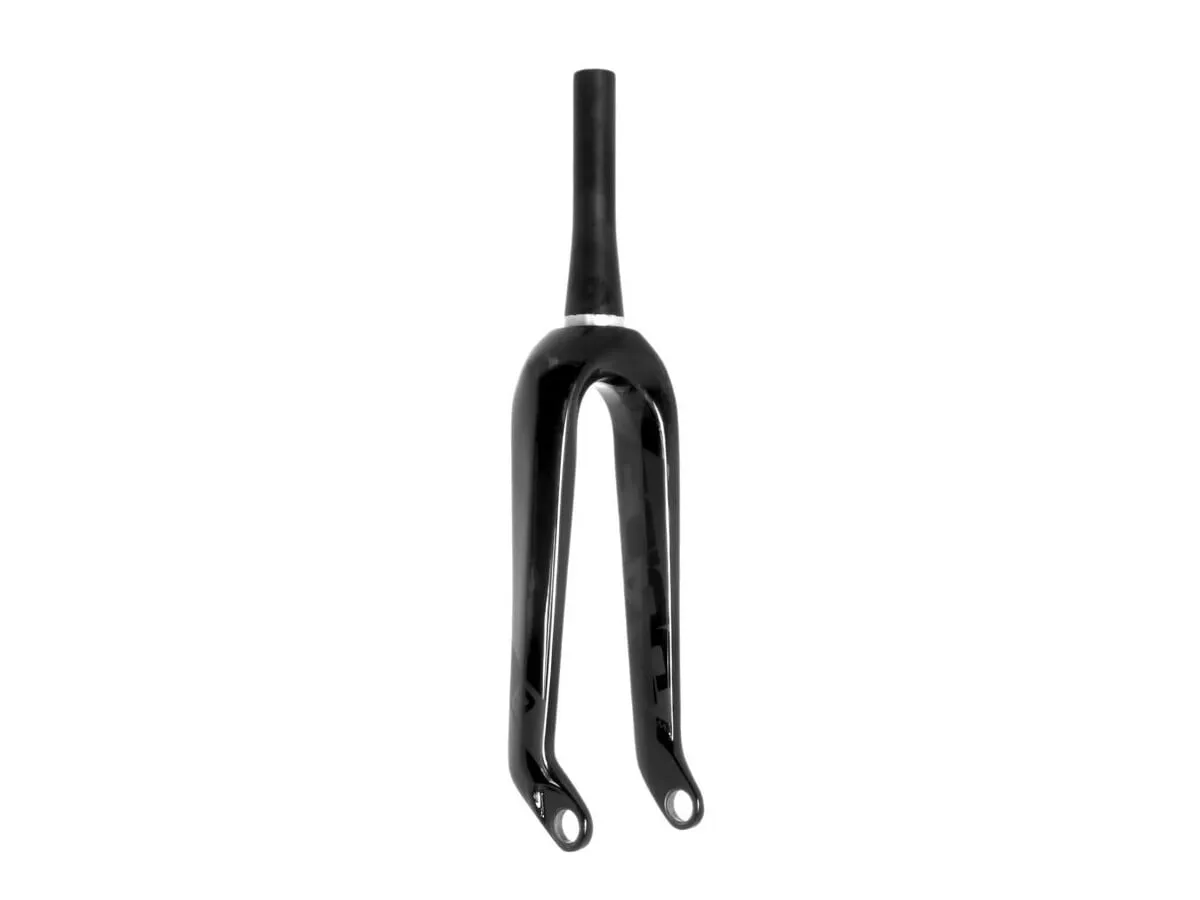

The Pride Racing "Matrix" BMX Race Fork is Pride Racing's carbon fork with a tapered steerer for BMX race, in a gloss/matte UD finish. It is made of two parts: legs from Toray carbon with an internal polymer structure and a steerer from 7075-T6 aluminium, the steerer tapers from 1-1/8" to 1.5" and is 165mm long. With 30mm offset, 309mm fork height and 8mm thick dropouts for a 20mm thru axle (axle not included) it is built for BMX race only and complies with the EN 16054 standard. The Pride Racing "Matrix" BMX Race Fork weighs 659g including the supplied M22x1.5 compression bolt, which is tightened to 8 Nm max, the stem to 13 Nm max and the hub axle to 8 Nm max.
Facts: Pride Racing "Matrix" BMX Race Fork
- Wheel Size: 20"
- Material: Toray carbon with internal polymer structure, 7075-T6 aluminum steerer
- Steerer Tube Diameter: 1-1/8" - 1.5" (28.6mm - 38.1mm)
- Steerer Tube Length: 165mm
- Top Bolt: M22x1.5mm thread, 20mm long, included (8 Nm max)
- Dropouts: 8mm thick, 20mm thru axle (axle not included)
- Offset: 30mm
- Bearing race: Without
- Recommended for: BMX Race
- Extras: fork height: 309mm, weight: 659g (with compression bolt), complies with EN 16054, max. torque: stem 13 Nm, hub axle 8 Nm, for BMX race only
