Reverse Components "AirCon" Brake Rotor
- Weight : 0.15kg / 0.33lbs
- Packaging Unit: 1 Piece
- Product ID (PID): 33059
- Product safety
Weight
The heaviness of a BMX part, measured by weighing. It's worth noting that weight specifications for BMX parts can vary and may not always be precise. Several factors contribute to this:Manufacturer's weight specifications may be inaccurate or incomplete.The weight of two identical parts can also differ.We cannot weigh every individual part.For example, if there are handlebars in different heights, the manufacturer usually provides just one weight specification for all heights. When weighing two identical tires, you might get two different results.
Source: BMX Glossary
Found an error? Report it. 5 EUR voucher if confirmed.
Online: https://www.kunstform.org/en/reverse-components-aircon-brake-rotor-p-33059
Printed: 10/21/2026
Printed: 10/21/2026

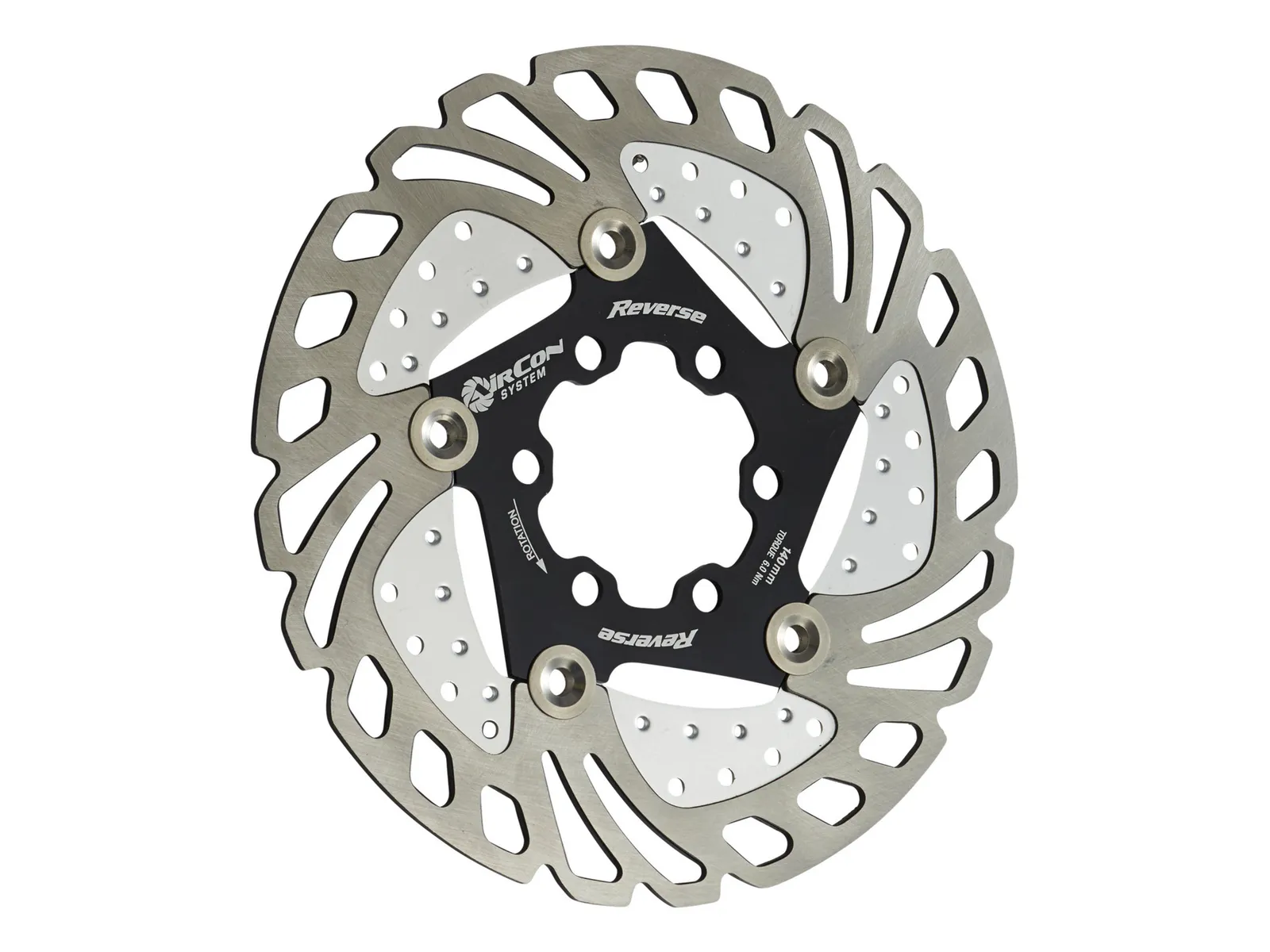

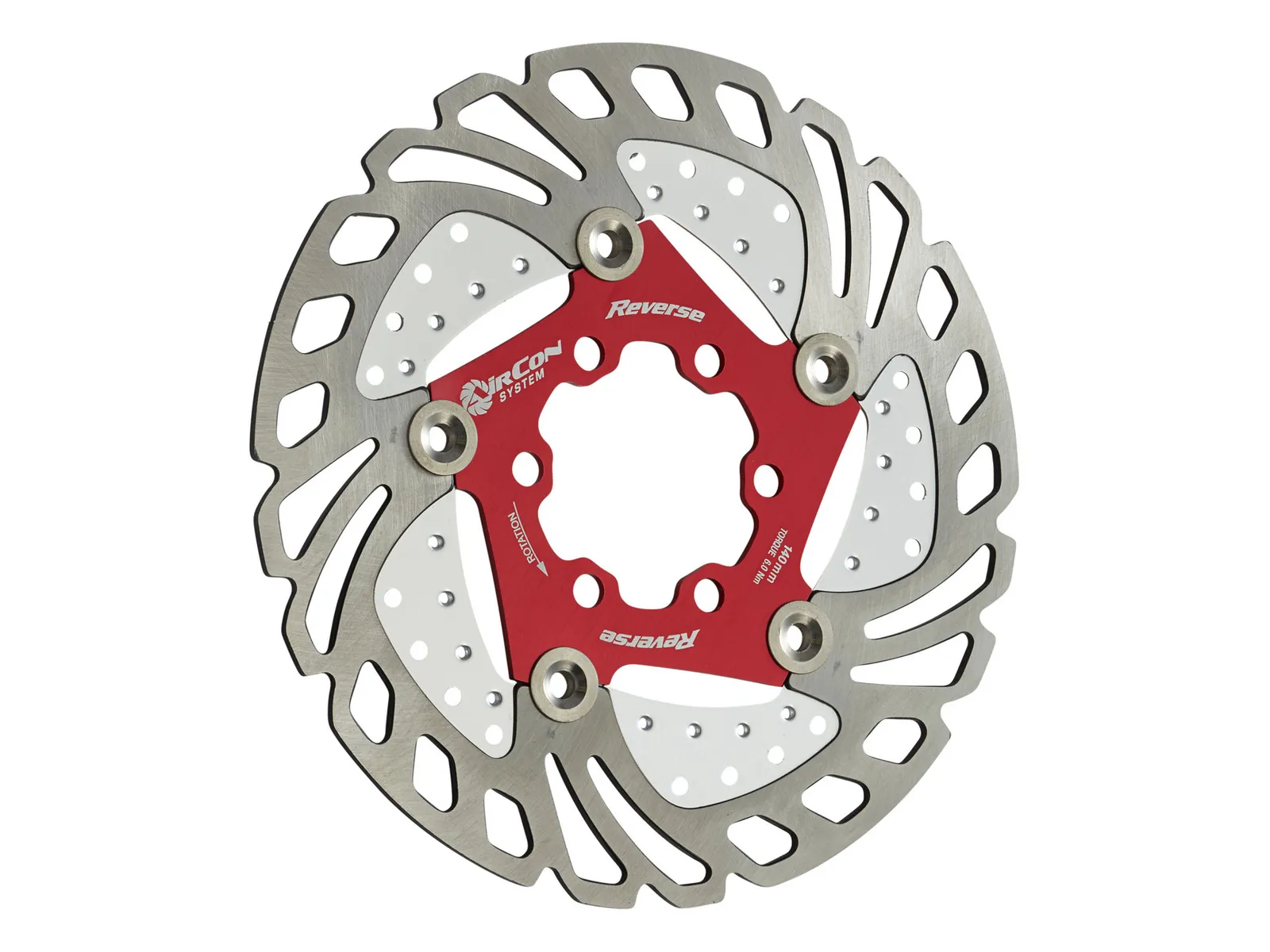

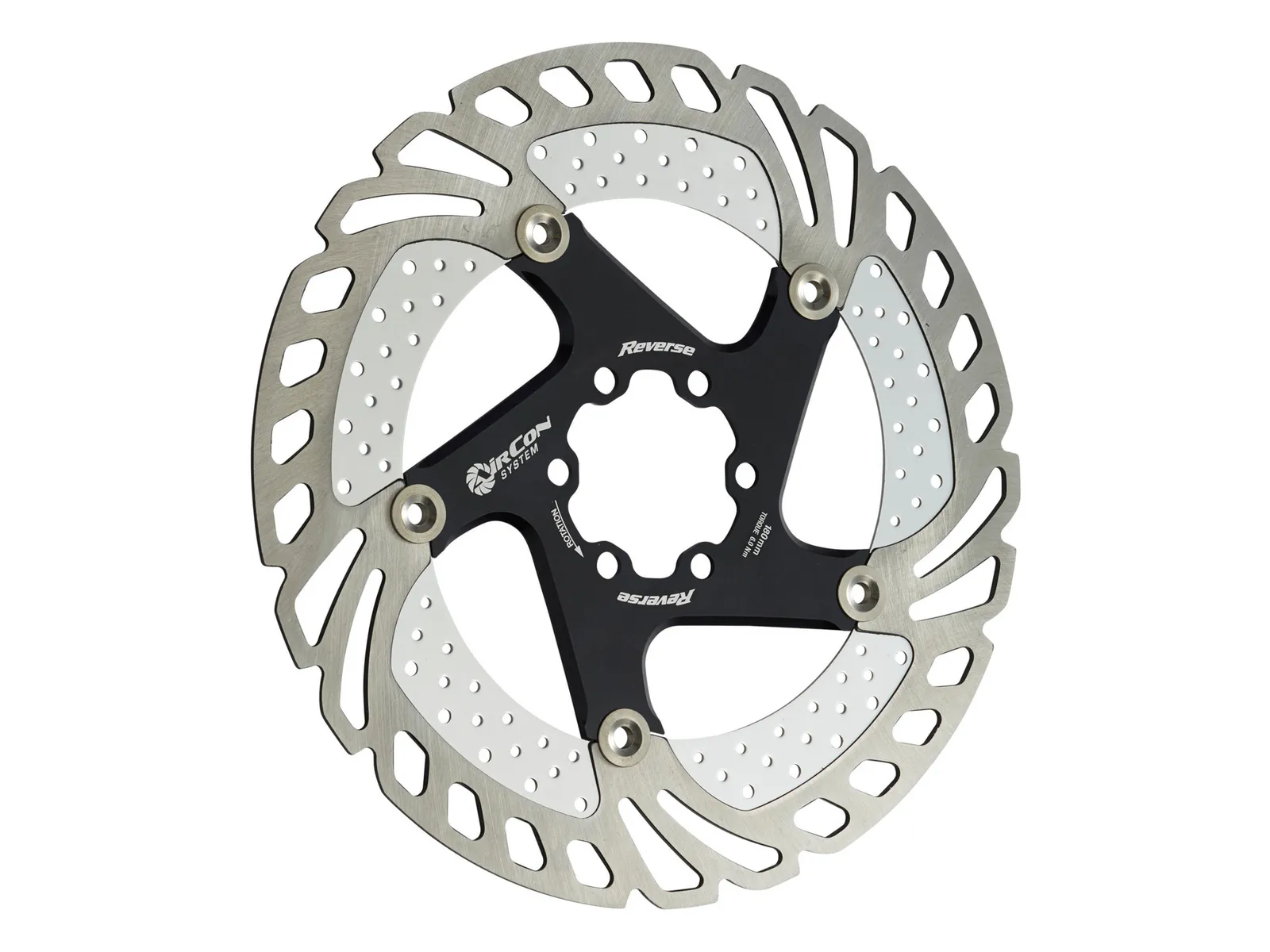

The Reverse Components "AirCon" Brake Rotor is the three piece rotor from Reverse: a steel braking track, an anodised aluminium spider and the cooling fins between them that give the system its name. Reverse measures around 50 degrees less than on a plain rotor after a minute of continuous braking, and it is back down to ambient about 20 seconds sooner. The rotor is 1.8mm thick, fits any hub with a 6 bolt mount and is torqued to 6 Nm. Reverse names one restriction itself: it does not fit the Fox 32 with QR15 x 100mm.
Facts: Reverse Components "AirCon" Brake Rotor
- Diameter: 140mm or 180mm
- Mount: IS 6 bolt
- Material:
- braking track: steel
- cooling fins and spider: aluminium - Weight: 101g (140mm), 149g (180mm)
- Content: 1 brake rotor
